ANAUNIA's movable sound-proof partition walls enable variable configurations of space partitioning for the most logical and effective use of available space. A high level of practicality is evident when moving and locking the panels into place, due to their high-quality components.
They make use of vertical inter-locking design features and are designed to achieve perfect visual and geometric continuity and total sound-proofing. Telescopic elements are placed at the top and bottom of the panels in order to seal the gaps between the panel and the floor/ceiling. Doors are built into the panels and do not exceed the width of the panel.
They are available in different styles, in single or double leaf. Locking the panels into position, and unlocking them is quick and easy thanks to the mechanical system and handle. The panels are moved easily along the solid single and double ceiling rails, rendering a floor rail unnecessary. Stacking away the panels is extremely easy, and is usually done out of sight.
Colours and finishes are an important final part of the design. ANAUNIA offers both standard solutions and an unlimited range of tailor-made solutions, using finishes in wood, laminates, furniture upholstery, mirror, synthetic materials and so on, in the colours and patterns requested..
|
|
Offer unparalleled sound control in addition to providing privacy and security separation. TranZform Sound units are STC 45 rated per ASTM E 90.
Materials and Finishes: Continuous length, 4 1/2” wide panels formed of vinyl clad 24 gauge steel, corrugated and reinforced with double rolled end beads for strength and resilience. Double wall construction where both interior panel surfaces are fitted with continuous blankets of sound absorbing material attached with tear resistant fasteners for lasting retention of the sound liner. Concealed, internally mounted diagonal stabilizer bar support provided for units greater than 14’H & units over 12’H when greater than 40’ W.
|
|
As opposed to the Mono, the Progress has double-sided panels.
The Progress' lightweight construction and its use of lightweight materials allow for an optimum ease of operation. Notwithstanding its lightweight construction, the insulation value of this model is as high as 28-31 dB Rw.
Of course, this model is available in a variety of different finishes.
|
|
|

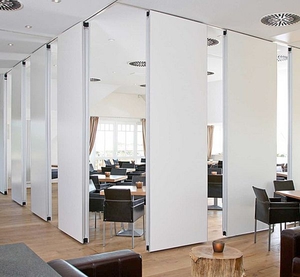

With our Phonic folding wall we prove that it is possible to combine maximum flexibility with a high degree of sound insulation. The Phonic is a sturdy wall that can be opened and closed quickly. In short, the Phonic gives a new dimension to flexibility. The Phonic is available in several versions; closing on one side, centre closing or closing on both sides. It is also possible to connect several walls to each other, and even a full height pass door is optional.
|
|
Besides our standard sound-absorbing products Recytex offers silent-office wall, a highly effective and at the same time flexible combination of room-divider and ceiling-panel.
The room-divider is a modular sound-absorber with high absorption. You determine the size and shape. Adding more elements is always possible. Different surfaces and colours are available.
|
|
|
tela-design delivers partition walls as well as sliding doors as sound insulation or sound absorption means. Materials such as glass, acrylic, MDF as well as textile are available. tela develops according to the project's requirements in terms of dimension, design as well as features.
|
|
|
Our partition wall systems, forming an integral part of any interior, create flexibility in use of space. We offer top quality in a range of product designs, with customisable finishes, up to and including mobile glass partition walls.
|
|
Ease of operation, design and flexibility. The Palace 110 satisfies the most stringent requirements a user may demand from a movable wall.
The Palace 110 is made up out of various different panels. These panels can be finished in a variety of different styles. Even curved walls and tracks can be delivered! This will enable you to design a wall that meets your requirements entirely, both technically and aesthetically.
The Palace 110 has excellent acoustical properties. When it comes to sound insulation, the Palace 110 is by far the most obvious choice. Although the panel thickness of the Palace is only 110 mm, its sound insulation value measures as high as 37-57 dB Rw.
Because of its metal self-supporting frame construction, a height of more than 15 metres can easily be reached by the Palace 110.
|
|
This slim wall meets all functional requirements more than sufficiently in spite of its lightweight construction. The Palace 80 is a very solid and comfortable wall.
With a panel thickness of only 80 mm, the panels will take up only a small amount of space in parked position. The trolleys used to move the panels are suspended from an aluminium bearer that runs horizontally through the wall. This bearer is attached to vertical aluminium profiles. In this way a durable bearing construction is created that does not place any strain on a single point.
This wall weighs relatively little thanks to the slim panels and the lightweight construction, enhancing its ease of operation. Both the stability and sound insulation (36 - 44 dB Rw) of this wall are excellent.
|
|
|
The Moderco 700 series offers a technologically advanced, aesthetically pleasing design. It uses a unique welded steel frame that permits all substrates (skins), both tackable and steel to be welded to the frame. It never requires substrates or skins to be glued or mechanically attached to the frame. This construction provides a durable, unitized panel that will last for years of rugged use. The basic panel construction is combined with wraparound finishes for a trimless, monolithic appearance. Deep interlocking vertical astragals at all panel joints align panels ensuring a smooth wall face while providing an acoustic seal. Automatically setting and retracting bottom seals provide 2 inches of operating clearance to accommodate for floor variation and or deflection. This combination of features together with the 700 series options and many varied finishes make it an outstanding choice for your applications as it combines aesthetics, acoustics, and durability in one construction.
|
|
|
The "look" is a removable partition-wall with framework aluminum, thickness 74 mm, consisted of an insulating heart and two facings. It is personnalisable in dimensions and the decorations specific to each building site.
|
|
|
|
|
|
CHARACTERISTICS
Movable wall system 100 of total thickness 100 mm, with perfilería seen, and sound insulation included between 39 and 50 dB Rw, made up of a autoportante aluminum structure extrusionado in alloy 6063 according to norm UNITES 38-066-89, and treatment of hardness T-5 type, suspended by two cars of bearing in guide superior of multidirectional type, allowing to an express and precise movement of the modules, smooth and quiet form and with total absence of guide inferior, with system of fast anchorage by means of unique drive of quarter of return.
This system of tread is devised to move the modules to distant points of its position of closing.
The structure system allows to apanelar the outer surface of the modules with any finished type of, according to precise needs, as they can be natural wood plate panels varnished, stratified HPL, melamines, PVC, etc.
This system is made up of independent modules, with opaque possibilities of arranging, modules, doors, glazed, etc, suspended of sliding guide, and equipped with system of by telescope inferior and superior for the anchorage of the same in its compartmentation position, guaranteeing therefore the perfect seal in all the perimeter of the compartmentation, as well as a high stability of the system.
|
|
|
Flexica is the most flexible office partition on the market and the wide range of solutions makes it suitable for office environments, focusing on flexibility. Flexica has a narrow horizontal transom that divides the wall into panels.The panels can either be glass, plasterboard or MDF panels covered with vinyl, veneer or steel. Apart from being a flexible, relocatable office partition, Flexica can be combined with other Triplan product ranges.
|
|
|
|
|
|

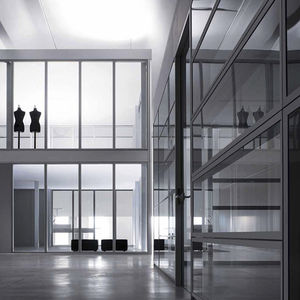

ANAUNIA moveable soundproof glass partitions offer the solution to the most difficult requests from architects to plan innovative offices, or for flexible ways of working in well-lit, functional and contemporary environments.
The ANAUNIA system is formed of independent glass panels inserted into an aluminium frame which, owing to the smooth gliding mechanism along ceiling-mounted tracks, fixes into position almost invisibly. The panels are opened, closed and soundproofed by a handle-operated system, which allows the upper and lower buffers to move. When the doors forming part of the panel slide into the unit, they are also transparent
The absolute transparency and the minimal space they occupy does not reduce the quality of the soundproofing (up to Rw = 42dB) by using different types of glass, including security room glass from 6 to 33 mm in width
The design and integration with the surrounding environment can also be improved by the opportunity include Venetian blinds, hand-operated or solar-powered blinds, and different grades of tinted glass.
The wide range of thicknesses don’t limit the availability, in place of glass, panels of different materials in an infinite variety of finishes, thereby changing the planned destination from shop to restaurant, or from house to office.
|
|

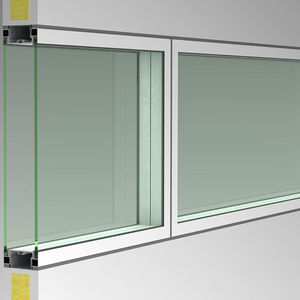

A double glazed movable wall system combining acoustic performance with ease of operation. Suitable for many different types of location including offices, conference, training and meeting rooms, corridors, schools and hotels.
FEATURES
- Top hung elements move easily and quietly on single or twin point suspensions running in aluminium track
- No floor track required
- Various options available for 'parking' elements when wall is open
- Hinged full height pass doors
- Electrically operated venetian blinds can be fitted within double glazing to give privacy when required. Alternatively, manifestation can be applied to the glass.
- Seals at head and base operated by concealed jacking mechanism using quick release handle
- Option for semi-automatic operation of seals using 'electronic controls'
|
|
Ease of operation, acoustic performance and pleasing aesthetics are combined in System AW to create movable walls that maximise spatial versatility in offices, conference and meeting rooms, training areas, educational establishments, hotels and banqueting suites.
FEATURES:
- Top hung without track at floor level
- Retractable acoustic seals at top and base operated either by quick release handle or semi-automatically with electronic controls
- Single or two point suspension for centre or remote parking options
- Variable track arrangements
- Junction modules meet requirements for corner, three or four way abutments
- Panel finishes include vinyl, veneer, melamine laminate, a magnetic dry wipe enamelled writing surface or paint
- Optional integral pass doors, glazed modules and vision panels
- Closing module fitted with face operated telescopic %u2018nose%u2019
|
|
|
Walltech, self-supporting partition with frame system, immediately reveals qualities and performances that are indispensable in a work place, with its light and essential structure that may be adapted to the layout and requirements of the space planner, its vast range of panelled and glazed modules, easy installation, excellent acoustic insulation quality and compatibility with all the partition systems of Estel. The office is a complex system in which architecture, technology, organisation and human resources interact in a profound way. Space planning becomes an activity that is decisive for business and for the wellbeing of the people who work in it. Walltech, from this point of view, can boast of being a faithful partner to designers and space planners.
|
|
|

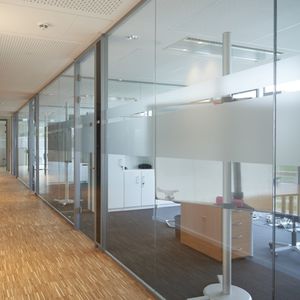

The Photo partition is a completely modular solution offering total flexibility for relocation whilst maintaining a high aesthetic visual appearance. The glass is directly fixed to the metallic frame using a UV bonding process. The bond process is completely transparent. The visual appearance is that of continuously flush-fitted glass without any interruptions of frame allowing the reflective qualities of the surface. Both glass sizes of the Photo partition are respectively 6 and 8 mm thick, the engineered method of fixing mechanically allows the junctions a high degree of air tightness, all of which allows the sound insulation to be optimized.
|
|

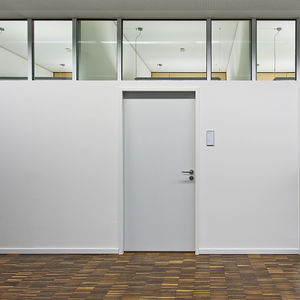

Clestra's BLOG partition is 83 mm thick and is mounted onto an internal frame.
Solid or glazed, it is demountable. It is constructed out of two independent sides which facings can be up to 16 mm thick to provide high acoustic performance.
The product's design allows the appearance of the facings to be altered as desired by using a variety of colours and formats. Solid elements can be mixed with glazed elements.
|
|
New interactive sound wall
mila-wall soundwall can now be constructed with integrated sensors to complement the invisible loudspeakers. These sensors react to movement or touch. Both sensors trigger a response from a mini computer, on which audio messages are stored as MP3 files on a compact flash card. The touch sensitive sensors can also be used for volume control.
Each wall module surface can contain up to 16 independently positioned sensors. The sensors are completely invisible. Sound can be played by simply touching the sensor fields. Interactive soundwall will attract more interest in your exhibit, by allowing your audience to hear as well as see the exhibition.
Innovation award
MBA wins 2008 innovation award in architecture and presentation for the product mila-wall soundwall in the category of products with high architectural quality.
|
|
|
|
|
|
Modular Walls with concealed monitoring technique for added security
The protection of Art requires a highly sophisticated security technique that is not visible to visitors and which does not influence the aesthetic of Art or objects being displayed.
At the same time, the modular walls are required to be flexible for designing Temporary, Traveling, and or Art Exhibitions. MBA Design & Display products Corp. has developed a unique security technique that conceals the detection field inside the wall.
mila-wall® modular walls can be prepared for concealed object monitoring that can be connected to an alarm system. Electrodes are built into the wall in a defined area (as shown). This area creates an electrical detection field when connected to an alarm system of your choice. An electrical field will surround and protect the art or object hung on the wall module. Any change of the field by people or objects will change the electrical field which in turn releases an announcement. This announcement can be forwarded to a facility alarm system or it can release an optical or acoustical alarm directed at the protected object. The electrical field begins at approximately 39” (1000 mm) from the bottom of the wall module and ends at approximately 98” (2500 mm) from the bottom. This provides a detection field of approximately 60” (1500 mm) in height. The sensitivity in which an alarm is released can be adjusted to meet your requirements. The maximum detection distance begins approximately 15 ½” (400 mm) away from the wall module.
|
|
|
The "apogee" is a partition-wall cast solid with sharp joints, dismountable, thickness 70 mm, consisted of an insulating heart and two facings...
|
|
|
Flexica is the most flexible office partition on the market and the wide range of solutions makes it suitable for office environments, focusing on flexibility. Flexica has a narrow horizontal transom that divides the wall into panels.The panels can either be glass, plasterboard or MDF panels covered with vinyl, veneer or steel. Apart from being a flexible, relocatable office partition, Flexica can be combined with other Triplan product ranges.
|
|
|
|
|
|
ANAUNIA moveable soundproof glass partitions offer the solution to the most difficult requests from architects to plan innovative offices, or for flexible ways of working in well-lit, functional and contemporary environments.
The ANAUNIA system is formed of independent glass panels inserted into an aluminium frame which, owing to the smooth gliding mechanism along ceiling-mounted tracks, fixes into position almost invisibly. The panels are opened, closed and soundproofed by a handle-operated system, which allows the upper and lower buffers to move. When the doors forming part of the panel slide into the unit, they are also transparent
The absolute transparency and the minimal space they occupy does not reduce the quality of the soundproofing (up to Rw = 42dB) by using different types of glass, including security room glass from 6 to 33 mm in width
The design and integration with the surrounding environment can also be improved by the opportunity include Venetian blinds, hand-operated or solar-powered blinds, and different grades of tinted glass.
The wide range of thicknesses don’t limit the availability, in place of glass, panels of different materials in an infinite variety of finishes, thereby changing the planned destination from shop to restaurant, or from house to office.
|
|
A double glazed movable wall system combining acoustic performance with ease of operation. Suitable for many different types of location including offices, conference, training and meeting rooms, corridors, schools and hotels.
FEATURES
- Top hung elements move easily and quietly on single or twin point suspensions running in aluminium track
- No floor track required
- Various options available for 'parking' elements when wall is open
- Hinged full height pass doors
- Electrically operated venetian blinds can be fitted within double glazing to give privacy when required. Alternatively, manifestation can be applied to the glass.
- Seals at head and base operated by concealed jacking mechanism using quick release handle
- Option for semi-automatic operation of seals using 'electronic controls'
|
|
|
Walltech, self-supporting partition with frame system, immediately reveals qualities and performances that are indispensable in a work place, with its light and essential structure that may be adapted to the layout and requirements of the space planner, its vast range of panelled and glazed modules, easy installation, excellent acoustic insulation quality and compatibility with all the partition systems of Estel. The office is a complex system in which architecture, technology, organisation and human resources interact in a profound way. Space planning becomes an activity that is decisive for business and for the wellbeing of the people who work in it. Walltech, from this point of view, can boast of being a faithful partner to designers and space planners.
|
|
|
The Photo partition is a completely modular solution offering total flexibility for relocation whilst maintaining a high aesthetic visual appearance. The glass is directly fixed to the metallic frame using a UV bonding process. The bond process is completely transparent. The visual appearance is that of continuously flush-fitted glass without any interruptions of frame allowing the reflective qualities of the surface. Both glass sizes of the Photo partition are respectively 6 and 8 mm thick, the engineered method of fixing mechanically allows the junctions a high degree of air tightness, all of which allows the sound insulation to be optimized.
|
|
|
The "apogee" is a partition-wall cast solid with sharp joints, dismountable, thickness 70 mm, consisted of an insulating heart and two facings...
|
|
|
Our partition wall systems, forming an integral part of any interior, create flexibility in use of space. We offer top quality in a range of product designs, with customisable finishes, up to and including mobile glass partition walls.
|
|
|
|
|
|
CHARACTERISTICS
Movable wall system 100 of total thickness 100 mm, with perfilería seen, and sound insulation included between 39 and 50 dB Rw, made up of a autoportante aluminum structure extrusionado in alloy 6063 according to norm UNITES 38-066-89, and treatment of hardness T-5 type, suspended by two cars of bearing in guide superior of multidirectional type, allowing to an express and precise movement of the modules, smooth and quiet form and with total absence of guide inferior, with system of fast anchorage by means of unique drive of quarter of return.
This system of tread is devised to move the modules to distant points of its position of closing.
The structure system allows to apanelar the outer surface of the modules with any finished type of, according to precise needs, as they can be natural wood plate panels varnished, stratified HPL, melamines, PVC, etc.
This system is made up of independent modules, with opaque possibilities of arranging, modules, doors, glazed, etc, suspended of sliding guide, and equipped with system of by telescope inferior and superior for the anchorage of the same in its compartmentation position, guaranteeing therefore the perfect seal in all the perimeter of the compartmentation, as well as a high stability of the system.
|
|
