VEDA Max.E is an AHU with air-to-air heat recovery and implemented heat pump. It is designed for maintaining the micro climate parameters in cinemas and theaters, discos, restaurants, administrative and business buildings, multifunctional shopping centers and whenever 100% fresh air is needed.
It is a multifunctional unit, with possibility to work in 4-5 basic regimes. In the summer could cover up to 90% of the total cooling load, while in the winter its work is entirely independent from the outside air temperature, which leads to much higher COP of the system, compared to a standard air-cooled chillers. %u0422he %u201Cfree cooling%u201D regime, ensure refrigerant-free cooling during the intermediate seasons(compressor is off).
It`s compactness comes with the fact that in 1 unit are united an AHU and a heat pump. The traditional for this scheme pipes and elements to the pipe system are missing. The compressor is heat, sound and vibration insulated. The control unit is mounted on the unit and all connections to the separate elements of the automation are done in manufacturing conditions.
Produced in 5 sizes:
- Airflow: 3000 %u2013 15.000 m3/h
- Cooling Capacity: 18 %u2013 90 kW
- 100% fresh air
- Additional heater, working with hot water
- Possibility for mounting on the outside, as well as in a machinery room
- Possibility for remote control(with additional LCD display)
- Refrigerant: R407C
|
|
|
|
|
|
The air-handling units DMK type are designed to maintain an artificial micro climate. They realize all possible air-treatment processes: filtration, heating, cooling and dehumidification, humidification and sound attenuation. They consist of a frame construction, build from aluminum profiles and corners and side panels, made from galvanized sheet steel and filled with heat and sound insulating mineral rockwool. All outside panels are with powder coating, according to RAL scale. The internal surface is completely smooth so that, air flow resistances are negligible, and also cleaning and maintaining of all components is easy.
- 16 sizes: D%u041C%u041A10.1 %u2013 D%u041C%u041A17.2
- Airflow: 1000 %u2013 100.000 m3/h
- Panel thickness: 25 and 50 mm
- Mounting: indoor and outdoor
- Execution: standard and hygienic
Application:
- Industrial sites
- Restaurants and Discos
- Administrative and business buildings
- Sport halls
- Multifunctional shopping centers
- Bank and Hotels
- Hospitals and Clean rooms
And many more......
|
|
FTP air handling units represent an important contribution to the improvement of our living environment.
The result of FERROLI's professionalism and years of experience, they are an important point of reference. The quality of construction and the components used are guarantees of reliability, functionality, and efficiency.
Designed to operate at low, medium and high pressures, FERROLI FTP units are made using a modular system that includes 18 sizes and can thus satisfy a wide range of flow rates.
|
|

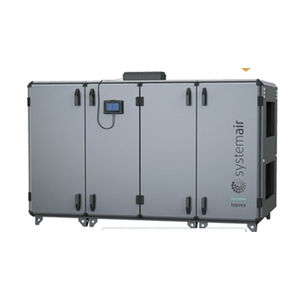

eQ is our new, highly adaptable air handling unit offering a number of new features that have not previously been available on the market. The intelligent casing design, the energy efficient components and the flexible design mean that eQ is cost effective, and the possibility of both a single casing and a two casing unit makes it highly flexible.
eQ is a standardized range in 17 sizes, which covers an air flow range from 0.1 m3/s to 8.3 m3/s.
Everything from single supply air or exhaust air units to complete units with heat recovery,energy efficient components and built-in control and regulation systems is available. The length of the unit is determined by the selected components. The unit is very simple to select, install and commission.
|
|
This exceptionally sturdy range is especially suited to stringent industrial requirements (processing, clean rooms, etc.) or particularly difficult air conditioning designs.
Comes in 10 sizes with two different designs, depending on the boxes inside the containers.
Double skin casing with 50 mm mineral wool insulation class M0).
Designed to resist high lateral mechanical strain (available total pressures up to 3000 Pa) and class B air tightness (Eurovent 2/2 or EN 1886).
Prepainted steel panel in two grey as per other products in HYDRONICcatalogue.
|
|
|
|
|
|
The AX’M®, the revolutionary air handling unit fully accessible, patented. A product at the meeting point of contractors, designers and end-users expectations.
A revolutionary unit: A patent®, 2 leading points:
– Total access with sliding (and removable) doors,
– A multi service bulkhead gathering all the monitoring and control devices.
Ergonomics:
The AX’M® is an air handling unit patented with a front side completely removable with sliding and removable doors, no fixed panel. Its multi service bulkhead completely accessible does gather all the monitoring and control devices, centralising fluid and electrical connections. It does ease their fitting as well as has the function of cable tray alongside the unit.
The inner and outer sides are smoother again to get an optimal and easy cleaning with:
- For each door, integrated locks with progressive tightening system, integrated rolling system & handles within panels,
- A simple connection device external to the air handling unit.
A manometer is fitted for each filter stage. A real meshed guard double door is suggested to avoid the transmission guard, which is a source of air turbulences and damages system efficiency.
Hygiene:
For coils, drain trays are all removable and cleanable, made of stainless steel with 5% slope. Drain tray drain points are pre-fitted, coils headers have standard threaded connections: no welding necessary to install the unit.
Your expectations, our guaranties: 3 ranges for 3 markets
AX’M® CONFORT and CONFORT Flash: air quality
AX’M® MÉDICAL: cleanliness and hygiene
AX’M® INDUSTRIE: accuracy of air
|
|
|
|
|
|
The CCM comes in 9 sizes with airflows from 0.58 m³/s to 9.7 m³/s.
The CCM has an attractive outer casing based on the self-supporting panel concept. The outer skin is painted in 2 shades of grey (RAL 9006 and RAL 7024) and has smooth inner partitions. The specially textured finish enhances the appearance.
Every section requiring access is fitted either with an easy-access opening panel or hinged door. The CCM unit comes fully assembled or in "Flat Pack" for on-site assembly in difficult locations.
The numerous components are designed to give a smooth and attractive appearance. For example, the filters are on runners with front-clamp filter. Air tightness of up to 95 % OPA (EU9) is achieved and pressure tapping points are provided.
With a wide range of components (mixing devices, filters, coils etc.) the CCM range also comes with a wide selection of fan sizes and speeds, to ensure optimal static pressure, low fan pressure and reduced sound levels.
By optimizing the performance of each section of the CCM unit, the overall length and size is kept to a minimum. Frequently we better the competition.
|
|
This exceptionally sturdy range is especially suited to stringent industrial requirements (processing, clean rooms, etc.) or particularly difficult air conditioning designs.
Comes in 10 sizes with two different designs, depending on the boxes inside the containers.
Double skin casing with 50 mm mineral wool insulation class M0).
Designed to resist high lateral mechanical strain (available total pressures up to 3000 Pa) and class B air tightness (Eurovent 2/2 or EN 1886).
Prepainted steel panel in two grey as per other products in HYDRONICcatalogue.
|
|
With 4 sizes, MISTRAL covers flow rates from 300 to 4 500 m3/h and provide a natural extension to the range of ceiling fan-convectors.
Due to its small thickness (400 mm) it may be integrated in either new or restored premises. It may be fitted within narrow false ceiling or hanging visible, and due to the high available pressure, connected to air duct network.
|
|
Supply and exhaust air functionality is contained within the same casing. The unit is provided with rotary heat exchanger.
Sting is generally delivered complete with an integrated control system but can also be delivered without.
The unit is Eurovent certified.
|
|
|
|
|
|
HYDRONIC, an air handling unit designer since 1961, shows his latest innovation, the flat air handling unit CTB3 Plus: from 0.5m3/s up to 1.7m3/s.
Strong of his experience with his 2 previous generations: the CTB1 unit and the CTB2 unit, about 25 000 of those units sold, this new unit is again more successful to comply with your saving, quiet and performance expectations.
Sizes 25: 2 000 m3/h – 0.5m3/s
40: 4 000 m3/h – 1.1m3/s
60: 6 000 m3/h – 1.7m3/s
3rd generation of the CTB range, it offers:
More pressure: up to 1 000 Pa,
More quiet: from 5 to 6 dB less,
More ARRANGEMENTS and OPTIONS,
But also More FLEXIBLE: left or right hand side connections,
More ENERGY SAVINGS: plate heat exchanger or run around coils,
More REGULATION.
This flat unit is ideal for suspended ceiling or vertical arrangement (thickness: 400mm), thanks to its quiet running up to 1000Pa pressure for your networks, with the choice of a plug-fan.
Its 25mm double skin casing guarantees an L2 class air tightness, according to "EN 1886" and water connections side choice. Inner side is very accessible, thanks to 1 or 2 hinged doors, unhinge-able as standard.
Its plug fan has been selected for its efficiency and low noise level. With its motor fitted at the axis end, the maintenance is minimal.
Its air specifications can be continuously adjusted thanks to a frequency inverter, to comply with your accurate needs.
The air handling unit is available with heat recovery (plate heat exchanger) and complete control system to cleverly manage with an optimised control your inner atmosphere.
|
|
With YORK® products, you can be confident you are selecting high quality, pioneering equipment and components. Our large range of products offers a variety of standard features, factory-installed and field-installed options to meet your specific application needs.
YMA-C Air Handling Units comprise an extremely rigid sealed frame construction, therefore gaps between panel junctions are minimal, and consequently air leakage is greatly reduced. The unit also includes a non-metallic isolating frame around the internal perimeter of each panel, which serves to all but eliminate Thermal Transmission through the casing. An external aluminium profile maintains structural integrity and air-tightness without compromising the thermal-bridging characteristics of the unit.
|
|
Air conditioning unit and ventilation equipment is built according to the kit principle and can be produced in any desired combination.
The corner section is sealed to the die-cast corner connector with an EPDM seal.
Side panels are double-walled, made of galvanised sheet steel with incombustible noise- and heat-blocking inner sheathing made of rock wool mats according to DIN 4102 A1. For hygienic equipment, the inner panels can be furnished in stainless steel. A coloured plastic coating of the panel and frame (RAL 7035) is also available.
|
|

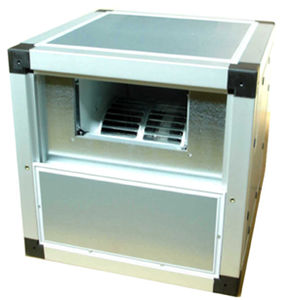

Integrated fan, filter and heater assembly manufactured from galvanized sheet steel:
- Very low noise level <35 dB(A).
- Dense internal fibre glass acoustic and thermal insulation (50 mm - non-flammable A1 type in accordance with EN 13 501-1 standard).
- Direct drive forward curved centrifugal fan.
- Single phase 230V 50Hz 2-speed motor, IP44 - class F insulation, with thermal overload protection.
- In-line duct connection flanges with integrated rubber seals.
- G4 grade filter on slides. (On request, F5 or F7 grade filters).
- 4 mounting feet.
|
|
|
These weather-proof ventilation systems for outside installation (DA) of the series Zehnder ComfoAir 800, 1500, 3200 and 4000 (DA) also create a pleasant and healthy indoor climate for larger residential and commercial buildings. They combine highest comfort, simple maintenance and a high level of efficiency. The nominal air flows extend from 800 m³/h to 4500 m³/h at an external pressure of 200 Pa.
|
|
|
|
|
|
Air-conditioning unit
For treatment of the air
Parts and arrangement of parts: configurable
Indoor and outdoor installation
Air flow rate from 401 to 22313 l/s

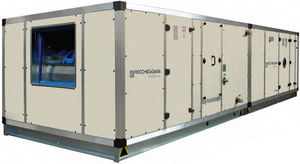

The AQ air-handling units feature:
-modularity, with a choice of 63 sizes (27 basic) to satisfy all dimensional requirements in terms of work site and handling;
-aluminium alloy frame with exclusive design;
-intermediate sections in reinforced plastic;
-screw covering profiles in plastic;
-absolute thermal break already in the basic version;
-50 mm (or 25 mm) thick panels with thermal/acoustic insulation (injected polyurethane or mineral wool). Various materials are available for the panels: metal sheets that are prepainted, galvanised, in peraluman, stainless steel;
-absolutely smooth internal surfaces to reduce build-up of dust and make cleaning and disinfection easier;
-high and very high efficiency synthetic corrugated, automatic, electrostatic and charcoal filters;
-static and rotary heat regenerators;
-heat exchanger coils using water, gas, steam or electricity;
-humidifying systems in droplet-separator, compressed water, steam and air washer versions;
-insulated and fully draining condensate collection trays in aluminium or stainless steel;
-quality fans in forward and backward-bladed, airfoil-vane and plug versions;
-muffled sections and silencers.
Dedicated units for use in hospitals, food and electronic industries, clean,
rooms, etc.
|
|
|
The OCEAN air conditioners are suitable for heating and cooling small and medium-sized civil or industrial environments. The compact dimensions of the unit and the modularity of the basic components simplify installation in small spaces. Four basic models and 15 versions are available, both horizontal and vertical, with air flow-rates ranging from 600 to 5300 m3/h, heat outputs from 6 to 68 kW and cooling capacities from 3 to 30 kW.
|
|
|
The Zeus air handling units are suitable for cooling and heating civil and industrial environments. They are available in 6 horizontal models and in 6 vertical models, with air flow-rates from 5,000 to 25,000 m3/h. Heating capacity from 32 to 260 KW, cooling capacity from 17 to 160 KW.
|
|
|
|
|
|
-16 sizes for customized solutions and a maximum degree of planning flexibility
-weatherproof design with a roof capable of supporting the weight of a person, made of galvanised steel and surrounded by a gutter projecting 50 mm from the roof
sizes optimised for logistic operations: equipment widths adapted to HGV widths in order to reduce transport costs
-Countersunk panels and doors for a sleek modern design
-thermally insulating double-glazed inspection windows on request
smooth, single-piece removable panels, with heat and sound insulation
-Wolf's patented gap seal for maximum seal-tightness
-all doors have glöass-fibre reinforced handles
-patent Wolf double-lipped seal for doors, making low noise; no silicon sealing needed
-plug-in frame design for easy assembling and dismantling reduces transport, customs and storage costs
-filters and registers: optimal cross-section layout for energy efficiency
-absolutely smooth and gapless bottom and top surfaces gurantee optimum hygiene, -make cleaning easy and enable free access to all components for inspection and service
-efficient insulation: 50 mm of mineral wool (above KG 450 at ground and ceiling 76 mm) permits the minimum amount of heat transfer and minimises conducting bridges that transmit cold
|
|
|

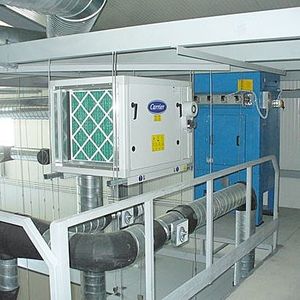

Carrier AERO 39M air handling units provide advanced technology and custom features in a streamlined, easy to install package. Indoor and outdoor units are available to handle a wide variety of applications. Units can be equipped with HEPA filters, fully drainable quad-sloped drain pans, AgION antimicrobial-coated steel and other options. The galvanized sealed panel double-wall insulation system allows panels to be easily cleaned without damaging the insulation system. Many fan options are available including forward curved, airfoil, and plenum fans for extra quiet operation. Factory installed controls maintain airflow and ventilation requirements and defend the unit from coil freeze-up, excessive humidity and poor indoor air quality (IAQ).
|
|
|
The Singleflow SSDD is a range of direct driven in-line centrifugal fans for duct mounting, with rectangular spigot connections all manufactured in galvanized sheet steel with a natural finish. These compact, reliable units are designed to overcome space restrictions in buildings such as ceiling voids, as well as providing the option of acoustic lining where lower breakout noise levels are required.
|
|
Compact supply air handling unit with heating battery and filter for use in petrol stations, schools, stores, offices and smaller premises. The units has small dimensions and are easy to install.
Air flows: 20-1400 l/s
|
|
A broad range of compact air handling units with or without heat recovery and alternative solutions betwen top and horisontal connection. Useable everywhare from minor premises to schools, stores and larger offices.
Air flows: 20-1500 l/s
|
|
Features:
- YKlon 3 board
- Duct work configuration side or down flow
- Cooling, reverse cycle, gas and electric heating
- Compact and with proven reliability
- Wide range of accessories
- Suitable for use in harsh climates
- New indoor motor power input
|
|
This range of Rooftop units offers the advantage of a compact design.
Delivered ready to operate, the HA Rooftop units can be easily and quickly installed at ground level or on the building roof. This range offers a selection of capacities from 10.1 to 27.8 kW and is ideal for air conditioning retail, tertiary and industrial premises covering medium and large surface areas.
Product Advantages
* Outdoor installation
* Air intake and distribution orifices for connection to a duct network.
* CAC Controller: Microprocessor system control and management.
* RCW 2 wall mounted remote control or dry contact control (accessory).
* Electric heating resistance battery for duct installation (accessory).
|
|
|
|
|
|
Packaged air-conditioning unit
Heat pump
Air cooled
Roof Top
Capacity from 38,4 to 134 kW
CLIVET’s CSNX-HE independent air conditioning units are specially designed for use in crowded environments. CLIVET is market leader in this type of application and these units embody years of experience. They incorporate next generation technology and are among the most advanced units on the market.
They are extremely compact and weatherproof and come in 9 sizes with various heating and cooling power ratings, and outdoor and total air flow rates to cover the widest possible range of installation needs. They also incorporate two-stage filtration, enthalpic Free Cooling, automatic flow control of delivery, return, extraction and outdoor air and re-heating system with hot gas from compressors. The thermodynamic heat recovery system installed in the extracted air flow remains active in both heating and cooling mode. These units are therefore particularly suitable for installation in crowded environments where a high influx of outdoor air is required to guarantee the necessary air exchange rates and a very close control of temperature and relative humidity.
The units are factory tested and supplied with all the necessary fittings, so that they can be started up as soon as they are connected to the electricity, air and water systems. Units can be controlled using the on-board keypad, a remote control keypad or can be interfaced with a BMS-type management system.
|
|
|
|
|
|
Packaged air-conditioning unit
- CSRT-XHE: cooling only
- CSRN-XHE: heat pump
Air cooled
Roof Top
Capacity from 121 to 295 kW
The packaged air-conditioners in the CSRT-XHE/CSRN-XHE series are outdoor units available with various capacities and a vast range of accessories, including an exclusive system for the active thermodynamic recovery of the energy of the discharged air. They are also equipped with Free-Cooling (version C), electronic expansion valve, control logic, and evolved adjustment for the maximum ambient comfort. They are designed for air-conditioning large spaces. Designed to reduce work on site to a minimum, these units have been created with the aim of always working with topmost energy saving through an extremely intelligent and advanced energy control. The energy is supplied solely when and where it is needed.
They are extremely versatile units and the airflow may be adjusted to three levels: standard, high and reduced. The unit may be adapted to all kinds of requirements thanks to many different possibilities of installation. There are two main constructional configurations:
- B Intake with mixing plenum/fresh air intake;
- C With intake/discharge fan, mixing/recirculation plenum and fresh air intake;
|
|
|
|
|
|
Packaged air-conditioning unit
CSRT-HE: cooling only
CSRN-HE: heat pump
Air cooled
Roof Top
Capacity from 42,7 to 100 kW
CSRT-HE/CSRN-HE air conditioning units are fully independent roof-top units developed by CLIVET using the latest and most advanced air conditioning technology. They are extremely compact and weatherproof, and are available in various heating and cooling power ratings, and outdoor and total air flow rates to cover the widest possible range of installation needs. They also incorporate two-stage filtration, Free Cooling and automatic flow control of delivery, return, extraction and outdoor air. In dual fan configurations, the thermodynamic heat recovery system installed in the extracted air flow remains active in both heating and cooling mode. These units are therefore particularly suitable whenever excellent air quality and efficient temperature and humidity control are needed to ensure personal wellbeing. The units are factory tested and supplied with all the necessary fittings, so that they can be started up as soon as they are connected to the electricity, air and water systems. Units can be controlled using the on-board keypad, a remote control keypad or can be interfaced with a BMS-type management system.
|
|
Six sizes with nominal Cooling Capacities from 42.9 to 116.1kW
Self contained for outdoor installation
Units use scroll/hermetic compressors, according to size), designed specifically for R407C (R22 version 50GT)
Cabinet of pre-painted steel
Three phase fan motors with belt and pulley drives
Indoor double inlet forward curved fans
Compressors feature built-in silencers and are mounted on vibration isolators
Fully wired according to EN standards
|
|
Advantages:
- external pressure up to 250Pa
- appropriate for indoors installation and air duct connection
- leak-proof solder joints
- 4 different centrifugal fan diameters
- minor contamination due to optimal fin design
|
|
|
|
