| The ceiling mounted ELEGANT unit heaters are especially suitable for heating and/or cooling rooms with low ceilings, such as shops, workshops, garages and supermarkets. There are 10 models with heating only and 5 models with cooling operation, each with three-speed motors, continuous speed variation upon request, numerous controls and accessories for the perfect control of the ambient temperature. |
|
There are 4 models available, to suit the needs of the application ranging from 2 - 30 kW.
- Variable room heaters, to be used transportable
and stationary.
- Air intake fan heaters.
- Ventilation air heaters for air intake, circulation
and mixed air.
- Built-in units with heaters and fan |
|
The heaters of the IGRAF family are used for surface heating and for fluid heating.
•HEATING AND DRYING of marble slabs, of resin surfaces, of scrap iron.
•Suitable to be incorporated in all exsiccation and drying ovens for wood and other materials.
•HEATING OF FLUIDS for industrial degreasing, for food cooking. |
|
SlimKon façade heating systems
Today architects are designing more and more buildings with glazed façades. The heat requirement in the building is relatively easy to meet but managing the cold air around the perimeter is a more difficult problem: the heat losses around the perimeter cause air movement und can lead to unpleasant cold draughts.
Conventional heating systems are expensive to install and not always desirable from an architecural point of view. The solution? The SlimKon façade heating system effectively yet unobtrusively produces a "screen" of warm air in front of the glazing.
Features
effective screening, even at mezzanine level - comfort right up to the external façade
unobtrusive - fits into the interior architecture
convection heating prevents substantial energy losses - energy-saving!
highly-efficient
simply to install and maintain; ideal for retrofits
wide range of styles and finishes to meet individual design requirements
neutral in design; dimensions to suit
|
|

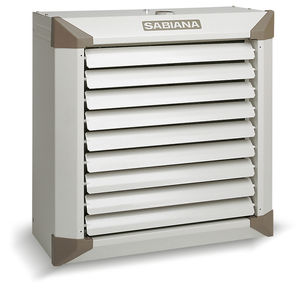

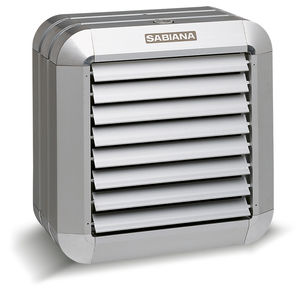

| The HELIOS unit heaters, built with the same criteria of sturdiness and safety that define all Sabiana products, stand out for the splendid new design of the casing, made using anodised aluminium bars and polished die-cast corners. They have the same big heart as the Atlas unit heaters: a coil that has been conceived, designed and manufactured specifically for heating industrial environments. The thickness of the pipes, steel as standard, the diameter (Ø 22 mm) and the excellent ratio between the flow-rate of air and the heat output guarantee long life and exceptional comfort. |
|
| The Atlas unit heaters have a big heart: a coil that has been conceived, designed and manufactured specifically for heating industrial environments. The thickness of the pipes, steel as standard, the diameter (Ø 22 mm) and the excellent ratio between the flow-rate of air and the heat output guarantee long life and exceptional comfort. The Atlas unit heaters are made in 10 sizes, with heat outputs from 5 to 120 kW, and are available with 1 row coils for steam or high-temperature water systems, 2 row coils for hot water systems and 3 row coils for low-temperature hot water systems. They can be installed on the wall and on the ceiling. |
|
High-induction nozzles
The NOZ unit heater provides for excellent air distribution by making use of adjustable nozzles. Air is discharged through the high-induction nozzles at a high speed. The discharged air stream sets the stagnant surrounding air in motion (induction), which leads to optimum mixture. The NOZ technology results in comfortable working conditions.
Various heights
The nozzles are adjustable and can thus be geared to different installation heights and situations. In high rooms the nozzles are set vertically, so that the warm air stream has an optimum downward penetration. In lower rooms the nozzles are turned to a more horizontal position, so that the air is discharged less deeply. In both situations warm air is brought from the ceiling to the floor and if necessary extra heating or ventilation is provided by the unit.
Benefits:
Excellent air distribution thanks to adjustable nozzles
The low temperature gradient makes that no auxiliary fans are needed
Relatively low investment
Deep downward penetration
Large area covered
Minimal heat loss
Suitable for various heights
Functional design
Simple and flexible installation
1 NOZ unit replaces several classical air heaters in an installatoin |
|
Their flexibility and fast heating feature make it necessary to use the Armagnac in premises such as :
- Sales and/or storage areas
- Sports hall
- Agriculture and breeding premises
- Industrial and commercial buildings.
Over a pleasant presentation, electric aerothem Armagnac are fitted with all components and accessories allowing a quick installation, a safe and quiet operation.
- Armoured resistance
- Slow speed helicoid fan
- Power contactor
- Safety and control thermostats
- Fan timer
- On/off switch with light signal
- White RAL 9003 painted sheet steel frame, RAL 9010 lacquered deflectors protected with a removable plastic film.
Produced in 2 sizes, for power from 6 to 24 kW.
For powers from 15 kW to 24 kW only, the equipment is fitted with contactors allowing a two step operation if necessary.
|
|
These equipment may be connected either with vertical or horizontal vent or through a chimney.
These aerotherms do meet the main requirements of the CE standards requirement related to gas-fired aerotherm.
|
|
- Automatic built-in LPG burner
- Electronic control box
- Electric board IP54
- Infrared flame detector
- Possibility of interface with thermostat or humidistat or timer
- Safety thermostat
- Power cord with plug
- Adjustable pressure reducer (0,5-2 bar)
- Excess flow cut off valve
- Gas pipe with connections
- Stainless steel outside body
- Automatic ignition
- Summer-winter switch for use as fan
|
|
- Automatic oil or LPG/natural gas burner
- Electronic flame-control
- Thermostats: FAN, LIMIT with automatic reset, LIMIT with manual reset
- Electric board
- Possibility of interface with thermostat or humidistat or timer
- Power cord
- Hanging devices fitted with suspending eyes for ceiling mounting
- Filter (oil version)
- Gas train (EN 676) (gas version): gas filter, gas governor, gas safety valve and gas working valve
- Steel frame (FARM 150 e 200)
- Double skinned body for thermo-acoustic insulation and safe low surface temperature
- Stainless steel combustion chamber with aerodynamic shape
- High temperature resistant heat exchanger
- Pre-heating of the combustion chamber
- Automatic post ventilation of unit
- Summer-winter switch for use as fan
- Silent centrifugal fan version: suggested in case of connection with long air duct as it ensures greater pressure
- On request biogas feeding
|
|
The range of helicoid aerotherm consists in 7 different models used either in heating or cooling mode.
These equipment are intended to large volume buildings, store house, garage, workshop…
Aircalo aerotherm enables rapid heating or cooling volumes at the same time, mixing the air sufficiently to prevent its stratification (it is possible to complete this mixing by using zephir air recyclers).
Depending upon the characteristics of the building to be equipped, the Aircalo aerotherm may be hung (vertical blowing) or wall mounted (horizontal blowing).
|
|
- Automatic built-in oil burner (Danfoss gear pump)
- Electronic flame-control
- Possibility of interface with thermostat or humidistat or timer
- Power cord with plug
- Stainless steel combustion chamber
- Double skinned combustion chamber for thermo-acoustic insulation and safe low surface temperature
- Automatic post ventilation of unit
|
|
-Direct fired heaters
-Stainless steel combustion chamber
-Exterior body shell in double steel panels
-Very high air supply temperature
-Integrated automatic fuel burner with high pressure pump
-High air flow output axial fan
-Power supply in 230 V single phase
-Integrated fuel tank for a long autonomy
-Designed for outdoor use even in the rain or snow
-Overheating thermostat
-Inspection hatch allowing easy access to burners and electrical equipment
-Multiple configurations of air supply conveyors
-Kit for connection with an external fuel tank ( optional )
Mobile warm air heaters with fuel burner |
|
| Bi-energy reversible monosplit system for industrial or commercial buildings : Internal unit is double skin 25 mm thickness including stainless steel exchanger with gas fired burner 35 kW for heating and R410A coil working with an external unit air/air 17 kW for cooling. 2 speeds fan for direct blowing or ducted applications. The unit is supplied complete with fume kit and regulation box. (Automatic change over gas heating / electrical cooling). |
|

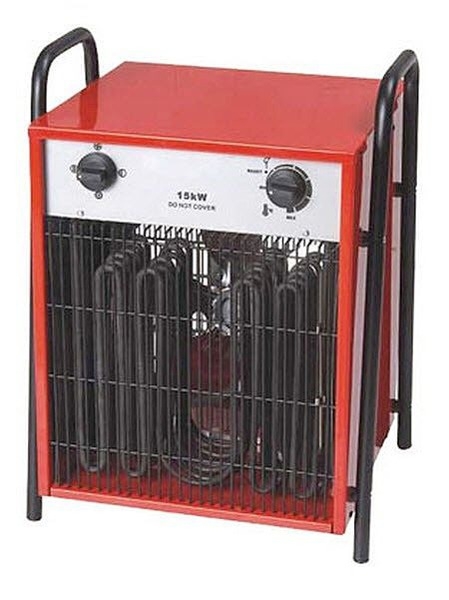

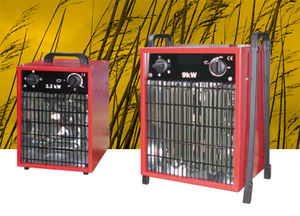

-Complete range from 3.3 to 22 KW
-For use in dry and enclosed buildings
-Operate exclusively on a 230 V single phase electrical supply ( ET3 ) or 400 V 3 phase
( other models )
-Reduced size and weight for ease of transport
-Transport handles
-Very quiet fans
-Integrated ambiant thermostat as standard
-Selector allows the operation of ventilation only,
half power or full power
-Overheating security with manual re-arming
-Motor entirely integrated inside the body shell
-ET3 delivered with cable and electrical plug
-Other models fitted with a male electrical plug mounted on the apparatus |
|
HGU model
Heating in businesses, buildings open to the public and industrial facilities with medium ceiling heights. Allows individual control of the temperature in each room.
7 models available
Heating capacity: 15 to 105 kW
Air flow rates: 1250 to 8750 m³/h
- Galvanised steel casing with RAL 7024 or RAL 7035 finish,
- RAL 7035-coated horizontal louvres,
- Stainless steel combustion chamber,
- Stainless steel heat exchanger,
- High-performance atmospheric burner: stainless steel tube, ionisation flame control, one or two stages, On/Off or modulating control,
- Sealed forced-draught combustion circuit controlled by a differential pressure switch, fan cooling,
- Propeller fan with airfoil blades,
- Electronic control board,
- Complete range of accessories. |
|
Héliotherme H 4000
Group motoventilator technology ROTOREX available in three-phase current 2 speeds and variable single-phase current 1 speed (reduction of tension).
Diffuser doubles deflection technology JET+ of series.
Batteries:
Water BP: 1,2 or 3 row (S) - Tube coppers
Water HP: 1 row (2 or 3 rows on request) - Tube steel
BP vapor or HP: 1 row - Tube cupronickel
Electric: armor-plated resistances STAINLESS inserted directly in the winged block for an optimum exchange Body galvanized steel prelacquered RAL 7035
Oil collecting tray of the condensates integrated of cooling use or reversible with bottom at a peak diamond and nautical connection.
Available in 5 sizes according to the hot or cold thermal power (from 4 to 155 kw) and the flow (of 1700 to 11000 m3/h) to provide |
|
| ... products without information |
| |
system of contôle of the temperature item by item
tertiary range
Contrôlede temperature item by item for residences, writing desks and trade agencies
By its system of data transmission single, Prozone 2 offers to each flexibility installation and user-friendliness for an optimum comfort: - management personalized by zone of occupation, - aeraulic solution guaranteeing a diffusion controlled and adapted to each configuration of room. |
|
Tebis TX uses the technology of the installation bus for the control of lighting, heating and roller-shutters or other similar loads, in both residential and commercial applications.
Consumer expectations for increased control of lighting, security and heating continue to rise. Tebis TX offers simple solutions allowing installations to offer benefits that a traditional electrical installation cannot provide.
Tebis TX respects usual installation habits. Electrical contractors can continue to use familiar materials and gain precious time in planning, then wiring, as there is only one cable connecting each push button to the next. Right up to - and after - completion of wiring, you can choose which switch controls which light : the building user can decide at the last minute, or
change their mind at any time in the future with minimum fuss.
|
|
The right room temperature contributes decisively towards our feeling of well-being in all situations. Needs differ greatly in this respect, depending on where one lives and how one personally reacts to temperatures. While room temperatures of 16°C to 18°C suffice for the kitchen and bedroom, we like to have a cosy temperature of 21°C in the living room and, perhaps, even 22°C in the bathroom.
A feeling of well-being, both in private life and in the work environment, is extremely important for us as human beings. Consequently, thermal comfort is also very important as far as the health and well-being of people is concerned, because they spend 95% of their time in buildings.
But the need for comfort and cosiness does not cease when we leave our own "four walls". All the other indoor areas where we spend time (shopping centres, restaurants, sports centres, offices, ....), as different as they are from one another, should also have an appropriate temperature.
A person feels uncomfortable when the body's temperature-regulating system (the skin) is subject to stress, e.g., as a result of too low or too high air and wall temperatures, strong air movements, too low or too high humidity and to light or too heavy clothing. In these cases, concentrations of heat, or heat losses occur in the body. A person feels comfortable when the air temperature, air movement, humidity and wall temperatures are in a balanced ratio to their activity and clothing. Comfortableness and wellbeing are also favourably influenced by the cleanliness of the air and a low noise level in the room.
With an increasing demand for comfort and a reduction in energy consumption, environmental consciousness becomes more and more a part of our lives. In private households in Germany, approx. 70% of the energy consumed is for heating and hot water. Calculated on the basis of the energy consumption in the country as a whole, 30% of the total energy is consumed for heating and hot water alone. The objective when planning any heating/air-conditioning system is to achieve the desired level of comfort and cosiness while saving as much energy as possible. This is of benefit to the environment, our purse and our well-being.
In the following, it will be shown how an individual room temperature control system can be planned and installed without difficulty. |
|
Manage heating with telephone dialling device
Selecting with telephone commands, via telephone dialling device, the timer thermostat operating mode (manual programme or pre-set automatic
programmes).
In homes with combined Burglar-alarm and Automation systems, the heating can be controlled remotely by sending telephone commands to the telephone dialling device. This device, suitably programmed, activates an actuator of the Automation system whose contacts are connected to the timer thermostat "remote" control terminals. When the contacts are closed, the timer thermostat is ready for operation with "manual programme and anti-frost mode", if instead the contacts are open the temperature is checked with one of the seven automatic programs available. When you are at home, the timer thermostat-operating mode is checked by means of a control device of the Automation system, configured to manage the actuator mentioned above. |
|
In addition to comfort and safety, long-term sustainability, efficiency and flexibility are growing in importance in the private and commercial building field. This is no problem for the JUNG KNX system. Thanks to the networking of individual functions, it ensures an %u201Cintelligent building%u201C. The KNX sensors integrate the building into a network of devices that communicate with each other and automatically control the use of e.g. lighting, heating, air conditioning and blinds control. This also optimises the use of energy and saves on operating costs.
|
|
Comfort, Control, Common Sense.
Control heating and cooling comfort where you want it, when you want it. With a Honeywell Zoning System, you won't heat empty rooms or over-cool one area in order to be comfortable in another. Zoning makes it possible for everyone to be comfortable.
You don't have to buy a new heating and cooling system for every room. A Honeywell Zoning System uses dampers in your ductwork that open and close as needed based on each zone's thermostat settings. When a zone is at the selected temperature, and doesn't need to be heated or cooled, the dampers close to save energy and maximize comfort elsewhere. Think of it as controlling your heating and cooling the same way you control your lights - a thermostat controls each zone to the temperature you choose.
Key Features
Meets American Lung Association® Health House® guidelines.
Increased comfort. No more rooms that are too hot or too cold.
Energy-efficient. Heat or cool only the areas you want, so you'll save energy.
5-year warranty. |
|
Comfort, Control, Common Sense.
Control heating and cooling comfort where you want it, when you want it. With a Honeywell Zoning System, you won't heat empty rooms or over-cool one area in order to be comfortable in another. Zoning makes it possible for everyone to be comfortable.
You don't have to buy a new heating and cooling system for every room. A Honeywell Zoning System uses dampers in your ductwork that open and close as needed based on each zone's thermostat settings. When a zone is at the selected temperature, and doesn't need to be heated or cooled, the dampers close to save energy and maximize comfort elsewhere. Think of it as controlling your heating and cooling the same way you control your lights - a thermostat controls each zone to the temperature you choose.
Key Features
Meets American Lung Association® Health House® guidelines.
Increased comfort. No more rooms that are too hot or too cold.
Energy-efficient. Heat or cool only the areas you want, so you'll save energy.
5-year warranty. |
|
Wish: to save energy by minutant heating.
Report
You wish to have a pleasant temperature in all the house. For this purpose, you must adjust the thermostat of each radiator to the hand. Moreover, a latency ago before the desired temperature is not reached.
The solution Schneider Electric
With KNX, the thermostat of your radiators is regulated itself. It is you who decide where, when and on which temperature. You can thus heat the parts individually, according to your rhythm of life. The morning, for example, a timer starts the heating of the room to be laid down, the bathroom and the kitchen. When you return to the house the evening, the heating of the living room is also put in step. It is not a luxury, it is a pleasant comfort and a manner simple to make savings in heating. |
|
| The radiators are equipped with a kit for fixing them to the wall and with an air valve.Chromate radiators NOT available.Testing pressure: 10,5 bar - Working pressure: 7 bar * The watt values are not definitive awaiting for t50 certification. |
|
|
|
