Snap-On Panels have been designed for use in roofing, mansard and fascia applications. Snap-On Panels are designed to be installed over a waterproofed solid substrate and a minimum 3:12 roof pitch. Snap-On Panels are to be factory roll-formed in continuous lengths. Maximum panel length is 45 feet and minimum panel length is 4 feet.
These panels are ideal for specification on applications where roof transitions are required. The simplicity of the pan design combined with corrective leveling provides superior flatness and allows for greater workability on site.
|
|
|
The Rigidal Lokroll standing seam roofing system features a unique roll locking fixing method which creates a continuous weathertight roof without any through fixings. The interlocking sections fix directly to the supporting structure, concealing the fixings and providing complete protection from the elements.
|
|
MetroRoman: the light-weight roof panel with a southern touch
You want to have a new roof structure or to renovate your roof and you wish the effect of a Mediterranean roof tile with the additional advantages of a lighter weight and a faster installation? In this case, our MetroRoman is the solution for your new roof!
Meanwhile, this southern tile has made its way throughout Europe and our MetroRoman can be applied and shines on every roof, even in those countries where the sun is not shining too much.
|
|
MetroShake I: it is like a dream
You want to make a new roof structure or to renovate your roof and you wish the effect of a slate-roof with the extra advantages that the roof is lighter and its installation faster? In this case, our MetroShake I is the solution for your new roof!
These panels guarantee that your roof constitute a taut unity.
|
|
The Vestis brand is a new family of coated aluminum sheet strips with specific characteristics for roofing and facade applications.
The particularities of these products are:
- long-lasting aluminum alloy with particular resistance to the weather;
- malleability; - coating in CLM.
All strips bear the Vestis brand and are distributed with protective film.
|
|
Ziplok
Rigidal Ziplok is an advanced 'zip-up' standing seam roofing system with outstanding aesthetic properties and performance characteristics. The system creates a continuous weather tight roof that is structurally sound and has excellent resistance to wind uplift. Offering the ultimate in design flexibility. Rigidal Ziplok can be smooth, crimped or concave curved, tapered or wave formed.
|
|
|
|
|
|
DFALZ
The newest product of Otefal Group is Dfalz, aluminium rolled sheet with continuous liquid painting for coverings and roofing.
The paints used are Pvdf coatings with IR-reflecting pigments: the IR radiation is partly reflected and partly absorbed. While white and near white pigments are naturally IR-reflecting, darker pigments tend to have a high rate of IR absorption. The difference in surface temperature (and panel temperature) between a coating using standard pigments and on using special IR-reflecting pigments can range from app. 5°C for light colours to more than 10°C for dark colours (measured on north-facing roofing panels at an exterior temperature of 30°C).
Dfalz precoated roofing panels will have:
- lower operating costs, due to less maintenance and airconditioning
- lower installation costs, due to less insulation requirement
- longer service life
than panels using standard coating products, including PVDF coatings with standard pigmentation.
The UV radiation is destructive to many substances, including coatings, and it follows that in order to maximise the life of a coating, it should be as transparent as possible to UV light. PVDF coatings have this characteristic.
In densely constructed areas, Dfalz IR-reflecting panels will also contribute less to ozone creation, thus improving the air quality for the occupants and neighbours.
|
|
Functionality and new technologies
Dwall rolled aluminium sections are made using an innovative continuous liquid coating process by means of roller coating heads. The result is a product with an excellent performance level, easy to work, lightweight and very easy to assemble.
Liquid-painted rolled aluminium sections also have the considerable advantage of combining the quality of a painted product with bright,
long-lasting colours, with a relatively economical finished product.
As with all Otefal group products, Dwall is also available with a virtually unlimited range of alloys, resins, paints and colours (RAL colours and custom finishes).
Dwall is extremely versatile and practical and, consequently, can be used in countless fields: from building to transport, from poster design to household appliances.
|
|
Suitable for:
Civil and industrial buildings and for old roof renewal
Workings :
notching
calendering
micro roller leveling
controlled deformation
Advised apply:
Roof and wall cladding
Minimum slope:
5% (this slope depends on the lenght of the sheets. Please refer anyway to local regulations)
|
|
Aluminium
Kalzip standing seam and profiled cladding sheets are available as standard in a stucco embossed finish which is achieved by processing the natural mill finish material through embossing rollers. This provides a surface which diffuses light reducing reflectivity and glare.
As aluminium is both stable and durable, it provides excellent service as a roofing or cladding material without the need for any protective coating.
After prolonged exposure to the elements, the original highly reflective surface of aluminium will dull down to a uniform patina finish and changes in appearance will be consistent along any elevation.
The weathering effect is particularly well illustrated (above) on the City of Manchester Stadium, England. In the space of just 12 months the original roof had dulled down. Once the new North Stand was installed it too started to lose much of its high reflectivity and toned down to match the original Kalzip material.
|
|
ALUCORE® is an aluminium composite panel consisting of two cover sheets and a honeycomb core of aluminium.
Following in the footsteps of the world-wide established ALUCORE® trademark, ALUCORE® is also a composite material for a variety of applications in transport, architecture or industrial production, showing excellent product properties such as extraordinary flatness, large variety of colours and high formability.
The aluminium honeycomb core gives the composite panel a high rigidity and an extremely low weight. ALUCORE® therefore provides the decisive advantage where very high demands are made on the material for applications such as façade cladding or roofing, e.g. if exposed to extremely high wind load and for large self-supporting roofs.
ALUCORE® is the first lightweight panel that you, too, will absolutely insist as being: a bond for life.
|
|
|
|
|
|
The aluminium honeycomb core endows the composite panel with an exceptionally high bending strength at an extremely low weight. In contrast to traditional honeycomb composites with brittle-hard bonding systems, the ALUCORE bonding system is tough and resilient yet features a high degree of elasticity. The advantages resulting there from are improved peel strength, higher damage tolerances and additional processing options, to name just a few.
With all the advantages there are to an optimal system solution.
ALUCORE is produced in a continuous manufacturing process, in which the core and the cover sheets already stove-lacquered are bonded. The result: This high-performance honeycomb composite can be produced in large contract quantities at short notice - making it an attractive proposition in terms of value for money. With its low weight and high weather resistance, ALUCORE ideally lends itself to indoor and outdoor applications. Numerous business sectors, such as architecture, industry, transport and display utilize the advantages of this highly versatile, fully recyclable aluminium honeycomb composite panel.
|
|
|
Alutuff and Alutuff II Panels are finished with a high-performance silicone-modified polyester paint system. This cutting edge resin technology offers unbeatable durability, superior color retention and resistance to dirt accumulation, ensuring low maintenance, lasting beauty and outstanding value.
|
|
|
FALZONAL®, pre-painted aluminium in standing seam quality is a semi-finished coil-coated product whose alloy, mechanical properties and coating materials are coordinated perfectly with the processing techniques used in lock-welting.FALZONAL® can be used as for rain-proof double-skin, rear-ventilated roof constructions, or single-skin roof constructions without rear-ventilation as it can for complex facade architecture. Falzonal is available in different surface finishes: Uni and metallic colours as well as copper, zinc or titanium imitations.
|
|
PAC-CLAD Integral Batten Panels are designed for roofing applications, mansards, canopies and fascia. Integral panels are to be factory roll formed in continuous lengths. Maximum panel length is 45 feet and minimum panel length is 4 feet.
Standard on-center dimensions are 11”, 18” and 19”, but for renovation projects or additions, on-center dimensions may be custom matched to your requirements. Neoprene panel closures are available for installation at the eave.
|
|

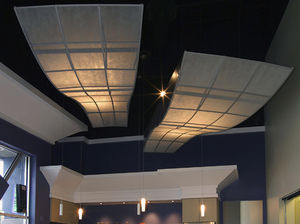

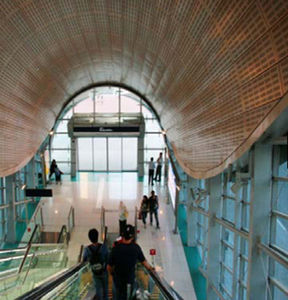

SAS bespoke ceilings encompass a wide range of design options and include radial, vaulted and waveform ceilings.
Ceilings can be designed to fit any building design or shape. The tiles can be manufactured to meet the building module size with curved or trapezoidal tiles and profiles available.
For external environments, subject to wind loading, differing options can be manufactured.
Semi-external ceilings can be produced, where subterrain and undercroft car parks must meet U-Value requirements, an insulated suspended metal ceiling can ensure that U-Values are maintained while providing a clean durable finish
|
|
|
|
|
|
Structural products are ideally suited for most commercial and industrial applications and a number are specifically designed for refurbishment. The main products for these applications are Floordeck, Purlins and Rails, Channel Systems, Roof Tile and Flat to Pitch Overroof.
Competitive strengths:
High market share
Very efficient product range
Superior customer service
Markets served:
Lightweight structural products are used substantially in steel frame, modular and refurb buildings. These are supplied principally to the manufacturers of modular and structural steel buildings mainly in the UK, Ireland and Western European markets. These products are supplied from four plants in the UK, Ireland and Central Europe.
Integrated Architectural Features & Accessories
Kingspan offer integrated bespoke architectural feature components for a wide range of building envelope accessories.
Whatever the shape, design or colour Kingspan can fabricate products to suit each specific project, from aluminium, galvanised, or pre-coated steels, with polyester powder coated/syntha pulvin finish if required.
A wide range of standard accessories are also available:- rainwater systems, flashings, window details, bullnose features, soakers, canopy and column casings, barge boards, louvres, etc.
Overroofing
Flat to pitched roofing system is an efficient solution for leaking roofs providing a new pitched overroof which extends the life of the building, whilst providing an attractive alternative which upgrades the insulation of the roof to current standards.
|
|
AluPlusZinc
Available in 1.0 mm material, Kalzip AluPlusZinc offers all the performance benefits of traditional aluminium together with the aesthetic appeal of zinc.
The unique patented PEGAL process produces a highly durable fusion between the aluminium substrate and the thin zinc layer eliminating most of the corrosion problems associated with zinc, allowing simpler and more cost effective roof constructions to be created.
Benefits at a glance:
- Lightweight yet strong material
- Speed of installation compared with traditional systems
- Non-ventilated, warm roof construction
- Complementary associated flashings
- Trained installer network
|
|
|
|
|
|
Free forming - architecture with Kalzip XT
With Kalzip XT the dynamics of the architectural draft without reductions let themselves transfer to the solidium which can be implemented. Kalzip succeeded it to perfect the high art of flexible forming. A new generation of roll molders ensures the conversion of technomorpher bodies. The manufacturing takes place computer-controlled, so that the form of the profile boards is subject to less technical restrictions and is realizable various free formings. By the innovative patented roll form technology for free aluminum a three-dimensional alignment, which redefines the spectrum of the possibilities, succeeds to standing crease profiles. The shape of architecture wins at outlines up-to-date and permits a nuancierte new interpretation of basic forms.
Polymorphe architecture in perfection
The singular mouldability of the Kalzip XT profile boards permits a nearly unlimited flexibility in the figure spectrum up to hyperbolic geometry and free forming architecture with flowing, biomorphen forms. Organic and geometrical forms stand as complementary addition next to each other. Lively by spectacular Blob objects, which excite internationally attention (is reminded of friendly alien in Graz), are interest and demand of architects in this subject strongly risen.
Kalzip XT of profiles are equally in different surfaces (, Kalzip AluPlusZinc, Kalzip aluminum plus patina stucco dessiniert) and a broad Farbpalette (colorcoated surfaces in all RAL and special colors) available.
|
|
|
Rigidal Ziplok is designed for use in 'zip-up' standing seam roofing applications where the actual pitch is 1.5° or greater. Offering exceptional weather resistance and durability the product is suitable for both newbuild and refurbishment applications.
|
|
Rigidal's unique Thermohalter can be used in the traditional Rigidal Ziplok system without cold bridging through the system. The liner sheet acts as a template for setting out the halters on site, making this system not only world beating in terms of performance but also very cost effective, quick and easy to install.
|
|
MetroBond: a light-weight roof panel with the traditional effect
You want to make a new roof structure or to renovate your roof and you wish the effect of a real conventional roof tile with the additional advantages that the weight is lighter and the installation is faster? In this case, our MetroBond is the solution for your new roof!
These panels have a classical view in order to match with every architectural style going from the traditional form up to the most contemporary design.
|
|
MetroShake II: it is as easy as falling from a wooden metal log
You want to make a new roof structure or to renovate your roof and you wish the effect of a wooden roof with the extra advantages that it is lighter and faster to install? In this case, our MetroShake II is the solution for your new roof!
These panels make the impressive sculpture qualities of a wooden roof come to life again.
|
|
MetroShingle: the unique alternative for bituminous shingle and slate
You want for your new roof structure or roof renovation an alternative for your bituminous shingle and slate with the extra advantages that it is lighter and can be installed faster? In this case, our MetroShingle is the solution for your new roof!
Unique for this model is the assembly system without any visible attachments.
|
|
MultiMetroBond: the traditional multiple custom-made effect
As a constructor of standard houses, Swiss cottages, garden houses, etc… you want to have the effect of the real classical roof tile together with the additional advantages of a lighter weight and a faster installation and which moreover can be made customized in accordance with your specific personal model? In this case, our MultiMetroBond is the solution for your new roof!
These panels have the conventional view in order to match with every architectural style going from the normal traditional form up to the most contemporary design.
|
|
MetroClassic: the traditional effect in a angular cover
You want to have a new roof structure or to renovate your roof and you wish the effect of the real classical roof tile in an angular cover with the additional advantages of a lighter weight and a faster installation? In this case, our MetroClassic is the solution for your new roof!
These panels have the conventional view in order to match to every architectural style from the normal traditional form up to the most contemporary design.
|
|
|
Roof sheeting made from ZINCALUME® steel is available in a range of profiles. The zinc/aluminium alloy coating on ZINCALUME® steel imparts corrosion resistance of up to four times the life of galvanised steel.
|
|
Megaroof
The large metal roof covers
Megaroof system is to be considered as one of the most interesting new high technology products that appeared on the Italian market over the last years; this product cancels all the problems linked to elements transportatio, because the metal plates are produced on-site by a mobil production unit
|
|
Tech AL
Aluminium roofing system.
Tech Al is a Hedar system that helps constructing aluminium roofing for civil, industrial, commercial, sports and leisure buildings.
The corrugated sheets of the Tech AL system are made of aluminium alloy 3103-H16 (UNI 9003/3) with a thickness of mm 7/10 with corrugated covering.
|
|
|
|
