- System designed to OPTIMIZE SPACE AND PROFITABILITY.
- Rows of seats move along floor rails and are stored automatically under stage, leaving a completely open multipurpose space.
- Activated MANUALLY or AUTOMATICALLY.
- System equipped with Flex model chair, which, when folded, occupies a depth of only 26 cm (10’2”) in manual version, and 34 cm (13’3”) in automatic version.
- Can incorporate F45 individual desk to create COMFORTABLE INDIVIDUAL WORK CENTRE.
|
|
Varius Auditorio chair -1983-
Oscar Tusquets
Structure made of two pieces, support of back and base made in cast aluminium L 2520
painted black epoxy-polyester resin powder.
Back and seat made in cast aluminium silumin alloy L 2520 coated with flexible polyurethane
foam.
Upholstered in fabric or leather.
The armrests have a steel frame, skimmed in integrated polyurethane.
The seat incorporates in the lower part a resonator Helmholtz obtaining the
same absortion spectrum independantly of the number of people in the hall, which
means that the reverberation of the hall is the same with more or less ocupation.
Varius Auditorio chair without desk: 50-57 x 60 x H.82cm (H. Seat: 46cm)
Varius Auditorio chair with desk: 50-57 x 71 x H.82cm (H. Desk: 65cm)
|
|
- Chair with SYNCHRONIZED folding of armrests and seat, mounted on central pedestal.
- OPTIMIZES use of space: occupies a depth of just 35 cm (13’7”) in folded position.
- CHANGEABLE pads made in semi-integral form and upholstered in fabric or natural leather.
- TS System FIRE BARRIER for added safety.
|
|
- Chair for OPTIMIZATION of space: occupies a depth of just 24,5 cm. (9'7") in folded position.
- Beam-mounted chair with SYNCHRONIZED folding of armrests and seat.
- CHANGEABLE pads upholstered in INTEGRAL FORM or natural leather.
- TX acoustic absorption system.
-TS System FIRE BARRIER for added safety.
|
|
- A chair that provides a high level of DESIGN and COMFORT.
- Seat folds AUTOMATICALLY using a double-spring system.
- CHANGEABLE pads made in semi-integral form and upholstered in fabric or natural leather.
- TS System FIRE BARRIER for added safety.
- Certified by APPLUS based on performance in ACOUSTIC tests.
- The resonator acoustic HELMHOLTZ is optional (the HELMHOLTZ RESONATOR is a system adequate for obtaining considerable improvement of the acoustic conditions of seats. It consists of a chamber in the lower part of the seat filled with tested materials for a most favorable acoustic performance & capable of increasing sound absorption in different ranges of frequencies).
|
|
- Chair for OPTIMIZATION of space: occupies a depth of just 23 cm. (9’05”) in folded position.
- Beam-mounted chair with SYNCHRONIZED folding of armrests and seat.
- CHANGEABLE pads made in semi-integral form and upholstered in fabric or natural leather.
- TS System FIRE BARRIER for added safety.
- Certified by GARCIA BBM based on performance in ACOUSTIC tests.
|
|
- Chair with SYNCHRONIZED folding of armrests and seat, mounted on two side pedestals.
- OPTIMIZES use of space. Occupies a depth of just 36 cm. (14") in folded position.
- CHANGEABLE pads made in semi-integral form and upholstered in fabric or
- TS System FIRE BARRIER for added safety.
|
|
-Tilt of backrest is ADJUSTABLE to improve VISIBILITY and alignment of rows.
-CHANGEABLE pads upholstered in INTEGRAL FORM or natural leather.
-TS System FIRE BARRIER for added safety.
-TX acoustic absorption system.
-Certified by GARCIA BBM based on performance in ACOUSTIC tests.
|
|
-Chair mounted on two side pedestals with tip-up seat.
-CHANGEABLE pads upholstered in INTEGRAL FORM or natural leather.
-TS System FIRE BARRIER for added safety.
-TX acoustic absorption system.
-Certified by GARCIA BBM based on performance in ACOUSTIC tests.
|
|
-Chair for OPTIMIZATION of space. Occupies a depth of just 47 cm (18'3") in folded position.
-CHANGEABLE pads made in semi-integral form and upholstered in fabric or natural leather.
-TS System FIRE BARRIER for added safety.
-Chair mounted on two side pedestals with fixed armrest.
-Certified by UPC based on performance in ACOUSTIC tests.
|
|
|
|
|
|
Opus
design Jouko Järvisalo 1997
Auditorium chair with or without armrests
Characteristics of the Opus auditorium chair are detailed, clean design and good ergonomics, such as flexible back rest. Thanks to concealed fixing in the floor, the outcome is elegant because there are no visible screws in the floor plates. This facilitates maintenance of the hall, too.
Opus suits many kinds of interiors, lecture hall as well as concert halls. There are several writing table and tablet arrangements to choose from, tailor-made solutions are available, too.
Materials and finishing
Frame epoxy coated steel, seat and backrest moulded plywood with face veneer of birch. Alternative face veneers and special stains available on request. Concealed fixing in the floor.
Accessories
- Fixed or foldable writing tablet on separate legs or fixed into the frame
- Foldable writing tablet in armrest
- Seat/row numbering
- Acoustic perforation in the seat
Upholstery
Seat upholstered or seat and backrest upholstered with fabric or leather.
Dimensions
Chair width linked c/c 550 mm from centre of armrest to centre of armrest. Due to the base flange 120 mm must be added to get total width of the row. Depth 380 mm with folded seat, 640 mm with seat down. Height of the backrest according to the step height.
Step width: Recommendation without writing tablet 900 mm, with fixed 300 mm writing tablet 1050 mm. N.B. Always check with local authorities requirements on free walking space allowance.
Technical support
For more information on special solutions or alternative dimensions, please contact Mobel sales at mobel@mobel.fi
|
|
|
|
|
|
Opus
design Jouko Järvisalo 1997
Auditorium chair with or without armrests
Characteristics of the Opus auditorium chair are detailed, clean design and good ergonomics, such as flexible back rest. Thanks to concealed fixing in the floor, the outcome is elegant because there are no visible screws in the floor plates. This facilitates maintenance of the hall, too.
Opus suits many kinds of interiors, lecture hall as well as concert halls. There are several writing table and tablet arrangements to choose from, tailor-made solutions are available, too.
Materials and finishing
Frame epoxy coated steel, seat and backrest moulded plywood with face veneer of birch. Alternative face veneers and special stains available on request. Concealed fixing in the floor.
Accessories
- Fixed or foldable writing tablet on separate legs or fixed into the frame
- Foldable writing tablet in armrest
- Seat/row numbering
- Acoustic perforation in the seat
Upholstery
Seat upholstered or seat and backrest upholstered with fabric or leather.
Dimensions
Chair width linked c/c 550 mm from centre of armrest to centre of armrest. Due to the base flange 120 mm must be added to get total width of the row. Depth 380 mm with folded seat, 640 mm with seat down. Height of the backrest according to the step height.
Step width: Recommendation without writing tablet 900 mm, with fixed 300 mm writing tablet 1050 mm. N.B. Always check with local authorities requirements on free walking space allowance.
Technical support
For more information on special solutions or alternative dimensions, please contact Mobel sales at mobel@mobel.fi
|
|
Rectangular metal pipes, affixed to floor-mounted longitudinal section
Seat and backrest:
-the supporting elements made in pre-formed plywood, than padded with cold-formed PU foam additionally cut for ergonomic reason and upholstered
Armrests:
-part of complex box-typ side, completly upholstered with cover made of pre-formed plywood, U-shaped
Writing surface:
-options: PU writing tablet moves under the armrest by anti-panic security system
A | 55
B | 80
C | 45
D | 100
|
|
Consists of joke sheet steel or beam and rectangular or oval central leg, mounted on appropriate steel plate
Seat and backrest:
-the supporting elements made in pre-formed plywood, than padded with cold-formed PU foam additionally cut for ergonomic reason and upholstered
spring- or weight-assisted vertical adjustment of seat
variable backrest height and adjustment of backrest angle
-seat and backrest completlly upholstered
Armrests:
part of complex box-type side, completly upholstered
Writing surface:
-options: PU writing tablet moves under the armrest by anti-panic security system
-Used materials passed the fire endurence tests M1 and B1.
-Chairs passed slovenian quality test.
A | 58
B | 70
C | 45
D | 100
|
|
Model Hannover
-rectangular metal pipes, affixed to a floor-mounted longitudinal section or according to customs/project demands
Model Eindhoven
consists of yoke, sheet steel, and rectangulare or oval central leg, mounted on appropriate steel plate
Seat and backrest:
-the supporting elements made in pre-formed plywood, than padded with cold-formed PU foam and upholstered with artificial leather, water-, fire- and UV- resistant
-weight-assisted vertical adjustment of seat
-variable backrest height and adjustment of backrest angle
-metal backrest cover, partly supporting
Armrests:
-box-type side upholstered, upper part of PU
-Used materials passed the fire endurence tests M1 and B1. Chairs passed slovenian quality test
A | 55
B | 70
C | 45
D | 95
|
|
Joy is a range of chairs for public buildings, with a pantograph movement which makes them very compact when the chair is not being used,
leaving more space between the rows, with a reliable, smooth and quiet automatic movement. Joy is equipped with a reclining desktop with
anti-panic safety system, document pockets, place name and row number. Joy chairs can be installed singularly or in rows with shared armrests.
|
|
Seat designed for theatres, conference halls and auditorium.
Seat and backrest have polyurethane foam mats on a beech plywood core (5mm thick), fixed to an outer shell (12mm) of beech plywood. The whole set is upholstered with M-1 fireproof fabrics, with an additional underlying M-1 layer.
Sidearms made of steel plate, 6mm thick and 60mm wide.
They hold the folding socket joints which allow the seat pan to fold by means of a spinning axle and a torsion spring. Backrest is fixed by means of two pivots, made of solid steel, using specific hardware.
Welding made under tested conditions, with bow of continuous thread and controlled atmosphere. Screws and fixing materials made of finished steel.
|
|
|

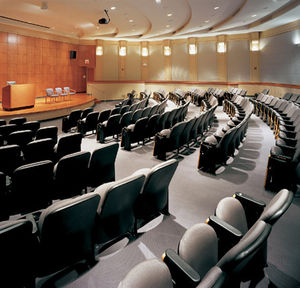

Impress audiences with a more refined aesthetic. Concerto seating offers contoured comfort and contemporary design. Embrace creative teaching and accommodate students' needs with optional technology support. Space efficient. Surprisingly low priced. Adapt auditoriums to multi-purpose use with tablet arms and power/data access.
|
|
Manel Bosch / Jordi Bosch / Joan Tarrús
Seat especially designed for theatres and auditorium.
Seat and backrest made of polyurethane foam, covered with M-1 fireproof fabrics with an additional underlying M-1 layer. Seat mat is fixed to a beech plywood core, 12mm thick. Backrest has a core made of syntrewood (recycled plastic material) with an outer shell made of aluminium.
Sidearms made of high density waterproof MDF panels finished with wood plates, 1.5mm thick, and 2 layers of polyurethane varnish –shade to be chosen by the customer. They also enclose the folding socket joints made of injected polyamide, very resistant to mechanical demands.
The top-side part of sidearms, i.e. the armrests, is made of solid beech wood, 10mm thick.
Fixing to the floor is achieved by means of a steel plate support onto which the sidearm is anchored. Every support has two orifices for its fixation to the pavement.
|
|
Seat especially designed for conference halls, theatres and auditorium.
Seat and backrest made of beech plywood, 12mm thick, and finished with 2 layers of polyurethane varnish. Upholstery is made of open-cell polyurethane foam (self-extinguishable according to legal prescriptions), covered with M-1 fireproof fabrics with an additional underlying M-1 layer –shade to be chosen by the customer.
Backrest is fixed to the set by means of two side components made of extruded aluminium. Thus, the row achieves uniformity and firmness.
Sidearms also enclose the folding socket joints, which allow the seat pan to fold by means of a spinning axle and a torsion spring, determining the automatic reversion.
Joints made of injected polyamide, very resistant to mechanical demands, and do not require maintenance.
Fixing to the floor is achieved by means of a steel plate support, 10mm thick, onto which the sidearm is anchored. Every support has two orifices for its fixation to the pavement.
|
|
Seat of minimal dimensions especially designed for conference halls, theatres and auditorium.
Upholstery on seat and backrest made with polyurethane foam on a beech plywood core, 12mm thick, (self-extinguishable according to legal prescriptions), covered with M-1 fireproof fabrics, zipper finishing, with an additional underlying M-1 layer –shade to be chosen by the customer.
Sidearms made of extruded aluminium, with 80-micron powder coat finishing–shade and texture to be chosen by the customer.
Armrests made of beech wood, with two layers of polyurethane varnish –shade to be chosen by the customer.
The automatic tip-up mechanism rotates seat and backrest to the fold position when the seat is vacated.
Fixing to the floor is achieved by means of metallic supports finished with electrostatic epoxy powder –shade and texture to be chosen by the customer.
This model includes seat and row
|
|
Seat especially designed for conference rooms, theatres and auditorium.
Seat and backrest made of beech plywood, 12mm thick for the seat and 10mm for the backrest, framed at the sides and at the top with solid beech wood. The set is upholstered with polyurethane foam covered with M-1 fireproof fabrics with an additional underlying M-1 layer.
Sidearms structure made of a steel plate, 8mm thick, with epoxy powder coat finishing.
It holds high-density veneered MDF boards. Same finishing (fabrics) as seat and backrest. It also encloses the folding socket joints, which are made of injected polyamide, very resistant to mechanical demands, and do not require maintenance.
Armrests made of solid beech wood, 10mm thick, with the same finishing (fabrics) as sidearms.
Fixing to the floor is achieved by means of two orifices placed at the bottom part of sidearms, using specific hardware.
|
|
Seat and backrest made of high-density polyurethane foam, with a frame made of steel tube and mesh, covered with M-1 fireproof fabrics with an additional underlying M-1 layer.
Sidearms made of rolled wood, 50mm thick, finished with two layers of polyurethane varnish –shade to be chosen by the customer. They hold both seat and backrest and also the folding joints, with u-shaped axles.
Armrests made of solid beech wood, finished with two layers of polyurethane varnish, fixed to sidearms by means of a steel plate, 6mm thick, placed in the inner side.
Anchoring is achieved by means of a steel plate support, 6mm thick, onto which the sidearm is fixed. Every support has two orifices for its fixation to the pavement. Epoxy powder coat finishing –shade to be chosen by the customer.
|
|
Seat especially designed for theatres and auditorium.
Seat and backrest made with open-cell polyurethane foam on a beech plywood core, 12mm thick, (self-extinguishable according to legal prescriptions), covered with M-1 fireproof fabrics, zipper finishing, with an additional underlying M-1 layer.
Backrest is held and protected with an outer steel shell with joints to the sidearms.
Sidearms are made of steel plate (50x5mm) and enclose the folding socket
joints, which are made of injected polyamide, very resistant to mechanical demands, and do not require maintenance. Armrests made of solid beech wood, finished with two layers of polyurethane varnish –shade to be chosen by the customer.
Fixing to the floor is achieved by means of two orifices placed at the bottom part of sidearms.
This model includes seat and row numbering.
|
|
Upholstery on seat and backrest made with polyurethane foam on a beech plywood core, 12 mm. thick, (self-extinguishable according to legal prescriptions), covered with M-1 fireproof fabrics, zipper finishing, with an additional underlying M-1 layer –shade to be chosen by the customer.
The automatic tip-up mechanism rotates seat and backrest to the fold position when the seat is vacated.
Sidearms made of aluminium with 80-micron powder coat finishing –shade to be chosen by the customer-, fixed on a steel tubular frame and legs.
Armrests are made of semi rigid black polyurethane foam. As an option, they can also be made of solid beech wood.
Fixing to the floor is achieved by means of metallic supports finished with electrostatic epoxy powder –shade and texture to be chosen by the customer.
As an option, this model includes seat and row numbering.
|
|
Seat of minimal dimensions especially designed for conference halls, theatres and auditorium.
Upholstery on seat and backrest made with polyurethane foam on a beech plywood core, 12mm thick, (self-extinguishable according to legal prescriptions), covered with M-1 fireproof fabrics, zipper finishing, with an additional underlying M-1 layer –shade to be chosen by the customer.
Sidearms made of extruded aluminium, with 80-micron powder coat finishing–shade and texture to be chosen by the customer.
Armrests made of beech wood, with two layers of polyurethane varnish –shade to be chosen by the customer.
The automatic tip-up mechanism rotates seat and backrest to the fold position when the seat is vacated.
Fixing to the floor is achieved by means of metallic supports finished with electrostatic epoxy powder –shade and texture to be chosen by the customer.
This model includes seat and row numbering.
|
|
Seat designed for theatres, auditorium and conference halls.
Seat and backrest made of beech plywood, 12mm thick, framed by a thicker board, u-shaped (28mm thick), finished with 2 layers of polyurethane varnish (self-extinguishable according to legal prescriptions) –shade to be chosen by the customer.
Upholstery on seat and backrest made with polyurethane foam on a beech plywood core, covered with M-1 fireproof fabrics, with an additional underlying M-1 layer –shade to be chosen by the customer.
Sidearms made of beech plywood boards (120x60mm), with 2 layers of polyurethane varnish –shade to be chosen by the customer.
Armrests made of steel plate, 10mm thick. Epoxy powder coat finishing.
Folding joints made with lateral flaps and a solid steel axle, hiding the torsion spring.
Anchoring is achieved by means of a T-shaped steel plate support, 10mm thick, with two pivots inserted in the sidearms, fixing the whole set.
|
|
|
|
|
|
Seat especially designed for theatres, auditorium and conference halls.
Seat and backrest made of beech plywood, 12mm thick, and finished with 2 layers of polyurethane varnish. Upholstery made of open-cell polyurethane foam (self-extinguishable according to legal prescriptions), covered with M-1 fireproof fabrics with an additional underlying M-1 layer –shade to be chosen by the customer.
Sidearms made of high density waterproof MDF panels finished either with beech plywood and 2 layers of polyurethane varnish, or upholstered with fireproof M-1 barrier and fabrics, just like seat and backrest.
Backrest is fixed to the set by means of two side components made of extruded aluminium. Thus, the row achieves uniformity and firmness. Sidearms also enclose the folding socket joints, which allow the seat pan to fold by means of a spinning axle and a torsion spring, determining the automatic reversion.
They enclose the folding socket joints, which are made of injected polyamide, very resistant to mechanical demands, and do not require maintenance.
Fixing to the floor is achieved by means of a steel plate support, 10mm thick, onto which the sidearm is anchored. Every support has two orifices for its fixation to the pavement. Powder coat finishing –shade to be chosen by the customer.
|
|
Seat designed for theatres and auditorium.
Seat and backrest have an asymmetrical-shaped mat made of polyurethane foam, fixed on a beech plywood core, 12mm thick, with the same dimensions. The set is covered with M-1 fireproof fabrics with an additional underlying M-1 layer, and joined to the outer structure by means of 4 steel flaps fixed to the inner side, using specific hardware.
The outer structure is also made of beech plywood, 12mm thick, finished with 2 layers of polyurethane varnish. Appearance and finishing can vary upon request.
Special design of sidearms is made of high density waterproof MDF boards, finished either with noble plywood and 2 layers of polyurethane, or upholstered just like seat and backrest.
Armrests made of solid beech wood and are bent-shaped.
Anchoring is achieved by means of a steel plate support with two solid steel pivots, specially mechanized to be inserted inside the sidearms, fixing the whole set.
|
|
|
|
