New application in Barreaudage Trenzametal
The company Trenza Metal Area increases its line of product of the mark Trenza Metal with a new model of barrier/railing and barreaudée fence, maintaining the quality of the rustproofings (hot galvanization thickness minimum of 70 zinc µm) and the surface protector of the existing models, by replacing quite simply the filling of grill braided by bars full of steel of Ø16 Misters.
The barriers/railings maintain the handrail integrated of high strength, section full with half-moon of hot lamination of 8mm thickness, reinforced of a coast full with 60 X 5 Misters It supports great loads without becoming deformed, does not oxidize and does not present visible weldings.
The system of assembly between platinums and amounts with hidden screws allows a tolerance of 10 Misters.
With regard to the lengths and heights, there exist standard dimensions although elements to measures can be manufactured as well as adaptations to the slopes.
With these new models Trenza Metal adds to its offer a line of products of high-qualities and prices very competitive.
Ask more information by calling us the 01 49 19 21 75 or by email the info.fr@trenzametal.com
|
|
|
|
|
|
The concept: a single post + an unique connection system with a sleeve covering, a clamp, a pin + 2 models of railing: XELYTE® and XYLIO®.
STRONG POINTS :
STRENGTH
- Tamper-proof.
- Linking pieces clamped together in the factory.
EASY TO INSTALL :
- Sequential installation.
- Post slotted throughout the height (every 5 cm).
- Any configuration possible: corners, steps…
- Railing can be cut down and repaired using standard elements.
AESTHETICS :
- Design: uniquely shaped post with factory assembled solid cap the same colour as the railing.
- Finish: linking system painted the same colour as the railing.
- Standard colours: green 6005 – Black 9005 – White 9010.
MODULAR:
- XELYTE® :
7 railing heights: from 1 m to 2.50 m.
Post on base plate or to be embedded: from 1 m to 2.50 m.
- XYLIO®
8 railing heights: from 0.80 m to 2.50 m.
Post on base plate or to be embedded: from 0.80 m à 2.50 m.
LONG LIFE:
- Finish : galvanised steel + polyester coating.

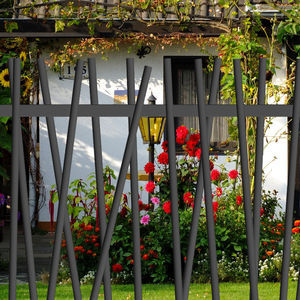

XELYTE® :
- Railing with rectangular rail 50 x 30 mm and square bars 25 x 25 mm inclined at 45°.
XYLIO® :
- Railing with oval rail 50 x 30 mm and round bars Ø25 mm cut off at 45°.
|
|
|
|
|
|

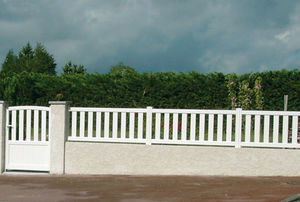

ELIXIR is a range of resolutely modern and customisable railings and gates that can give your exterior surroundings a whole new look. A complete and coherent residential range with a unique and aesthetic design.
STRONG POINTS
DESIGN AESTHETICS
- Smooth attractive shapes
- Contemporary design
- Elliptical profile
SECURE AND STRONG
RAILING :
- Tamper-proof system for fixing railing to the post.
- 5 railing heights: from 0.60 m to 1.50 m.
GATE AND SMALL GATE :
- Small gate : passage 1 m.
- Double leaf gate : passage 3 m and 3.5 m.
- 4 heights : 1.20 m – 1.40 m – 1.60 m – 1.80 m.
- A reliable and robust product with added protection for users.
- In accordance with the NF EN 13241-1
FINISH
- Polyester coated anti-corrosion treated steel.
CUSTOMISATION
- Standard railing, gate and small gate, or with « Dôme » caps or with « Plume » caps.
- For gates and small gates: a single/double panel can be added to the bottom section. 2 gate opening sides: right or left push.
- 200 RAL colours in option.
- Standard colour: Green 6005 - White 9010.
- Regular colours: Black 9005 - Blue 5010 - Red 3004.
RAILING EASY TO INSTALL
- Sequential installation.
- Easy to install with no nuts and bolts.
- Post slotted, on base plate or to be embedded.
- Any configuration possible.
|
|
