- Aluminium boiler body with dual function of exchanger and condenser.
- Ceramic plate burner, with reverse flame, suitable for multi -gas operation and flame modulation.
- Digital controls and setting of the central heating and DHV temperature using special multifunction buttons.
- Temperature and operating mode shown on the digital display.
- Production of domestic hot water with storage cylinder featuring a cryolite glass finish, 140 litres.
- Three-speed central heating circuit pump, fixed speed DHW pump.
- Microprocessor flame control with 3 attempts at re-ignition before locking out the boiler.
- Removable side panels, with partial removal to assist access from the rear to the plumbing fittings.
- Operation with modulating remote control timer (optional).
|
|
|
|
|
|
MAIN FEATURES:
- High efficiency heat generator on gas fuel, floor-standing, open and semi-cooled combustion chamber, natural draught flue exhaust, for the production of hot water for central heating.
- G20 cast-iron boiler body made from pre-assembled elements (4-7), insulated by a layer of rock wool lined by tear-proof ceramic fibre fabric.
- Air intake burner with heads (3-6) made from AISI 304 steel, electric ignition with intermittent pilot flame and safety device that measures the ionisation current produced by the flame.
- Variable heat input, with two-stage operation.
- Flue manifold with semi-incorporated draft diverter-wind shield device.
- Steel casing painted white by anaphoresis using epoxy powder paint.
ADVANTAGES OF THE PEGASUS F1 N:
- Safety, thanks to the use of a single valve block with on-off mechanisms controlled independently by the control thermostat and by the safety thermostat.
- Sturdiness, due to the excellent quality of the materials used and the strict tests performed on the cast-iron elements.
- Efficiency, due to the special layout of the cast-iron exchanger element with large finned surface, the stainless steel burner and the effective insulation of the boiler body.
- Rational construction, highlighting the simplicity of installation and maintenance operations.
- Possibility to install the modules with a side-by-side or opposing layout.
- Ready to connect the control unit.
- Cascading operation ( ISPESL certified).
- Operation on LPG using a special conversion kit to be requested when ordering.
|
|
OUR STRONG POINTS:
- High efficiency generator on liquid or gas flue, with three flue passes, cooled combustion chamber, for the production of hot water for central heating, suitable for operation either connected to a traditional system or connected to a low temperature heating system, with a minimum return temperatur of 35°C.
- G20 cast-iron boiler body made up of elements to be assembled when installing the generator in the heating system.
- Steel casing painted grey by anaphoresis using epoxy powder paint.
- Modern and elegant lines.
ADVANTAGES OF THE GN4 N:
- High efficiency achieved by the combination of high technology and maximum constructional rationality.
- Special layout of the cast-iron body, and additional attachment that allows the boiler to be connected in two different ways, according to the traditional system or alternatively to a low temperature heating system.
- Fitted for two-stage burners.
- Wired for control unit.
|
|
MICRO STORAGE HEATER
DUAL HEAT EXCHANGER
MICROPROCESSORS
AUTOMAIC/SEMIAUTOMATIC FILLIG SYSTEM
FLAME MODULATION
TEMPERATURE SCROLLING AND CLIMATE CONTROL
TWO MODELS (C24E-C30E) NATURAL DRAUGHTAND OPEN FLUES
TWO MODELS (F24E-F30E) FORCED DRAUGHT AND ROOM SEALED
|
|
System of support (boilers):
- It complements the energy needs to which they come from
thermal solar installation.
- They can be electrical or conventional (Gas, diesel oil,...)
DESCRIPTION: Solar Interacumulador with hydraulic group and integrated regulation
CAPACITY: 200/300/500 ls
TYPOLOGY: Accumulation ACS
MATERIAL: Vitrified steel (DIN 4753)
|
|
|
The GE Plus range of cast iron condensing boilers combine the benefits of a robust and economic sectional Ecostream cast iron boiler with a compact, high performance external heat exchanger. Particularly suitable for replacement jobs, or sites with restricted access GE Plus boilers are suitable for use with either gas or oil and achieve an excellent price / performance ratio for the customer.
|
|
Long lasting cast-iron heat exchanger design
Circulating pump (cartoned inside crate)
Induced draft fan
Available for propane gas
Titanium composite burners
Cast-iron push nipples
20-year non-prorated heat exchanger warranty
|
|
|
Medium and high output ACV boilers are the ideal complement to ACV water heaters for tertiary applications that require high heating output.
|
|
|
Long-lasting, hygienic, convenient: Weishaupt has hygienic, powerful and reliable water heaters for all requirements.
|
|
|
Space-saving and efficient: The new Weishaupt Thermo Condens Kompakt condensing unit has an integral 115 l hot water cylinder. With this tank, the innovative unit provides the hot water convenience of a conventional 200-l unit. Whether in the cellar or in the house - the graceful combination can be installed anywhere, as the simple, elegant design fits perfectly into any environment.
|
|
Cast iron sectional new design
Very low noise level with atmospheric burners
Comply with the European Directives
Gas Appliances Directive (90/396/CEE)
Boiler Efficiency Directive (92/42/CEE)
Electromagnetic Compatibility Directive (89/336/CEE)
And The European specifications EN 297
A compact system with circulation pump and sealed expansion tank
Automatic on/off with a programmable timer
Low fuel consumption
High resistance against corrosion
Protection against excessive operating pressures with safety valve
Insulated boiler block
Longer lifetime due to corrosion-proof materials
Supplied with 18, 35 or 50 liters expansion tanks according to their heating capacities
Can be fired by natural gas (methane) and butane gas (G30) or propane
Approvals TS EN 297 from Turkish Standard Instution
EN 297 from GOST
EN 297 from GosGor TechNadzor
|
|
The Alfa range is designed to meet the needs of people who appreciate stabilehot water supply that is simple and economical. It is particularly well-suitedto the situation when a bath and a shower are used simultaneously.
|
|
|
|
|
|
The Vitogas 200-F has true stature - from 72 to 144 kW or as cascade up to 432 kW
The Vitogas 200-F always does well - with a rated output of 72 to 144 kW or as a multi-boiler system up to 432 kW. The standard components of the powerful gas fired cascade are the proven Vitogas 200-F (up to 144 kW), the matching flue gas header and the Vitotronic control unit. This makes the Vitogas 200-F an ideal solution even in larger buildings, where quiet operation and an optimum price/performance ratio are a must.
Your performance gain
Of course, the "large" Vitogas 200-F also offers the whole range of leading technology from Viessmann. These include heating surfaces made from special cast iron, the atmospheric premix burner and the Vitotronic digital control units for operation with modulating boiler water temperature. The Vitogas 200-F ensures high operational reliability, low emissions and low energy consumption. A huge plus as far as the environment and your wallet are concerned
Improved convenience
The stainless steel atmospheric premix burner not only ensures excellent emission values, but also minimum noise levels during its operation and on starting. This is easily explained: The special feature of this burner is its segmentation into several gas fittings. This ensures rapid, even gas distribution and reduces the start-up noise development to a minimum. Even in partial load operation the entire burner area is fired up, ensuring a balanced loading of the burner and the heating surfaces that is kinder on
the materials used.
|
|
|
|
|
|
The advantages of the ComfortLine CNG at a glance:
-Atmospheric gas boiler for gradually reduced boiler water temperature with intermittent ignition.
-Heating power from 10 kW to 48 kW
-Water circulates uniformly around the combustion chamber for lowest radiant loss
-Gas burner of heat-resistant stainless steel for long service life
-DVGW quality mark
-Powder coated jacket with the highest quality surface finish
-Controller is pre-wired, connections with plug and mating connector for simple electrical installation
-High standardized efficiency factor up to 93.5% for optimal energy utilisation
-SE-2 floor-standing hot water storage with double-layer enameling for optimal protection against corrosion
-Only for CNG-CB storage water heater made of high alloy, CrNi steel. Hot-water storage content optionally 155 or 200 litres. Heat exchanger coil of seamless drawn plain ended pipe with a large heat transfer area for fast heating
-Extremely pollutant-reduced combustion without flame cooling; better than the limits required for the “Blue Angel“ environmental mark when operated with natural gas.
-6-year guarantee on boiler and 5-year guarantee on stainless steel hot-water storage
-2-years on electrical and moving parts
|
|
|
Modern, clean, safe: The Weishaupt Thermo Gas combines efficient gas combustion, intelligent electronics and proven boiler technology to produce a heating system with exemplary character.
|
|
|
ACV gas-fired boilers offer a simple and ecological solution for heating only and allow for optional addition of a domestic water heater.
|
|
|
|
|
|
The compact classic with biferral composite heating surface
The biferral composite heating surface of the Vitola 200 has become a benchmark for high quality and reliability. The Vitola 200 combines convenience and economy at a reasonable price, and is a milestone in the history of heating technology.
The Vitola 200 is compact in its dimensions. Balanced flue operation is now an option when the boiler is used in conjunction with a Vitoflame 200 (up to 33 kW).
Thinks for you and saves energy
Many boilers tend to be used all year round at a constant temperature. This results in huge losses, especially during the summer months when less energy is required. The Vitola 200 is different: its cast iron and steel biferral composite heating surface enables it to modulate the boiler water temperature to suit the outside temperature. When no heat is required, it shuts down completely, thus greatly reducing your heating bills.
Clean combustion
Emissions fall substantially below the limits required for the "Blue Angel" certificate of environmental excellence and the Swiss Clean Air Act when the Vitola 200 is used with the Vitoflame 200 oil burner. Optimum combustion chamber geometry and thorough flame burnout are the reason for these low emissions.
Benefits at a glance:
Ultra-low temperature oil fired boilers, 18 to 63 kW
Standard efficiency: 90 % (Hs) / 96 % (Hi)
Biferral composite heating surface for high operational reliability and a long service life
Clean combustion: Performs substantially better than the limits required for the "Blue Angel" certificate of environmental excellence and the Swiss Clean Air Act
|
|
For very high heat outputs of up to 19,200 kW the Buderus SB 825L condensing boiler is a premium quality choice. The boilers are simple to service and maintain with easy to access combustion chambers and heating surfaces ensuring straight-forward operation, life-long durability and overall system efficiency.
|
|
|
|
|
|
Reliable heat storage
We offer you solar storage tanks with capacities ranging from 150 to 750 litres. These are Type S water storage tanks equipped with two heat exchangers, which are used in solar heating systems for supplying domestic hot water.
In order to use the solar heat for space heating as well as providing hot water, so-called combination tanks (type K) are often used in private homes. These have an external buffer storage tank that contains a second, inner storage tank.
Optimum corrosion protection
The storage tanks have a double coating of enamel on the inside for optimum corrosion protection and in addition have a magnesium anode whose performance can be regularly controlled using a push-to-test button.
High solar yields through good layering
The high, slim form facilitates the layering of the heat in the storage tank, leading to higher solar yields. The flow-controlled cold and hot water connections are very effective in preventing turbulent mixing of the layers in the tank.
Low losses through high insulation
To ensure that the heat gained remains in the storage tanks, these are covered with a 100 mm-thick insulation jacket. The covers even have an insulation thickness of 150 to 180 mm (depending on the type of storage). In addition the tanks are equipped with 50 mm-thick floor insulation.
|
|
|
|
|
|
Type M233, low-pressure steam generator with a steam output of 2.6 to 4.5 t/h (1890 to 3270 kW).
Vitomax 200 is a low pressure steam boiler for a permissible operating pressure of 1 bar steam output: 2.9 to 5.0 t/h. In this output range, the Vitomax 200-LS covers the requirements of all applications demanding low pressure steam or heat, e.g. airconditioning and heating systems, commercial nurseries or other commercial applications. The Vitomax 200-LS is a three-pass boiler with low combustion chamber loading (< 1.2 MW/m³). This creates the ideal conditions for clean combustion with low nitrogen oxide emissions.
The Vitomax 200-LS benefits at a glance:
Three-pass boiler with low combustion chamber loading (< 1.2 MW/m3) - clean combustion with low nitrogen oxide emissions
Low radiation losses through 100 mm thick composite thermal insulation and fully water-cooled reversing chambers
Economical fuel consumption - boiler efficiency: 92 %
Excellent steam quality through large steam chamber, large evaporator and integral steam drier
High operational reliability through excellent natural circulation and safe heat transfer - supplied as standard with robust shipping and installation protection
Easy to service through large boiler door and easy accessibility during maintenance work
Walk-on cover on top of the steam boiler as part of the standard delivery - simplifies installation and maintenance
|
|
The CLAS HE boiler has been designed with ease of installation in mind and the boiler features a simplified connection kit, which includes a filling loop. And to ensure a tidy finish to the installation, CLAS HE also has a clip-on connection kit cover.
With a range of installation accessories available, it is possible to; pre-plumb and test the heating system before fitting the boiler, run the pipe work behind the boiler (using the optional rear piping chassis) and, through the plume management kit, offer more siting options.
|
|
This brand new, compact, high efficiency SEDBUK band A combi gives you the edge. Entry level pricing combined with effortless
installation, easy-to-use controls and an elegant, multi-functional diagnostic LED interface, make life simple for both the heating engineer and end user.
And optional control accessories can be fitted to provide extended levels of comfort.
Three models - 24/30/38 - are perfect for most domestic applications and complete Ariston's 'Band A' line-up of eighteen top performing boilers.
E-COMBI - efficient, economic, easy...that's excellence!
|
|
|
ACV’s new wall-hung condensing boilers are designed for more efficient use of natural resources by recovering the thermal energy of combustion gas vapour. ACV condensing boilers are fitted with a stainless steel core that guarantees unparalleled corrosion resistance. Their outstanding efficiency and their quiet, reliable operation are an unbeatable combination.
|
|
Clean combustion with low emissions of CO and NOx, which allows it to be listed in the least polluting class laid down in the standards.
- Efficiency until 109% (ref. to P.C.I.).
- Power modulation with constant air/gas ratio with standard clima probe.
- Air-tight chamber appliance with electronic microprocessor control.
- Self-diagnosis function and digital display.
- Operation with thermostat and Bus Opentherm protocol.
- 30% saving in consumption compared with traditional boilers and with radiators systems.
|
|

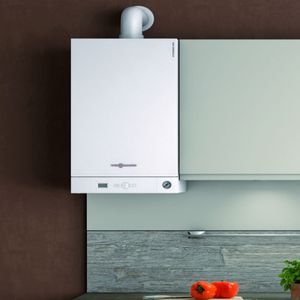

The ALL NEW Vitodens 100-W high efficiency gas condensing boilers are loaded with NEW features for easy installation, high efficiency and impressive fuel savings.
Combi: 26kW, 30kW, 35kW
System: 26kw, 30kW, 35kW
New Outputs
This new generation of high performance boilers is manufactured by Viessmann in Germany. Vitodens 100-W Combi & System models are now available with outputs of up to 35kW.
Great for Gas
The all new Vitodens 100-W high efficiency gas condensing boilers are designed to work with weather compensation controls – for additional gas savings of up to 15%.
Up to 5 Year Warranty
All Vitodens wall hung boilers have a standard 3 year warranty on parts & labour, which is increased to 5 years for all boilers installed by Viessmann trained installers. Completely free, with no
strings attached, this guarantee is unrivalled in the industry.
|
|
With 86 litres of built-in water storage, the Vitodens 333 provides the equivalent of 240 litres water storage - an unbeatable combination.
The convenience of built-in water storage with all the advantages of the Vitodens 300 condensing boiler, including the stainless steel Inox-Radial stainless steel heat exchanger, MatriX-compact burner and advanced control options.
All components easily accessible for maintenance and servicing.
|
|
|
|
|
|
Gas-fired condensing boilers for ambient air dependent and ambient air independent operation.
Certified with the DVGW quality mark, tested in accordance with German and European guidelines, extremely low pollutant emmissions
High standardised efficiency factor: up to 110%
Large modulation range
Blue Angel environmental mark in accordance with RAL-UZ 61 when operated with natural gas, the limit values of the „Hamburg Promotion Program“, (Hamburger Förderprogramm) are satisfied
Pre-mix burner for natural gas (G20/G52), and liquefied petroleum gas
Factory equipped with expansion vessel and 3-phase heat circuit pump, no mechanical switch in the hot water
Hot water heat exchanger can be swung out for easy cleaning under system pressure and without discharging hot water
Simple installation, operation, and service with unobstructed access to all components; the device is very light, only 42 kg
Measurement ducts for exhaust gas are accessible from the outside, it is not necessary to open the device.
2-year guarantee
|
|
|
Economic, safe, environmentally friendly: The compact and graceful Weishaupt gas condensing units can be used anywhere thanks to their uncomplicated connections and extremely quiet operation. They have a nominal efficiency of up to 110%!
|
|
|
The comprehensive range of Buderus regular or 'heat-only' boilers deliver very high levels of energy efficiency and reliable performance year after year. Each boiler is SEDBUK A rated and has ultra-low (Class 5) emission levels. Fully modulating fans and burners ensure maximum energy savings and precisely match output to the heat demand. All regular boilers are compact and lightweight making them a great choice for replacement installations as they fit quickly and easily into existing heating systems. Each boiler comes with a 2 year parts & labour warranty as standard and a 5 year heat exchanger guarantee.
|
|
|
The 800 Range of gas condensing boilers are designed for very large domestic properties with high heating demands, and also, when used as part of the Buderus 'Cascade' multiple boiler unit, suitable for use in light commercial installations. A high efficiency aluminium heat exchanger with a SEDBUK A energy rating helps to reduce fuel bills for the user and produces extremely low levels of NOx emissions.
|
|
|
|
