A simple and effective adjustable cable in stainless and carbon steel.
Rated B.L.:
GS - Up to 1189kN / 121240kg / 267290lb
SS - Up to 945kN / 96420kg / 212330lb
Cable Diameters: 3mm to 36mm
Specific Features:
- Simple easy tensioning by adjusting the locknuts.
- Adjustable at both ends.
- Threaded ends can be secured to suitably threaded anchorages.
- Used where cable termination points are directly aligned.
- Nuts and washers require suitable bearing surfaces or plates.
|
|
cable in stainless steel Aisi 316 available various formations and various diameters for uses with firm cables to pressare and/or redances and clips. To contact the ns. technical office for information on weights and formation
Upon request we supply also in galvanized steel.
|
|

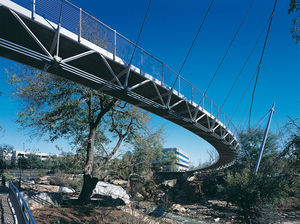

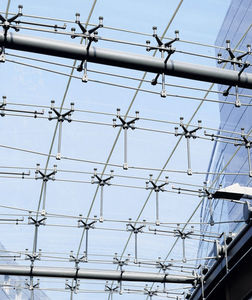

The Guy Linking Cable System consists of a range of stainless steel architectural cable assemblies, ideal for many structural and architectural applications.
All Guy Linking tendons use high-grade 316 stainless, which ensures a long service life with very little maintenance.
Guy Linking Cable Tendons (using swaged and threaded components).
Macalloy currently have the capacity to swage stainless cable assemblies ranging from 3mm to 26mm. There are three types of standard strand construction available;
* 1x19 Spiral Strand, the wires have a smooth bright finish with moderate initial stretch properties.
* Compact Strand, offers 30% increase in breaking load over conventional 1x19 strand
with a much lower initial stretch.
* 7x19 Strand, ideal for situations where flexibility is a requirement.
|
|
|
|
|
|
After the success of the Macalloy 460 and S460 systems, and also in order to meet the ever increasing needs of its customers, the Macalloy SC460 Stainless Cable System has been introduced.
This specially designed system incorporates cable adaptors, which allow standard Macalloy S460 range of forks. By using the standard Macalloy S460 forks on the cable ends, continuity of design remains in projects where standard Macalloy 460 & S460 bar systems have been used alongside the Macalloy SC460 stainless Cable Systems.
The cable used in the system undergoes both a conventional elastic stretch as well as an initial stretch can be between 0.10 and 0.75% of the cable length, depending on the magnitude and frequency of loading, and should always be considered in the design of the structure.
Macalloy offers three types of cable:
* 1x19 spiral strand, has moderate initial stretch properties. All the cable adaptor fittings are designed to match the minimum breaking load of the 1x19 cable.
* Compact Strand, has a higher breaking load along with a lower initial stretch than the 1x19 strand cable and is available in most diameters.
* 7x19 strand is the most flexible cable is available in most diameters.
|
|
|
|
|
|
An attractive jaw (clevis) type cable system in stainless and carbon steel offering increased level adjustment.
Rated B.L.:
GS - Up to 1189kN / 121240kg / 267290lb
SS - Up to 945kN / 96420kg / 212330lb
Cable Diameters:
Type 1: 3mm to 10mm stainless steel.
Type 2: 12mm to 26mm stainless steel.
Type 3: 28.6mm to 36.3mm stainless steel.8.1mm to 36.3mm galfan coated carbon steel.
Specific Features:
- Fully adjustable cables offering increased adjustment with the inclusion of a turnbuckle one end.
- Type 1 and Type 2 cables have turnbuckles with moving parts of dissimilar metals to avoid thread seizure under load.
- Type 1 and 2 cable end fittings have articulating (toggle) jaw ends offering adjustment in two planes to accommodate some cleat misalignment, and relieve stresses caused by dynamic and cyclical loads.
- Type 3 cables have turnbuckles designed specifically for large diameter applications and are manufactured to nominated design loads.
- All ends offer simple and easy connection with clevis and split pins.
- All turnbuckles offer lock nuts to positively lock adjustment.
- A robust structural cable offering maximum adjustment.
- Can accommodate moderate dynamic loads.
- Type 1 and 2 cables can accommodate misalignment of the cleats of +/- 10 degrees.
|
|
The ultimate aesthetic adjustable structural cable tendon.
Rated B.L.:
Up to 285kN / 29060kg / 64070lb
Cable Diameters:
4mm to 22mm
Specific Features
- A minimalist, sleek and compact cable solution for static architectural applications.
- Ultimate aesthetics in stainless steel.
- Fully adjustable telescoping end fittings.
- Fully concealed threads.
- Moderate adjustment.
-A simple and effective adjustable cable.
|
|
|
Range wide of accessories inox for implantation and tensionamento metallic cables for different employs, accessories to mechanical implantation.
|
|

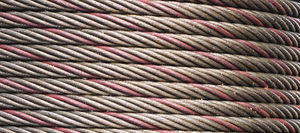

The name of Glover has been associated with the Wire Rope- making industry since Wire Ropes were first used over a century ago, and we are in a position to supply all types of ropes in use, from the very small cords up to the larger sizes of Crane and Lift Ropes.
The Engineering and Construction industries use Wire Ropes in the following broad classifications:
Round Strand Ropes cover the majority of applications.
These ropes have 6 round strands over a central core of Fibre or Steel. Also available in Compacted form to give higher breaking loads.
Multi-Strand Ropes comprises ropes with more than one layer of strands, the directions of lay of each layer being arranged to achieve a balanced and relatively rotation resistant rope.
|
|
|
|
|
|
- Hot Dip galvanized.
- End fittings are Quenched and Tempered, bodies heat treated by normalizing.
- Hooks are forged with a greater cross sectional area that results in stronger hook with better fatigue properties.
- Modified UNJ thread for improved fatigue properties.
- Turnbuckle eyes are forged elongated, by design, to maximize easy attachment in system and minimize stress in the eye. For turnbuckle sizes 1/4" through 2 1/2", a shackle one size smaller can be reeved through eye.
- Forged jaw ends are fitted with bolts and nuts on sizes 1/4" through 5/8", and pins and cotters on sizes 3/4" through 2 3/4".
- TURNBUCKLES RECOMMENDED FOR STRAIGHT OR IN-LINE PULL ONLY.
- Lock Nuts available for all sizes.
- Crosby's Quenched and Tempered end fittings and normalized bodies have enhanced impact properties for greater toughness at all temperatures.
- Typical hardness levels, Tensile Strengths and Ductility Properties are available for all sizes.
- Turnbuckles can be furnished proof tested or magnaflux inspected with certificates if requested at time of order.
- Turnbuckle assembly combinations include: Eye and Eye, Hook and Hook, Hook and Eye, Jaw and Jaw, Jaw and Eye.
|
|
Swage sockets incorporate a reduced machined area of the shank which is equivalent to the proper after Swage dimension. Before swaging, this provides for an obvious visual difference in the shank diameter. After swaging, a uniform shank diameter is created allowing for a QUICK-CHECK™ and permanent visual inspection opportunity.
Designed to quickly determine whether the socket has been through the swaging operation and assist in field inspections, it does not eliminate the need to perform standard production inspections which include gauging for the proper after swage dimensions or proof loading.
|
|
| ... products without information |
| |
Câbles optiques formés à partir de fibres optiques Ø1mm
Application
Câbles optiques à haute performance utilisés pour transmettre une grande
quantité de lumière .
Caractéristiques éclairage
Rendement lumineux exceptionnel (atténuation inférieure à 150dB/km)
Absence de ditorsion de la lumière, même au delà de 10m
Faible rayon de courbure (5 fois le diamètre)
Durée de vie : les fibres FLUX sont garanties 10 ans
Caractéristiques mécaniques
Matériaux :
Les câbles optiques FLUX sont gainés LSHF noir, auto-extinguible sans halogène.
Dans un harnais, les câbles sont assemblés dans un collecteur aluminium poli et
terminés par des férules filetées M8/100.
Faible dégagement de fumée
|
|
|
|
