Recently when releasing the new version of our flag software, we changed the name of SCIA•ESA PT into Scia Engineer.Together with the previous convivial structural analysis software generation ESA-Prima Win, we offer very extended calculation capacities and graphic modelling.
A CAD model is built at the same time as the analytical project. This allows the immediate creation of useful plans for a preparatory project. All structures, as well as their parametric models, are workable. Our software has been adapted to many national and European standards. Finally they communicate in a transparent and bi-directional way with drafting packages like Allplan (Nemetschek) or ProSteel (Kiwi Software). And of course, they are adapted for importing files in DXF, DWG, &, format.
|
|
|
|
|
|
Design of reinforcement of beams, columns, walls, plates and shells (according EC2/DIN 1045-1/NEN 6720/BAEL/IS 456:2000/BS 8110/ACI 318/ Önorm B 4700/ SIA).
Reinforced Concrete Analysis in Scia Engineer is available for the calculation of reinforcement in beams, columns, walls, plates and shells. The program is completely integrated with Scia Engineer modules for structural analysis. With this module the structural engineer has an interactive graphical tool at his/her disposal for the calculation of required reinforcement areas (e.g. longitudinal reinforcement and shear reinforcement) according to the regulations given by the chosen code.
Scia Engineer has also for concrete and reinforcement a strong visual presentation. All the reinforcement that was calculated by the user can be shown in 3D on the screen.
On this reinforcement special checks can be done. Scia Engineer has a various amount of possibilities that can be checked such as:
Physical non linear deformations (cracks and reinforcement taken into account)
Response check (check of stresses and strains)
Capacity check (e.g. check of Myu)
Crack check
Punching
Want to know more about our concretesoftware?
Don't hesitate and click here to find out everything Nemetschek Scia has to offer you regarding concrete software.
|
|
|
|
|
|
Nemetschek Scia has formed a strategic partnership with Geodelft to market specialised soil mechanics software.
The product is a design software for sheet walls, earth wall, pile foundations, etc.
MSheet addresses the design of sheet walls including distortions and stability for various excavation phases.
The critical length is also determined.
MFoundation will optimise the dimensions of foundations (with piles, on plates) for a variety of loadings.
MGeoBase stores the results of soil tests to use the soil parameters and geometric soil layers for further use in MStab, MSettle, MDrill and MSeep.
MStab calculates critical shear surfaces within the soil, incorporating calculated settlements.
MSettle determines the settlements through creep and soil consolidation following Koppejan or advanced isotaches. Vertical drainage can be modelled. Subsoilwaterpressure is checked.
MDrill calculates the minimal and maximum compression in horizontal pipes, in drilling liquid and drilling equipment.
MSeep determines the phreatic surface and the soil pressure by soil groundwater movement. More modules for groundwater calculation (MWell) and pile foundation design (MPile).
The M-Series are a comprehensive set of software for Geomechanical analysis & design.
|
|
|
MasterSap is a program conceived for the analysis, design and drawing generation of Civil Engineering applications. MasterSap allows the user to analyse generically modelled structures through typical framed elements, plates and shells. The analysis can be static or dynamic and it determines the deformations or stress stage in the structure as well as the ground reactions. The results are processed to design and verify concrete, steel, timber and masonry elements. For steel applications MasterSap verifies steel joints as well. Procedures for automated, personalized drawings of concrete are also provided. The user operates in a 3D environment through a Windows type interface.
|
|
|
The IDX Beam Analysis Tool provides complete analysis of deflection and stresses caused by direct forces on simply supported beams. Its intuitive interface enables immediate productivity, while more advanced features allow great flexibility in problem definition.
|
|
Software for the automatic optimisation of the cut bars, to always get the smaller swarf of the material through an algorithm that predisposes the plan of cut gathering the pieces that have the same process of manufacture.
|
|
FIRE RESISTANCE

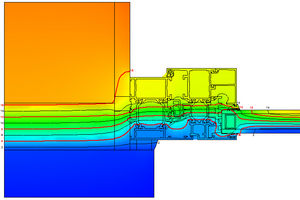

The software for the thermal analysis and the verification of resistance to the fire concurs to carry out the thermal analysis and the verification of resistance to the fire in the respect more prescrittivi codes. The thermal analysis happens to ended elements of composed sections from any material, under the action of the fire. To they of the thermal analysis goes, for sections in c.a and c.a.p., she is proceeded to the verification of the carrying ability.
|
|
|
Verifications C.A realize the verification of generic sections in c.a adopting or the method of the permissible tensions that of the state limit. Work in independent way but for requirements details can also be connected to MasterSap.
|
|
|
Solai carries out the calculation and the design of solai precast concrete slabs or jetties in work. For the dimensioning it uses the method of the permissible tensions and the state limit. For the s.l they can be adopted the verification criteria according to DM 96, EC2/92, EC2/05, NTC 2008.
|
|
|
|
|
|
3D CAD/CAM for the Design of log structures
hsbLOG is the design module for carpenters, the prefabricated building industry and Offsite Construction which is integrated with the leading CAD platform today worldwide, AutoCAD. AutoCAD, a member of the Autodesk group, has over 5 million official licenses worldwide and are the market leaders for CAD design software. Functions such as move, copy, rotate and mirror are only a matter of course. AutoCAD is today integrated into many schools and unniversities and is fast becoming a technical knowledge condition in gaining employment. Architectural Desktop (ADT), a family extension of AutoCAD, and contains additonal functionality for concept design, architectural and planning design. hsbLOG is completely integrated with AutoCAD and ADT, as a design platform that utilises all these familiar tools to make an easy and recognisable platform in any design discipline.
Target Group for hsbLOG
- Log Construction
- Architects
- CNC Machine Data Requirement
- Bill of material Requirement
|
|
|
|
|
|
SCADA Pro is created from the start in accordance with your way of thinking so as to help you produce complete and reliable projects. His flexible and open structure allows you to supplement it according to your needs in an integrated and autonomous environment.
SCADA Pro places new standards in the development of building projects.
SCADAline Bidirectional link with ARCHline XP
SCADAline is a new integrated application suite for building design. It combines the possibilities of two powerful software programs: ARCHline XP, for architectural designing and photorealism, and SCADA Pro for Static/Dynamic analysis and design of steel or concrete buildings. Offerring continuous, full, direct and bidirectional communication, ARCHline and SCADA Pro enable you to create automatically the static model from the architectural model. SCADA Pro recognizes automatically all the physical structural elements (columns, beams, slabs, elements of foundation), as well as the relevant wall loads that have been imported in ARCHline. At the same time, any change you make or any new element you add in SCADA Pro and refers to geometry, materials and physical cross-sections, is being updated automatically in the architectural model, without further intervention from the user.
|
|
Advance Design was specifically developed for industry professionals that require a superior solution for the structural analysis and design of Reinforced Concrete and Steel structures according to the latest versions of Eurocodes (EC0, EC1, EC2, EC3 and EC8).
Advance Design features include easy modeling, a powerful FEM analysis engine, top-level design wizards, automated post-processing of results and automated reports. Achieve a new level of computer-assisted engineering with Advance Design!
|
|
|
|
|
|
For nearly 30 years, ETABS has been recognized as the industry standard for Building Analysis and Design Software. Today, continuing in the same tradition, ETABS has evolved into a completely Integrated Building Analysis and Design Environment. The System built around a physical object based graphical user interface, powered by targeted new special purpose algorithms for analysis and design, with interfaces for drafting and manufacturing, is redefining standards of integration, productivity and technical innovation.
The integrated model can include Moment Resisting Frames, Braced Frames, Staggered Truss Systems, Frames with Reduced Beam Sections or Side Plates, Rigid and Flexible Floors, Sloped Roofs, Ramps and Parking Structures, Mezzanine Floors, Multiple Tower Buildings and Stepped Diaphragm Systems with Complex Concrete, Composite or Steel Joist Floor Framing Systems. Solutions to complex problems such as Panel Zone Deformations, Diaphragm Shear Stresses, and Construction Sequence Loading are now at your fingertips.
ETABS is the solution, whether you are designing a simple 2D frame or performing a dynamic analysis of a complex high-rise that utilizes non-linear dampers for inter-story drift control.
|
|
|
|
|
|
CSiCOL is a comprehensive software package used for the analysis and design of columns. The design of columns of any concrete, reinforced concrete, or composite cross-section can be carried out by the program. CSiCOL provides a 'Quick Design Wizard' tool that guides the users step-by-step, through the whole process of column design. This makes the design process simple, organized and efficient. The design can be carried out in accordance with ACI-318-02, ACI-318-99, BS8110 or CSA A-23.3-94 codes.
CSiCOL is capable of handling an unlimited number of load combinations both for sway and non-sway conditions. The design actions may be specified directly or may be computed by the program using the moment magnification method. The design and analysis take into account the slenderness effects. Sway or non-sway condition checks may also be performed by the program as specified by the selected design code. Moreover, CSiCOL is capable of determining the Effective Length Factor based on the framing and end conditions of the column.
CSiCOL output includes the capacity interaction surface, load-moment curves, moment-moment curves, moment-curvature curves for various failure criteria, combined axial-flexural elastic stress contours, rebar stresses, cracked section stresses, load point location, capacity vector, neutral axis depth and orientation, etc. Reports may be created as part of the output for the analysis and design process. The reports may be customized by adding information and graphics of your choice.
|
|
|
|
|
|
SAFE is the ultimate tool for designing concrete floor and foundation systems. From framing layout all the way through to detail drawing production, SAFE integrates every aspect of the engineering design process in one easy and intuitive environment. SAFE provides unmatched benefits to the engineer with its truly unique combination of power, comprehensive capabilities, and ease-of-use.
Laying out models is quick and efficient with the sophisticated drawing tools, or use one of the import options to bring in data from CAD, spreadsheet, or database programs. Slabs or foundations can be of any shape, and can include edges shaped with circular and spline curves.
Post-tensioning may be included in both slabs and beams to balance a percentage of the self-weight. Suspended slabs can include flat, two-way, waffle, and ribbed framing systems. Models can have columns, braces, walls, and ramps connected from the floors above and below. Walls can be modeled as either straight or curved.
Mats and foundations can include nonlinear uplift from the soil springs, and a nonlinear cracked analysis is available for slabs. Generating pattern surface loads is easily done by SAFE with an automated option. Design strips can be generated by SAFE or drawn in a completely arbitrary manner by the user, with complete control provided for locating and sizing the calculated reinforcement. Finite element design without strips is also available and useful for slabs with complex geometries.
|
|

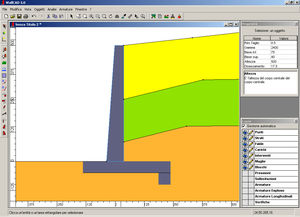

MDC is a software product for the design and analysis of reinforced concrete retaining walls either resting on their own foundation or on piles, optionally supported by tiebacks.
The geotechnical computation employs the standard geotechnical methods subject to user choice and carries out the verifications prescribed by standard selected, amongst which global stability even in seismic conditions. Structural evaluations performs reinforcements sizing and verification with Ultimate Limit State.
|
|
|
|
|
|
STRATIGRAPHER enables the construction of stratigraphic columns for geologic or geotechnical usage and further the documentation of well construction.
User form design is enabled through the provision of a document template editor. The resultant documentation model(s) can be stored for reuse. Thereafter the selection of documentation format is by the selection of templates. On the document, adjacent columns, user selected by choice of template, present the lithologic, lithotypes and exploration characteristic recorded during trial borings or well construction characteristics. Bitmap patterns are inserted directly from supplied libraries whose background and texture images may be user updated and personalized.
The program permits simple modification of the elevation level of lithologic properties and the insertion of the standard trial results obtained during borings (Packet, Vane, sampling and Phreatic water table etc.) The document so produced may be saved as well as printed directly and the saved copy may be used permits their export and insertion in the profiles of other GeoStru programs (compatible with existing programs such as Slope Stability Analysis)
|
|
This application permits the computation of the marginal load according to Terzaghi, Meyerhof, Hansen and Vesic, of elastic sagging (Timoshenko and Goodier), edometric, and Schmertmann calculation.
Seismic corrections according to Vesic e Sano can be applied.
Calculation based either on weighted average or on borehole results.
Deformation calculation for any point within or outside the foundation.
Foundation at inclined base and subject to eccentric loads.
|
|
|
Pile and micropile software is intended for calculation of the bearing capacity of the foundation terrain of a pile or micropile bearing loads in whatever distribution (moment, normal force, shear). Structural calculation yielding dimensions of longitudinal steel struts, interval and size of rings is also performed. The worksheet, upon which is shown the plan of piles or micropiles inserted in the foundation terrain, may be dimensioned as required. Geometric characteristics of the paling and the elements connected thereto (loads, location of trial sounding/boring and seismic stress) together with the geotechnic parameters of the terrain may be entered and altered within the worksheet activating the available functions either in the drop down menus, relocatable toolbars or through hot keys.
|
|
The MRE (Mechanically Reinforced Earth)software is dedicated to the testing and planning of retaining works of reinforced earth. The features which make the MRE software an excellent instrument for the analysis and calculation of reinforced earths are the following:
- Simplicity in the definition of the model geometry;
- Accuracy in the calculation phase;
- Completeness of the output returned by the programme.
|
|
Sheet walls are relatively thin, vertical structures, embedded in terrain to a depth sufficient to support an uphill embankment/downhill excavation thrust, including water and surcharges.
This type of structure can be constructed of driven prefabricated steel pile sections, adjacent, bored cylindrical piles, and reinforced concrete sheet elements usually produced on site.
|
|
|
|
|
|
The SAP name has been synonymous with state-of-the-art analytical methods since its introduction over 30 years ago. SAP2000 follows in the same tradition featuring a very sophisticated, intuitive and versatile user interface powered by an unmatched analysis engine and design tools for engineers working on transportation, industrial, public works, sports, and other facilities.
From its 3D object based graphical modeling environment to the wide variety of analysis and design options completely integrated across one powerful user interface, SAP2000 has proven to be the most integrated, productive and practical general purpose structural program on the market today.
This intuitive interface allows you to create structural models rapidly and intuitively without long learning curve delays. Now you can harness the power of SAP2000 for all of your analysis and design tasks, including small day-to-day problems. Complex Models can be generated and meshed with powerful Templates built into the interface.
The Advanced Analytical Techniques allow for Step-by-Step Large Deformation Analysis, Multiple P-Delta, Eigen and Ritz Analyses, Cable Analysis, Tension or Compression Only Analysis, Buckling Analysis, Blast Analysis, Fast Nonlinear Analysis for Dampers, Base Isolators and Support Plasticity, Energy Methods for Drift Control and Segmental Construction Analysis.
Bridge Designers can use SAP2000 Bridge Templates for generating Bridge Models, Automated Bridge Live Load Analysis and Design, Bridge Base Isolation, Bridge Construction Sequence Analysis, Large Deformation Cable Supported Bridge Analysis and Pushover Analysis.
|
|
|
|
|
|
Traditional log homes
Log homes are one of the most traditional ways of building wooden houses and they are very popular because of the natural look and the pleasant indoor climate. The range of cross-sections used is quite wide and raw logs just as well as milled square logs or planks with different contours are used.
Special design requirements
The structure of a log wall is very different from that of other wooden houses. Log walls require special designs of junction points and penetration areas to guarantee a lastingly wind-proof construction. And also the fact that timber is a 'living' material has to be taken into account with sophisticated technical details.
Flexible software
The special requirements of log constructions also call for a very flexible software. Here SEMA offers not only easy and fast definition of components and special processings but also the necessary automatic features to efficiently calculate the walls. The software also generates user-friendly production plans, piece lists and, if required, machine data.
|
|
|
|
|
|
Joining Perfectly Simple
Their love for timber and perfect craftsmanship are the greatest assets of carpenters. The SEMA software - intuitively and simple to use - assists them with its manifold input options in building high-quality roofs and houses. Free floor layout plans and roof input options offer the necessary flexibility. Perfect craftsmanship, perfect fit, extremely fast and thus cost-saving.
Time Saving Design
Standardized yet dynamic component libraries are the basis for fast designing. With our software we supply the data for the most commonly used timber and steel components as well as for many constructional details. Company or project specific standards can be created during the design process and then be saved and used for other projects.
A Wide Variety of Uses
Whether it is about a new building or refurbishing an existing one, whether there are oblique-angled layouts, different roof pitches or variable rafter and truss distances: flexibility is the key. And at the end the integrated visualization presents the project in the best light.
|
|
|
|
|
|
Application program for design of reinforced concrete structures compatible with any version of AutoCAD® Windows or AutoCAD LT®.
R.C.CAD main features can be summarized as follows:
drawing and variation of frame elements with general shape. One profile list of 24 parametric shapes is used for longitudinal reinforcements, and 4 parametric typologies are used for stirrups. The input of reinforcement position measures and characteristics is carried out through windows of dialogue. Measures are given automatically. Frame elements are inserted in the drawing through points selected by the user. It is possible to draw the perimeter of general sections reinforcements by selecting the vertices or sides. Stirrups of different rectangular section typologies can be drawn simply by indicating the two opposite corners
Sections of beams and pillars can be drawn through windows of dialogue, automatic assigning of measures and automatic extraction of stirrups is also available; representation and indication of measures for longitudinal reinforcement inside the sections; details of connection between section and adjacent hollow-tile floor or lattice slab floor.
frame elements list and computation starting from the executive drawing;
plans and sections of stairs with general shape can be drawn, considering the effects of the different finishing thickness;
typical structural elements (walls, earth retaining walls, superficial footings and footings on piles) automatic drawing.
|
|
|
|
|
|
Flexibility in Timber Construction
Most important when designing a new project is to implement special customer requirements quickly and efficiently. Whether that is in traditional timber framing, log constructions, pre-fabricated constructions or massive construction. SEMA meets all these needs with a broad range of simple to use features on a modern user interface.
Working with a System
With our standard yet dynamic software you create building projects as you need them. The simple cataloguing system enables company-specific standards without losing flexibility and that makes SEMA to an indispensable tool. And the system grows with the requirements of the user.
Perfect Results
Practically oriented features to print drawings, flexible data-base features for calculations and parts lists as well as the integration of MS Office programs offer users a decisive advantage for their design process and material planning.
Master Data and Macros
Definition of single or multi-boarded wall and ceiling elements with up to 11 boarding and batten layers. Pre-defined members and groups of components that work across all projects guarantee standardisation in detail without limiting design possibilities.
Printout, CAD and Dimensioning
Printing of to-scale wall manufacturing plans by using layout templates. Auto-dimensioning of sectional views, wall views and top views. Free CAD and dimensioning features to supsequently add details to production drawings.
|
|
Arche
Since it was launched in 1993, Arche has become the reference software in Europe for designing and drawing reinforced concrete buildings. From a 3D model building comprising slabs, beams, columns, walls and foundations, Arche analyses the overall construction stability and automatically creates all the reinforcement drawings.
Arche Building Structure is a building simulation software that performs preliminary sizing while calculating load distribution, wind bracing and seismic analysis.
-Integrated 3D CAD with a link to structures previously designed with Advance Concrete
- Preliminary sizing
-3D snow and wind load generator
-Analysis of load distribution and wind bracing combining traditional methods and sophisticated digital modelling techniques
-Seismic analysis in modal dynamics
-Automatic production of calculation reports, bills of materials, reinforcement ratios and cost estimates
|
|
Effel
Acknowledged and adopted by the most demanding engineers and construction professionals, Effel offers a complete environment for structural analysis dedicated to the construction industry.
Based on the finite element method, Effel conducts static and dynamic analyses of 2D and 3D structures. Its Expert modules can be used to analyse and optimise behaviors of :reinforced concrete structures
steel structures,timber structures.
|
|
|
|
