CS 86-HI is a multi-chamber system for windows and doors that combines aesthetic design, optimal stability and high thermal comfort. Due to the insulating skeleton strips, CS 86-HI achieves Uf-values down to 1.47 W/m²K, making this a highly energy efficient system. Flexible expansion strips in the door vents ensure stability in all conditions. The system provides inside opening windows and inside & outside opening flush doors (up to 3 meters). Furthermore, CS 86-HI doors offer different types of floor connections to meet acoustic, thermal and water requirements.
|
|
The Oltreluce project was created to bring together contemporary design and the most advanced technology applied to residential doors and windows.
The origin of the project came from the relationship between contemporary architecture and the sophisticated world of interior design. The exterior and interior are two different yet complementary worlds, but with specific technical and aesthetic needs which have been gathered and interpreted by the Oltreluce concept.
|
|
|
|
|
|
- Frame/panel thickness: 80/98 mm
-Aluminium profile thermal insulation ensured by 26 mm polyamide bars and 3 mm wood-aluminium insulators
- Maximum glass panel thickness: 34 mm
- Possibility to customize the colour of the thermally broken external component.
The intermediate component is painted in anodized silver.
The capability to produce with maximum effectiveness and efficiency, Is what guides Alfa Lum in the design and construction of its windows. On one side there are the benefits offered by the wood, such as the natural warmth and functionality, on the other side the longevity of the aluminium insures tangible benefits in the everyday life.
Alfa Lum uses special screws to join the external aluminium component with the inner wooden component for the fixed part (frame) and for the mobile part (door leaves). The major benefit of this method is that the wooden component can be easily replaced. Moreover this method avoids the need to remove the window and ensures the two sashes do not touch to allow for different expansion rates of the two materials. On the external aspect the stability and the solidity are guaranteed by the structural function of the aluminium, while wood is used for aesthetic purposes. In fact, aluminium frames offer more resistance to twisting forces and damages caused by weather conditions, in order to guarantee global protection, Alfa Lum applies multiple locking hardware to the solid bearing structures, equipped with hooked door latches to the frame located on the window to insure total protection.
The major factors leading the customer to the choice of an Alfa Lum window comes from the indirect advantages once the product is installed.
|
|
|
|
|
|

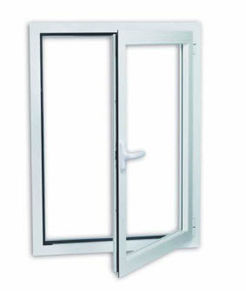

Easily tilted, turned, & locked.
"Tilt&Turn" is the by far the most commonly used opening type for windows in Central and Eastern Europe. However, this convenient solution is also very popular in many other countries. Tilt&Turn-technology enables effortless turning and tilting of the window sash with a single handle operation. Roto NT is one of the most successful Tilt&Turn hardware systems worldwide.
Roto NT - increased value for all window shapes and sizes.
In the Roto NT system, all integral hardware components are integrated via a central locking system. The system already offers a high level of security in the basic version. This can be operated very conveniently and enables simple integration of mechanical and electronic components, for example for burglar alarms, thermostat and ventilation control systems. The elegant silver appearance makes Roto NT unmistakable. In addition Roto NT has convincing installation advantages. Roto NT hardware can be used in a wide range of window sizes and shapes.
|
|
|
|
|
|
Convenient: 100° opening angle
Aesthetic design and functionality are important principles to consider when developing window technology. Roto NT Designo sets new standards in this field, having no visible hinges from outside and no cover caps that could come off.
The window can be opened up to a maximum angle of 100°. Roto NT Designo offers an especially generous opening width and with this, an unobstructed view for the customer.
Finest technology: All components are fully integrated in the window sash, making them invisible from the outside.
Strong: High sash weights and high security
With the standard Roto NT Designo hardware, sash weights of up to 80 kg are possible. As from May 2007, you can also make windows with a sash weight of up to 130 kg.
Innovative security concept. Roto NT Designo is equipped with small, compact hinge-side components, leaving for additional security, up to burglary resistance grade 2 (WK2). The anti-jemmy device is integrated as standard in the corner hinge.
Straight forward: Designo is completely integrated
All of Roto NT Designo%u2019s components are perfectly matched with the Roto NT modular system. This considerably reduces installation time and expense.
Generally speaking, Roto NT Designo is easier to install; both automatically and manually. The hardware is simply positioned in the corners, avoiding installation errors. One man installation is also easy.
As with Roto NT, Roto NT Designo can be installed automatically on window sashes.
|
|
Sash frame not visible on the outside, thus smaller frame and larger glass surface
Uniform face width when in combination with fixed glazings
Glass of sash and fixed glazing panels installed at the same level
Adhesive connection between glass and frame guarantees increased stability at the angles and long-term performance
Good frame's insulation value Uf = 1.2 W/m²K
Easy installation of blinds and darkening systems
All common shapes and opening systems are possible
Reduced maintenance thanks to less frame
Air permeability rated DIN EN 12207 class 4
Watertightness rated DIN EN 12208 class 9A-E900
|
|
Air permeability rated DIN EN 12207 class 4
Watertightness rated DIN EN 12208 class 9A-E900
As standard, the glass distance piece is matching with the frame colour and made of aluminium or high-grade steel (optimized thermal insulation)
2 seals as standard; third seal for increased sound insulation possible
Slimline frame structures
Hermetic seal against excessive water infiltration into the water-collecting-chamber
Improved profile stability through a 72 mm building depth and generously dimensioned reinforcements in the transom
Glazing beads matching with the frame colour and sealing materials in a neutral colour
Standard thermal insulation glass Ug = 1.1 W/m²K
High protection against driving rains through a large water-collecting-chamber and a high central sealing with storm edge
5-chamber version
Frame's insulation value Uf = 1.3 W/m²K
Semi-flush sash with triple glass
30 mm Ug = 0.9 W/m²K
40 mm Ug = 0.5 W/m²K
|
|
The window with multiple protectors
Window FINSTRAL with integrated venetian blind
According to the line "several layers for better protecting" FINSTRAL combines two henceforth opening window with three glazings to obtain the best as regards heat insulation and acoustic. Window FINSTRAL with venetian blind - a technique of before guard.
Signs of quality:
- Thermo isolation reinforced thanks to three glazings low emissivity
- Optimal Soundproofing thanks to the assembly of an opening second and the use of joints to each level
- Solar Protector and screening effective thanks to the venetian blind with the shelter between two glazings
- The roller shutter is not necessary any more: pose simpliefiée and better peripheral thermo isolation
- The equipment of basic security allows a good protector anti-effraction
- The vast range of colors and surfaces FINSTRAL allows a development of the window.
|
|
|
Deceuninck is world wide leader in design and production of UPVC profiles for windows and doors. We produce a vast range of profiles allowing to assemble all different types of windows, both in European and US styles. We can get you in touch with suppliers of ready made UPVC windows all over the world.
|
|
The NC 50 I system has been designed to meet the latest and strictest European standards.
The NC 50 I system shares with NC 65 STH many accessories as window and door hinges, tilt & turn opening mechanisms; moreover, both systems employ the same glazing beads and the same gaskets. Also, both systems have the same dimensions of the corner cleats seats for the assembly of the corners. The NC 50 I system enters the traditional systems NC 45 Int. and NC 55 Int. from which it gets the technical features resulting from the development of the most modern and advanced technologies.
|
|
One word describes Infinity® from Marvin Casements and Awnings -- easy. They are easy to choose, easy to operate and easy to love.
The Casement (left or right hinged) and Awning (top hinged) combine beauty and virtually effortless operation. The standard Easy Wash® hinge is just that--a design that lets you easily clean the window both inside and out. The optional Clear View® hinge provides for an optimal viewing area. Both Casements and Awnings feature folding handles that tuck conveniently out of the way of most window treatments and provide a clean, finished look.
|
|
|
The latest introduction to the 70mm range this fully sculptured system is designed to give REHAU fabricators and Installers an extra edge in the market through it's appeal to the more style-conscious Homeowner and Specifier. It is the ideal system with which to target the replacement of the replacement market. The range of profiles allows the manufacture of internally beaded casement, French and tilt and turn windows.
|
|
|
|
|
|
"EuroFutur Classic" - a new high performance window system with excellent "EuroFutur Classic" is a new multi-chamber system with a constructional depth of 70mm for the manufacture of PVC windows. The salient technical feature is an innovative steel reinforcement with extraordinary thermal insulation properties, registered as a utility model.
The thermal transmittance value Uf of 1.4 W(m²K) enables compliance with low-energy house standards already with low-cost two layer glazings.
With its pronounced, clear-cut design and the broad circumferential facet corresponds exactly to modern style design. Additional insulation chambers provide even better thermal transmittance characteristics (Uf = 1.3 W(m²K)).
The system comprises numerous frame, sash, transom/mullion and add-on profiles and thus offers nearly unlimited design options.
It complies with highest requirements in sound insulation and protection against burglary. The perceived noise level is dimmed to 10 % with standard glazing types already. The fittings are fixed in the profile and solidly screwed into the steel reinforcement, offering a high basic security. It is possible to manufacture windows of burglar resistance classes WK1 and/or WK2.
Furthermore, the system is ecologically exemplary: Kömmerling brand has been the first major producer of PVC window systems to use, besides recycling material, exclusively lead-free, ecofriendly stabiliser systems on a calcium-zinc basis.
|
|
EuroFutur Elegance – a new multi-chamber system with a constructional depth of 70 mm sets new standards for the aesthetic of plastic window systems. With the elegant chamfered frame and sash profile edges and its individual appealing style, Euro Futur Elegance catches the spectator's eye. Even boring facades are markedly upgraded and get a completely new face.
The system comprises numerous frame, sash, transom/mullion and add-on profiles and thus offers nearly unlimited design options.
However, Euro Futur Elegance is also a top system from a technical point of view. The innovative, maximum dimension steel reinforcement with excellent thermal insulation properties is one of the main system features.
|
|
Classic Series are wood windows and doors that developed as an offshoot of the Heritage Series. The fine wood craftsmanship speaks for itself. Plus, the exterior of Classic Series products are further protected by aluminum cladding with a polyester finish. To aid installation, vinyl nailing fins are standard on most Classic Series products.
Beauty, quality & value define the Classic Series, as demonstrated by the features & options detailed below. The Classic Series includes casements, awnings, double hungs, sliders, patio and entrance doors %u2013 all to complement one another (see complete product line-up below).
|
|
400 Series Casement Windows
High-Performance™ Low-E4® glass stays cleaner and reduces water spotting
Nearly-invisible TruScene® insect screen optional
Rich natural wood interior
Attractive low-maintenance exteriors
Larger glass area lets in more light
Vinyl cladding protects entire sash from rain
Reach-out lock pulls sash tightly against frame
Pine interiors available with factory-applied white finish
|
|

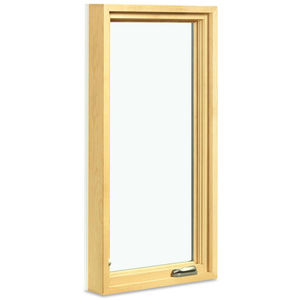

Overview
-The Casemaster meets WDMA DP50, one of the Window and Door
Manufacturers Association’s best ratings for air and water infiltration and
structural integrity.
-Smooth, clean millwork defines the interior surfaces.
Standard Features
-4 9/16" (116 mm) jambs
-All wood Brick Mould Casing (wood units)
-Bare wood interior
-Satin Taupe folding handle
-Clear, one-lite insulating glass
-Screen with Satin Taupe surround
-Sequential multi-point lock with Satin Taupe lever
-Vinyl Drip Cap and nailing fin (clad units)
-Invite the outdoors in. A Bay window can create a window seat or small
retreat.
|
|
|
Aluminum windows with opening hidden, with or without heat insulation. Profiled of 71 mm with typed doubling of 100/120/140 or 160 Misters simple or double Vitrage up to 26 mm thickness maintained in rabbet by PVC Co-extruded section panel. Color RAL with the choice, rough, enamelled or anodized completion. Filling up to 26 mm thickness.
|
|
|
The range Shining Design 70 mm is the response of REHAU to specific waitings. Here this range with the contemporary and round design took the leadership on the German market.
|
|
|
From its design, range REHAU Titanium-Design offers the most complete solution to you to manufacture all types of windows and French windows to the traditional design. Manufactured from profiled out of rigid PVC modified shock and treated anti-UV, the windows made up with sections REHAU Titanium-Design guarantee an optimal result to you on the plan of performances AEV and the heat insulation and acoustic.
|
|
|
The Corona CT 70 system with additional centre gasket based on a 5-chamber profile with maximum weathertightness. Excellent thermal insulation properties and narrow face widths are the distinctive features of this system.
|
|
|
EDITION: The appeal lies in a unique principle; inside, the warmth of wood, outside the protection of aluminium, and in between high-insulation thermal foam. Not only does this offer sensational heat insulation (Uw = 0.68 W/m2K) but also sound-proofing of 43 dB. EDTION comes in three classic designs, with increased security tested to resistance 2 (WK2), fully-concealed fittings etc. NEW! Now available with triple glazing as standard (Austria only) for top heat insulation.
|
|
The main characteristics are the speed of production and a capacity to adapt to all the configurations of PVC or aluminium industrial manufacture workshops. All components have been studied very intently to optimise time and production cost: pre-fitted sections, moulded parts for rapid insertion of glass, sections marketed under the NF brand, the possibility of PVC or aluminium interior wood type hinges, multi-station machining matrix so that the desired production rhythms can be followed.
Aesthetics have not been static either: the AA 765 KASSIOPEE window can be operated with a bracketed handle or embedded lock, with or without a central handle.
|
|
|
ALULOK window is the combination of wood, as natural material on the inside and aluminum as high-value material on the outside. The aluminum provides window frame protection and creates obstacle to weather condition influences. ALULOK window unifies thermal and sound insulation, requiring no outer maintenance.
|
|
The wood/aluminium composite window EDITION 4 with four-fold protection: With its special composite structure, EDITION 4 offers not only improved heat and sound insulation, but also sun and privacy protection, all integral between the panes. Clearly the best solution where outside blinds are not possible.
NEW: EDITION 4 vetro design; frameless with the innovative glass-look.
Enjoy a high degree of comfort; inside, the homely effect of wood and outside, storm-proof aluminium while in between there is high-insulation thermal foam with sensational insulation values. Heat insulation up to Uw = 0,70 W/m²K, sound insulation to a standard of 43 dB, triple sealing system. Also available as passive house certified components.
|
|
|

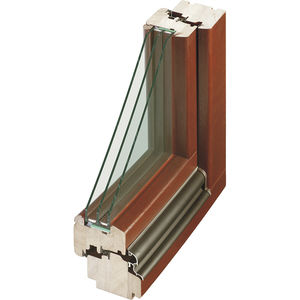

Suited for any architectural solution, both for classic and contemporary settings, and for all those who love to individualize their home. The 28-mm-thick window pane space allows the use of panes with thermal and/or solar and sound-proofing insulation as well as safety panes. Excellent workmanship, an advanced painting system and the exclusive use of high-quality materials contribute to the pleasant and harmonious look of the window.
|
|
|
The Arte product range with external components made exclusively of wood is perfectly suited for the renovation of old palaces and period buildings. Furthermore, it fits smart and stylish interiors thanks to its gently shaped and finely finished profiles, glass pane frames and drip caps. The 25-mm-thick window pane space allows the use of panes with thermal and/or solar and sound-proofing insulation as well as safety and anti-vandalism panes..
|
|
MODELS:
S1
Openable leaf with a 55x65 mm section
Corner in walnut-coloured Swedish pine
S2
Openable leaf with a 55x75 mm section
Corner in chestnut-coloured hemlock
S3
Openable leaf with a 68x75 mm section
Double seal-strip
Corner in red padauk-coloured lamellar meranti
|
|
|
|
