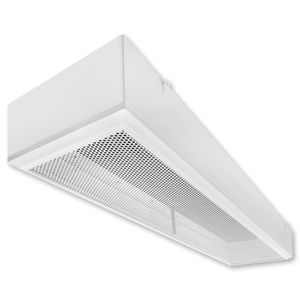

Adriatic - for individually suspended installation
Exposed active climate beam with cooling, heating and ventilation
CLIMATE BEAM ADRIATIC
Adriatic is an enclosed climate beam with integrated circulation air openings in the lower section.
Air supply along the ceiling.
Side sections including air openings only 150 mm deep.
An attractive climate beam design for individually suspended installation.
FUNCTION
Cooling
Heating (optional)
Ventilation
Comfort guarantee ADC (optional)
APPLICATION
Adriatic is suitable for all types of rooms using water based climate cooling:
Offices and conference rooms
Hotels
Lecture theatres
Computer rooms
Banks
Restaurants
ADVANTAGES OF ADRIATIC
Adriatic offers with its fine design and extreme low height the conditions to blend into all environments. Side sections including air openings are only 150 mm deep.
As Adriatic is an enclosed climate beam with integrated circulation air openings in the lower section it can be surface mounted without interfering the circulation air openings.
Adriatic combines the ceiling unit's superior air discharge technique with the individually suspended climate beam's stringent design demands. Air discharge takes place along the ceiling providing an optimal Coanda effect, which is necessary to maintain low air velocities in the occupied zone.
Connection components, valves and dampers are concealed by an attractive connection cover. The cover is fitted once the beam has been installed and connected.
The Swegon Comfort guarantee ADC gives a unique opportunity to control the air discharge.
|
|
Enclosed climate beam for cooling, heating and ventilation
CLIMATE BEAM BALTIC
Baltic is an enclosed climate beam with integrated circulation air openings in the lower section.
For integrating in suspended ceilings. Fits standard T-bars.
Swegon comfort guarantee feature Anti-Draught Control and rotatable discs are also available.
FUNCTIONS
Cooling
Heating (optional)
Ventilation
Anti-Draught Control comfort guarantee feature (optional)
Rotatable discs (optional)
AREAS OF APPLICATION
Baltic is suitable for all types of rooms using waterborne climate cooling:
Offices and conference rooms
Hotels
Lecture theatres
Computer rooms
Banks
Restaurants
ADVANTAGES OF Baltic
Baltic is an enclosed climate beam with integrated circulation air openings in the lower section. This means the suspended ceiling can be built without taking the circulation air openings into consideration.
The enclosed design means that circulated air never comes into contact with the suspended ceiling area.
The enclosed design and the fact that the suspended ceiling can be constructed without circulation air openings, means that crosstalk through the beam and circulation air openings is eliminated.
Air can be connected at six different places. This allows the placement of the air connections and the number to be changed right up until the time of installation.
Baltic is available with rotatable supply air nozzles.
Baltic is available with Swegon comfort guarantee ADC
|
|

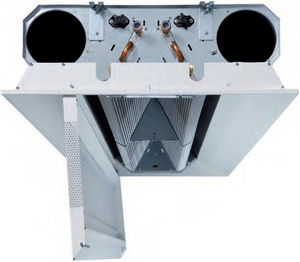

Parasol Comfort Modules
Parasol is the generic name of a family of products consisting
of comfort modules. The modules are designed
to supplement one another and together create optimal
room comfort.
Modules and Installation :
Modules: Supply air
Supply air and cooling
Supply air, cooling and heating (water)
Supply air, cooling and electric heating
Installation: Flush mounting for suspended ceilings
Function
The comfort modules operate on a basic principle that
is closely akin to that of chilled beams. The difference
is mainly that the comfort module distributes air in four
directions instead of two. This maximizes the area where
supply air is mixed with room air so that the modules
discharge air at high capacity, yet they do not occupy
more ceiling space than necessary.
The comfort modules are also optimized to quickly mix
the discharged air with room air providing better comfort
in the room. In heating applications, this technique can be
advantageously utilized to effi ciently provide provide heat
along the ceiling.
The easily adjustable nozzles in combination with Swegon
ADCII (Anti-Draught Control), offer maximal fl exibility if
changes in the room layout become necessary.
All the sides can be set independently of one another so
that the comfort module can distribute more or less air
and simultaneously discharge air in whatever direction
desired in the room.
The face plate of the Parasol has three different perforation
patterns. As standard, the face plate has round perforations
arranged in a triangular pattern however other
variants are available as special order.
|
|
MODULAR-SIZED, HIGH-CAPACITY CLIMATE BEAM Biscay
Biscay is a modular-sized climate beam with circulation air openings in the underside panel
Suitable for placing parallel to perimeter walls
Suitable for integration in suspended ceilings
Lengths and widths suited to most types of ceiling support systems on the market
The perforated underside panel can be supplied with different hole patterns
ADC comfort guarantee feature
FUNCTIONS
Cooling
Heating (optional), water-based or electric
Ventilation
ADC comfort guarantee feature (optional)
AREAS OF APPLICATION
Biscay is especially suitable for premises where space planning requires flexibility, for instance, when repositioning partition walls. The system is also suitable for more standard types of rooms such as:
Offices and conference rooms
Classrooms and lecture theatres
Hotels and restaurants
Computer rooms
Hospitals
Banks
ADVANTAGES
Biscay is a modular-sized climate beam with circulation air openings in the underside panel. This means that the suspended ceiling can be built without having to make allowances for the circulation air openings.
The modular-sized lengths make it possible to install the system parallel to the outer wall in a continuous line. This offers maximum flexibility when partition walls have to be relocated.
Low and high air flow versions offer great flexibility for fulfilling high cooling requirements over a wide air flow area.
Biscay can be fitted with Swegon Anti-Draught Control comfort guarantee feature ADC
|
|
Active climate beam with cooling, heating and ventilation
CLIMATE BEAM BSA
BSA is a climate beam with small installation measurements for areas with large cooling requirements.
Fits in standard T-profiles for integration in suspended ceilings.
FUNCTION
Cooling
Heating (optional)
Ventilation
Lighting (optional)
APPLICATION
BSA is suitable for all types of buildings with water based climate cooling:
Offices and conference rooms
Hotels
Lecture theatres
Computer rooms
Banks
Restaurants
ADVANTAGES OF BSA
BSA is a climate beam for integration in suspended ceilings and can also be surface mounted. Built-in height only 200 mm
The unit’s air duct is easily accessible for cleaning via the cover located the in the duct’s lower section.
The cooling batteries are located on the side of the unit, which facilitates inspection and cleaning without the need of dismantling any of the components.
BSA is an excellent supply air unit. The narrow openings distribute the air in a thin jet along the entire length of the suspended ceiling.
The underside of the unit can be removed to adjust the configuration of the supply nozzles and to access the air duct for cleaning, etc.
Thanks to the advantageous supply air principle BSA has a very low sound level.
BSA is supplied as standard with adjustment damper and commissioning point.
|
|

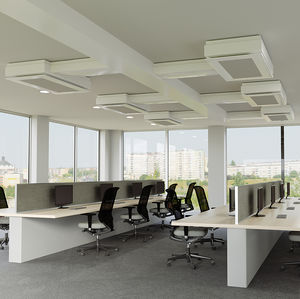

Parasol EX Comfort modules
Parasol EX is the name of the product family of comfort modules
for suspended installation. The modules are designed to
supplement one another and provide optimal room comfort.
Modules: Supply air
Supply air and cooling
Supply air, cooling and heating
Installation: Suspended
Ceiling surface mounted
Function
4-way air distribution in combination with Swegon ADCII (Anti
Draught Control), creates a maximized mixing zone and
minimizes the risk of draught issues. The Parasol EX is designed
for distributing air slightly upward. This gives the
chilled air more space to mix with the room air before it reaches
the occupied zone.
Flexibility
The easily adjustable nozzles in combination with Swegon
ADCII offer maximal flexibility if changes in the room layout
become necessary. All the sides can be set independently of
one another so that the comfort module can distribute more
or less air and simultaneously discharge air in whatever direction
desired in the room.
Design
By styling straight lines and sharp edges, Swegon architects
have created a timeless design that fits in well in most room
decor together with other installations in the room.
|
|

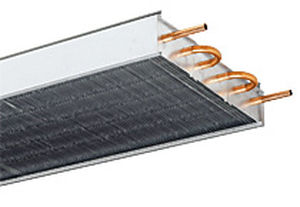

Exposed passive chilled beam for suspended installation
FRB
FRB is a passive chilled beam for comfort cooling especially designed for visible/suspended installation in the room.
High cooling capacity, even when there is a large difference in temperature between the coolant supply and the return temperature.
A small, compact unit available in two widths.
FUNCTION
Cooling
APPLICATION
Suitable for all types of room that are cooled with a water based system:
Offices (cellular offices and open)
Hotels
Class rooms
Conference rooms
Computer rooms
Restaurants
Banks
Shops
ADVANTAGES OF FRB
FRB is a very compact passive chilled beam. The low build-in height, choice of two widths, plus the fact that water is used as an energy transfer medium, means that the system requires a minimum of space.
The high performance of this chilled beam means that it maintains high cooling capacity even at low Dtmk, thus making it possible to increase the temperature difference between the flow and return. This gives the product good operating properties and high output efficiency.
FRB is specially designed for suspended installation. The softened form of the beam means that it blends into the room environments in a natural way.
FRB is particularly suitable for areas where heating and ventilation have already been installed, and require supplimentary cooling.
The system has no moving parts, generates no sound and is maintenance free.
Connection details and valves are easily covered by a neat connection cover. The cover is mounted after that the beam is hanged and connected.
|
|
|
|
