Fläkt Woods offers everything you need for a comfortable and hygienic indoor environment, from individual components to complete air systems, now with a range of chillers and air based cooling equipment.
The Fläkt Woods range of chillers are designed to minimise the overall annual energy consumption in all types of buildings. The products meet all relevant European standards and are Eurovent and CE certified
* air cooled / water cooled
* cooling capacity up to 1800 kW
* low energy consumption
* low sound level
* low vibration level
* flexible to new cooling media
|
|
|
|
|
|
Coadis 2
The COADIS 2 cassette is designed for installation at one end of a ceiling void to heat and cool private and open-plan office spaces. Not only does it combine the economic benefits of installing and operating a central boiler and chiller plant, the COADIS system also allows individual temperature control in all rooms.
Available in three sizes and two versions (classic or raised)
Heating capacity : 2 to 13 kW
Cooling capacity: 1 to 5 kW
Air flow rates: 130 to 800 m³/h
- Bottom return/supply panel with RAL 9010 finish blends in seamlessly with suspended ceiling tiles. Includes a perforated metal return air grille, a quick-remove filter holder and high-induction, directional round nozzles that use the Coandã effect to keep the air stream moving along ceilings,
- Water coil: two or four tubes or two tubes and electric heater,
- Polymer condensate drain pan. Sloped to prevent standing water. With multi-diameter reversible drain pipes,
- Seven-speed motor (three factory-wired speeds) with balanced, double-inlet blower wheel,
- Mounting bracket frame,
- Aluminium foil-coated foam thermal and acoustic insulation,
- Flexible filter medium made of regenerative polyester fibre. Efficiency class: G3 (EN 779),
- M1 fire resistance,
- Fully enclosed electrical junction box,
- A wide selection of control options.
|
|
BROAD PUMPSET
Functions
• Transmission of central air conditioning water
systems including A/C water, cooling water, hot
water as well as other water medium.
• Auto dosing, auto water discharging and filling,
auto water softener, inverter controlled pumps, auto
cooling/heating metering by ultrasonic flow meter,
and auto protection for A/C water off.
Applications
• Any water-cooled central air conditioning systems
including electric and non-electric ones.
• Fields of clean water, hot water, fire fighting water,
high-rise water supply, residence water supply,
industrial water supply (special orders for specified
filter, pump power & head)
|
|

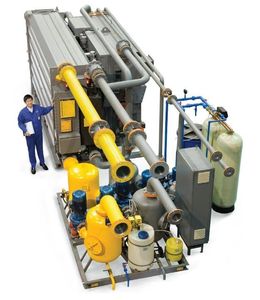

BROAD X NON-ELECTRIC CHILLER
* Function
Cooling, heating, hot water (dedicatedly or simultaneously)
* Application
1. Provide chilled/heating water for large-scale buildings
2. Produce chilled water over 41°F and heating water below 203°F
* Cooling capacity
6.6-3.307Rt(23-11.630LW)
* Energy sources
1. Natural gas, town gas, biogas, diesel, recycled oil
2. Gas/oil dual fuel, gas & waste heat hybrid (multiple energy)
3. Waste heat from power generation industrial waste streams
(stream, hot water, exhaust, etc.)
|
|
|
Cooling capacity of OFC KIT condensation kits ranges between 20 and 200 kW. These are pre-assembled, free standing units used to supply cooling water to the ABF/ABF INVERTER condenser. OFC KIT is supplied complete with centrifugal water pump, temperature probe, automatic filling system and a control panel with temperature regulator.
|
|
|
Cooling capacity of ABF INVERTER chillers ranges between 14 and 180 kW. ABF INVERTER integrates the features being already part of the ABF system with a few technical pluses furtherly increasing its performances and energy saving. The air cooling system by direct expansion of the gas grants saving up to 50% if compared to the standard chiller + heat exchanger system and up to 35% if compared to the previous ABF line. ABF INVERTER chillers are filled with ecological R407c gas.
|
|
Compact design ideally suited for applications with reduced dimensions
Ease of installation of hydraulic and electrical connections
Vertical design with reduced footprint
Self-supporting cabinet in galvanised steel with a protective thermoformed ABS coating
Hermetic Scroll Compressor with internal thermal protection and anti-vibration supports
Stainless steel brazed plate heat exchangers insulated with closed-cell expanded polyurethane
Heat exchanger coil made of copper tubes mechanically expanded into aluminium fins (coil protected by an external grille)
|
|
|
Cooling capacity of GC chillers ranges between 2,5 and 133 kW. The units are applied in all those industrial fields where a cooling process is required, from plastic processing to chemical, mechanical and food industry, just to mention a few. The chillers may be supplied either with air or water condensation and with centrifugal or axial fans according to the customer's wishes and to the specific application. Standard supply includes pump and tank, but E and P versions may be supplied respectively without tank, and without pump and tank. GC chillers are filled with ecological R134a (model 2 and 3) and R407c (all other models) gases.
|
|
|
Cooling capacity of NAX chillers ranges between 170 and 960 kW. The units have been developed thanks to the application ot the most advanced refrigeration technologies of industrial processes. The chillers may be supplied either with air or water condensation and with centrifugal or axial fans according to the customer's wishes and to the specific application. Standard supply includes pump and tank, but FT version may be supplied with tube nest heat exchanger and without pump and tank. NAX chillers are filled with ecological R407c, Rl34a and R4l0a gases and may be equipped with Scroll or with semi-hermetic screw or piston compressors.
|
|
|
AX is the mid range chiller (cooling capacity ranging from 37 to 224 kW), either air or water condensed, manufactured by Eurochiller to cool process water. Efficiency, flexibility and high performance are the main features of this series. Due to the free cooling function, the AX-FC version (cooling capacity from 78 to 224 kW) enhances the energy saving. Both models are filled with R407C gas.
|
|
|
Cooling capacity of MCHIUVTCHILL chillers ranges between 4.5 and 44 kW. The water cooled units are applied on machine side and suitable tor the application within the packaging field, where raised production rates of machines need a sophisticated control of temperature up to 0,2"C. as well as large flow rates and high pressure pumps. MCHILL/TCHILL chillers are filled with ecological R407c gas.
|
|
|
Cooling capacity of AROL modular thermoconvectors ranges between 280 and 710 kW. The units are designed tor cooling water by using the ambient air temperature (free-cooling) with no water consumption. The enbloc design incorporates air filters to safeguard the cooling batteries which are positioned on both sides of the frame thus doubling the cooling capacity without enlarging overall dimensions.
|
|
|
Cooling capacity of TFC chilers with incorporated free cooler ranges between 75 and 720 kW. The units have been designed respecting the environment: thanks to the use of a glycol-free technology and of ecological gases, we grant to the user the best environmental protection as well as a remarkable energy savkig coming from the use of the free-cooling technology. The chillers may be supplied either with air or water condensation and with centrifugal or axial fans according to the customer's wishes and to the specific application. Standard supply includes pump and tank, but FT version may be supplied with tube nest heat exchanger and without pump and tank TFC chillers are filed with ecological R407c and R410a gases and may be equipped with Scroll or with semi-heimetic screw or piston compressors.
|
|
|
Cooling capacity of OFC free-cooling batteries ranges between 65 and 580 kW. OFC batteries are copper/aluminium fin type heat exchangers which cool down the water using the air sent through the fans, thus providing high energy saving.
|
|
Air Cooled Water Chillers
Air Cooled Water Chillers-Heat Pump type
Water-Cooled Water Chillers
|
|
12 sizes from 39 to 250kW
Easy installation : Aquasnap includes an integrated hydronic module and a standard disconnect switch
Exceptional quiet operation: all units have scroll compressors and low noise shrouded Flying Bird II fans (2 speed motor)
Chlorine free R407c green refrigerant
User friendly Prodialog Plus control with direct display machine main parameters : temperatures, pressures and CCN Clock board functionalities as standard*
Easy integration into any building thanks to reduces footprint and low profile
Standard Protection Grills from January 1st, 2000
38RA 040-160 Air-Cooled Condensing Unit
Brief Description:
This condensing unit consists of ten sizes with nominal cooling capacities from 40 to 151 kW. It features the latest technological innovations: scroll compressors, low-noise fans, microprocessor control and ozone friendly
refrigerant HFC-407C.
|
|
Carrier is pleased to introduce the expansion of the AQUASNAP Air-Cooled Chillerfamily from 60 to 390 nominal tons.
Only AQUASNAP chillers feature an all-in-one package design. AQUASNAP air-cooled chillers are available with or without an integrated pumping package. This prepackaged design is more economical than buying and installing the components individually. The integrated package saves valuable installation time.
|
|
The Air Cooled Cooling Only Chillers RCUE AG2 are available in a wide range, from 40HP to 400HP (112 to 1030 kW).
- Continuous Capacity Control Allows for a 15 to 20% Energy Saving Over Step Control
- Low Sound
- Precise Control of Outlet Water Temperature
- Excellent Partial Load Performance
- Screw Compressor
- Highly Reliable with Very Low Noise and Vibration
- Small Installation Space
|
|
Features
IDROBLOC is a device suitable for producing autonomous, summertime air conditioning plants for small/medium-size users in residential and commercial buildings.
IDROBLOC is purpose built for connection with a hot water source (built-in boiler, central heating installation, remote heating, etc.) to provide heating in the wintertime with a single distribution plant and unique fan coil type terminal units. The IDROBLOC can nonetheless be used as a normal water cooler.
|
|
|
These models provide improved operational efficiency plus lower noise and vibration thanks to their advanced scroll compressor. More precise, simplified temperature control is afforded by the two refrigerant circuits and the ability to adjust settings from a machine room.
|
|
Carrier's Evergreen® chillers offer the best value in high-efficiency chlorine-free centrifugal HVAC Chillers.
The 23XRV chiller is the world’s first integrated variable speed, water cooled, screw chiller. The 23XRV incorporates significant breakthroughs in water-cooled chiller technology to provide excellent reliability and achieve superior efficiencies at true operating conditions without compromising the environment. Quality Design and construction make the 23XRV Evergreen chillers the best choice for modern, efficient chilled water plants.
|
|
The Water Cooled Cooling Only Chillers RCUE WG2 are available in a wide range from 40HP to 240HP (134kW to 696kW). Each unit incorporates the latest developments in screw compressor technology in addition to the following benefits:
* Continuous Capacity Control Allows for a 15 to 20% Energy Saving Over Step Control
* Low Sound
* Precise Control of Outlet Water Temperature
* Excellent Partial Load Performance
* Twin Screw Compressor
* Highly Reliable with Very Low Noise and Vibration
* Small Installation Space
* Ideal for basement plant rooms
|
|
|
|
|
|
Water chiller
WSAT-XSC: cooling only
WSAN-XSC: heat pump
Air cooled
Outdoor installation
Capacity from 163 to 493 kW
The R-410A SPINchiller series presents a new concept of chiller offering:
-EFFICIENCY that increases as the heating load decreases, while guaranteeing maximum requested load when necessary. SPINchiller always ensures maximum comfort with very high efficiency and consequently considerable energy savings;
-a modular approach. Several basic units may be connected together to form a single structure according to the required capacity. This allows high production standardisation and therefore utmost operating RELIABILITY;
-simple unit-system combination, since these units are SELF-ADAPTING to the characteristics of the actual system, thereby avoiding delicate, timeconsuming calibrations. Easy connection to the service system plus a simple control system and easy maintenance drastically reduce work requiring specialised personnel with consequent reduction in installation costs;
-extended operating limits to keep the system running, even under exceptional start-up and load conditions;
-customisation of the unit, also for special requirements both in the civil and technological air-conditioning sphere, thanks to the many available optional accessories. The ECOBreeze and HydroPack accessories in particular enhance the qualities of flexibility and energy efficiency. The latter, for example, consistent with the concept of modularity, has several pumps in parallel with the possibility of reserve pump, to monitor the system load variations better and to regulate the water flow in the critical system starting (or restarting) stages so that outside servicing is avoided.
|
|
11 sizes from 243kW to 740kW
R407c refrigerant
Multiple reciprocating compressor design
"Flying Bird 2" Low Noise Fans
Prodialog 4 electronic control and EXV
|
|
|
|
|
|
Water chiller
WSAT-XEE: cooling only
WSAN-XEE: heat pump
Air cooled
Outdoor installation
Capacity from 24,3 to 72,2 kW
Liquid chillers and heat pumps of the ELFOEnergy WSAT-XEE and WSAN-XEE series are units designed for outdoor installation and best energy efficiency in
relation to their reduced size.The ELFOEnergy series has been the turning point in the evolution of chillers.Every unit has been conceived and made by
applying state-of-the-art technology,emphasising the qualities of EFFICIENCY, SELF-ADAPTATION and EASY INSTALLATION that distinguish this product Thanks to its constructional and electronic peculiarities, ELFOEnergy permits:
-high energy efficiency, in particular during partial-load operation, thanks to the use of two compressors with different capacities that work on a single
refrigerant circuit;
-Eurovent energy efficiency classification class "A" in heating operation,also in full load condition;
-adaptability of operating parameters to the load conditions of the connected system, thereby optimising consumption, efficiency and working life of the parts;
-easy, quick installation thanks to the standard hydronic group and the factory test carried out prior to dispatch;
-installation of hydronic group with non-standard working head pumps or with double pump.
|
|
Advantages:
- space-saving design with high cooling capacity
- wide range of accessories
- leak-proof solder joints
- minor contamination due to optimal fin design
|
|
Advantages:
- broad range of accessories
- easily cleaned (detachable tray)
- low maintenance
- fin spacing 5,8,10 or 12 mm
|
|
Benefits:
- suitable for normal cooling and low temperature applications
- high efficiency EC fans as standard
- low noise design
- simple cleaning
- thermally decoupled drip tray
- electric defrosting for coil and drip tray
|
|
Advantages:
- cooling unit ready for plug-in
- all models 230 V/1Ph
- fin spacing 4 mm for normal cooling
- 7 mm for deep freezing
- brand compressor
- design types: saddle installation, wall installation, split version, ceiling installation
|
|
