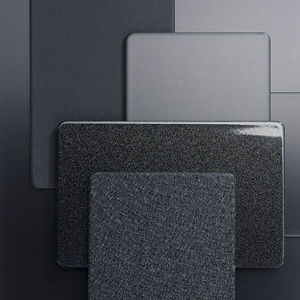

WILLSTRONG® Aluminum Composite panel, consists of an extruded thermoplastic core laminated between two sheets of aluminum, create a masterpiece in the history of development of WILLSTRONG. By utilizing Kynar500® PVDF(70% Polyvinylidene Difluoride) and excellent Polyester coating, WILLSTRONG® Standard Aluminum Composite panelis featured with excellent durability and flexibility, chemical resistance, superior ability to withstand humidity, impact, mortar, salt fog, graffiti and alkaline. Furthermore, WILLSTRONG® Standard Aluminum Composite panelexhibits excellent resistance to color change, chalking, out-standing color and good gloss retention.
|
|
|
WILLSTRONG® natural ACP consists of an extruded thermoplastic core laminated between two sheets of aluminum. It is finished just like natural marble, granite and wood. WILLSTRONG has developed WILLSTRONG® natural ACP more than forty kinds of colors, such as red cherry, golden peacock, brecha marron, india red, green marble etc, and more and more colors design will be created to meet the demands in the market.
|
|
|
|
|
|
|
WILLSTRONG Aluminum Composite Panel owns advanced technologies, strict quality control process and continuous innovations, which makes WILLSTRONG to meticulously control the tolerance, flatness, the thickness and finish quality of each panel. The bonding of the aluminum and the core is achieved by both chemical and mechanical ways, giving each WILLSTRONG Aluminum Composite Panel an extraordinary bond integrity. WILLSTRONG Aluminum Composite Panel are protected and colored by Polyvinylidene Fluoride (PVDF), Polyester (PE) paints and PET films. Panels to be applied for high building cladding mainly utilize coating of KYNAR500/HYLAR5000 PVDF resins in order to guarantee an outstanding color uniformity, UV fade resistance & gloss retention finish. The paint also provides excellent flexibility & film adhesion for forming, and offers superior resistance to humidity, impact, salt spray, pollution, abrasion & graffiti. The luxurious, bright-colored, marble and wood print finishes give so many choices for architects to completely perform their creativity. WILLSTRONG Aluminum Composite Panel has been successfully applied in some places of harsh condition, such as the North Pole region in Russia, and the Equator area in Indonesia. Hundreds of applications have proved that WILLSTRONG is believable. WILLSTRONG / FR is composed of a low density non-combustible Polyethylene Core sandwiched between two sheets of Aluminum of 0.5mm thickness.
|
|
|
|
|
|

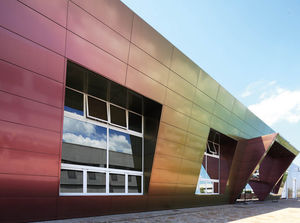

IRIDESCENT FINISHES: DWALL IRIDIUM
Subjected to the liquid coating process, Dwall Iridium rolled aluminium sections are characterised by their innovative finishes, which come in iridescent shades.
Special pigments contained in the paints make Dwall Iridium an amazingly attractive solution that is also extremely resistant to weathering and sudden changes in temperature.
The technical and performance properties of the finished product mean its appearance and gloss withstand the test of lengthy exposure to the sun, and the product comes with an amazing thirty-year warranty.
The combination of light and colour in Dwall Iridium also sparks designers' creativity, providing them with a range of basic colours to play around in
order to produce the desired shades.
METALLIC FINISHES: DWALL METALLIC
The range of liquid-coated aluminium panels called Dwall is now even more attractive in a new series of extremely fashionable, elegant, metallic-effect finishes.
All Dwall Metallic panels are dual-coated, i.e. given two coats of paint: an additional guarantee of resistance to achieve high-quality architectural finishes and panelling. The special colour effect of the metallic finishes, which can enhance even the most simple shapes and volumes, is achieved by taking a resin base - PVDF or polyester resins - and adding different percentages of special pigments formulated with aluminium or with mica
platelets to give the colours this distinctive effect.
The metallic paints chosen to augment the DWALL range of colours have been borrowed from the automobile world, from prestigious marques including BMW, Volkswagen, Mercedes…
|
|
|
|
|
|
DMAX: 100% SOLID ALUMINIUM FOR ARCHITECTURE
There's now a new, very high performance, continuous-
coated rolled aluminium section for creating
the most modern architectural curtain walls:
its name is DMAX.
DMAX HAS ALL THESE ADVANTAGES:
• perfect flatness
• in Aluminium-Magnesium alloy, series 5000
• extra-thick solid metal (from 2 to 3 mm thickness) for unrivalled mechanical resistance
• PVDF coating applied in 2, 3 or 4 coats
• available in innovative finishes: pastel, metallic, iridescent and personalized colours
• personalized packaging
• thorough, strict, certified quality controls
• very thick protective film, personalized with DMAX logo
• delivery time: extra fast.
DMAX was conceived precisely as a tangible response to the frequent demand for 2/3 mm "Panel Quality" aluminium, producing a solid metal alternative to the usual aluminium/plastic composites.
This is why Otefal has come up with a new line of products, offering even higher performance than their predecessors, that can apply the PVDF super-coatings even on very thick metal.
The DMAX aluminium rolled section therefore makes a more affordable
alternative to the usual rolled composites by virtue of its many qualities - flatness (continuous stretching), workability (no milling or riveting for cassette panels), a wide range of finishes (metallic, iridescent or pastel) and, last but not least, its competitive cost.
|
|
|
|
|
|
Top quality for a successful product
Mirawall was the first continuous pre-painted rolled aluminium section using powder paints to be made and sold in Italy. Painted with very flexible special thermosetting resin-based powder paints, Mirawall can undergo any sort of processing keeping intact its original colour and with excellent resistance to mechanic deformation. Thanks to the protection of the aluminium support given by the paint, Mirawall can stand up to the worst weather and pollution without any sort of blistering. For these features and the excellent smooth and fault free surface, Mirawall rolled sections are constantly used in a wide range of building applications, from facade coatings to complementary parts for window and door frames. Mirawall is addressed to those seeking a safe and innovative material for interior coating and the design industry: a growing number of designers now choose Mirawall solid rolled aluminium sections in place of compound and thermoplastic materials, thanks to their total resistance to fire and, last but not least, the endless range of available colours. In fact, the Otefal Group now offers more than 500 finishes that can be customised to satisfy any sort of specific customer request: the complete range of RAL colours and the innovative metallic and speckled colours, all of which are continuously being updated to follow customer and market trends.
|
|
|
|
|
|
Transparent Media Façades: IMAGIC WEAVE
Architectural façades are becoming the focus of new media communication. Large scale imaging and architectural video designed using LED media solutions accentuate the appearance and functionality of contemporary architectural sites in any urban landscape, day and night.
IMAGIC WEAVE, a combination of Haver Architectural Wire Mesh and state-of-the-art LED technology, enables to create individually programmable lighting effects in up to 16 million colours including full video content on a new or existing façade.
The wire mesh elements are custom-made for the specific project. DOGLA-TRIO is the most suitable type of mesh, fabricated in max. 3 meter width and upon request available in other dimensions, too. The maxim height is limited by handling and static reasons only. In general the mesh elements are tensioned from top to bottom. Different mounting systems are available with regard to the specifics of each project.
By attaching slim LED-profiles to the reverse side of the wire mesh the homogenous and transparent look of the façade is maintained at all times, even when the LEDs are not in use.
Both indoor and outdoor façades may be embellished with medium to high resolution video and graphic animation. IMAGIC WEAVE offers all of the benefits of an LED imaging solution within a plug’n’play stainless steel mesh system.
|
|
Mediamesh® is a patented system used for the medialization of large facade surfaces developed by GKD - Gebr. Kufferath AG an ag4 media facade GmbH.
Mediamesh® offers a large spectrum of new design possibilities for architects ,investors and building owners - opportunities to medialize their buildings and adding a dynamic dimension to their architecture. Mediamesh® facades excellently support the architectural concept and provide an opportunity to further revise the display, as needed. In addition to communicating and enhancing their presence on location, Mediamesh® can also be used to broadcast messages from the inside to the outside in a unique an innovative way.
Mediamesh® is a stainless steel mesh with interwoven light emitting diode (LED) profiles with itegrated and connected media controls. The LEDs reflect the images onto the facade, creating a display for a wide spectrum of graphics, text and video.
|
|
Illumesh®, another joint development by GKD – Gebrüder Kufferath AG and ag4 media facade GmbH, is the technology of choice when it is a matter of presenting large fabric areas atmospherically.
The special holders woven into the fabric contain LED round profiles which project an interplay of colors and images onto the metallic surface. Illumesh® can be used to project - from complex designs to simple graphics - onto your building facade. In comparison to conventional media displays, the costs for light design and energy consumption are considerably lower when using Illumesh®.
|
|
Standard production:
prepainted aluminium
prepainted steel
aluzinc
copper
Options:
anticondensation felt
antinoise felt
|
|
Facade Coatings for Metal, Composite and Plastic Panels

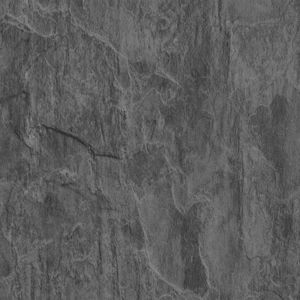

Metal facades that look like stone or mortar!
Use a metal facade that is extremly durable. With our coating you can have the look and feel of plastering and conventional stucco.
Surface Material:
The surface is a fine, grainy sand structure with one or more colours and with arbitrary structures. The surface is durable and the colours are stable over time.
Core Material:
The surface is coated onto conventional facade material: aluminium, zinc, steel, but also plastic, composites and ceramic / concrete are possible.
|
|
|
The range of ribbed panels OUTREMER® respects the spirit of your project by offering to you a total freedom of imagination thanks to original esthetic choices: Horizontal or vertical veins, aspect in hollow or relief, choice of the profiles of vein, materials and color with your measurements starting from galvanized steel, prelacquered steel, stainless steel or aluminum. Certain models propose even perforations or shutters between veins.
|
|
STOCKAL® is the Novelis brand name for its aluminium sheet pre-painted with polyester based liquid paints. STOCKAL® is eminently suitable for use in the building industry, especially for façade cladding and window flashings. The wide range of colours and the extraordinary workability of the aluminium substrate make STOCKAL® the most versatile material produced by Novelis.
STOCKAL® is characterised by an extraordinary degree of workability. Thanks to its chemical and mechanical characteristics, due to the combination of an EN AW 5010 alloy and polyester based liquid paints, STOCKAL® can be easily worked using the main mechanical working processes: bending, drilling, milling and cutting; these are only part of the standard working processes for STOCKAL®. The use of a special protective liquid coating on the reverse side also makes STOCKAL® suitable for gluing and bonding.
|
|
ALUMETAL™ system is a light cladding that consists of panels of different shape, height ad colour, hooked to a metal structure. The structure can be fixed on every type of existing built.
It is possible to separate the cladding from the wall, keeping a distance which guarantees an adequate ventilation and a new design of the buildings without structural changes.
A simply set of hanging profiles provides rapid assembly and easy mobility.
|
|
The ALUMETAL system is a light cladding that consits of panels of different shape, height and colour, hooked to a metal structure. The structure can be fixed on every type of existing built.
The aestetical effect obtained is modern and original and the system allows innumerable variations.
|
|
Advised apply:
roofing and wall cladding
Workings:
notching
Minimum slope:7%
Standard production:
row aluminium
prepainted aluminium
prepainted steel
aluzinc
copper
stainless steel
|
|
|
|
|
|
COLT BRINGS STRUCTURE TO THE BUILDING ENVELOPE
Louvre walls and panels are popular with designers for many applications in industrial and commercial buildings. Their purpose can be to control light entry, to provide ventilation whilst maintaining rain defence, to provide screening, or a combination of these. Louvres can also be provided simply for aesthetic impact.
Colt louvre systems are highly adaptable. They are available in various configurations, materials, finishes and coatings to meet the requirements of almost any project. Besides louvre panels being available in aluminium, there are all manner of glass, textile, wood, terracotta clay and translucent acrylic louvres available depending upon the aesthetic and energetic requirements.
Colt louvre systems can be uniquely configured to provide the solution to your needs. They can be engineered to provide high aerodynamic performance and excellent rain defence.
TO SUMMARISE:
Colt's holistic approach is based on the integrated use of different technologies and focuses on:
- reducing the building's cooling requirements with a solar shading system
- enhancing the quality of natural daylight
- Integrating into the building envelope solar energy conversion systems such as photovoltaic cells.
Architects and building designers can chose from a wide portfolio of solutions, and Colt experts have the specialist experience to help them identify the best design, also
supplying calculations and simulation models.
'Colt louvre systems - Give facades a face'
|
|
VERSATILE VENTILATED SYSTEM
Our Ventilated Open Structure Façade systems allow light and air to travel easily through the system and establish a crisp, clean aesthetic. Traditionally built with linear panels, Open Structure Façades prove useful in a number of applications, including ventilated fences around mechanical systems such as cooling units. With our flexible open-structure systems, the possibilities are wide open.
Hunter Douglas Open Structure Façades offer excellent design, functionality and comfort:
• Performance - optimal airflow and light entry
• Economic value - outstanding durability and produced in a highly efficient way
• Green characteristics - aluminum alloy is fully recyclable at the end of the façade lifecycle
• Aesthetic product - linear and open structure façades come in multiple colours and shapes that provide design freedom
• Ease of use - simple installation and virtually no maintenance
|
|
Kalzip TF façade system
Suitable for both new build and refurbishment, the distinctive Kalzip TF37/800R aluminium profiled cladding provides a distinctive and functional solution for horizontal or slightly pitched building elevations.
The clean-cut appearance of the profile enhances the effect of light and shade across the façade area and is ideal for projects where a non industrial appearance is required. Lasting protection for the existing building structure is offered due to its compatibility with a variety of substructures, such as metal, concrete and wood.
Lightweight and flexible the TF37/800R façade is available in a comprehensive range of colour coatings and is supported by a selection of special details that have been developed to provide perfect interfaces with other building elements and systems.
|
|
Aluwall represents a modular panel system for external facing molded to measure and painted according to the RAL table.
The panels are made of aluminium, with thickness ranging from 1.5 to 3 mm, depending on the size of the panels. Minimum 100 micron thick polyester powder paint.
The panels are hooked to a vertical load-bearing structure. The bayonet hooks ensure easy, fast installation.
The panels can be shaped in different ways to obtain numerous, original and modern aesthetic variations.
The distance of the panels from the wall ensures a ventilated interspace, and helps modify the architectonic appearance of the building, without the need for modifying the structure.
|
|
|
|
|
|
ALUCOBOND® plus has been developed exclusively for the higher requirements of the fire regulations in architecture. Due to its mineral-filled core ALUCOBOND® plus plus meets the higher requirements of the fire classifications. It is hardly inflammable and offers all the proven product properties of the ALUCOBOND® family, such as flatness, formability, resistance to weather and simple processing.
ALUCOBOND® plus perfectly adapts to the contours of the buildings forming complex, flowing elements. It is the combination of formability, flatness, stability and weather resistance that characterizes this material. Due to its composite structure, ALUCOBOND® plus can take on many different shapes. It is almost like a different skin wrapping the building structure. Its perfect formability does not affect its stability and flatness. The high rigidity of the panel remains.
The composite structure of ALUCOBOND® plus results in an impressive strength-to-weight ratio, even when comparing large panel sizes. Despite its low weight, which makes ALUCOBOND® plus easy to transport and handle in the factory and on site, its rigidity and high strength make the panels keep their shape and remain flat, even when exposed to extreme temperature changes.
|
|
|
|
|
|
ALUCOBOND® is a composite panel consisting of two aluminium cover sheets and a plastic core. The superb properties of this material boost one's inspiration and offer architecture a whole new range of solutions - whether your project is a private home, a public building, a corporate headquarter or offices, or a trading or industrial complex - or if your organisation wants to create a new image-building Corporate Design - whether for petrol stations, car showrooms, banks or supermarkets.
ALUCOBOND® perfectly adapts to a building's contours, flowing elements. It is the combination of formability, flatness, stability and weather resistance that characterizes this material. Due to its composite structure, ALUCOBOND® can take on many different shapes. Though both stable and flat ALUCOBOND® can be perfectly formed without any loss to its rigidity.
The composite structure of ALUCOBOND® results in an impressive strength-to-weight ratio, even when comparing large panel sizes. Despite its low weight, which makes ALUCOBOND® easy to transport and handle in the factory and on site, its rigidity and high strength make the panels keep their shape and remain flat, even when exposed to extreme temperature changes.
|
|
ALUCORE® is an aluminium composite panel consisting of two cover sheets and a honeycomb core of aluminium.
Following in the footsteps of the world-wide established ALUCORE® trademark, ALUCORE® is also a composite material for a variety of applications in transport, architecture or industrial production, showing excellent product properties such as extraordinary flatness, large variety of colours and high formability.
The aluminium honeycomb core gives the composite panel a high rigidity and an extremely low weight. ALUCORE® therefore provides the decisive advantage where very high demands are made on the material for applications such as façade cladding or roofing, e.g. if exposed to extremely high wind load and for large self-supporting roofs.
ALUCORE® is the first lightweight panel that you, too, will absolutely insist as being: a bond for life.
|
|
|
|
|
|
ALUCOBOND® A2 is the only non-combustible aluminium composite panel used in architecture world-wide. Due to its mineral-filled core ALUCOBOND® A2 meets the high requirements of the fire regulations and enhances the possibilities for the concept and design of buildings.
ALUCOBOND® A2, as indeed all the products of the ALUCOBOND® family, allows simple processing, is impact-resistant, break-proof and weatherproof and, above all, non-combustible.
ALUCOBOND® A2 is a composite panel consisting of two aluminium cover sheets and a mineral-filled core. The superb properties of this material boost one's inspiration and offer architecture a whole new range of solutions - whether your project is a private home, a public building, a corporate headquarter and offices, or a trading or industrial complex - or if your organisation wants to create a new image-building Corporate Design - whether for petrol stations, car showrooms, banks or supermarkets.
ALUCOBOND® A2 perfectly adapts to the contours of the buildings forming complex, flowing elements. It is the combination of formability, flatness, stability and weather resistance that characterizes this material. Due to its composite structure, ALUCOBOND® A2 can take on many different shapes. It is almost like a different skin wrapping the building structure. Its perfect formability does not affect its stability and flatness. The high rigidity of the panel remains.
|
|
Pre-painted aluminium sheet polyamide paint for building and industrial applications
WINDY® is the Novelis brand name for its aluminium coils which have been pre-painted with polyamide paints. WINDY® is used in the building industry, especially in facade cladding, but also in windows frames. The excellent formability, the good bending behaviour of the product and the good resistance to UV rays make WINDY® particularly versatile and adaptable to different architectural solutions and industrial applications.
WINDY® is protected with polyamide paints and it is characterised by an excellent resistance to corrosion caused by weathering. Additionally, it has a superb resistance to the rays of the sun, above all UV rays, which cause colour degradation.
WINDY® guarantees excellent overall corrosion resistance thanks to a protective primer laid on the reverse side.
|
|
FF3® Prepainted aluminium facade panels in 3-mm thickness offers architects and building owners creative design solutions in façade cladding.
Due to its high strength - and in contrast to other alloys - FF3® provides (in the same material thickness) much larger span width, making installation and substructures less expensive. Large-size sheet - in big formats up to 2000 x 8000mm - allow for sophisticated architectural solutions and can be installed quickly and economically.
As the alloy used for FF3® Prepainted Aluminium is appropriate for welding purposes, the studwelding technique can be applied. This enables invisible fixings on flat sheet panel façades. The advantages of this technique provide quick and economical façade installations which of course do not affect the decorative front side of the sheet
|
|
|
|
|
|
PROF2000® is the Novelis brand name for its polyester-powder pre-painted aluminium rolled products. This painting technique gives PROF2000® the same surface as post-painted extruded products so that the two can be perfectly coupled. Thanks to this fact PROF2000® can be used in the building industry (for facade cladding and its ancillary components) and as well as for industrial applications.
PROF2000® is used for internal covering of tunnels. The characteristics of the painting cycle make this product suitable for this application, as it eliminates the dazzling phenomenon.
The high paint thickness ensures easy periodic cleaning of the tunnel. Since the panels are light and they are produced in modules, their maintenance is simplified and they can be replaced without problems in case of damage. PROF2000® is certified to class 0 (Italian D.M. 14.1.85), the highest ranking in case of fire resistance.
Thanks to its wide range of colours PROF2000® represents the ideal solution to support the designer’s imagination and creativity. Hundreds of colours and possible shades can meet all needs. Novelis is ready to match new special colours on demand.
Set your mind free!
|
|
FF2® is available in a large number of colours. With a RAL, NCS or PPG reference number new colours can be produced specifically for you.
The continuous coil coating process ensures long lasting, brilliant colour effect. The paint system has proved itself time and time again in extreme climates.
PVdF-Coating (80/20)
PVdF-Coating is UV-resistant and is environmentally friendly
Sea water resistant
The paints will not become brittle as a result of weathering
Surface is dirt repellent
Aluminium is 100 % recyclable, without loss of quality
Wide range of colour shades
FF2® is non-combustible (A1 tested)
|
|
|
|
|
|
Petersen Aluminum Corporation has provided the “M” and “R” exposed fastener panels in the past and has now expanded its panel offerings even more. We have introduced the 7.2 Rib, the 7/8” Corrugated Panel, the 1/2” Corrugated Panel and additional coverage widths of the “M” and “R” Panel to the lineup. These profiles provide unmatched flexibility for use in roofing, wall, interior and linear panel applications in a cost-efficient yet architecturally attractive metal panel.
The 7.2 panel provides superior versatility in roofing projects with high wind load requirements and longer spans. This profile has been tested extensively per ASTM 1592 and has excellent negative load capability even for high-wind pressures.
The 7.2 Panel is available in a full range of gauges and materials, and provides a 36” wide coverage. It is ideal for roof slopes as low as 2:12, however, it can meet slopes of less than 2:12 in some applications. Contact the local PAC rep for projects with less than 2:12 slopes for product application assistan
|
|
|
|
