- KEY2-01 is to be connected to INELS system bus and it is used to control building security and monitor heating circuits in INELS system.
- It is possible to connect more keyboards KEY2-01 in one INELS system bus at once.
- IN-built display informs about state of security system and state of heating circuit in INELS system.
- The keyboard is equipped by contact-less sensor of magnetic media, which can be used to control the system as well as a user code.
- By using security keyboard you can control and monitor lights, heating and temperature in INELS system.
|
|
- Surface mount stainless steel keypad
- Completely sealed (filled with epoxy)
- Programming Password protected
- Capacity 100 user codes of 4 to 6 digits
- 2 form C outputs
- Keypad Illumination duration programmable
- Audible feedback for operating and programming
- Timed output 1 to 99 seconds or latched
- All programming stored in non-volatile EEPROM memory
- Request-to-exit input
- Push button (KCIEN version only)
- Tamper Switch
- Operating voltage: 12V to 24V AC and 12V to 48V DC
- Consumption:
. 12V AC: Standby 20mA, when all 2 relay outputs activated
100mA max
. 24V AC: Standby 10mA, when all 2 relay outputs activated
50mA max
|
|
- Surface mount stainless steel keypad
- Completely sealed (filled with epoxy)
- Remote controller mounted in a weather resistant plastic box
- Programming password protected
- Capacity 100 user code of 4 to 5 digits
- 2 form C outputs
- Keypad Illumination duration programmable
- Audible feedback for operating and programming
- 2 LED's for visual feedback
- Request-to-exit input
- Timed output 1 to 99 seconds or latched
- All programming stored in non-volatile EEPROM memory
- Varnish coated PCB (protection against high levels of humidity)
- Operating voltage: 12V to 24V AC and 12V to 48V DC
- Consumption (when 3 relay outputs activated
and keypad illuminated):
. 12 V AC: Standby 90mA
. 24 V AC: Standby 46mA
. 12 V DC: Standby 100mA
. 24 V DC: Standby 55mA
. 48 V DC: Standby 30mA
|
|
- Stainless steel keypad
- Programming Password protected
- Capacity 100 user codes of 4 to 6 digits
- 1 form C output (optional: 2 or 3 outputs)
- Keypad Illumination duration programmable
- Audible feedback for operating and programming
- Timed output 1 to 99 seconds or latched
- All programming stored in non-volatile EEPROM memory
- Varnish coated PCB (protection against high levels of humidity)
- LED's for visual feedback
- Request-to-exit input
- Operating voltage: 12V to 24V AC or 12V to 48V DC
- Consumption:
. 12V AC: Standby 20mA, when 3 relays activated 100mA max
. 24V AC: Standby 10mA,, when 3 relays activated 50mA max
|
|
Surface mount stainless steel keypad
- Completely sealed (filled with epoxy)
- Remote controller mounted in a weather resistant plastic box
- Programming password protected
- Capacity 100 user code of 4 to 5 digits
- 1 form C output (optional: 2 to 3 relay outputs)
- Keypad Illumination duration programmable
- Audible feedback for operating and programming
- Request-to-exit input
- Timed output 1 to 99 seconds or latched
- All programming stored in non-volatile EEPROM memory
- Operating voltage: 12 to 24V AC and 12 to 48V DC
- Consumption (3 relay outputs activated and keypad illuminated):
. 12V AC: Standby 90mA
. 24V AC: Standby 46mA
. 12V DC: Standby 100mA
. 24V DC: Standby 55mA
. 48V DC: Standby 30mA
|
|
- Aluminium keypad
- Corrosion resistant flush casing
- Programming Password protected
- Capacity 100 user codes of 4 to 6 digits
- 1 form C output (optional: 2 or 3 outputs)
- Keypad Illumination duration programmable
- Audible feedback for operating and programming
- Timed output 1 to 99 seconds or latched
- All programming stored in non-volatile EEPROM memory
- Varnish coated PCB (protection against high levels of humidity)
- Audible feedback for operating and programming
- LED's for visual feedback
- Request-to-exit input
- Push button for request-to-enter
- Illuminated push button
- Aluminium or gold finish
- Operating voltage: 12V to 24V AC and 12V to 48V DC
- Consumption:
. 12V AC: Standby 20mA, when 3 relays activated
100mA max
. 24V AC: Standby 10mA, when 3 relays activated
50mA max
|
|
- Surface mount stainless steel keypad
- Completely sealed (filled with epoxy)
- Programming Password protected
- Capacity 100 user codes of 4 to 6 digits
- 2 form C outputs
- Keypad Illumination duration programmable
- Audible feedback for operating and programming
- Timed output 1 to 99 seconds or latched
- All programming stored in non-volatile EEPROM memory
- 2 LED's for visual feedback
- Request-to-exit input
- Push button for request-to-enter
- Tamper Switch
- Operating voltage: 12V to 24V AC and 12V to 48V DC
- Consumption:
. 12V AC: Standby 20mA,
when 2 relay outputs activated 100mA max
. 24V AC: Standby 10mA,
when 2 relay outputs activated 50mA max
|
|
Surface mount stainless steel keypad
- Completely sealed (filled with epoxy)
- Remote controller mounted in a weather resistant plastic box
- Programming password protected
- Capacity 100 user code of 4 to 5 digits
- 1 form C output (optional: 2 to 3 relay outputs)
- Keypad Illumination duration programmable
- Audible feedback for operating and programming
- Request-to-exit input
- Timed output 1 to 99 seconds or latched
- All programming stored in non-volatile EEPROM memory
- Operating voltage: 12 to 24V AC and 12 to 48V DC
- Consumption (3 relay outputs activated and keypad illuminated):
. 12V AC: Standby 90mA
. 24V AC: Standby 46mA
. 12V DC: Standby 100mA
. 24V DC: Standby 55mA
. 48V DC: Standby 30mA
|
|
Keypad without LCD, "Alumnium" ABS/PC plastic with gray buttons with IR receiver, internal speaker and microphone.
Keypads are used to
- Arm and disarm the security system
- Record or hear voicemail messages
- Control Comfort through the Home Control Menu.
- Intercom with other keypads, Door stations, and telephone
- Receive infrared commands from RC01 and other remote controls
- Hear Alarm sounds (sirens)
- Activate short cut functions
EN50131 compliant. Up to 8 keypads in a system.
|
|
The Access Control Keypad is an attractive, rugged and reliable keypad for HAI's Omni family and Lumina family home control systems.
The Access Control Keypad offers access to all options provided by HAI’s home control systems. Select users of the keypad will be able to arm and disarm the security system (Omni family systems only), activate an electric door strike or magnetic locks, activate lighting, operate a garage door, open/close a security gate, set off a panic alarm and manage many other functions.
The Access Control Keypad uses one of the serial ports on your HAI home control system. The number of keypads that you may use is limited by the number of available serial ports on your home control system.
|
|
The SIAXMA® Scramble-Code-Reader with the vandal-resistant front side is qualified for uses with high security levels like prisons, agencies, server rooms, archives, cash offices or key depositories.
The feared "Look over the shoulder" is not interesting any more, memorizing the number-combination is futile. A potential cheater cannot activate the keypad without a valid id-card. Should he activate the keypad with a stolen card he cannot make use of a memorized input sequence of another person. Because when activating the keypad all numbers (except Enter and Clear key) are arranged in a complete new order.
|
|
The PinCode Keypad is integrated into the System 3060 without wires, and opens any component by radio when the correct 4 to 8-digit code is entered. With its transparent ring, this ultra-flat, flush-mounted keypad goes with any setting. The keypad is mounted near the door – inside, outside, and even on glass surfaces.
The keypad can be set in a special VdS shunt lock mode, enabling it to be used for the simple arming and disarming of an alarm system.
The PinCode Keypad has a dual-stage battery warning system, which announces the need to change the battery in good time. To protect against misuse, an acoustic alarm sounds for one minute if an incorrect PinCode is entered five times.
|
|
Control Panels and Keypads
The control panel and keypad are the brains of the intruder alarm, performing a number of critical functions, such as monitoring of all detection devices, setting and un-setting of the alarm, controlling sounders and signalling and providing power and battery backup to system.
|
|
The Model 660 Touchpad Reader is a compact, easyto- install touchpad reader intended for sites which require badgeless entry. This touchpad reader provides sites with an option to traditional badge readers.
Model 660 touchpad reader operation is compatible with all Entry PerfectTM, Secure Perfect®, and Picture PerfectTM access control systems and Micro/5-E, Micro/5-PX and Micro/5-PXN controllers when configured with either a 2RP or 2SRP reader processor. Up to two Model 660s may be connected to each 2RP or 2SRP.
|
|

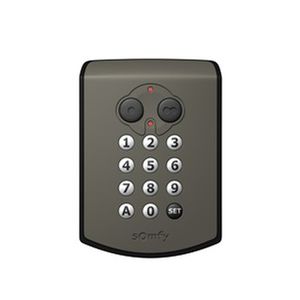

RTS wireless keypad
Keypad operation for secure access.
2 channel radio keypad - you can control up to 2 applications (gate and garage door).
1 main code and 4 secondary codes for multiple users.
4 to 6 digit security code.
No wiring - battery powered with illuminated keypad
|
|
K42 Code lock
The K42 - a code lock with two codes - is the best-selling code lock in the world. It is compact and easy to use with a modern design that is suitable for either indoor or outdoor mounting. All programming is done directly in the unit - no software, PC or network is required.
The K42 has a capacity of two four-digit codes. One can be used by residents while the other is used by the property caretaker, for example.
|
|
SELETTO
Built-in push-botton panel, programmable to
control pedestrian and vehicular access, usable
in two operation modalities: with “serial connection”
and with “interface to COMPASS system”.
|
|
The code lock is one of the most versa-
tile applications at the entrance area.
A number combination is used to obtain
access, execute switching functions,
dial individual selected intercom stations
in the house, and if required will even
establish a connection to the public tele-
phone network.
|
|
Access control and identificationProducts based on RFID (Radio-Frequency Identification) technology are some of the fastest-growing for ASSA ABLOY. RFID's benefit is that it enables security monitoring and access control without physical contact.
Customers look to trusted leaders in access control and identification for the solutions they are seeking, with products influenced by IT standards, enhanced security measures built in, and technology expertise for contactless access and transaction applications.
|
|
The Kaba exos LT-PN registration unit with integrated LEGIC antenna and keypad ensures maximum access control security. In addition to identification, the user can also be verified by means of the PIN code. The robust reading properties of this registration unit permit direct mounting on metal or glass surfaces while maintaining a constant high level of functionality.
The two-section plastic housing was especially developed for simple adhesive or screw mounting. With the encapsulated electronic components this registration unit is suitable for both indoor and outdoor applications.
Product features
Surface-mounting, also directly on metal surfaces
Robust reading properties
Integrated PIN code keypad
Time-based activation of verification with PIN code for higher security requirements
Input of a door code for access without badge
Control of alarm systems
Fast modification and upgrading as all registration units in the cabinet are of the same design
|
|
