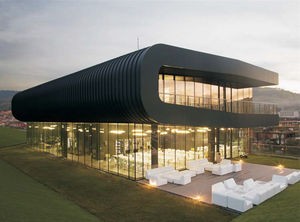

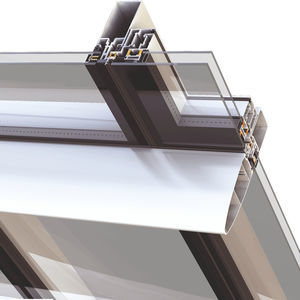

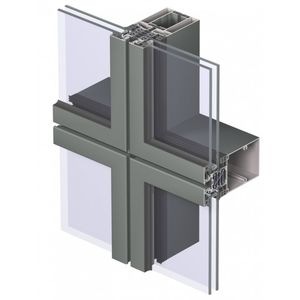

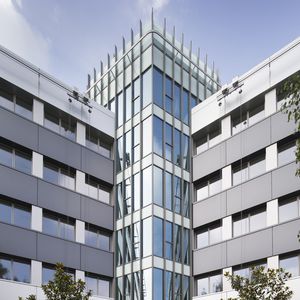

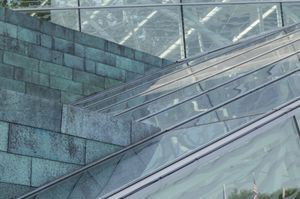

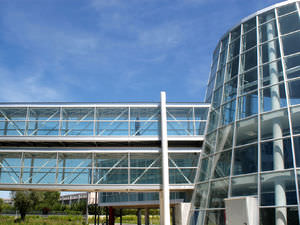

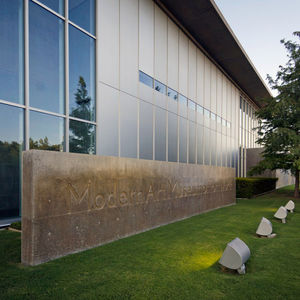

CW 50 is a curtain wall facade and roof system that offers unlimited creative freedom and allows maximum entrance of light into the building. The system offers 11 individual styles with various outside appearances. Any combination of vertical and inclined planes are possible together with the integration of different types of vents. The extensive range offers technical solutions for the different performance requirements of a facade such as fi reproof and high insulating solutions.
CW 60 curtain wall with 60 mm sidelines is also available.
|
|
|
|
|
|

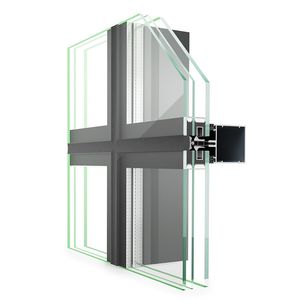

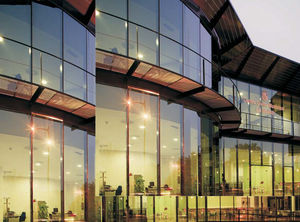

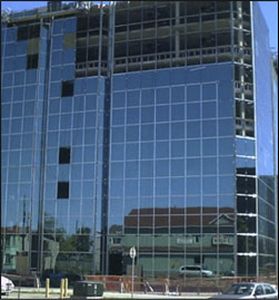

CW 65-ElementFaçade enables unitised façades to be completely preassembled in the workshop. This results in a high execution speed on site. Productivity here however embraces architectural esthetic requirements as the CW 65-EF works with slender profiles of only 65 mm. The slender profile is very strong and can be used for maximum widths of 1600 mm and heights up to 3700 mm. The façade system is thus very well suited for high-rise constructions. Profiles can easily be adapted to fit project depending requirements.
CW 65-EF provides increased insulation with an Uf value of up to 2.6 W/m²K. The Opening elements such as a top hung and parallel opening window can also be integrated into the system. CW 65-EF is available in Structural Glazing which is utilised in a very aesthetic fashion. The only border between two glass plates is a minimal joint of 16 mm, which is finished off with a recessed EPDM seal. The glass plate itself is glued directly onto a preassembled frame, thereby reducing the required number of components and minimising the construction time.
|
|
|
|
|
|
REYNAERS EXPANDS ITS PRODUCT RANGE BY BUILDING INTEGRATED PHOTOVOLTAIC SOLUTIONS
Launch of new Solar Curtain Wall and Brise Soleil confirms strong belief in ‘green’ energy
After having installed the largest photovoltaic roof installation in Belgium on their 16 000 m² new warehouse, Reynaers Aluminium, a leading European supplier of innovative and sustainable architectural aluminium solutions, demonstrates their commitment to the Kyoto targets. Reynaers promotes green energy in their latest product assortment of Curtain Walls (CW 60 Solar) and Brise Soleil (BS Solar), due to be released in June and in the 4th quarter of 2008 respectively.
The development of sustainable building solutions forms an integral part of their social responsibility. The launch of CW 60 Solar and BS Solar follows on other recent innovations such as highly insulated aluminium profiles, external sun screens that enhance the energy efficiency of buildings and double-facade solutions. Combinations of the available products are made easy, allowing optimal energy benefit at the best cost; all without losing aesthetic appeal.
For more information, visit our website.
www.reynaers.com
|
|

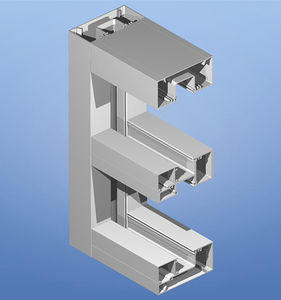

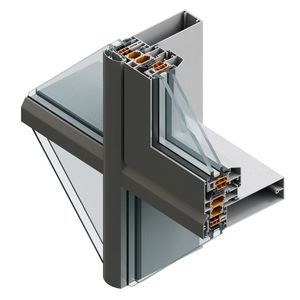

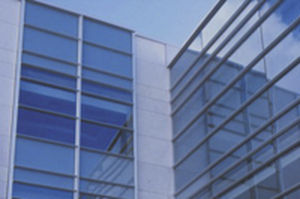

CW 86 enables cassette façades to be built using a traditional stick structure (CW 86). It also enables unitised façades (CW 86-EF) to be completely pre-assembled in the workshop that results in a high
execution speed on the building site. CW 86 is available in Structural Glazing (SG) and Cassette Glazing (CG). The system enables the
motorisation of opening elements such as top hung or parallel opening windows. Different types of windows, doors, sliding systems and brise soleil can be integrated. Different inner and outer colours are possible.
|
|
-Aluminium visible on outside, identical verticals/horizontals, 52mm.
-Three basic cowls: flat, convex, ogival.
-5 mullions of 14 to 327 cm4 inertia.
-Glazing hold from 6 to 28mm with same gasket on frame work (grooves and spacer bars). This makes it possible to adapt the groove in function of the glazing and the usable K coefficient (4 possible grooves).
|
|
|
|
|
|
1、Unitized Curtain Wall System:
Project: 6 Mort Street, Australia
The unitized curtain wall system is usually applied on the buildings which have a uniform exterior wall design. It can control and ensure the overall quality of the product; ensure the accuracy of installation; shorten the construction period considerably; provides "flexible skin" which enables the curtain wall to withstand building movement and thermal movement; provides an effective water drainage system and a pressure-equalized system.

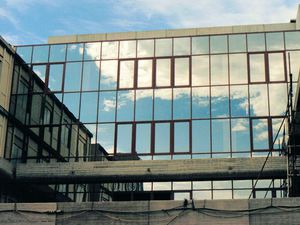

2、Stick Curtain Wall System:
Project: North Tower Smaralind, Iceland Europe
The stick wall system can be used on any type of structure or exterior wall. These systems tend to work best on highly intricate or articulated wall designs.
3、Hybrid Curtain Wall System:
Project: Highline 23 Tower, New York
The hybrid wall system is best for use on buildings where a compromise between a unitized wall system and a stick wall system is required due to design or construction issues. It tends to use the better qualities of each to allow smaller, more manageable units.
4、Window Wall System:
The window wall system design is typically utilized on buildings where the structure conflicts with the exterior wall zone forcing the windows to run intermittently between floor slabs.
The window wall design achieves a reasonable amount of performance against air and water infiltration and does tend to surpass the curtain wall in acoustic ability (basically between floors).
|
|
|
|
|
|
1、Unitized Curtain Wall System:
Project: 6 Mort Street, Australia
The unitized curtain wall system is usually applied on the buildings which have a uniform exterior wall design. It can control and ensure the overall quality of the product; ensure the accuracy of installation; shorten the construction period considerably; provides "flexible skin" which enables the curtain wall to withstand building movement and thermal movement; provides an effective water drainage system and a pressure-equalized system.
2、Stick Curtain Wall System:
Project: North Tower Smaralind, Iceland Europe
The stick wall system can be used on any type of structure or exterior wall. These systems tend to work best on highly intricate or articulated wall designs.
3、Hybrid Curtain Wall System:
Project: Highline 23 Tower, New York
The hybrid wall system is best for use on buildings where a compromise between a unitized wall system and a stick wall system is required due to design or construction issues. It tends to use the better qualities of each to allow smaller, more manageable units.
4、Window Wall System:
The window wall system design is typically utilized on buildings where the structure conflicts with the exterior wall zone forcing the windows to run intermittently between floor slabs.
The window wall design achieves a reasonable amount of performance against air and water infiltration and does tend to surpass the curtain wall in acoustic ability (basically between floors).
|
|
|
|
|
|
6mm to 42mm glazing available as a flat façade or faceted up to 20°.
Specific version for single glazing from 6 to 10.80mm.
Superior load distribution with less deflection across the transoms, allowing the system to hold large, heavy glazing units.
Projecting top hung open-out, and tilt/turn concealed vents for natural ventilation whilst maintaining an uninterrupted flat façade.

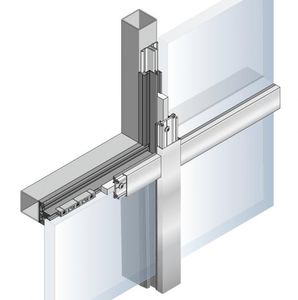

Construction
The mullions and transoms are square cut and assembling using a combination of cast face-fixed junction spigots and concealed anti-rotation spigots for ease of fabrication.
The faceted glazing option uses a standard cast face-fixed spigot for a facet of +-10°, and a transom block with specially designed pressure plate, caps and adaptators for 10° to 20° facets.
Weather Performance
The MX visible grid system is thermally isolated using a 34mm TPE thermal break between the pressure plate and mullion or transom.
This ensures a superior thermal performance in line with the required building level to achieve.
A pressure plate holds the infill in place with a combination of EPDM gaskets and allows for zone drainage with pressure equalization using punched slots into the pressure plates and caps.
|
|
|
|
|
|
POLIEDRA-SKY

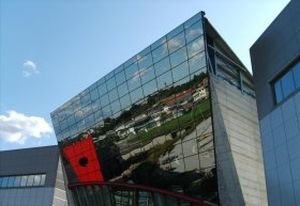

The system Poliedra-Sky 50 is part of the evolution process of METRA Systems for the building industry, enabling together with its versions Poliedra Sky 50 I and Poliedra Sky 50 S to design and fabricate curtain walls or aluminium frameworks (combined with glass, stone or composite materials) of different shapes and dimensions, offering a wide range of functional and aesthetical solutions. The system rightly owes its name to the "polyhedral nature" of its constructive and application possibilities.
TECHNICAL DESCRIPTION OF THE SYSTEM
- Extruded aluminium profiles: alloy EN AW-6060 (EN 573-3 and EN 755-2).
- Temper designation: T5 (EN 515).
- Dimensional tolerances and thickness: EN 12020-2.
- Air-water tightness: by pressure equalization.
- Type of profile: with or without thermal break.
Application of glazing or panels: from outside,
- with pressor profile (mullions and transoms system)
- by insertion into the frames ("standard" elements system)
- glued onto the frames ("structural" elements system).
Height of glazing seat: net 19,5 mm (usable 14 mm).
Glazing thickness: variable from 4 to 45 mm.
Basic dimensions of the system:
- Mullions: 50 mm wide, from 16,5 to 225 mm deep.
- Transoms: 50 mm wide, from 22 to 123 mm deep.
|
|
|
The 1203 KAWNEER system of vertical curtain walls and gated glass offers various depths of uprights and cross-members, facilitating adaptation to all constraints of the cladding projects, including curtains, semi-curtains, panels and glass.
|
|
|
The AA 110 curtain wall and large span glass allow for the production of large glazed atria and large inertia systems without additional work in the workshop.
|
|
|
|
|
|
State-of-the-art curtain wall systems are based on unitized technology. Unitized curtain wall is shop-fabricated, shop-glazed, and installed as individual frames or ‘units’. Frames are normally one lite wide and one storey high, but double-width and double-height frames are not uncommon. The ‘added-value proposal’ behind unitization centers around performing all possible labor in the shop (not on site), because:
- Unitized installation allows the Builder to close in the building quickly, normally steps behind the concrete pours, getting Inside Trades to work, and hastening turnover and commercialization of the building
- Unitized fabrication enhances quality control (and minimizes defects in workmanship) by performing all possible work in factory-controlled conditions. Critical workmanship includes application of joint seals, priming and curing of structural silicones, installation of gaskets, and related quality inspection
- Unitized installation minimizes field labor costs by transferring labor operations into the shop wherever possible. Fully-unitized systems include shop-installation of all in-fills (glazing, spandrel, panels, stone, etc). More sophisticated systems even have the glazing caps shop-installed, so Trades do not have to work outside of the building envelope on the main portions of the curtain wall.
|
|
|

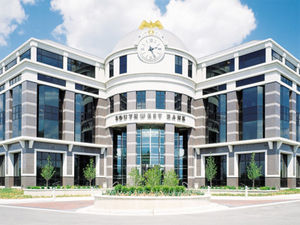

A proven system for over 25 years, Series 3000 curtain wall is a “fully captured” wall system meeting the highest performance requirements. Suitable for medium to high-rise curtain wall installations, Series 3000 is available in 2-1/2" or 3" wide profiles. The use of interior trims at vision areas only, meaning a cost-savings to the building owner. Interior trims are thermally isolated from the exterior climate conditions. Series 3000 can accommodate multiple finishes, allowing for non-matching interior and exterior profiles. The latest in architectural coatings are available including high performance Kynar paints as well as a choice of anodic coatings. The time-proven design of the Series 3000 I-Beam curtain wall can be custom engineered to the specific requirements of any project.
|
|
|

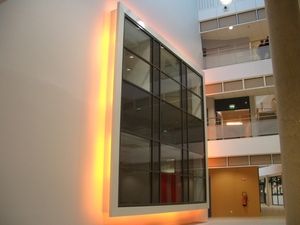

Now you can design what you envision, as limits are a thing of the past. The SteelBuilt Curtainwall Infinity™ System can use as a back mullion almost any type of structural member, from stainless steel to glulam beams. This allows architects and designers to use larger areas of glass, smaller frame profiles and wider free-spans than is possible with traditional aluminum curtainwall. This flexibility in design and material allows curtainwalls to be incorporated into a nearly limitless range of building types, designs, and performance requirements. SteelBuilt Curtainwall Infinity System helps inspire a whole new world of creativity.
|
|
Envision expansive window openings, with more glass and less frame. Imagine a curtainwall system that only requires frame profiles one-third the size of traditional aluminum systems.
Now that dream is a reality, with the new SteelBuilt Curtainwall™ Systems from Technical Glass Products (TGP). SteelBuilt Curtainwall Systems give you all the advantages of steel: greater strength, superior performance and improved aesthetics. Utilized throughout Europe for many years, SteelBuilt Curtainwall Systems have been tested to North American standards and are now available to open tremendous new design opportunities.
|
|
All VISIONWALL window and curtain wall systems are designed, engineered and manufactured in unitized frame and glazing unit modules. This allows curtain wall installation to be completed sooner reducing install costs.
- VISIONWALL 3 Element system, 4 sided silicone Curtain Wall System
- 10mm Clear (low-e) Tempered Interior lites
|
|
- VISIONWALL 4 element curtain wall system with Series 100 frame
- VISIONWALL® 4 element window system with Series 200 frame
- 6mm Evergreen1"1 Glass by LOF; two low-e-coated films
- Silver Metallic Pink and Light Bronze Duranar XL Frame finish
|
|
VISIONWALL 3 Element System with
Series M30 frame
- 10mm Clear Laminated Interior Lites
- 6mm Arctic Blue and Evergreen Heat
- Strengthened Exterior Lites
- Clear Anodized Finish (exterior)
- Beige Duracron Finish (interior)
- Overall Window U-Value=0.36 Btu/hr-ft - f
- Shading Coefficient (SC)=0.34
- Sound Transmission Class (STC)=45
|
|
Curtain Wall Mullion
Two Stage Protection:
- Outer frame member acts as rain screen, shielding agains water penetration
- Glazing pocket pressure equalized to exterior
- Inner gasket seals against air pressure
|
|
VISIONWALL® 3-Element Glazing System Performance Data
(Frame plus Glazing Unit)
- Polyamide thermal break
- Clear glass (low-E coating optional)
- Suspended, optically clear film
- Clear, tinted or reflective glass (low-E coating optional)
- Extruded aluminum inner and outer frame members (any finish)
|
|
VISIONWALL® 4-Element Glazing System Performance Data
(Frame plus Glazing Unit)
- Clear glass (low-E coating optional)
- Suspended, optically clear films
- Clear, tinted or reflective glass (low-E coating optional)
- Extruded aluminum inner and outer frame members (any finish)
- Polyamide thermal break
|
|
|
YCW 750 SplineTech%u2122 is the latest addition to YKK AP's very successful line of curtain wall glazing systems. The new system shares many of the same features, options, and accessories with the YCW 750 outside glazed curtain wall system, but it is designed to simplify fabrication and assembly. All intermediate horizontal members are attached employing YKK AP's patented screw spline technology. Eliminating the common shear block attachment reduces fabrication labor and enables the wall to be pre-assembled and completely prepared for glazing in the shop to further reduce field labor.
|
|
POLIEDRA 50 PHOTOVOLTAIC CURTAIN WALLS
Poliedra 50 Photovoltaic system is part of the evolution programme of the Metra Poliedra 50 system for the building industry and enables to plan curtain walls to meet the most demanding engineers’, builders’ and final consumers’ requirements, aiming at optimizing the energetic, architectural and environmental features of the aluminium-photovoltaic integrated system.
APPLICATION
The system is based on the photovoltaic process turning the sun radiation into electric energy.
Thanks to its features Poliedra 50 Photovoltaic system can be used in all the building situations, both existing and still in project, perfectly integrating in any environmental setting.
|
|
|
The 1204 KAWNEER system allows the creation of curtain claddings, semi curtains, panels, faces and frame-surrounding facets, outlining each glass pane or panel of a hollow joint.
|
|
The 1202 Kawneer system offers various depths of uprights and crosspieces to facilitate adaptation to all project constraints, from curtain cladding and semi-curtains, to plane panelled and faceted. The 1202 cladding has the advantage of no height limit.
Depending on requirements, the cladding can be equipped with French-style openings, fixed hinge windows, tilt/turn windows and windows with an Italian-style frame invisible from the outside.
|
|
The AA 210 is a quick installation modular curtain wall for vertical cladding.
The construction principle allows for significant reduction in the amount of time for installation on-site, in order to suit the pace of the main construction.
The modular cladding is assembled in the workshop using an industrial production method, which guarantees its waterproofing and acoustic performance once complete.
It can be combined with French doors, fire doors or concealed Italian openings.
|
|
|
When accentuated sightlines are desired on the exterior of the building with minimal framing visible from the interior, Series 6000 is the product for your building. This system is "reversed" from the conventional curtain walls of today with the structural element of the wall to the exterior of the building with small trim caps to the interior. Gaskets are available with factory molded corners. Continuous horizontal gutters result in superior air and water performance. Glass is set from the interior of the building reducing field installation costs. The Series 6000 is available in a standard 3" wide x 6-3/4" deep offering but can be customized to the specific needs of any project.
|
|
|
|
|
|

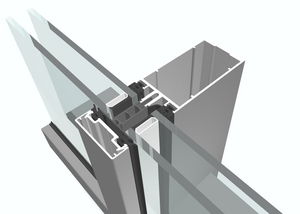

MX SSG is a system creating a flush-fitted glass façade, combining the use of fixed glazing units, top-hung vents and glazed spandrel panels.
The appearance of structural glazing is achieved by using profiles that are only visible on the room side. From the outside, only the glazing and slender shadow joints are visible.
MX SSG use the same grid system as MX Visible Grid or Trame, allowing specifiers to vary the aesthetics of the building envelope without the need of additional interface detailing and construction.
Fixed frames with an infill of 30 to 32.8mm for the vision parts.
Spandrel panels with glazing of 6 or 8mm.
Maximum dimensions : W 2.00m * H 3.50m.
Available as a flat façade or faceted up to 6°.
Concealed top-hung windows of 23 or 31mm (Max. weight from 80 to 120 kg and size W 1.50m * H 1.50m).
Construction
A continuous aluminum profile is integrated by the glass manufacturer between the 2 glasses inside the silicone chamber for the fixation on the curtain wall structure.
Carrier frames are securely fitted onto the curtain wall grid using aluminium toggle pieces screwed on the transoms and mullions.
The ABS interlayer is not interrupted in way of fixing the glass to ensure optimal thermal performance and the continuation of silicone seal between refills.
|
|
|
|
|
|

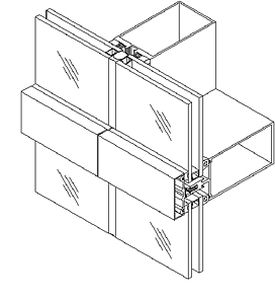

MB-SG60 The mullion-transom inverse curtain wall with structural glazing
The façade structure is composed of the inverse mullion-transom system, which means that supporting aluminium profiles are located outside, whereas from the inside – the smooth glass surface can be seen, constructed using the structural glazing technology. The inclination angle of the façade to the vertical is equal to 10o at the outside. The visible external width of mullions and transoms is equal to 60 mm. The mullion-transom framework is designed as the element structure, which means that all preliminary and connecting works are conducted in the production workshop. Transoms are connected with half-mullions with the help of special aluminium connectors and the stabilising screws, what results in a very rigid framework, and enables proper compensation of the horizontal thermal expansion joint. The vertical thermal expansion joint is realised through the special mullion-mullion connector. In the system, the combined scheme of drainage and ventilation was applied, i.e. the drainage channels in mullions and transoms profiles are connected with each other. Additionally, in the middle of each area, the drainage-ventilation hole is made. In order to ensure very high thermal insulation of the profiles, the system is introduced with the insulator made of a special material, which makes the thermal insulation coefficient Uf for the frame equal to 1.64 [W/m2K]. Furthermore, a special central gasket was applied which improves significantly the acoustic insulation of the breaks and provides the additional tightening features.
|
|
Structural glazing is a system whereby glazings are bonded to a metal structure.
This technique can be used to create 'all glass' or 'curtain wall' facades.
The following products can be used in structural glazing:
single glazings (annealed, toughened, enamelled)
laminated glazings
double glazings
|
|
|
|
