TROX swirl diffusers of the RFD type are suitable for deployment in the commercial and industrial sectors, and are available in square and round design. They consist of the diffuser face and the rear plenum box with round duct connection spigot on the side.
The design of these swirl diffusers guarantees a swift reduction in temperature and flow velocity by means of swirling discharge and the addition of induction air.
The sound power level is low. They are suitable for use both in systems with constant volume flow and in VAV systems. Volume flow ranges between 100% and 25% are possible. Swirl diffusers of the RFD type are suitable for all types of installation: in closed ceilings, above open grid ceilings and in ceiling panels (max. thickness 20 mm) by means of spring clamps.
circular; square
10 280 l/s
35 1,000 m/h
21 590 cfm
158 580 mm
198 498 mm
|
|
TROX floor diffusers are produced in aluminium (FBA) and plastic (FBK). Their select variety of surface structures and colours makes them an attractive design element for building owners and architects.
The introduction of supply air through false floor systems is ideally carried out at locations in which convection currents are to be supported in occupied zones. Convection or lift currents can be caused by people, machines or electrical devices. Air flow from the floor to the ceiling is becoming increasingly popular in offices equipped with computers and other electronic devices. Local thermal loads are effectively discharged by means of this principle.
Floor diffusers are installed at locations which are not continuously occupied. They can be deployed at distances of as little as 40cm from seating.
circular
5 50 l/s
20 180 m/h
10 105 cfm
150 and 200 mm
|
|
TROX slot diffusers type VSD15 are deployed primarily in applications in which suspended panel ceilings leave a narrow gap of only 16 mm in width.
The type VSD15 type is suitable for installation in rooms ranging in height from approx. 2.60 m to 4.00 m. They offer high induction, resulting in swift reduction of the supply air temperature differential and the air discharge velocity. The recommended volume flow range is 25 to l/s m, while the permissible supply air temperature differential stands at 10 K. The stable discharge behaviour type VSD15 slot diffusers makes them suitable for use in systems with constant or variable volume flow. The air discharge direction can be adapted as necessary to the desired room conditions.
Slot diffusers type VSD15 are supplied with rear-mounted plenum box, whereby the air duct system is connected via the side-mounted round spigot.
rectangular
8 25 l/s per m
30 90 m/h per m
18 53 cfm per ft
L: 600 1,950 mm
H: 182 and 202 mm
1 to 4 slots
|
|
TROX swirl diffusers of the VDW type are manually adjustable. They enable the flow direction to be adapted to changes in the building structure at any time.The swirling air discharge results in high induction of the room air, leading to a rapid reduction in air velocity and air stream temperature.
The diffuser is supplied with a round or square front, according to the prevailing architectural requirements. The diffuser is connected to the air duct system via the plenum box, in either vertical or horizontal configuration. Swirl diffusers of the VDW type can be deployed for supply or exhaust air.
|
|
TROX ceiling diffusers of the ADLR ADLR-Q type are intended primarily for installation flush with the ceiling. Installation flush with the ceiling is not absolutely necessary for the exhaust air systems.
Typical supply air temperature differentials range between +10 and -10 K.
Round variants (ADLR type) or square variants (ADLR-Q type) can be deployed as appropriate for the customary ceiling structures. The round spigot on the plenum box can be located on the side or on the top.
|
|
|
ROKA and RPKA are quiet supply air diffusers designed for ceiling mounting. The diffusers are available with connection box ATTB. Diffuser ROKA has an unperforated diffuser plate and RPKA has a perforated diffuser plate. ROKA and RPKA have a slot height of 25 mm.
|
|
EE300
MULTIDIRECTIONAL DIFFUSER
Square or rectangular diffuser with fixed horizontal air pattern in 3 directions.
Removable core consisting of several air distribution elements.
It is possible to replace the core with that of EE100, EE200 and EE400, in accordance with the desired air pattern.
|
|
DR160
FIXED CIRCULAR DIFFUSER
Steel circular diffuser with flat mounted rings.
The diffuser can be used for ceiling or exposed duct mounting.
|
|
D-400
FIXED STEEL DIFFUSER
Steel square diffuser with fixed 4-way horizontal air.
The diffuser can be mounted in the ceiling.
|
|
|
The Konika is a supply and exhaust air diffuser for ceiling assembly. The Konika is suitable for offices, shops or similar premises. The Konika can be connected directly to a circular duct by the use of Konika bar. The Konika is suitable both for cool and warm air. The Konika has high induction which allows a maximum air temperature difference of dT 12 K.
|
|
|
Diffuser ceiling lamp out of aluminum or steel allowing a horizontal blowing, fixed diffusion. Blowing in ventilation and, -16C air conditioning with +30C.
|
|
| ... products without information |
| |
|

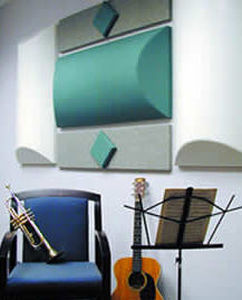

Pyramid diffusers are designed to be used in conjunction with several other Decoustics products such as AP, Hir-1, Hir-2, and Hir-Extreme, wall and ceiling panels. By using the various products in differing combinations, an architect, designer, or acoustic consultant, can achieve virtually any desired acoustical response.
|
|
|
Special care and attention is devoted to the design and realization of acoustic testing booths, a sector in which TECNOACUSTICA s.r.l. is present with a vast range of systems and technological solutions to meet the most different needs.
|
|
| ... products without information |
| |
Printed plastic interior, with a black fabric exterior.
With the flick of a switch light reveals the image printed on the interior of the shade creating a subtle mood change.
Inspired by the use of light, image and object this design combines the three attributes together in one. With the flick of a switch light reveals the image printed on the interior of the shade creating a subtle mood change.
There is a selection of designs, each providing a different interpretation and context within the environment making this equally suitable for use as an elegant pendant as well as a table and floor light.
|
|
|
|
