Undercounter Dishmachine (High Temperature Sanitizing)
NEW! The Avenger HT is packed with value added standard features and is perfect for small restaurants, coffee shops, quick service restaurants, bars, small health care facilities and convenience stores.
The resource efficient Avenger HT uses only 1.1 gallons per rack and delivers exceptional performance with it's Sani-Sure feature that assures a proper sanitizing rinse water temperature. With features like a push-button start and a pumped drain it's easy to install, operate and maintain.
In short, the Avenger offers more standard features than any other brand. The Jackson Avenger HT is fully operational with all the features you need for optimum cleaning performance! |
|

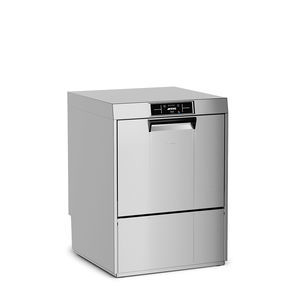

| The Linea LF front-loading dishwashers are fixed-rack models. The powerful upper and lower rotating wash and rinse arms deliver a cross-jet action to eliminate even the toughest residues, and guarantee outstanding hygiene together with superior energy savings. |
|
Linea FC front loading dishwashers are ideal for most catering dishwashing needs.
Adjustable working capacity according to dish load and user settings. The completely programmable electronic versions let the user customise cycles according to need.
For glasses, for example, a special lowtemperature cycle can be set. |
|
STS 60 dishwasher with two filters:
- easily removable and stainless steel wash tank filter
- large safety suction pump filter easy to remove and clean
- the upper and lower revolving wash arms are built of stainless steel and designed to ensure maximum pressure and distribution. The upper and lower revolving rinse arms in stainless steel are adjustable and the jets of water are calibrated to deliver the exact amount of rinse water. |
|
The use of Mod. C90 E, due to its capacity and washing
power, is particularly adapted for pastryshop, bakery,
gastronomy and ice cream environment.
Machine housing in satin finished stainless steel 18/10
(AISI 304).Rotating upper and lower 4 spoke wash arms
made in stainless steel 18/10 (AISI 304). Rotating upper
and lower 2 spoke rinse arms in stainless steel 18/10
(AISI 304). Stainless steel boiler with Incoloy heating
elements.
Tank filter covering whole tank surface and pump suction
filter easily removable for end of day cleaning.
Cycle stop door microswitch in case of door opening
during cycle.
Electronic control with digital Display for showing the
temperatures and the functioning parameters of the
machine. Four wash cycles are available: 2 min., 4 min.,
6 min. and intensive cycle with 10 minutes washing
time. It's possible to connect the electronic control to a
PC for saving all the HACCP sensitive data.
The machine is equipped with height adjustable feet. |
|
Dishwasher SAMMIC Model SP-350
- Made of stainless steel
- Rinse arms top and bottom
- Timer
- Water level control
- Autom. rinse aid dosing equipment
- 1 open square basket 500 x 500 mm, 1 basket for plates and 1 cutlery basket included
- Max. glass height: 330 mm
- Water cons. 3,5 L / cycle
- Cycle: 210 sec.
- Weight: 54 kg
- Dim.: W 600 x D 630 x H 835 mm
- Power conn.: 230 V / 1 Ph / 3,37 kW |
|
Ts830 : THE ADVANTAGES
> Double inox body!
> Top controls with extremely easy management
> Safety cycle stop on door opening
> Shining glasses with built-in rinse-aid dispenser
> Washing and rinsing both from lower and upper side
> Maximum door clearance with extremely low machine. Beer glasses and icecream cups are not a problem anymore!
TECHNICAL DETAILS
> Power supply 220/240V 1F 50Hz
> Max power 2.7 Kw
SUPPLIED WITH
> 2 x flat square basket
> 1 x plate rack insert
> 1 x cutlery basket
> 1 x inlet hose
> 1 x drain hose (already fitted) |
|
| Packed with value-added standard features, the Avenger LT is perfect for small restaurants, coffee shops, bars, QSRs, small health care facilities and convenience stores. And it's now Energy Star qualified, using only 1.2 gallons (4.5 liters) of water per rack and cleaning 24 racks per hour. Product alarms alert user when machine runs out of chemicals. Two-minute automatic cycle. Powerful 3/4 HP wash motor. Push-button start. Auto-fill. Above-water scrap tray. Built-in detergent/rinse pump. Automatic pumped drain for wall- and floor-drain installations. Solid-state timer with electromechanical components. Door safety switch. Manual override for extended wash and deliming. 304 stainless steel construction. CUL and NSF listed. |
|
The new generation of integrated Cook&Chill solutions.
Market leading Active under-counter & hood-type dishwashers LS6 & LS14 from Zanussi Professional are both now available with built-in continuous water softeners.
Market leading Active under-counter & hood-type dishwashers LS6 & LS14 from Zanussi Professional are both now available with built-in continuous water softeners.
Dual resin containers alternate during the regeneration cycle while one regenerates, the other softens, to enable non-stop washing. Sensors automatically activate the regeneration cycle so the operator has just to keep the salt container topped-up.
The Active® guaranteed rinse system provides a constant high rinse water pressure to ensure complete detergent removal; traditional water softeners can loose up to 1 bar of pressure by the time the rinse water hits the plates, risking not removing all detergent!
Not only, 100% of incoming water is softened, eliminating scale build-up in the boiler and ensuring spotless crockery, glassware and cutlery. Some economical dishwashers with in-built water softeners incorporate a by-pass system that softens only 50% of the water.
The salt container is positioned on the front of the dishwasher, comfortably accessible without opening the door and approved by the most stringent WRAS water authority in the UK because no “contaminated salt water” can be sucked back into the mains network, a legal requirement in some countries.
|
|
TS603 : THE ADVANTAGES
> Double inox body!
> Side controls with extremely easy management
> Safety cycle stop on door opening
> Shining glasses and dishes with built-in rinse-aid dispenser
> Washing and rinsing both from lower and upper side
> Maximum door clearance with extremely low dimensions. Pizza dishes are not a problem anymore!
TECHNICAL DETAILS
> Power supply 380/415V 3F 50Hz
> Max power 5.3 Kw
SUPPLIED WITH
> 1 x fl at square basket
> 1 x square plate basket
> 1 x cutlery basket
> 1 x inlet hose
> 1 x drain hose (already fitted) |
|
Jackson conveyor dishmachines come standard with all the features you need for optimal warewashing--all at a price competitive with other manufacturers' "base" models. From features that isolate dirty water to convenient touches such as external drain handles for safety, Jackson conveyors give more value for your money than any other brand in the industry.
Choose from a wide range of high-performance AJ, TS or TSC models. Providing exceptional water and energy savings, superior cleaning, plus convenient operation and maintenance, Jackson's unique product lines offer ideal choices for your specific operational needs. Indeed, the TSC-44 and TSC-66 conveyors are now ENERGY STAR qualified.
Shown here, Jackson's TS-44 uses only 0.74 gallons of water per rack and cleans up to 252 racks per hour. Its standard features include industry standard 18" clearance, built-in pressure regulator/gauge and special bayonet-style wash arms--all making the TS-44 conveyors the perfect combination of quality and value. |
|
Jackson conveyor dishmachines come standard with all the features you need for optimal warewashing--all at a price competitive with other manufacturers' "base" models. From features that isolate dirty water to convenient touches such as external drain handles for safety, Jackson conveyors give you more value for your money than any other brand in the industry.
Choose from a wide range of high-performance models. Providing exceptional water and energy savings, superior cleaning, and convenient operation and maintenance, our four unique product lines offer an ideal choice for your specific operational needs.
Using only 0.77 gallons of water per rack and with standard features such as 25" clearance, built in pressure regulator and gauge, and exclusive Adjust-a-Peak conveyor speed control, the AJ-100 conveyor dishmachine is the perfect combination of quality and value. The AJ-100 is comprised of the AJ-64 base unit and a 36" prewash.
|
|
LOADING SECTION
Work surface at an ergonomic height of 900 mm, with inclined bottom to facilitate collection of solid waste in the tank filters.
electronics
The re-styled and easy to use Linea NL control panel ensures simple and immediate machine use. Three access levels are provided:
- the user level is limited to machine start and stop functions
- the system administrator level provides access to process settings where speed can be controlled and programme functions enabled or by-passed
- the authorised technician level provide access to all parameters in every sector. |
|
Compact, practical, durable and reliable, Linea ACS dishwashers offer customers the best in technological evolution.
Built combining basic functional modules, Linea ACS dishwashers are available in models with outputs from 85 to 245 racks/hour. Automated, equipped with all the most
advanced technological and construction details, Linea ACS dishwashers are distinguished by their wide range of accessories that permit overall machine control and self-diagnosis. Deep-drawn tanks, self-draining pumps and raised feet guarantee maximum hygiene while the support structure, durable mechanics and construction details provide high-quality safety features. |
|
EDT automatic tunnel line.
The HOONVED tunnel washing system combines high working capacity and indispensable energy saving. The ideal system for catering enterprises.
The construction of the EDT line is based on the concept of maximum simplicity for case of maintanance.
The materials employed are top quality, subject to constant control during the production process.
|
|
The Conserver™ XL2 is a chemical sanitizing double-rack door type unit with built-in dispensing pumps for detergent, rinse aid and sanitizer.
Like all Jackson dish machines, these competitively priced workhorses offer more standard warewashing features than any other brand. Operation-ready with performance-enhancing features such as built-in chemical pumps and more conveniently located controls, Jackson door-type machines provide all the features you need for optimum cleaning. Since they're sold at a price comparable to other manufacturers' "stripped down" versions, feature-rich Jackson sanitizer machines are among the very best warewashing values you can buy.
|
|
| Jackson door-type machines are operation ready with all the features you need to deliver the optimum in food safety and guest satisfaction. With features like your choice of a 40 or 70 degree rise booster heater, built-in pressure regulator/gauge, external drain handles for easy operation and front dress panel - all included in the base price. The TempStar™ is the perfect choice for value conscious customers seeking a combination of resource efficiency, exceptional performance and ease of operation. |
|
Linea C professional dishwashers are ideal for most catering dishwashing needs.
Adjustable working capacity according to dish load and user settings.
The completely programmable electronic versions let the user customise cycles according to need. For glasses, for example, a special lowtemperature cycle can be set. |
|

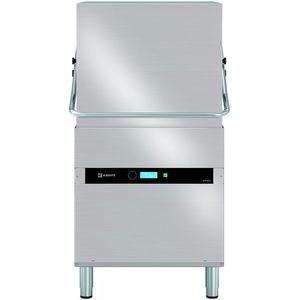

Top notch professional dishwasher,
C166W model integrates with tabling
and warehandling accessories to provide
a complete and efficient dishwashing
system suitable for medium to higher
capacity dishwashing needs.
The automatic hood lifting and lowering
function improves ergonomics and
dishware drying.
At the end of the wash cycle the hood
lifts and tilts forward releasing the hot
steam from the rear upwards. Just when
most of the steam has left the hood, the
machine opens completely.
By pressing a button the hood closes
completely and a new cycle starts. |
|
The Linea LC professional dishwashers are fully integrated washing systems, which can be equipped with work counters, cleaning tables, etc. Designed as complete solutions for medium and large catering operations, these systems are ideal for plates, cutlery, glasses, cups, trays and pans.
The dishwasher frames, panels and internal pipes are all built from 18/10 AISI 304 stainless steel for maximum durability even in the toughest working conditions. |
|
| The CAP range consists of 3 models of pass-through dishwashers, capable of washing from 550 up to 1200 plates an hour. Ideal for catering, the cap range can be installed, without the need for structural interventions, both with in-line or corner set up, and integrated with scrapping tables, sinks, etc. Sturdy, ergonomic and reliable machines, designed to guarantee maximum hygiene in all washing phases. |
|
TS103 : THE ADVANTAGES
> Side controls on both sides (for corner mounting)
> Safety cycle stop on hood opening
> Built-in rinse-aid dispenser
> Extremely strong hood sliding on ø35 mm stainless steel columns
> Ergonomic and aesthetic oval handle sliding on stainless steel ball bearings
> Complete inox surface filter
> No hood regulation needed!
TECHNICAL DETAILS
> Power supply 380/415V 3F 50Hz
> Max power 6.8 Kw
SUPPLIED WITH
> 2 x square plate basket
> 1 x flat square basket
> 2 x cutlery basket
> 1 x inlet hose
> 1 x drain hose (already fitted) |
|
This advanced remote diagnostic system enables the dishwasher, if any anomalies occur, to send by SMS, in real time and automatically, a coded alert to the appropriate technician. The feature is available for the FC series front loading dishwashers, the CE series hood type dishwashers, and the GE series washer. The new HPS CONNECT solution can record on a PC or on a memory unit (L-BOX) all the data of the wash cycle, which can also be used to compile the HACCP report, and can alert of any malfunctions. It therefore ensures new levels of efficiency and of safety, relieving operators and facility managers and helping the technical assistance service personnel to better perform their work. The information exchange system, by means of the GSM telephone network, is possible due to the integration of modem and SIM card, and therefore enriches the well known and reliable 'Hygiene Plus System' (HPS) electronic system with new connectivity functions - local and remote.
HPS CONNECT 1
The dishwasher is connected by means of a cable to a personal computer, which directly records all wash cycle data.
HPS CONNECT 2
The continuous recording of operating data of the dishwasher is performed by a memory unit (L-BOX) which is always active and that records the cycles performed. Subsequently the operator can transfer those data to a PC so as to compile the HACCP report, requiring a matter of seconds to transfer all the data needed. Authorized technicians can use the same data to diagnose dishwasher performance.
HPS CONNECT 3
The addition of a modem to the HPS CONNECT 2 solution enables automatic transmission of a technical assistance request directly to the service center by SMS. |
|
The model C 68 E is particularly recommended to be used in the laboratories of pastry making, gastronomy and giacier, thanks to his general-purpose. The model C 68 E can be also used like lava plates. Its reduced dimensions allow also inserted below the counter with the possibility of saving the place in the room. Construction carried out with structure has a finely glossed stainless steel panel 18/10.
All the electric orders and parts are easily accessible. The arms of washing can be easily dismounted to also allow an easy cleaning as the filter of tank and filter of aspiration of the pump. Superheater and resistances (INCOLOY) made out of stainless steel. Microphone-switch of safety against the accidental openings of the door. Three cycles of washing 60 - 120 - 240 dryness. |
|
Comenda patents the new A-PRS system
Comenda is a world leader in professional dish washing machines, currently manufacturing and distributing over 200 different models. Comenda also designs custom integrations and complements for dish washing facilities.
Comenda, as a result of advanced research, presents the exclusive PRS (Proportional Rinse System) and its further development, the A-PRS (Automatic Proportional Rinse System), that can ensure a saving of 33% on use of water, power and chemicals used for washing.
Traditional rack conveyor and conveyor type dishwashers, although equipped with different speeds of advancement, always use the same quantity of water for each speed, determining enormous waste.
The PRS system patented by Comenda, is a real revolution in the field: it ensures the use of the right quantity of rinse water on the basis of the speed of the conveyor, thus also reducing by up to 33%, the use of power, detergents and drying products. For example, a machine with “ecorinse” type rinse cycle, uses 360 l/h both at speed 1 and speed 2. The same machine with PRS will use only 250 l/h at speed 1.
PRS is standard on the conveyor type NE series and is available by request on the rack conveyor ACS and ACRS series and on the conveyor NL series. A-PRS, a special function implemented in the E3 electronic control system, while preserving all the advantages of PRS, automatically recognizes the empty spaces in the conveyor, and therefore selects the appropriate advancement speed enabling the operator to fill those spaces thus ensuring the right quantity of water for each plate. A-PRS can be applied both on rack conveyor and conveyor type machines. |
|
Saving energy, respecting the environment and guaranteeing comfortable working conditions are the three concepts best summing up the many advantages offered by the Comenda dishwasher range with heat pumps: technology which has made the company stand out in the world market for its innovative and exclusive solutions.
Various models of Comenda heat pumps are available to operate with all kinds of tunnel dishwashers – from rack conveyor type with a capacity of 1600 plates per hour to flight dishwashers washing up to 15,000 plates per hour – produce energy for heating water to 60°C, making it no longer necessary for electrical elements or external boilers (they may be connected directly to the cold water supply). Models using this system save at least 30% over the energy consumption of a conventional dishwasher, so the initial investment return in about 2 to 3 years, after which all the savings pays off the machine.
The pump’s ability to absorb the heat produced by the dishwasher reduces thermal irradiation (in some models the heat emission rate is zero): the air from the heat pump returns into the room refreshed and dehumidified, creating optimal working conditions in the washing area, where room temperature is around 20-22°C.This means no air conditioning system is mandatory, resulting in further savings. |
|
Double frame body in brushed stainless steel, coated by thermo-insulating material. Automatic water charge, safety-door, hot/cold rinse, rinse aid dispenser, square basket, installation kit.
Output p/h 600 + 1000
Electrical Input 220V3~ - 380V3N~ (240V3-415V 3N~)
Total power 7800 W
Boiler heater 6000 W
Tank heater 4500 W
Washing pump 1100W (135 HP)
Boiler capacity 5 L
Tank capacity 60 L
Rinse water pression 200+500 kPa
Water quantity for cycle 3 L
Cycle 120"
Basket dimensions mm. 500 x 500
Working height mm.410
Equipment glass basket 1
Equipment for 20 dishes 2
Coffee-spoons basket 2
Total weight Kg. 126
|
|
Front loading glasswashers / plate washers
A range of front loading dish and glasswashers perfectly suitable for small size kitchens: they are equipped with proven components and modern technological features, making them easy to use and clean.
double walled door
door safety
built-in rinse-aid pump
stainless steel filters
fully automatic process
Glasswashers
hourly flowrate: 30 racks
rack, 400 x 400 mm
cycle: 120 seconds
power supply: 1P 230V + Earth
optional: built-in water softener
Plate washers
washers (depending on models)
hourly flowrate: 30 / 20 racks
rack, 500 x 500 mm
cycles: 120 / 180 seconds
power supply: 3P 400V + Neutral + Earth
optional: 1P 230V + Earth power supply - built-in water softener - drainage pump - increase |
|
Automatic belt conveyor dishwashers
For continuous dishwashing, ROSINOX Grandes Cuisines offers a range of automatic belt conveyor and conveyor appliances. Their main plus points: high hourly throughput, efficient washing, perfect hygiene, maximum reliability, improvement in the work station by automation and comfort in use.
Automatic belt conveyor dishwasher LRA 540
15 models of which:
- 2 compact models (news)
- 4 models with angle prewashing module
hourly flowrate: from 70 to 310 racks (depending on models)
rack, 500 x 500 mm
prewashing - reinforced washing - rinsing, double rinsing or reinforced rinsing
power supply: 3P 400V + Neutral + Earth
automatic advancement of the racks by means of a double drawn advancement system prevents derailing
double walled doors
AISI 316 stainless steel kettles, with rounded corners
vertical auto-cleaning pumps
AISI 316 stainless steel boilers, fully insulated to reduce thermal losses
strong jet of preheated air guaranteeing perfectly dried dishes
Options
Options (depending on models):
splash guard - drying tunnels - steam condensers - heat recovery exchangers - speed variator - energy temporised economiser - booster pump - disconnector on water inlet - break tank - kettle insulation - stainless steel washing pumps - delivery in 2 or 3 parts - entry and exit tables - etc |
|
|
|
