Lamp: QR111LP 35-50-75-100W
Lamp type : halogen
Lamp base : G53
Light distribution: down
Power supply : 12V
Degree of protection: III
Ip rating : IP20
Material: Verzinkt Steel
Glowtest: yes
Standard: EN60598-1
Fixation: ceiling
Mounting: recessed
Weight: 3,83 kg |
|
Circular recessed batteries adjustable by cardan system, to suit all lamps here described.
Housing and rings made of stamped steel plate. Downlight designed to combine with lamps available, getting the desired light.
Class II luminaire: CDMR, PAR 30, TC-DEL/TEL, HIPAR 30, MEGAMAN QR-111 and HIT (CDM-T).
Class III luminaire: QR-111 and LED 21W.
Lamp holder included with TC-DEL/TEL compact fluorescent lamp is GX24d/q-3 (26W). For other powers consult us. |
|

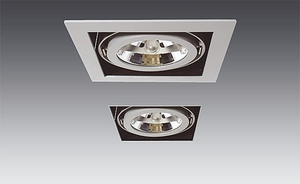

Recessed adjustable (by cardan system) luminaire for up to 3 12V 100W (max.) QR-111 halogen lamps.
Body and rings made of stamped steel sheet.
Luminaire prepared for connection to 12V transformer in accordance with EN 60.742.
Lamp holder G53.
Class III luminaire. |
|
Completely adjustable multi-lamp fixtures. The MiniWipp range is created with exactly the same great installation flexibility and use as the MiniWitra series of products, characterised by a double aluminium ring to support the light source. The glazed grey finish of all the parts of the product contribute to increasing still further the lightweight characteristics from an architectural point of view, which makes it suitable for almost all applications.
Light Sources:
Light Source Dichroic Halogen (QR-CB51) with socket GU5,3 (20-35-50W).
Emissions:Direct
Power supply:
12V control gears voltage using an electronic transformer housed in the product. All versions with integrated transformer can be dimmered directly on the primary circuit by using a trailing edge dimmer (IGBT technology).
Body:
The lamp support consists of a double aluminium ring for gyro adjustment. In the recessed versions, the parts of the body are in steel plate. Joints and forks are made in die-cast aluminium.
NOTE: Each fixture in the Miniwitra Range can be transformed into Miniwipp on request; please refer to the Miniwitra Range.
Colours:Glazed grey. |
|
design J. M. Wilmotte
Designed in collaboration with Architect Jean Michel Wilmotte to satisfy the lighting needs of the Art Museum of Forlì, Composit now represents a modular system that is ideal for lighting not only museums but also retail spaces and conference rooms.
This is one unique flexible and customizable product. It is one structural element made of extruded aluminium with two, three, or four optical compartments for accent lighting (downlight), along with a T16 fluorescent tube for general lighting (uplight). Also available: blind covers to customize the system and to favour indirect lighting. The dual orientation of the gyroscope and the mechanical locking mechanism of the aim allow maximum precision and effectiveness for every lighting project. |
|
design iGuzzini
Deep Surface combines minimal design with years of experience designing multi-lamp fittings. These are highly reliable fittings with the best visual comfort, guaranteed by their positioning, removed from the optical assemblies. Also available: mixed lamp versions.
Ideal for exhibition rooms, malls, and hallways.
|
|
KUBIC squared downlight with electromagnetic or electronic control gear
enclosed and separated. Made of injected polycarbonate, interior and exterior frame in white. Equipped for two compact fluorescent lamps. |
|
With the objective of broadening the Konic range, Lamp launches a spotlight that is smaller than the current one, with a diameter of 165mm and a height of 90mm, ideal for low ceilings and for use in corridors and bathrooms.
All of the models are class II and are available for compact fluorescent lamps of 13, 18, 26 and 32 Watts. The Minikonic models, except for the 32W one, all have integrated electronic ballast. There is also a model to be connected directly of 20W.
Just as with the Konic family, there is a great variety of IP20 and IP54 accessories available in white and grey to meet all technical and decorative requirements. |
|
Lamp: TC-TE 26-32W
Lamp type : compact fluo
Lamp base : GX24q-3
Light distribution: down
Power supply : 230V-50Hz
Degree of protection: I
Ip rating : IP20
Material: Gegalvaniseerd
Glowtest: yes
Standard: CE - CEBEC
Fixation: ceiling
Mounting: recessed
Weight: 2,14 kg |
|
Surface downlight for 13W TC-D/DEL and 18W TC-T/TEL
fluorescent compact lamp.
Housing made of stamped steel sheet.
Reflector in metallic aluminium.
The downlight is supplied with ballast and prepared for
connection.
Lamp holder G24d/q-1 (13W).
Lamp holder GX24d/q-2(18W).
Class II luminaire. |
|
Recessed downlight for 13W (max.) TC-D/DEL and 26W
(max.)TC-T/TEL fluorescent compact lamp.
Housing and rings made of stamped steel sheet.
Reflector in specular metalic aluminium.
Decorative protective glass.
Remote auxiliary feeding equipment in metallic box, with
fast connection to the luminaire.
Lamp holder G24d/q-1 (13W), GX24d/q-2 (18W), GX24d/q-
3 (26W).
Class II luminaire. |
|
Recessed downlight for 100W (max.) A60
incandescent lamp.
Housing and rings made of stamped steel sheet.
Specular metallic aluminium reflector.
Matt or transparent protective glass.
Lamp holder E27.
Class II luminaire. |
|
Down
Down is designed for recessed use in wall and ceiling and because of its multifunctional housing we can offer the luminaire with several lamp options. There are a variety of
possible accessories including dichroic filters, lens and reflectors. |
|
| Tubular has been designed for rooms that embrace its language of form but do not require an adjustable luminaire head. Tubular is a surface-mounted spotlight that is easy to install, featuring an integrated electronic ballast and a language of form which resembles that of the Xharon projector spotlight. The reflectors, which are easy to replace, are highly efficient and suitable for reflector-free lamps, such as QT12-ax and HIT-TC. All models are equipped with a UV filter, an anti-glare ring as well as a filter holder for two optional filters. Xharon Tubular offers you a versatile tool for your lighting design. |
|
A recessed ceiling downlight with shallow overall depth.
- Casing made of steel sheet, white powder-coated.
- Unit anodised refl ector.
- Equipped with TC-DE energy-saving lamp.
- Connection by choice with connecting terminal or connector
plug. |
|
Fixed built-in ceiling device, furnished with satin glass diffuser.
Power supply on request.
Anodized aluminium structure.
colour:
anodized aluminium
light source:
halogen
structure:
anodized aluminium
diffuser:
Sanded glass
bulb:
1X75W-100W E27 HAL
dimensions:
width: 25
length: 25
diameter: 16
hole diameter: 17,7
hole depth: 17 |
|
Lamp: H-PIN 25-40-60W
Lamp type : halogen
Lamp base : G9
Light distribution: down/up
Power supply : 230V-50Hz
Degree of protection: I
Ip rating : IP20
Material: Aluminium
Glowtest: yes
Standard: EN60598-1
Fixation: ceiling
Mounting: surface mounted
Weight: 0,62 kg |
|
Lamp: QR111LP 35-50-75-100W
Lamp type : halogen
Lamp base : G53
Light distribution: down
Power supply : 12V
Degree of protection: III
Ip rating : IP20
Material: Verzinkt Steel
Glowtest: yes
Standard: EN60598-1
Fixation: ceiling
Mounting: recessed
Weight: 2,11 kg |
|
Recessed Downlight for 12V 50W (max.) QR-CBC51 and
PAR16 halogen lamps.
Pre-installalion frame with dipping system and lamp holder
induded.
Frontal and body made of stamped steel sheet.
Luminaire prepared for connection to 12V transformer
according to EN 60.742.
Lamp holder GX5.3 (QR-CBC51).
Lamp holder GU10 (PARI 6).
Matt or Transparent protective glass.
Class II luminaire: PAR 16.
Class III luminaire: QR-CBC51. |
|
| Directional recessed downlight for 40W (max.) R50 lamp. Housing made of stamped steel sheet. Directional 35° and rotation 355°. Lamp holder E27. Class II luminaire. |
|
Recessed downlight for false-ceiling with 1 to 30 cm thick.
Diffuser: crystal partially satin-finished.
Diffuser color: transparent or partly glazed.
Construction: frame in white lacquered metal, polished chrome or brushed nickel. |
|
High vacuum metalization. Control of the light emission for environments with VDT. Decorative rings with various finishes. Electromagnetic, electronic controls gears and circuits for the emergency device. Light is an integral part of architecture. The Eco range has been created to offer, thanks to an accurate control of the light emission, a better quality light to avoid direct and reflected glare phenomena. Eco is further enhanced by rings with which the best solution for each type of environment can be created. This lighting fixture - in all its different configurations - becomes flexible instrument in the designer%u2019s hands.
Emissions:
Direct
Power supply:
The control gear is supplied with all fluorescent lamp versions. There is a choice between models with electromagnetic or electronic ballast. A version is also available set for emergency lighting (in which case the emergency device code has to be ordered separately).
Body:
Body in galvanised steel, reflector in polycarbonate (in the fluorescent version) with a high vacuum metalization treatment to have absolutely no iridescent effects. The Dark Light reflectors are suitable for lighting environments with video terminals where limited luminance is still required, less than 200 cd/m2 for angles higher than 60°. Rings in pressed steel or polycarbonate, available in five colours. There is a choice of two models in the version with fluorescent lamps (with or without safety glass).
Colours:
Body stainless steel. Available with rings chrome, glazed grey, gold plated, opaque black, opaque white.
Accessories:
Box for concrete. |
|
The wide range of Martini adjustable recessed fixtures is completed by a product characterised by its flexibility of use. The growing need to aim the light in lighting engineering designs brought about the creation of Saturno, an element that, thanks to its essentiality and flexibility, can be used everywhere accent lighting is fundamental.
Emissions:Direct
Power supply:
12 volt transformer which can be purchased separately.
Body:
Die-cast aluminium structure and ring, rear cover in steel plate. 1 to 15 mm thick harmonic steel springs for fixing on false ceilings. This fixture can be adjusted vertically from -15° to +90° with a 330° rotation. Pin for easy directional setting of the product. Gyroscopic adjustment. Universal installation position.
Colours:Glazed grey, Satin white.
Accessories:Transformer. |
|
COSMOS SWING
Recessed luminaire COSMOS SWING for 1 halogen reflector lamp 20/35/50W QR-CB51 with base GX5.3, 12V, direct light emission, ring and luminaire part in aluminium, round, colour gold, luminaire part adjustable, extended vertical tilt up: 30°/0°/30°, protection class III, transformer and accessories to be ordered separately |
|
Recessed square downlight for 21W LEDs technology (Light
Emitting Diode).
New spring system for lamp replacement through a quick
and easy front opening.
Front and housing made of stamped steel sheet.
Specular aluminium reflector (99,9% purity).
Protective decorative glass.
Class II luminaire. |
|
Lamp: QR70 20-50W
Lamp type : halogen
Lamp base : Ba 15d
Light distribution: down
Power supply : 12V
Degree of protection: III
Ip rating : IP20
Material: Verzinkt Steel
Glowtest: yes
Standard: EN60598-1
Fixation: ceiling
Mounting: recessed
Weight: 1,26 kg |
|
Lamp: T5-FC40W + QR111LP 35-50-100W
Lamp type : mixed
Lamp base : 2GX13/G53
Light distribution: down
Power supply : 230V-50Hz
Degree of protection: I
Ip rating : IP40
Material: Polycarbonaat
Glowtest: no
Standard: EN60598-1
Fixation: ceiling/wall
Mounting: semi recessed
Weight: 3,17 kg |
|
Directional recessed downlight for 12V 50W (max.) QR-CBC51 and PAR16 dichroic halogen lamp and 35W HIT metal halide lamp.
Housing made of stamped steel sheet.
Fixation through means of two steel springs.
15.060: luminaire prepared for connection to transformer. 15.160: luminaire prepared for connection to metal halide control gear.
15.260: luminaire prepared for direct connection to 220V.
Lamp holder GX5,3 (QR-CBC51).
Lamp holder GX10 (HIT 35W).
Lamp holder GU10 (PAR16).
Class II luminaire: PAR16 and HIT 35W.
Class III luminaire: QR-CBC51. |
|
|
|
