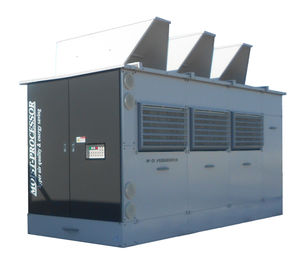

Microprocessor-controlled Operation
Mild Dry
Automatic fan operation
Refrigerant Charge-Free operation up to 10 meters
Air Sweep
Comfortable auto-flap control
Automatic restart function for power failture
24-hours ON/OFF Timer
15-hours ON/OFF Timer

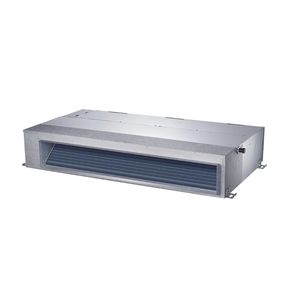

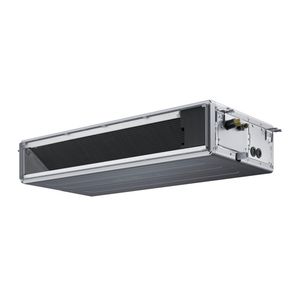

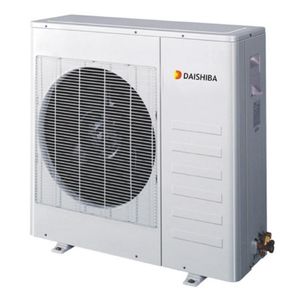

R410A DC inverter split Duct air conditioner for cooling or heat-pump (heating) 18KBTU/24KBTU/32KBTU/36KBTU/42KBTU/60KBTU
Japan mitsubishi/hitachi dc inverter high technology application.
Variable capacity range for different room size.
High efficiency rate saving electricity cost.
Cooling and heating are both comfortable without big temperature fluctuation. Better heating performance in winter -15C.
Environment protected refrigerant R410A.
Auto-restart function.
Luxury big-screen remote controller for easy operation.
Automatic self-diagnosis system for easy maintenance quick installation saving labor cost by fast coupling lineset.

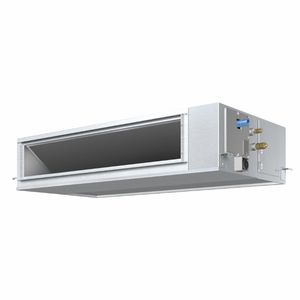

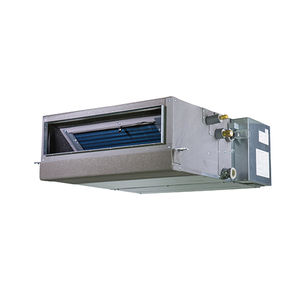

- Realized comfortable space by dispersed arrangement of discharge ports
- The static pressure outside the unit can be increased
- Drain pump with increased power!
- Easy maintenance by external installation of the electric equipment box
- Unified body height of approx. 310 mm for all models

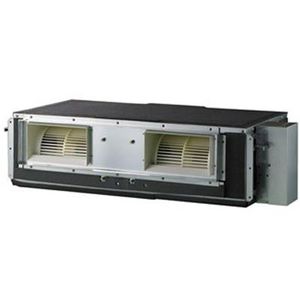

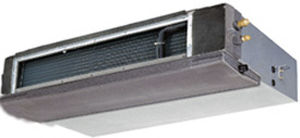

Cooling only and heat pump models available
Slim profile (max. 310 mm)
Galvanised steel cabinet, internally lined with synthetic fibre
Three-speed draw-trough direct drive fan(s) with up to 800 Pa external static pressure
Flare connections

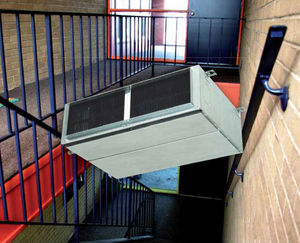

Conceived for a blowing in frontage or side.
Facility of installation: its single design with side blowing enables him to be installed in a corridor.
Flexible filters and panels: possibility of resumption of air by the back or the lower part.
Pre-cutting of the site of the connections of the plenum of Octopus blowing and the arrivals of fresh air side (diameter 150 mm).
Case of order equipped with a cable of 1,5 m for a flexibility of increased installation and positioning.
Electrical resistance and the battery warm water are positioned outside the unit: easy assembly on the existing units.

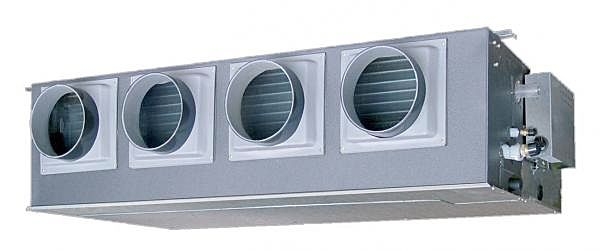

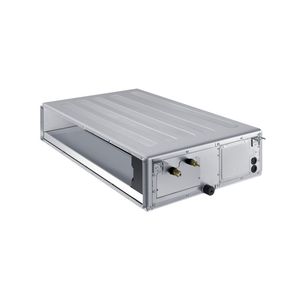

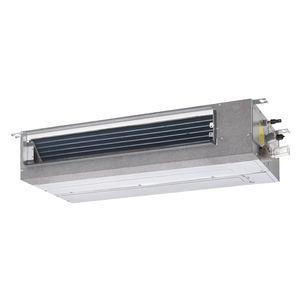

Ducted heat pump split air conditioners
for residential application in false ceiling
Operation range up to 15°C of outdoor
air temperatures
2/3 way plenum (optional)

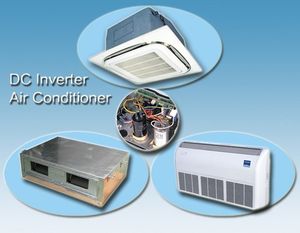

High efficiency DC Inverter technology
Ozone friendly refrigerant R410A
Infrared receiver and remote control
for all functions
Integrated pump for condensate discharge
The RESIDENCIAT system is specially designed to air condition and heat detached houses, flats and small businesses. The system-powered terminal unit fits inside a suspended ceiling. Not only does it combine the economic benefits of installing and operating a central boiler and chiller plant, it also allows individual temperature control in all rooms.
Four models available
Heating capacity: 2 to 9 kW
Cooling capacity: 2 to 9 kW
Air flow rates: 275 to 1020 m³/h
The RESIDENCIAT system includes:
- One ductable terminal unit with two or four pipes or two pipes and electric heater,
- Wall display units (one main terminal and up to six zone terminals),
- Motorised dampers (to be fitted during installation).
- Supply/return air diffusion system,
- Central control.
Requirements:
- Hot and/or cold water production system (heat pump, chiller, boiler, etc.),
- Two or four-pipe system,
- Energy meters in each flat (residential buildings).

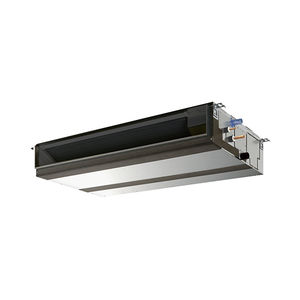

Reversible air-conditioners Split gainables
For residential installations in false ceiling
Ecological cooling agent R410A
Pump raising of the condensates included
Receiver and infra-red remote control to control the unit
Plenum 2/3 cuffs (in option)
Technical principle
The power station climavital is a cast solid refrigerating unit which functions in an autonomous way by exchange of air-to-air calories.
While crossing the power station, the air aspired in the house is cooled or heated to be insufflated through mouths of blowing laid out in ceiling. The hot air generated by the power station is rejected into the roofs (or outside).
The moisture contained in the dwelling is trapped in the power station and is outside evacuated by the pipe of condensation. Operation is simple and effective all is regulated in factory, ready to function.
Installations
The airconditioning CLIMAVITAL power station must be installed in the roofs. Posed the unit on a flexible matter (standard rockwool) directly on the breakdowns, or suspended by cables with the frame.
Its provision must be nearest possible zones to be air-conditioned.
It is enough to grant the sheaths to the power station and the mouths of blowings and aspiration. These mouths will be installed beforehand with the ceiling. To connect then the pipe of condensed towards outside and the receiver of the remote control in a central zone of the dwelling (corridor), to feed with the distribution board, your unit is ready to function.
