NEW CAR SERIES
IGV Group has developed a revolutionary solution for
cars with load up to 1,000 kg: a new patented modular
assembling system allowing a considerable time-saving
in the overall car installation procedure and the
opportunity to carry out quick aesthetic changes
according to requirements and interiors.
The result of this previously unseen technology is the
Carbon, Chrome and Titanium series,
an innovative line which perfectly conveys the new assembling concept
with a special accent on style and design.
|
|
|
|
|
|
Lifts complying with OVERFIT model are characterised by the gearbox fitted inside the lift shaft, in the headroom; the control unit and the power supply and lighting switches are set inside the cabinet at the highest landing access.
Lifts comply with harmonised standard UNI EN81-1:2005.
Strong points
A machine room is not necessary, thus less room is needed.
The gearbox is totally integrated in the shaft and does not require any masonry works.
Inside the cabinet all the elements usually included in a traditional machine room are featured, such as the power supply and lighting switches, the thermostat measuring the temperature of the area and the lighting lamps.
The suspension is direct to the frame on one side and to the counterweight on the other.
Assembly is very easy.
The majority of the lift load is supported by the car guide rails and counterweight.
Overfit ® - Gearless
Machine room-less lift
Key features
Overfit-Gearless traction lifts are characterised by:
machine room-less models;
machine inside the shaft, in the headroom;
hoist machine with permanent magnet motor gearless;
control panel located in the door frame at the highest landing;
alternatively, the control panel can be located inside the shaft, next to the machinery. In the highest landing door a small sized service cabinet is incorporated, containing power supply and lighting switches, components needed for putting into service and adjust the installation and those needed to rescue passengers trapped in the car. In this case, control panel and machine maintenance operations are carried out inside the shaft, standing on the car top.
|
|
SAVE Programme is an IGV innovative lift product line for reducing space, installation time and costs by eliminating the traditional machine room.
SAVE Programme lifts can be customized with a wide range of layouts and finishes, and have been designed to provide the same safety standard as a regular lift installation.
They comply with the Lift Directive (95/16/EC), and are developed in conformity to the ISO 9000:2000 quality standards and to Annex XIII of the 95/16/EC Directive.
Each model of the SAVE product line is accompanied by an EC type examination certificate issued by a notified body.
SAVE Programme is an integrated and flexible system, due to the possibility of choosing between different conceptual paths (hydraulic and traction). The removal of the machine room and the flexibility of solutions, guaranteed by the IGV brand, make the SAVE Programme lifts the ideal choice for the designer, the installer and the end-user.
|
|
The KONE C9 retail lift is ideal for shopping centres and department stores. With a wide range of finishes to compliment any decor
The C9-series interiors: cool, sleek, sophisticated, details in wood, glass and stainless steel.
|
|
|
|
|
|
Freedom also makes a commercial elevator in addition to several residential and home elevators. The Freedom Commercial model can hold up to 1400lbs and moves at 30fpm. This type of elevator, which can only move 25 feet at a time, or between floors, is best suited for a three-floor office building, school, or church.
Cab dimensions for a Freedom Commercial elevator are 48 inches by 54 inches, with a height of 84 inches. The elevator doors are automatic side-slide, which are typical for commercial use. Inside, the cab has stainless steel fixtures and wall panels, but can also be customized with additional brass fixtures, and has a digital floor indicator. The doors can be customized, as well, to be walkthrough front to back or front to side. This elevator meets all US and Canadian code requirements, meets Limited Use Limited Application (LULA) commercial requirements, and is ADA compliant. In addition, the emergency functions of the elevator cab include battery powered lowering, cab lighting, alarm, and stop buttons.
|
|
|
|
|
|
Mitsubishi Elevator quality is constantly evolving. The machine-room-less elevator boasts many proprietary technological advances that deliver a world-class ride in terms of comfort, reliability and safety.
The gearless traction machine with new PM (permanent magnet) motor is packed with cutting-edge technology, such as our unique stator-core structure and built-in double brakes. This optimized motor design dramatically reduces the level of torque ripple which positively affect the quality of the ride. So even though the machinery is more compact, the ride is smoother, quieter and more comfortable than ever before.
More technological advances, such as the high-accumulation LSI and low-noise PWM inverter, enable the VVVF inverter to deliver smooth, high-precision control of the traction machine. In addition, the IPU (Integrated Power Unit) acts as a high-efficiency power supply circuit for motor drive and, along with the PM motor, delivers great energy savings. The result is more efficient, more reliable drive control.
More than just saving space, the new direct-drive door system makes door opening and closing quieter and smoother than ever before. A high-performance chip also enhances the doors' sensitivity, so that door operation suits the precise conditions on each stopping floor. The door load detector makes operation safer since the doors re-open when abnormal pressure is applied.
|
|
Traction lift, load 630 kg and 8 persons. Telescopic automatic doors.
-Fit for any kind of building
-High efficiency
-Low power
|
|
|
Design and installation of special lifts to meet customer requirements, machine room less or lift for shaft with reduced spaces in the top or/and in the pit. Design and installation of mechanical structures for indoor or outdoor installation, standard or panoramic
|
|
Research done by E.P.has led to the creation of SUPERMEC, an elevator that applies the most modern technology to the traditional electric elevator. This is the first elevator on the market to operate using 230V single-phase supply voltage, consume minimum energy and have a very limited impact on the environment.
The SUPERMEC elevator uses the same power as an household appliance and the user is no longer required to increase the voltage of the of the residential electric system used to install the elevator.
An ingenious battery system allows to operate normally during power black-outs. With SUPERMEC, nobody will ever be trapped in an elevator anymore.
|
|
Cost-efficient, attractive design, the ideal residential lift.
At KONE we understand the need for reliable, quietly run elevators for residential buildings, designed to meet the demands of today's tenants.
KONE MonoSpace R3 residential lift offers simplicity and functionality for when cost-efficiency is the key.
|
|
Top quality, tailor-made
This is the top of the line in residential lifts. This is the solution when everything must be first-class, from the lobby to the penthouse suite. You might also consider the KONE MonoSpace R9 for use in a hotel or an office building.
The KONE MonoSpace R9 offers you the unique opportunity to design the lift car interior from the ground up.
|
|
Effective capacity: 3 people - 225 Kg.
Quick and easy assembly with load-bearing structure.
Extremely compact for all situations.
Machine room can be eliminated.
Car finishes to customer specifications.
Standard lifts delivered in very short time.
Special solutions for detached houses.
Doors - swing-doors or automatic.
Cable winch drive for low energy consumption and
pickup.
|
|
|

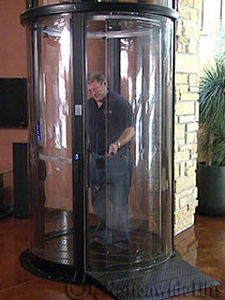

A home elevator perfectly proportioned for your home and décor, the Vision EC lets you maximize living space and minimize construction. Unlike many residential elevators, with the Vision EC there’s no pit, there’s no machine room, and no hoist way is required. Instead, this uniquely designed home elevator requires only a reinforced wall for the rail and a floor cutout.
|
|
|
|
|
|
Mitsubishi Electric%u2019s advanced technology is driving a new age in elevator miniaturization. The newest models are not only more sophisticated than ever, they offer greater space savings. The traction machine, control panel and other key equipment can be adapted to suit required speed and capacity for any building use or design.
%u2022 Compact Traction Machine
%u2022 Compact Control Panel
%u2022 Miniaturized Equipment
Compact Traction Machine
Mitsubishi Electric was first to replace induction motors with highly efficient permanent magnet (PM) motors for high-speed and super high-speed elevators, fully developed in-house. Since PM technology is uniquely suited to miniaturization, permitting the development of a more compact gearless traction machine for high-speed elevators that boast a 2.0 to 4.0 meters per second (6.6 %u2013 13.1 ft./sec.) speed at a capacity up to 1600 kilograms (3,527 lbs.). Slim and efficient, the PM motor is a demonstration of Mitsubishi Electric proprietary stator core technology that results in a compact traction machine that%u2019s about 30% smaller in axial dimension than previous models.
Compact Control Panel
The control panel that drives the PM motor incorporates the most advanced, low-loss IGBT (Insulated Gate Bipolar Transistor) as well as optimal design. The result is a control panel less than half the size of previous models.
|
|
|
These C5 hospital lift car interiors are designed for low- to mid-rise hospital buildings: efficient and space-optimising. These are cost-effective solutions that offer a wide variety of designs and materials.
|
|
Otis service/hospital elevators are distinguished by wider doors and larger platform sizes to allow faster, more secure transport of people and equipment.
Because of their size and depth, these elevators are practical for use as service elevators in office buildings and hotels. Designed to comply with ADA and Canada Barrier-free requirements, they also offer the flexibility and safety required for use in hospitals.
|
|
Machine room-less lift. Control panel next to the landing door.
-Fit for nay ind of building.
-High efficiency
-Low power
|
|
The KONE C7 lift interiors are at home in a mid-rise office building. They provide cool ambiance on your way to the top, with stylish lights, mirror polished and patterned stainless steel, laminate walls, and smart vinyl floors.
KONE lifts are can reduce the total energy consumption of the elevator by as much as two-thirds or even more, they can also help your building achieve BREEAM rating.
|
|
|
|
|
|
Lifts for Historical Buildings
Our technical and aesthetic proposals mean we can find the best lift solution to suit historical and restructured buildings.
Machine Roomless Lifts ( Hydraulic system )
The technical solution developed by Tecno for hydraulic systems where the machine room needs to be eliminated involves the use of a particularly compact metal cabinet housing the switchboard, the hydraulic
gearcase and all other standard components..
Machine Roomless Lifts ( Traction system )
The technical solution for traction lifts is completely different, in this case a special machine is installed inside the shaft, this machine combined to some pulley make the car moving up and down.
Also the electrical components, as for example the controller, are in a special and easy position to make easy maintenance to the lift..
Car Lifts
TECNO has recently developed a design for a some hydraulic car lifts capable of speeds of 1m/s and offering full access to the car on all four sides of the moving platform.
|
|
Otis re-examined every aspect of the elevator- from design and installation to operation and maintenance- to create a smart, compact system that offers our customers significant improvements over current hydraulic and geared systems.
Otis has created a smart, compact system that defines the next generation in elegant design and efficient operation. Our system is designed for buildings up to 300 feet tall, requiring car speeds of 200 and 350 feet per minute.
|
|
|
|
|
|
High-speed computer processing is behind precise adjustment of elevator machine controls to eliminate noise and vibration during operation. To ensure safety during boarding, door sensors detect passengers and objects in the area near the doors.
%u2022 High-Speed Computer Processor
%u2022 Advanced Door Controls
%u2022 High Accuracy Landing Feature (maximum±5mm)
An exclusive elevator control system that integrates digital control circuitry into a high-accumulation LSI results in added performance and reliability. High-speed processing enhances motor control precision to deliver a more comfortable ride. The low-noise PWM (pulse width modulation) inverter unit incorporates the latest power IC module, while the cooling unit uses the highly efficient heat-pipe method to deliver even greater reliability and space savings.
Mitsubishi Electric elevators use a VVVF Inverter Drive control system to ensure doors open and close smoothly and quietly. A high-efficiency, one-chip RISC microcomputer enhances the doors%u2019 sensitivity by calculating the weight of the door panels at each floor, the strength of the wind, and even waste in the sill groove. Auto Tuning provides just the right door opening and closing speed at each floor for safety and reliability. In addition, the learning-capable Door Load Detector offers high-precision door sensitivity, monitoring changes at each floor to allow prompt door-motion return when abnormal pressure is applied.
(optional)
Prevents passengers from being caught by the doors, using multiple infrared light beams mounted along the entire length of car door edge. Doors reverse and open if beams are blocked during door closing.
|
|
These come in various types, in a closed, transparent shaft or positioned on the outside of the building.
Designers and architects consider these as "Architectural Objects" that give a building character. TECNO has exceptional experience in this field, taking
great care over the aesthetic finishes and innovative design.
TECNO has also developed a special car with a round crystal wall, produced in short runs to obtain a prestigious result and suitable even for those situations in which the budget wouldn't normally allow for particularly brilliant solutions.
|
|
|
The Gen2 system is up to 50 percent more energy efficient than conventional systems, enabling developers and owners to manage the building more economically as well as benefit from lower building costs and increased rentable space. In addition, the Gen2 system's flat, polyurethane-coated steel belts and gearless machine do not require any additional lubrication, making the system cleaner for the environment.
|
|
|
|
|
|
Freedom also makes a commercial elevator in addition to several residential and home elevators. The Freedom Commercial model can hold up to 1400lbs and moves at 30fpm. This type of elevator, which can only move 25 feet at a time, or between floors, is best suited for a three-floor office building, school, or church.
Cab dimensions for a Freedom Commercial elevator are 48 inches by 54 inches, with a height of 84 inches. The elevator doors are automatic side-slide, which are typical for commercial use. Inside, the cab has stainless steel fixtures and wall panels, but can also be customized with additional brass fixtures, and has a digital floor indicator. The doors can be customized, as well, to be walkthrough front to back or front to side. This elevator meets all US and Canadian code requirements, meets Limited Use Limited Application (LULA) commercial requirements, and is ADA compliant. In addition, the emergency functions of the elevator cab include battery powered lowering, cab lighting, alarm, and stop buttons.
Installation can take up to ten days, but before installation, you should consult with your building department about putting in a new elevator. Before installation, the alarm signals from the fire and smoke alarms should be wired to the machine room, and the elevator site should be prepared with a permanent power to a fuseable disconnect box. A functional telephone jack should also be connected to the machine room.
|
|
ECO-E is an electric traction lift, machine room less.
It is designed and realized in order to satisfy various demands, from flexible arrangement in any building with easy assembly operation, up to the comfort running and low running costs for the final user.
|
|
ADVANTAGE TECHNOLOGY FOR ENERGY SAVING
The innovative system of recovery and management of the energy, enable to save costs of linking and running. Just 0.7kW of main power at supply of 220V single phase are needed.
A NEW WAY FOR SAFETY
Evolux is equipped with an original high efficiency battery system. It deal with necessary energy to grant normal running even in case of prolonged BLACK OUT.
INTELLIGENT MOTOR
An innovative and patented control system, optimize times of running and standing and it always achieve the best performances changing the speed in function of the load present within the lift car.
SPACE SAVING
Machine room less typology allow to optimize the available space for a perfect esthetical integration with the environment.
|
|
|
|
|
|
DIAO serial residence lift fully absorbs and digests the world's leading lift technology, It applies the variable frequency technology and all computerized and modular control technology of DIAO Lift.
It merges with the Chinese aesthetics tradition to develop a series of the economical elevators which are suitable for use of the high-rise residence.
The advantageous cost performance, the excellent design style which integrates the construction into a whole can completely satisfy the passenger demands of the residence lift, up / down loading capabilities for the daily-use furniture etc.
It is an ideal choice for the civil residence and the ordinary commercial buildings.
Feature：
- Advanced control technology
- The advanced permanent magnet synchronous technology, highly, intellectual and fully computerized modules.
- The advantageous cost performance, it is economical and preferential, it uses the careful calculation and strict budgeting for you to pursue the perfection.
-The concise and attractive design, comfortable riding let you fully enjoy the wonderful household life.
-The mature technology brings about the higher safety properties.0
|
|
|
|
