Description:
Round body with pronounced edges that consists of a housing made of PC/ASA and a polycarbonate diffuser. Consists of a fluorescent tube that is switched on if the mains power fails.
Characteristics:
Format: SOL
Operation: Non-maintained, Maintained and Combined
Autonomy (h): 1h, 2h and 3h
Voltage: 230 V 50Hz, 110/120V-60Hz
Emergency lamp: FL 4 W, 2D 16 W
Lumens: 70 / 500 Lm
Charging indicator: LED
Mains lamp: FL 4 W, 2D 16 W
Degree of protection: IP42 IK07
Electrical insulation: Type II
Test device: For AutoTest and TCA models
Remote stand-by: Yes
Viewing distance according to EN 1838 < 41,6 m
|
|
Description:
Rectangular body with pronounced edges, comprising a polycarbonate housing and diffuser. Consists of a fluorescent tube that is switched on if the mains power fails.
Characteristics:
Format: HYDRA
Operation: Non-maintained and Combined
Voltage: 230 V 50Hz, 110/120V-60Hz
Autonomy (h): 1h, 2h and 3h
Emergency lamp: FL 8 W
Lumens: 95 / 450 Lm
Charging indicator: LED
Mains lamp: FL 8 W
Degree of protection: IP42 IK04 (Sealed box IP66 IK08)
Electrical insulation: Type II
Test device: For AutoTest and TCA models
Remote stand-by: Yes
Viewing distance according to EN 1838 < 19 m
|
|
Description:
Rectangular body with pronounced edges, comprising a polycarbonate housing and diffuser. Consists of a fluorescent lamp that switches on if the network power supply fails.
Characteristics:
Format: GALIA Surface, Pennant, Suspended and Ceiling-mounted
Operation: Non-maintained, Maintained and Combined
Voltage: 230 V 50Hz
Autonomy (h): 1h, 2h and 3h
Emergency lamp: FL 8 W
Charging indicator: LED
Mains lamp: FL 8 W
Degree of protection: IP42 IK04
Electrical insulation: Type II
Test device: For AutoTest and TCA models
Remote stand-by: Yes
Viewing distance according to EN 1838 < 30 m
|
|
Description:
Rectangular body whose visible side or sides are a slanted surface with rounded edges. Consists of a decorative housing made of PC/ASA and a polycarbonate diffuser. Consists of a fluorescent tube that is switched on if the mains power fails.
Characteristics:
Format: ARGOS Simple, Double and Recessed
Operation: Non-maintained, Maintained and Combined
Voltage: 230 V 50Hz, 110/120V-60Hz
Autonomy (h): 1h, 2h and 3h
Emergency lamp: FL 8 W, PL 11 W
Lumens: 55 / 460 Lm
Charging indicator: LED
Mains lamp: FL 8 W
Degree of protection: IP32 IK04, IP42 IK04 and IP44 IK04
Electrical insulation: Type II
Test device: For AutoTest and TCA models
Remote stand-by: Yes
Viewing distance according to EN 1838 < 14 - 19 m
|
|
Description:
Circular body with rounded edges which consists of a decorative housing made of PC/ASA and a polycarbonate diffuser.
Consists of a fluorescent tube that is switched on if the mains power fails.
Characteristics:
Format: IRIS
Operation: Non-maintained, Maintained and Combined
Voltage: 230 V 50Hz, 110/120V-60Hz
Autonomy (h): 1h, 2h and 3h
Emergency lamp: FL 4 W, 2D 16 W
Lumens: 70 / 500Lm
Charging indicator: LED
Mains lamp: FL 4 W, 2D 16 W
Degree of protection: IP42 IK07
Electrical insulation: Type II
Test device: For AutoTest and TCA models
Remote stand-by: Yes
Viewing distance according to EN 1838 < 37 m
|
|
Description:
Rectangular body with raised edges that consist of an aluminium housing and a polycarbonate diffuser.
With a mounting system for connection to a rail.
Consists of a fluorescent tube that is switched on if the mains power fails.
Characteristics:
Format: CARRIL
Operation: Non-maintained
Voltage: 230 V 50Hz
Autonomy (h): 1h and 3h
Emergency lamp: FL 8 W DLX
Lumens: 100 / 210 Lm
Charging indicator: LED
Mains lamp: -
Degree of protection: IP22 IK04
Electrical insulation: Type II
Test device: No
Remote stand-by: No
|
|
Description:
Square body with pronounced edges, comprising a housing made of PC/ASA and a polycarbonate diffuser and it consists of a fluorescent tube that is switched on if the mains power fails.
Characteristics:
Format: NORMA
Operation: Non-maintained, Maintained and Combined
Voltage: 230 V 50Hz, 110/120V-60Hz
Autonomy (h): 1h, 2h and 3h
Emergency lamp: FL 4 W, 2D16W
Lumens: 70 / 500 Lm
Charging indicator: LED
Mains lamp: FL 4 W, 2D16W
Degree of protection: IP42 IK04
Electrical insulation: Type II
Test device: For AutoTest and TCA models
Remote stand-by: Yes
Viewing distance according to EN 1838 < 41,6 m
|
|
Description:
Square body with raised edges that consist of an aluminium housing, a simple or double polycarbonate diffuser and a fluorescent lamp that switches on if the network power supply fails.
Characteristics:
Format: ORTO Surface, Recessed, Pennant
Operation: Non-maintained, Maintained and Combined
Voltage: 230 V 50Hz
Autonomy (h): 1h, 2h and 3h
Emergency lamp: FL 6W, PL 11W
Lumens: 100 / 490 Lm
Charging indicator: LED
Mains lamp: FL 6W, PL 11W
Degree of protection: IP42 IK04
Electrical insulation: Type II
Test device: For AutoTest and TCA models
Remote stand-by: Yes
Viewing distance according to EN 1838 < 46 m
|
|
Description:

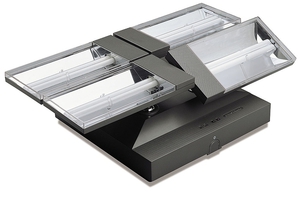

Decorative self-contained block consisting of a large box made of PC/ASA, with directional spotlights on the joined to the housing with chrome signs. Consists of 2 or 4 fluorescent lamps PL 11 W or PAR36 that switch on if the network power supply fails.
The connection system is direct and has a front panel with two optical devices (LED) that indicate the status of the luminaire.
Characteristics:
Format: ZENIT
Operation: Non-maintained
Voltage: 230 V 50Hz
Autonomy (h): 1h, 2h, 3h and 4h
Emergency lamp: PL 11 W, PAR 36W
Lumens: 300 / 2545 Lm
Charging indicator: LED
Mains lamp: -
Degree of protection: IP42 IK04
Electrical insulation: Type II
Test device: For AutoTest and TCA models
Remote stand-by: Yes
|
|
Description:
Square body whose front parts form a slightly curved plate. Consists of a decorative housing made of PC/ASA with a polycarbonate diffuser and of a fluorescent tube that is switched on if the mains power fails. It can be adjusted either horizontally or vertically.
Characteristics:
Format: MYRA
Operation: Non-maintained, Maintained and Combined
Voltage: 230 V 50Hz, 110/120V-60Hz
Autonomy (h): 1h, 2h and 3h
Emergency lamp: FL 4 W, 2D16W
Lumens: 75 / 550 Lm
Charging indicator: LED
Mains lamp: FL 4 W, 2D16W
Degree of protection: IP42 IK07
Electrical insulation: Type II
Test device: For AutoTest and TCA models
Remote stand-by: Yes
Viewing distance according to EN 1838 < 36,9 m
|
|
Description:

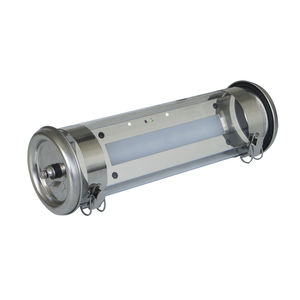

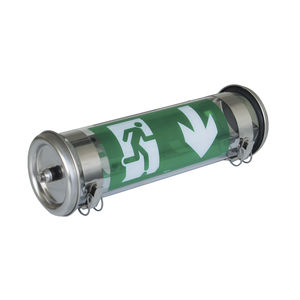

Aluminium and borosilicate glass housings, specially conceived for an arquitectural context, mainly industrial.
Made in accordance with European directives 93/68/CE, 89/336/CE and 94/9/CE governing electromagnetic and explosive atmosphere compatibility. Consists of a fluorescent tube that is switched on if the mains power fails
Characteristics:
Format: EXPLOSION-PROOF
Operation: Non-maintained and Combined
Voltage: 230 V 50Hz, 110/120V-60Hz
Autonomy (h): 1h and 3h
Emergency lamp: FL 8 W PL 11 W
Lumens: 140 / 620 Lm
Charging indicator: LED
Mains lamp: FL 8 W
Degree of protection: IP67 IK04
Electrical insulation: Type I
Test device: For AutoTest and TCA models
Remote stand-by: Yes
Classification: II2G EEX d IIC T6 - II2D IP 67 T85ºC.
|
|
|
|
|
|
The illumination level along the centre line of the escape
routes should not be less than one lux. In some cases,
it is not possible to integrate the emergency lighting
into the already existing lighting system. In other cases,
because of technical and safety reasons, the emergency
lighting must be installed separately from the mains
lighting. For such applications we offer the AL range of
LED-spotlights. These lamps can be mounted on or into
the ceiling either as a surface or as a recessed fitting.
In the model for evacuation lighting, the LED are disposed
in such a way that the light is distributed over the
longitudinal axis of the escape route.
The model for orientation lighting is designed so that the
light is distributed in all directions over the circulation
route. In both cases, the suspension height must not
exceed 2.50m. The lamp is available either with individual
battery, or with group battery or for use with central battery
systems. It comes in two versions for 24 Volts or 230
Volts AC/DC connection.
|
|

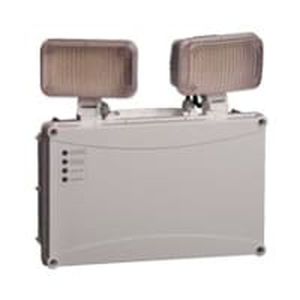

AP Range
Emergency floodlighting unit with individual battery.
Metal housing. Designed for industrial buildings.
Range: up to 37m.
|
|
|
This compact Polycarbonate 3 Hour non - maintained fitting is rated at IP65 and is available with either single or twin 4w lamps. All fittings come complete with lamps.
|
|
|

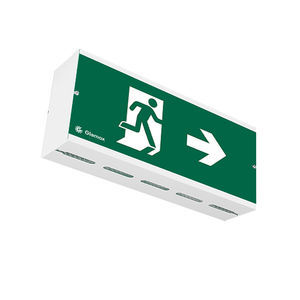

The ASD slim-line Emergency Sign is manufactured in a white coated steel housing with a choice of screen printed legends. The Sign 8 is available in 3 hour maintained, non maintained or sustained formats. All fittings are complete with lamps.
|
|
