C.I.A.M. Servizi S.p.a. supplies escalators and moving walks for overcoming differences in levels or horizontal connections. The escalators can have lead angles (inclined) of 30° or 35° while the moving walks have 0°, 10° and 12°. The carrying capacity of the escalators and moving walks ranges from 4500 to 9000 persons transported per hour.
|
|
KONE ECO3000® E3C is ideal for the retail environment where reliable solutions are a must to ensure a continuous retune on investment.
Providing easy access and smoothly connecting different areas to provide an uninterrupted shopping experience.
Comfortable and smooth operation
Simple building interface
Small installation dimensions
High levels of reliability
Energy efficient and environmentally friendly
Wide range of options and finishes ideal for leisure environments
|
|
Aesthetic elegance and flexibility are concepts expected more than ever. Our new escalator Series Z comes in a simple, yet sophisticated design, offering the utmost in flexibility to blend with any building decor. Our years of accumulated experience in safety-oriented production, based on a strong belief in the importance of safety, have led to a variety of safety features, as well as a wide range of value-added functions that help you customize your own escalators, creating uniqueness in and incomparable value for your building properties.
The Mitsubishi Electric Series Z Escalator fulfills and indeed exceeds customer expectations, through the collaboration and utmost performance of visual, functional and safety elements.
Feel the elegance, high quality and comfort of the Series Z in your building.
Highly Durable Stainless-Steel Floor Plates with a Pressed Pattern
The newly designed floor plates draw attention with their light-hearted yet durable pressed patterns.
|
|
Tecno Escalators and Passenger Conveyors are produced in an extremely hi-tech industrial production unit dedicated exclusively to this product line. With its amazing output of more than 2500 units a year, Tecno is a world leader in its field.
The excellence of the materials and the quality control systems applied in the industrial process guarantee high quality, low running costs and long life for the product..
Our range includes the following models:

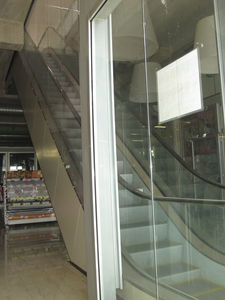

TLL - Escalators with glass balustrades, without profiles supporting the handrail, angles of 30° and 35°.
THD - Escalators for public use with glass or stainless steel balustrades.
TAW - Passenger Conveyors in two versions, horizontal
and inclined, angles of 10°-11°-12° .
|
|
|
|
|
|
OTIS 506 NCE ESCALATOR
A high profile escalator offering the advantages of modular design
What distinguishes the Otis 506 NCE is its modular design. So while benefiting from the economies of volume production, it can be assembled to individual specification. Such flexibility makes the escalator ideal for retail, leisure, office and many other applications.
Safety first
The Otis 506 NCE embodies a host of safety features making it probably the safest escalator yet designed. Many of those features have been pioneered by OTIS such as the GUARDIAN® skirt panel - now established as the industry reference. Then there are special deflectors which prevent objects from being trapped in the handrail entry box. Step rigidity is assured through the one-piece, die-cast aluminium step. And, critically, the gap between the step and the skirting is not only constant but less than that specified by the codes. Indeed in most areas concerning safety, the Otis 506 NCE not only meets the codes but greatly exceeds them.
Reliability through Quality Control
Comfort and reliability are inextricably linked to the quality of components and the expertise of their assembly. In both respects we set ourselves uncompromising standards. With the Otis 506 NCE, every step is measured and rigorous assembly controls are implemented which compare each operation against a strict tolerance level. Rigidity is assured by the glass balustrade continuous holding supports. And friction and wear is minimal due to the closed loop polymer guidance system.
|
|
KONE ECO3000® E3M is a bespoke escalator manufactured in the UK to suit the requirements of the most demanding locations.
Highly durable, this escalator is designed to offer unparalleled reliability in the busiest of environments 24 hours a day, 7 days a week. Ideal escalators for busy airport terminals or tube stations.
Intelligent micro processor permanently monitors the operation and safety of the escalator and can be integrated within the buildings own management control system to allow a real time response to any potential issues.
|
|
Tecno Escalators and Passenger Conveyors are produced in an extremely hi-tech industrial production unit dedicated exclusively to this product line. With its amazing output of more than 2500 units a year, Tecno is a world leader in its field.
The excellence of the materials and the quality control systems applied in the industrial process guarantee high quality, low running costs and long life for the product..
Our range includes the following models:
TLL - Escalators with glass balustrades, without profiles supporting the handrail, angles of 30° and 35°.
THD - Escalators for public use with glass or stainless steel balustrades.
TAW - Passenger Conveyors in two versions, horizontal
and inclined, angles of 10°-11°-12° .
|
|
|
|
|
|
Flowing Curves that Offer New Dimensions in Space Design
Graceful arcs flowing through urban space. Our spiral escalators widen passenger perspective and add new contours to the surrounding area. Spiral escalators are just one example of how we're working to develop more comfortable public environments for humankind. The application of a pioneering technology enables our escalators to follow smooth curving paths to their destinations. Spiral escalators forge a new relationship between people and space. They%u2019re a sign of progress toward more creative urban environments in Japan, the United States, and other parts of the world.
Spiral escalators in the entrance lobby leave the ground floor with a wealth of space and create a breathtaking first impression. The elegantly functional layout not only enhances a building%u2019s architecture, it also guides visitors smoothly into the building. The inherent beauty of the design transforms an entrance hall into a landmark, thus enhancing a building%u2019s reputation and value.
Installed in the corners or at the sides of a large room, spiral escalators greatly increase the amount of usable floor space. This arrangement easily lends itself to large-scale retail stores or art galleries. They%u2019re also ideal for places where people gather and where control of pedestrian traffic is important.
Stacking spiral escalators above each other in a multiple plan configuration creates a spectacular atrium effect. The arrangement of a series of spiral escalators in a continuously rising pattern offers a unique panoramic view of the building. It%u2019s an ideal solution for office buildings, malls, hotels and galleries.
|
|
|
The biggest advantage of escalators over lifts is the bigger traffic of passengers which they can handle and that is why they are used in department stores, railway, bus and underground stations, etc. A modification of the escalators are the moving walks, which are horizontal and help people with walking in many large stations and department stores.
|
|
DIAO escalator meets the different requirements from broad customers because of its superior properties, the practical and flexible design. The optimized utilization of microcomputer variable frequency technology (VVVF), ergonomics research fruits, the advanced manufacture technology bring about the more perfect, secure, comfortable DIAO escalator with the fine energy-saving and the convenient repair & maintenance.
Feature：
It has many safety characteristics for the design ideas of DIAO lifts. The application of the advanced horizontal "two-step" can be used in the escalator entry and exit. It offers a safe escalator platform.
The passengers can be more safe in use. Another special performance of DIAO lift is the handrail entry. Double protection system If any obstacle enters into the handrail, such protection system can stop the escalator immediately. "Thinking highly of the security" is a very important principle of DIAO lift.
|
|
|
|
|
|
Mitsubishi Electric J-Type Inclined Moving Walks are designed to carry people smoothly and comfortably. The terminal drive system incorporates technology from our highly regarded J-Type escalators to deliver superior levels of quality and reliability. Mitsubishi J-Type Inclined Moving Walks offer ideal solutions for the needs of modern pedestrian traffic, in all types of commercial facilities from grocery stores to shopping malls.
Upper End
Going up - The comb angle is designed to be 15° to the horizontal, to make it easier to push a shopping cart over the comb when landing.
Going down - The comb plate angle is designed to be 3° to the horizontal, to prevent a fully loaded shopping cart from running downwards when boarding.
Lower End
Going up - The comb plate is designed to be 350mm (13.8 in.) long, to make it easier to push a shopping cart over the comb plate when boarding.
Going down - The minimal comb angle is designed to be 1.4° to the horizontal. This delivers an extra smooth landing experience when pushing a shopping cart over the comb.
Comb
Each comb is made of die-cast aluminum, rigidly fixed to improve strength and durability.
Each comb tooth is 3.2mm (1/8 in.) thick to provide sufficient strength so that the combs are more durable against repeated impact by shopping carts.
Floor Plate
The stainless steel plate with anti-slip pattern, originally developed by Mitsubishi Electric for escalators, provides for safe and steady footing.
|
|
Mitsubishi Electric moving walks are designed to carry people safely, swiftly, and comfortably. The heart of these walks is a highly acclaimed drive system designed to optimize safety and comfort. Use of moving walks is increasing not only at train stations and airports, but at tourist attractions and in major shopping malls, as well. They offer a contemporary solution to growing pedestrian traffic requirements resulting from the greater diversity of architectural designs and the expanded scale of modern urban development.
Moving walks can even help to stimulate new architectural ideas. With a complete line-up that includes Models 900, 1200, and the extra-wide 1600, Mitsubishi Electric has the best solution for your pedestrian-traffic needs.
|
|
| ... products without information |
| |
|
|
|
|
Mitsubishi Elevator quality is constantly evolving. The machine-room-less elevator boasts many proprietary technological advances that deliver a world-class ride in terms of comfort, reliability and safety.
The gearless traction machine with new PM (permanent magnet) motor is packed with cutting-edge technology, such as our unique stator-core structure and built-in double brakes. This optimized motor design dramatically reduces the level of torque ripple which positively affect the quality of the ride. So even though the machinery is more compact, the ride is smoother, quieter and more comfortable than ever before.
More technological advances, such as the high-accumulation LSI and low-noise PWM inverter, enable the VVVF inverter to deliver smooth, high-precision control of the traction machine. In addition, the IPU (Integrated Power Unit) acts as a high-efficiency power supply circuit for motor drive and, along with the PM motor, delivers great energy savings. The result is more efficient, more reliable drive control.
More than just saving space, the new direct-drive door system makes door opening and closing quieter and smoother than ever before. A high-performance chip also enhances the doors' sensitivity, so that door operation suits the precise conditions on each stopping floor. The door load detector makes operation safer since the doors re-open when abnormal pressure is applied.
|
|
|
|
|
|
Mitsubishi Electric%u2019s advanced technology is driving a new age in elevator miniaturization. The newest models are not only more sophisticated than ever, they offer greater space savings. The traction machine, control panel and other key equipment can be adapted to suit required speed and capacity for any building use or design.
%u2022 Compact Traction Machine
%u2022 Compact Control Panel
%u2022 Miniaturized Equipment
Compact Traction Machine
Mitsubishi Electric was first to replace induction motors with highly efficient permanent magnet (PM) motors for high-speed and super high-speed elevators, fully developed in-house. Since PM technology is uniquely suited to miniaturization, permitting the development of a more compact gearless traction machine for high-speed elevators that boast a 2.0 to 4.0 meters per second (6.6 %u2013 13.1 ft./sec.) speed at a capacity up to 1600 kilograms (3,527 lbs.). Slim and efficient, the PM motor is a demonstration of Mitsubishi Electric proprietary stator core technology that results in a compact traction machine that%u2019s about 30% smaller in axial dimension than previous models.
Compact Control Panel
The control panel that drives the PM motor incorporates the most advanced, low-loss IGBT (Insulated Gate Bipolar Transistor) as well as optimal design. The result is a control panel less than half the size of previous models.
|
|
|
|
|
|
High-speed computer processing is behind precise adjustment of elevator machine controls to eliminate noise and vibration during operation. To ensure safety during boarding, door sensors detect passengers and objects in the area near the doors.
%u2022 High-Speed Computer Processor
%u2022 Advanced Door Controls
%u2022 High Accuracy Landing Feature (maximum±5mm)
An exclusive elevator control system that integrates digital control circuitry into a high-accumulation LSI results in added performance and reliability. High-speed processing enhances motor control precision to deliver a more comfortable ride. The low-noise PWM (pulse width modulation) inverter unit incorporates the latest power IC module, while the cooling unit uses the highly efficient heat-pipe method to deliver even greater reliability and space savings.
Mitsubishi Electric elevators use a VVVF Inverter Drive control system to ensure doors open and close smoothly and quietly. A high-efficiency, one-chip RISC microcomputer enhances the doors%u2019 sensitivity by calculating the weight of the door panels at each floor, the strength of the wind, and even waste in the sill groove. Auto Tuning provides just the right door opening and closing speed at each floor for safety and reliability. In addition, the learning-capable Door Load Detector offers high-precision door sensitivity, monitoring changes at each floor to allow prompt door-motion return when abnormal pressure is applied.
(optional)
Prevents passengers from being caught by the doors, using multiple infrared light beams mounted along the entire length of car door edge. Doors reverse and open if beams are blocked during door closing.
|
|
| ... products without information |
| |
|
|
|
|
Variable voltage variable frequency (VVVF) control is revolutionizing freight elevators. Mitsubishi Electric%u2019s VVVF Inverter and Micro-Computer control technologies offer tremendous energy savings, outstanding performance and other advanced features.
Mitsubishi Electric freight elevators increase workflow efficiency while driving costs down. Our sturdy, reliable freight elevators are designed expressly to help speed goods safely on their way, to help raise work efficiency levels while cutting material-handling costs.
Mitsubishi Electric can tailor a freight elevator solution for challenges that range from manufactured products to raw materials to agricultural produce. Large, medium or small elevators can be configured for factories, warehouses, department stores, supermarkets or other types of freight-handling facilities.
Long experience combined with the world%u2019s most advanced elevator technology result in freight elevators that are renowned for the smoothest operation and most precise landing in the market -- for light, heavy, or bulky loads. They also meet the highest standards of safety, reliability, and dependability, in the toughest of conditions.
|
|
| ... products without information |
| |
The Ryoden Dumbwaiter is a special freight-only elevator that links upper and lower floors in a wide variety of business facilities: not just in restaurants, but also in hospitals, schools, facilities for the aged or the disabled, offices, homes, and factories. Table type models are installed waist-high, and floor type models are level with the floor for wheeled loads.
Offers basic features but superior performance in vertical transportation of small freight.
Includes a remote control function added to the standard model. The remote can be used to call the dumbwaiter and open the doors automatically.
For installation in a clean room, featuring options such as a conveyor belt for automatic loading.
|
|
|
|
