"THE EUROPEAN REGIONAL DEVELOPMENT FUND AND THE MINISTRY OF INDUSTRY AND TRADE OF THE CZECH REPUBLIC SUPPORT INVESTMENT IN YOUR FUTURE".
- heating and cooling of interiors cooling output higher than 2 kW for 2 metre long convector
- directed air is blown far into the space
- active demisting of window surfaces
- the most powerful MINIB convector
- the convector is suitable for connection to a 4 pipe system with separated heating and cooling circuits
DIMENSIONS
total width : 339mm
construction height : 147 mm
length : 900 - 2000 mm
USAGE
COIL- HCM4pipe is a MINIB floor convector specially designed for intensive heating and cooling of the space. The convector has a 4 pipe connection. The air is tangentially blown across the floor of the room up to a distance of 3 to 4%u2009m - so that in summer there is a lightly flowing cool air effect in locations remote from the windows.
|
|
Available in 3 sizes.
These ceiling equipment allow the treatment of air using a laminar blowing effect (Cohanda).
In this aim, they are inserted between the false ceiling plates, since they are of the same standard dimensions (600 x 600 mm).
Particularly suited to erection of buildings offices, the ceiling plate is available in RAL 9010 standard paint.
EUROVENT approved equipment.
|
|

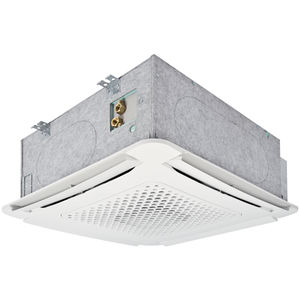

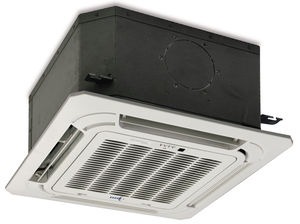

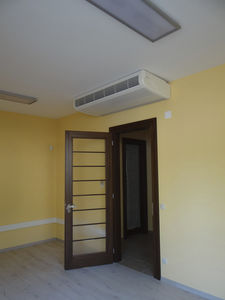

The cassette type fan coil is an appliance that treats the air in the room in both winter and summer. It is quipped
with a very attractively designed grille that perfectly fits into standard false-ceiling panels.
The cassette fan coils are available in 6 sizes in the version with 2 pipes: mod.04-08-10-12-16-20. They are also available in 3 sizes in the version with four pipes: mod. 04-4T , 10-4T AND 20-4T.
|
|
Chassis manufactured from galvanized steel. An acoustic and anticondensation insulation is fitted within. Air flow by means of four rectangular opening
Main heat exchanger: Copper tubes/aluminium fins with threated connections; each coil is fitted with a manual air vent and drain plug. The coil is tested at a pressure of 15 ATE.
External rotor fan with ABS centrifugal impellers, single inlet, statically and dynamically balanced.
Single phase 230V 50Hz motor, induction type, fitted with condenser. The motor complies with IP41 protection class and ECM Standards (EC89/336, EC92/31, EC93/68) and with low voltage standards (Art. 10, EC73/23). Available with 3 speeds.
Main drain pan manufactured from preformated plastic material.
Filter: syntetic media with a galvanized sheet frame with mesh on both sides.
|
|
The FUN is available in 3 sizes. Its rate of flow range is comprised between 100 and 1 400 m3/h.
Its small height allows it to be inserted in difficult applications, or allows suppression of condensate pumps.
The exceptional available pressure allows meeting the requirements of hotels, office building, hospital…where the equipment is installed over less sensitive areas and connected to highly consequent air duct network.
Of simple modular design, this equipment offers a great facility of mounting in false ceilings or floors.
Eurovent approved equipment.
|
|
|
|
|
|
The TCX series units are designed and built for those applications in which minimal thickness is an essential requirement for the installation of an air-conditioning system.
Available in 14 models in the high head and basic version, with an extensive range of accessories, these units perform a series of thermohygrometric and filtration treatments that make them suitable for a large number of home, business, and industrial applications. The ease of installation, the quality of the finishes,and the flexibility of the product are the finishing touches that complete this series of units.
All of the TCX series units are built in observance of applicable EEC Directives 89/392, 91/368, 93/44, 93/68, and 73/23 and are, therefore, in compliance with the "essential safety and health requirements" prescribed by these directives. The units are designed in observance of the above-mentioned standards and, therefore, they have been equipped with a series of prevention and safety devices suitable for satisfying the requirements of the standards
|
|

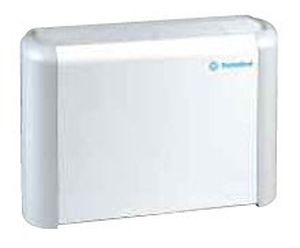

Thalassa fan convector are reversible heating and air conditioning.
The offered range includes 4 models and 5 sizes, with powers from 5 kW cold production and 11 kW hot production.
Since there is no residual pressure with this equipment, they are used for direct blowing either hanging or wall mounted but never with air shaft.
Easily integrated in any type of premises due to its discrete presentation and RAL 9010 epoxy painted frame.
Aircalo offers a wide scope of flow control customization.
|
|
"THE EUROPEAN REGIONAL DEVELOPMENT FUND AND THE MINISTRY OF INDUSTRY AND TRADE OF THE CZECH REPUBLIC SUPPORT INVESTMENT IN YOUR FUTURE".
- electrical heating of dry interiors
- electric direct heating convector with 230 V fan
- electrical cover protection IP20
DIMENSIONS
total width 303%u2009mm
construction height 125%u2009mm
length L 500 - 2500%u2009mm
USAGE
Recommended for individual use in dry interiors with a variety of heating demands.
FUNCTION
The heat is generated by electrical heating coils that are transversally cooled. Thermal protection of the unit is ensured with temperature limiters reacting to the temperature of the discharge air. The convector has a single speed and the heat output is fixed at 750W per 500mm long convector module. Only control-A is available and the fan speed is fixed to speed 2.
|
|
"THE EUROPEAN REGIONAL DEVELOPMENT FUND AND THE MINISTRY OF INDUSTRY AND TRADE OF THE CZECH REPUBLIC SUPPORT INVESTMENT IN YOUR FUTURE".
- heating of any interiors
- the convector is designed for installation into the window sill
- the sill is supplied in beech or oak design without wood surface finish
DIMENSIONS
total width: 272 mm
construction height : 135 mm
length: 900 - 1500 mm
USAGE
The MINIB window sill convector is suitable for all types of windows with a sill of a minimum depth of 250 mm. Insulation shown behind the fan is not included in the delivery.
|
|
This unit can be used for heating and/or ventilation as well.
2 steps heating (2 - 3 KW), with outlet down directed. Airflow is 220 m3/h, this guarantee fast and homogeneous air treatment of the volume. In the summer, the unit can be used for ventilation only.
Renewable filter G4.
Régulation with thermostat on board.
|
|
|
|
|
|
Major 2

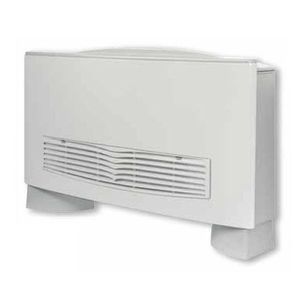

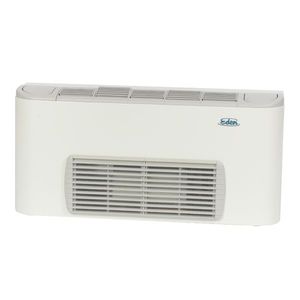

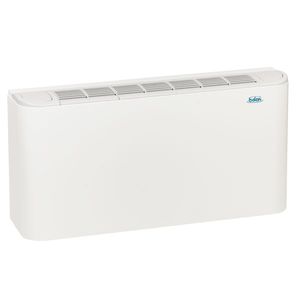

The Major 2 fan coil unit is designed to be mounted vertically on a wall or horizontally below ceilings to heat and cool homes, businesses and industrial and healthcare facilities. Not only does it combine the economic benefits of installing and operating a central boiler and chiller plant, it also allows individual temperature control in all rooms.
Available in six sizes and two models:
- CH: horizontal cased,
- CV: vertical cased.
Heating capacity: 2 to 20 kW
Cooling capacity: 0.6 to 8 kW
Air flow rates: 115 to 1300 m³/h
- Polymer casing with solid RAL 9010 finish,
- Two access doors lead to air bleed valve and control terminal,
- Water coil: two or four tubes or two tubes and electric heater,
- Condensate drain pan,
- Seven-speed motor (three factory-wired speeds) with balanced, double-inlet aluminium blower wheel,
- Mounting bracket frame,
- Regenerative polyester fibre filter. Efficiency class: G3 (EN 779),
- Fully enclosed electrical junction box,
- A wide selection of control options.
|
|
"THE EUROPEAN REGIONAL DEVELOPMENT FUND AND THE MINISTRY OF INDUSTRY AND TRADE OF THE CZECH REPUBLIC SUPPORT INVESTMENT IN YOUR FUTURE".
- for heating dry interiors
- very low MINIB convector
(only 80%u2009mm in the floor)
- supplied with any aluminium
or wooden grille
DIMENSIONS
total width 243 mm
construction height 80 mm
length 900-3000 mm
USAGE
Designed for individual use in dry interiors with higher heating demands and low construction height requirements (up to 80%u2009mm) where the deeper COIL-KT units cannot be used.
|
|
"THE EUROPEAN REGIONAL DEVELOPMENT FUND AND THE MINISTRY OF INDUSTRY AND TRADE OF THE CZECH REPUBLIC SUPPORT INVESTMENT IN YOUR FUTURE".
- MINIB self-standing floor convector with a width of only 156%u2009mm
- for heating dry or wet environments
- high heat output convector without fan
DIMENSIONS
total width 156 mm
construction height 230mm
length 900 - 2000 mm
USAGE
Convector SP1/4 is a fast reacting convector, which forms a new design series of MINIB convectors without fans. The aluminium cover of the unit can be supplied with silver, light bronze, dark bronze, white varnished or eloxal coating. The convector is equipped with a 4 tube heat exchanger.
|
|
|
|
|
|
Structure: made from ABS to ensure good mechanical properties and resistance to ageing
Fan assembly: made up of a tangential fan coupled with a three-speed electric motor to ensure very low noise during operation.
Air filter: regenerable by simply washing in water, positioned on the front air intake grill.
Heat exchange coil: copper tubes set out in staggered rows to increase heat exchange, with aluminium fins joined by the mechanical expansion of the tubes. The manifolds are fitted with air vents that are easily accessible by sliding out the front panel.
Electrical control board: located inside the unit, manages the settings sent by the remote control and the solenoid valve.
A water probe is fitted as standard for the hot-start function.
Remote control: complete with LCD for the rapid display of the active functions and for setting the various parameters required for the correct operation of the unit (see the special section).
Three-way valve: located inside the unit and easily accessible by sliding out the front panel.
Prevents excessive cooling of the unit and the formation of condensate when not in operation.
Water connections: the unit is fitted with pairs of water hoses for the connections to the system.
|
|
Features:
- Condensate pump
- Low ambient kit
- Fresh air intake for sizes 24 to 48
- 600 x 600 mm (size 12 & 18)
- Auto restart
- Service valve protective cover
- Rustproof casing
|
|
Features

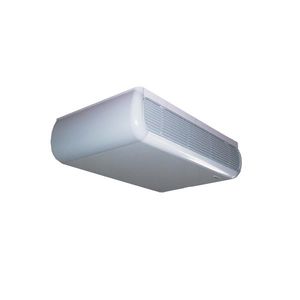

The ceiling fancoil is designed for room air control in both winter and summer months.
The unit to be ceiling mounted.
The FCA unit must be installed with the GLA accessory, which features an elegant grill designed to blend perfectly with standard panelling of false ceiling..
|
|
The new Cassette fan coil unit has been biult for installations in suspended modular or not ceilings, for 2 or 4 pype systems.
Supplied with water, it is suitable for air heating and cooling purposes according to the requirements.
The unit, completed with the condensate pump, can be supplied by request of an additional air delivery that can be connected to ducts for a separate supply air, and of additional extarnal air intakes.
The air intake panel directs the air flow in order to prevent that air hits the user directly. Therefore, the maximum confort is ensured in every enviroment and position.
The Cassette unit can be managed by all the range of Eurapo regulation (valves and controllers).
|
|
|
Innovative and fascinating design, seven different models, high control flexibility, ease of maintenance: the new SKYSTAR water cassette is the result of significant technical and design research focused on providing an avant-garde product in terms of performance, low noise and control flexibility.
|
|
Ducts fans "SIGMA" (sound attenuated) for rectangular duct systems
-duct dimensions 400x200 bis 1000x500 mm
-max. V= 11000 m³/h,
-max. pt= 1300 Pa
-100% speed controlable
-backward curved impeller
-swing out drive unit
-with sound attenuated casing
Application:
ventilation for residential and industrial zones
|
|
|
The comfort ventilation system Zehnder ComfoAir 140 was specifically developed for space-saving applications in sophisticated residential and commercial buildings. It combines highest comfort, simple operation and high efficiency. The Zehnder ComfoAir 140 has powerful DC fans and moves up to approx. 140 m³/h air at an external pressure of 100 Pa.
|
|
Zehnder ComfoAir 350 ventilation system
The two devices Zehnder ComfoAir G90 (280 m³/h) and the Zehnder ComfoAir G91 (350 m³/h) are combined into one product as part of a change to new product versions. The ventilation device Zehnder ComfoAir 350 moves at an external pressure of 100 Pa and a maximum of 350 m³/h. The smallest adjustable air flow is 50 m³/h. The large adjustment range facilitates application of the device in flats, single-family houses, meeting rooms, classrooms and commercial buildings.
|
|
Zehnder ConfoAir 500 ventilation system
The Zehnder ComfoAir 500 ventilation device was designed for use in up-market home and commercial applications. It combines highest comfort, simple operation and high energy efficiency. The Zehnder ComfoAir 500 can move a maximum of 500 m³/h of air at an external pressure of 100 Pa.
|
|
|
The new EBH air handling units are available in 4 sizes, for horizontal concealed installation, 2 and 4 pipe systems. These units, thanks to their high E.S.P. fans, are suitable for centralised ducted air distribution with external static pressure values up to 250 Pa. They are therefore suitable for air conditioning and heating in every kind of big environments.Hydraulic connections can be right hand or left hand, because they can be reversed on site. 4 brackets are supplied together with the unit, in order to fix it on the ceiling.
|
|
|

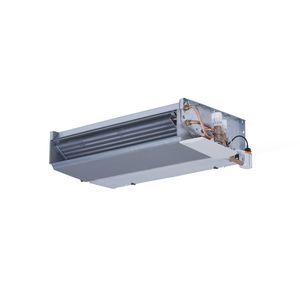

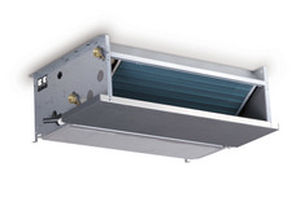

The MAESTRO Fan Coil Units are for concealed installation and connection to a duct system. They supply a consistent air flow with static pressure up to 150 Pa. The MAESTRO Fan Coil Units are manufactured in 5 sizes for hot water supply (11-42 kW) and chilled water supply (4-16 kW).
|
|
|

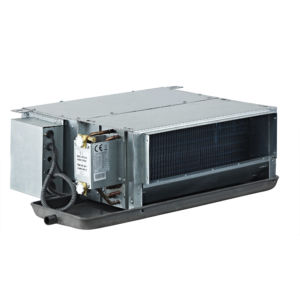

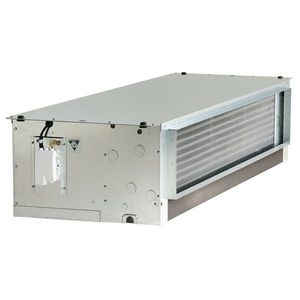

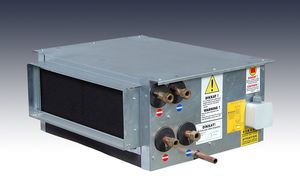

The SLIM ducted fan coils can be used to economically heat and/or cool small and medium-sized civil, commercial, industrial and sporting facilities. They have been designed and built for horizontal concealed installation. The range features 4 sizes, each with 5 speed fans, 3 of which connected on the terminal block. Numerous wired controllers are available, as well as infrared remote control.
|
|
Duct fans with rectangular connection.
Air flows: 140-3350 l/s
|
|
|
|
|
|

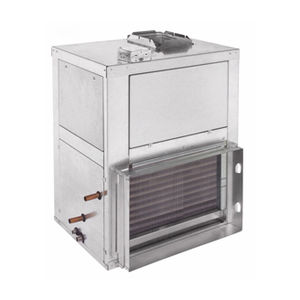

42BJ Individual Comfort Modules, Ducted
Brief Description:

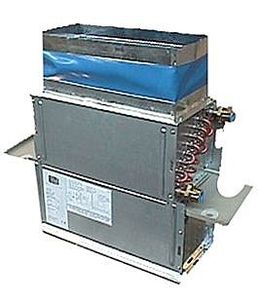

The 42BJ compact U-shaped ducted unit benefits from having both the inlet and outlet on the same side. It has a variable-speed fan motor, offering a choice of speeds to suit the client’s needs. Available in three sizes with two-pipe, two-pipe plus electric heater or four-pipe coils. The 42BJ has a low height of just 270mm for certain models, offers air flow ranges from 140 to 230 l/s, and cooling capacities from 3.4 to 5.7 kW and heating capacities from 3.3 to 6.5 kW.
Three sizes with two-pipe, two-pipe plus electric heater or 4-pipe coils, with an air flow range from 140 to 230 l/s, a cooling capacity range from 3.4 to 5.7 kW and a heating capacity range from 3.3 to 6.5 kW.
Compact, U-shaped ducted chilled-water fan coil systems, designed for installation above false ceilings in corridors.
Reliable and economical cooling and heating for light commercial and office applications.
U-shape model with inlet and outlet on the same side.
Compatible with the 35BD/SR air diffuser range.
Low height of 270 mm (sizes 1.3 and 2.3).
Extra low sound level in ducted air distribution system.
Variable-speed fan motor, offering a choice of speeds to suit the project.
High-pressure centrifugal fans, compatible with air distribution systems up to 300 Pa.
High-efficiency EU4 filter.
Safe factory-installed electric heater for single or two-stage hot water heating.
Low hydraulic pressure drop with a valve mounted, compatible with all chiller pump kits.
Quick installation with factory-installed options (controls, valves).
Available with demand control ventilation (DCV) and CO2 sensor.
|
|
|
|
|
|
Ideal for installation in motels, apartments, and other multi-room buildings, 42 series fan coils combine heating and cooling performance with easy, low-cost installation. The 42D units are designed for medium static, ducted applications, using furred-in, horizontal and vertical models, or exposed ceiling painted cabinet models. Optional decorative colors allow the unit to blend with any interior design.
Performance Features:
- Airflow capacities from 600 to 2000 cfm
- 2-pipe or 4-pipe system combinations (factory-installed option)
- Valve packages available (field-installed accessory)
- Several motor voltage options (factory-installed option)
- 3-speed
- Quiet motors and fans
- Line voltage or 24 v control options available (factory-installed option)
- 18 gage, galvanized steel casing construction
- Unit casing lined with ½ in. thick, dual density fiberglass insulation
- Multiple casing liners available (factory-installed option)
- Coated and pitched, galvanized steel drain pan
- Stainless steel drain pans available (factory-installed option)
- Certified performance in accordance with ARI Standard 440
|
|

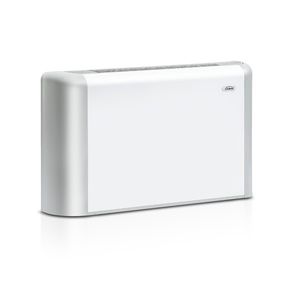

There is something new in the wide and prestigious Eurapo's production: SPHERA, the fan coil designed to satisfy the increasing needs of style and comfort.
Thanks to its shape, to its compact dimensions (depth 190 mm with centrifugal fan) and to its great innovative technical features, SPHERA met a widespread approval from all the market dealers during the official presentation at "Mostra Convegno Expocomfort 2002".
SPHERA can be installed either on the wall or on the floor and is suitable with all the brand new Eurapo's controls: from the traditional ones (mechanical or with microprocessor), to the most innovative ones, which use digital technology in order to be integrated with Building Automation systems.
SPHERA fits into Eurapo's settled experience and reliability, given by its growing and unfailing technical and design research.
This is definitely the most revolutionary way to conceive the fan coil!
|
|
|
Sigma series well identifies the smooth lines and details that Architects and Designers are more and more pursuing in their projects: actually, the Sigma fan coil units, thanks to their design and to a wide range of colours, shall be easily integrated in every single environment.
|
|
