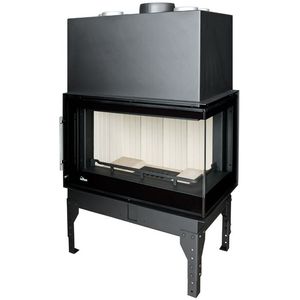

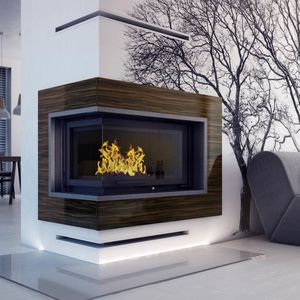

Series 73
A fireplace insert with angled glass. A very elegant fireplace design and a wide door make for a perfect accessory to any interior. It is possible to burn 60 cm long logs. It is also made as a vertical sliding door or a side-opening door. ( Blanzek V73R).

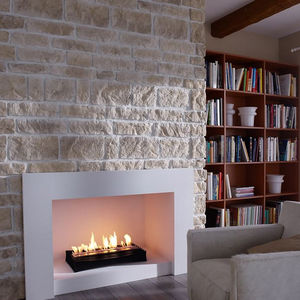

The Firebox 900DB is a rectangular shaped firebox. It is a stainless steel zero clearance firebox designed to accept the EcoSmart™ flue less burner. The Firebox 900DB introduces a ‘see-through’ element to an open fire setting. The double sided design features a toughened glass back panel. The clever design features multiple installation options including front or back fitted, with or without an exposed flange. The Firebox 900DB is used in the construction of the Designer Range EcoSmart™ Fire “Vision”.

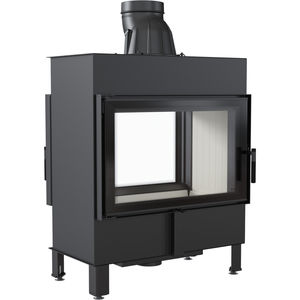

Series 71

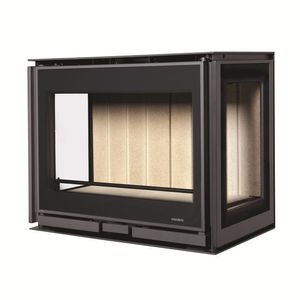

A double fronted fireplace which can be used from both doors. The front door can be supplied in a vertical sliding version. This fireplace is good for interflat partitions and pillars.
- width (fitting measure body) : 500 mm
- height doorframe : 570 mm
- door : corner 90°
- width : 548 mm
- depht : 548 mm
- nominal heat output according to DIN : 7 kW
- flue pipe outlet Ø : 180 mm
hinged door
width (fitting measure body):450 mm
height doorframe:510 / 570 / 680 mm
door:corner 90°
width:552 mm
depth:582 mm
height:1219-1419 / 1279-1479 / 1387-1587 mm
weight:140 / 149 / 164 kg
nominal heat output according to EN:7 kW
flue pipe outlet:Ø 180 mm
total flue gas mass flow closed:7,5 g/s
flue gas temperature closed:330 °C
minimum feed pressure at nominal heat efficiency closed:14 Pa
BeFDIN 660
The fireplace insert with fire bricks with a flat front glass.
Output: 9 kW
Flue diameter: 180 mm
Size of the fireplace front: 660 x 570 mm
Weight: 237 kg
Efficiency: 78%
* hot-water exchanger with reversible
* connection possible
* external combustion air inflow
* chimney valve with door connection
* bottom combustor with fireclay brick lining
Output: 70,30%
Length of logs: 55 cm
Diameter of tube: 200 mm
Dimensions: H: 615 mm lg: 692 mm teacher: 445 mm
Guarantee: 5 years
Continuous fire
Weight: 142 kg
Other models:
- On the right-hand side glazed réf: 6675-44
- On the left-hand side glazed réf: 6677-44
- 3 panes réf: 6679-44
- without turbines réf: 6470-44
Equipment:
- Register of pulling
- 2 exits of hot air Ø 125 on the top
- 2 axial flow turbines flow 160 m3/h
- 2 speeds
- thermal Switch of safety
Front insert in steel with forced hot air circulation, solid Alutec® fire box and cast iron fire bed. This insert is suitable for use in large fireplaces. It is able to heat up to 190 m3 with insulation in accordance to the law and in keeping with the manufacturer's instructions. Available doors: black (photo), nickel plated.
Overall thermal power (kW/Kcal) 9/7740
Fuel legna/tronchetti - wood/logs
Hourly consumption (kg) 3/2,4
Heatable volume 190
Minimum room volume (m³) 38
Diameter of smoke outlet pipe (cm) 16
Weight (kg) 150
External air intake (cm²) 150
Flue pipe section (H= 3 m min.) (cm) 20x20 o ø 20
Fan capacity (m³/h) 300
Power consumption (W) -
Noise production (dB) 45
The RAIS 60 Insert is a beautiful and elegant replacement for any open fireplace. An open fireplace replaces the air four times an hour and has an efficiency of only 10%. A RAIS insert can achieve efficiencies up to 70% and better.
RAIS 60 Insert is designed to fit into an existing open fireplace or as an insert in a new setting. The RAIS 60 Insert fits into most masonry fireplaces and requires a zero clearance firebox for new construction.
Produced in a timeless design that incorporates the highest standards of wood-burning technology, the RAIS 60 Insert efficiently utilizes the latest in combustion technology like all RAIS free-standing stoves and allows for a view of the fire and the flames through a large glass door. The door is hinged on the right or the left side as specified.
RAIS 60 Insert is equipped with the patented RAIS air-cooled hollow handle that allows for use without a mitten, and has a bolt-locking mechanism made in solid brass that ensures an air-tight lock for efficient wood burning.
The stûv 15 are very compact stoves designed to be inserted with no major work into existing hearths, and produce efficient and economical heating. they are nowadays used more and more in new buildings, as well as in renovations.
Grate Range
The Grate Range provides a selection of fireplace inserts that incorporate the EcoSmart™ Burner in a simple, traditional manner. A great way of rekindling a closed off open fire, or perhaps creating a unique fireplace feature - without the fuss.
Series 700
A fireplace variant with a hexagonal shaped firebox and panoramic glass for a maximum fire enjoy.. The fireplace is equipped with secondary combustion.
The heating chamber in the new quality Harvia Fireplace Insert 650 Panorama is made of strong cast iron, with an outer casing in high quality steel. The insert suits both old and new open brick fireplaces. The final touch is achieved through the mounting frame that neatly hides the signs of assembly.
The G-20 module differs from the rest in the equipment of the cast-iron
interior and in the ashpan; it has only a secondary register, and the door kit is not detachable.
The ultimate in convenience and a great way to enhance your fireplace's appearance! This insert will fit into Heatilator woodburning fireplaces or your masonry fireplace. Elegantly-appointed front sold separately in three sizes, and includes operable mesh door and child-safety catch. Mesmerizing variable flame pattern is created with 18,000 to 32,000 Btus/input per hour. That quality look that suits your style of living is created with random flame, six hand-painted logs, 160-CFM fan and rose-colored refractory in traditional brick pattern. Top direct vented sealed combustion chamber uses only outside air for combustion, helping to preserve indoor air quality and prevent negative air pressure problems. The ADI60 is tested and listed to UL Safety Standards and comes with a Limited Lifetime Warranty.
Monobloc insert fire made from an internal casing of (4mm thick) steel and an external casing. The structure is designed to offer thermal efficiency and substantial heat recovery due to the thermal exchange which occurs between the walls of the fire and the steel air channels which surround it, allowing the circulation and reheating of the air without it coming into contact with the flames. The firebox in Aluker® has a large capacity for heat storage. The removable Aluker® plates can be easily replaced. Grate with log retainer and upper baffles in cast iron. Ash panel removable even when fire is lit. Pre-regulated flue damper. The glass door remains clean due to a secondary air wash system. Combustion is regulated by a flow of primary and secondary air. Standard with ventilation kit.
Perfect symmetry and a full view of the fire for IS 75 Q.
Characteristics
- Monobloc: in varnished steel
- Heart: in steel, with removable cast iron panels
- Door: steel with ceramic glass resistant to temperatures up to 750 °C
- Handle: in steel
- Primary and secondary air: adjustable manually
- Ash box: can be removed when the hearth is switched on
- Fire level: with cast iron grill and grill shaker control
- Smoke exhaust: top
- Heating: natural or forced convection
- Ventilation:
on request ventilation kit with manual on/off switch and speed control
Characteristics
- Monobloc: in varnished steel
- Heart: in steel, with removable cast iron panels
- Door: steel with ceramic glass resistant to temperatures up to 750 °C
- Handle: in steel
- Primary and secondary air: adjustable manually
- Ash box: can be removed when the hearth is switched on
- Fire level: with cast iron grill and grill shaker control
- Smoke exhaust: top
- Heating: natural or forced convection
- Ventilation:
standard ventilation kit with authomatic on/off switch and 4 speed control
The decorative fireplace to gas IG70 is an apparatus to watertight room, natural draft (balanced flow) working to gas methane or GPL. The classification acronym is - C11 type - used term in order to describe an apparatus whose circuit of cumbustione to is held regarding the premises in which it is installed: the withdrawal of money of the comburente air and the drainage of the products of the combustion happen directly outside of the premises by means of a coaxial pipe.
The apperecchio CE is accredited second the enforced norms in Italy. The homologous one comprises or the fireplace that the relative drainage smoke (pipes and finishes them of drainage) that they must be obligatorily supplied from the constructor. Construction, installation, participations, modifications and maintenance of the systems to gas must be carried out exclusively from operating ablilitati to the law 46/90 and in compliance with the norms ONES 7131 and ONES 7129.
