MB-70 is a modern aluminium system intended for realizations of exterior architectural building elements requiring thermal and acoustic insulation, such as: various types of windows, doors, vestibules, display windows or spatial structures.
|
|

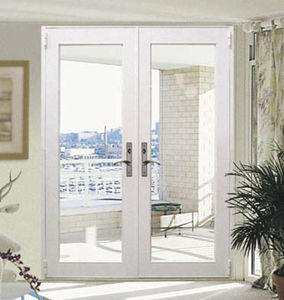

This door has it all: Standard DP50 performance with a stainless steel, handle-activated multi-point locking system; optional PVD-grade hardware. The Integrity Outswing French Door comes in a wide array of room-expanding configurations; up to 8-0 heights and wide stiles and rails create maximum effect.
Features
- Low-maintenance Ultrex exterior with rich pine interior; Tempered LoĒ2 or LoĒ3-366® insulated glass with argon gas
- Traditionally styled handle set available in five finishes, including three in PVD grade finish for maximum corrosion resistance
- Handle-activated stainless steel multi-point locking system
- Adjustable hinges available in six finishes, including two coastal-grade options to protect your investment for seasons to come
- A choice of exterior colors, interior colors, hardware finishes, divided lites and standard sizes
|
|
|
|
|
|
Windows are the basic ALBERTINI product, which can offer you attractive and flexible solutions.
Adaptable to any architectural solutions with a main frame of 68x82 mm and sash of 68x80 mm; it is feasible in first quality massive or laminated wood and guarantees excellent acoustic and thermal performances. Provided with double gaskets, ribbon edge gear and routered hinges with triple regulation with hoods of covering in many colors, it is supplied with insulated low emission glass pane of 26-28 mm, soundproofing or selective, in order to improve the comfort in every place and in every season. All details, from the rounded glass beads, the wooden cover of the aluminum drip, to the internal lever to block the semi fix sash, are handled with accuracy to confer a pleasant and harmonious aspect and besides this, it confirms the good quality of the manufactures. Built up only with customized dimensions, arched, trapezoid shape with sash, fixed, openable or tilt and turn, to answer at the most varied residential architectonic requirements.
|
|
|
|
|
|

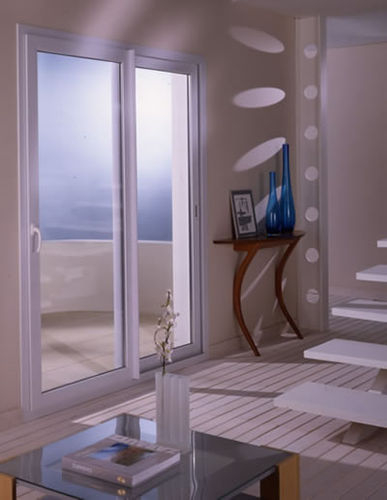

Sliding Doors and Windows
Sliding Systems, available in extremely large sizes, offer "minimal" thresholds, enabling virtually unobstructed passage. They are available in different typologies, in the same lines, woods and finishes as the windows and doors.
These are our seven main Sliding Systems:
- LIFT AND SLIDE UNIT: suitable for big surfaces, it is feasible with more than one sliding or fixed leaves, also in curved in plan units. It is provided with bottom track and the 3 sides frame is 178 mm deep. This system is capable to support security and safety glazing due to the special hardware with 300 kg maximum load each leaf;
- MOTORIZED LIFT AND SLIDE UNIT, is like the previous, but is provided with a sophisticated motorized opening system, actionable by remote control. Security devices are installed (photoelectric cells) to guarantee the stop of the leaves.
- PARALLEL TILT AND SLIDE: The Albertini parallel tilt and slide is two-panel system (with or without a vertical mullion) in which both panels are in the same plane when closed. The operable panel is fitted with special articulated pivoting/sliding gear that allows it to move inward, out of plane with the fixed panel and to slide across the interior face of the fixed panel. (The action is similar to the sliding doors on minivans) The operable panel can also be tilted in place to create ventilation while retaining security against forced entry. With perimeter, multi-point locking and single-control lever handle, this system offers an architectural solution where a minimum frame dimension is required (just 68 mm). The system is available in a maximum width of 3000 mm;
|
|
The elegance of a traditional French door with the practicality of a sliding patio door. Wide stiles and rails maximize the rich wood and substantial feel of our Sliding French Door, while impressive 8-0 heights and 3-panel configurations add a spectacular expanse of light and space.
Features
Low-maintenance Ultrex exterior with rich pine interior; standard tempered Low E II insulated glass with Argon gas
Traditionally styled handle with dual-point lock; available in five finishes
A top-hung screen means smooth operation and no jamming on dirt or pebbles
Ultrex sill has the strength and durability to endure season after season of use; finished with a beautiful interior oak sill liner
A choice of exterior colors, interior colors, hardware finishes, divided lites and standard sizes
|
|
Ultra Series are premium quality wood windows and doors. These windows have been crafted for both beauty and functionality, using the latest advances in protection against the elements.
Durability, versatility & style define the Ultra Series, as demonstrated by the features & options detailed below. The Ultra Series is an extensive product line, with casements, push-out casements, awnings, Traditional and Sterling double hungs, sliders, patio and entrance doors %u2013 all to complement one another.
|
|
|
Range including/understanding windows and French windows, with one or two casements. Opening with the Frenchwoman, English, swinging with bellows or Italian, and fixed frame. Profiled aluminum with rupture of thermal bridge per bar polyamide. Sleeping with or without joint covers. Double glazing up to 35 mm thickness.
|
|
|
French windows with the Frenchwoman with casements, swinging. Composed of profiled out of aluminum enamelled three rooms with rupture of thermal bridge. 55 mm thickness door frame and opening of 65 mm with invisible drainage. Proposed with 22 mm height panels to right angle (Classic), round (Futuro) or decorative (Rustic). Central joint in Epdm or TPE. Filling by panel or double glazing up to 45 mm thickness.
|
|

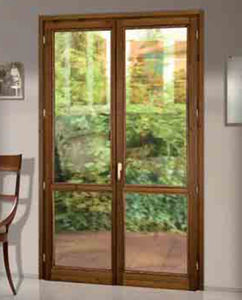

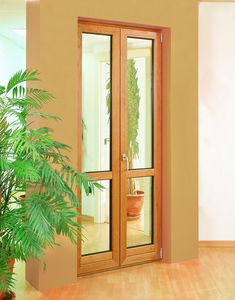

S1 French door in walnut-tinted
Swedish Pine, roller-shutter box in
walnut-tinted Swedish Pine.
PVC roller blind
|
|
|

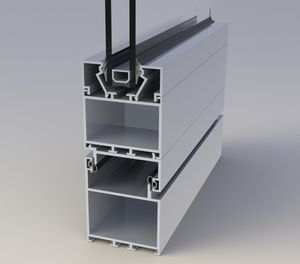

Hinged door and window system in the Cortizo Chamber range. Fitted with thermal break bridge obtained by inserting 6.6 polyamide insulating tubular rods with a depth of 35 mm, reinforced with 25% glass fibre. The wide range of solutions for exterior and interior opening (5wing doors. Tilt/turn, Folding, Parallel Tilt, etc.) make it a versatile closing system, with the best features for thermal and acoustic insulating in our range.
|
|
THERMO ISOLATION

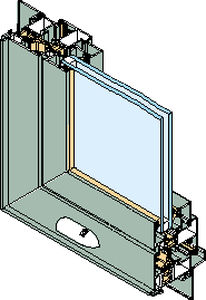

BERING striking has many advantages. The thermal process of rupture by resin offers an excellent strength to decoherence, which enabled him to obtain label "NF" without difficulty. Thanks to the great rigidity of shaped the range allows to produce frames of great dimension.
The very complete range comprises all the sections necessary for the realization of made up frames including doors, opening with striking, bellows, swinging...
This series accepts glazings of 30 mm (50 mm with expander).
PRODUCED CONCEPT:
- Window, French window and main door "with striking" with rupture cold bridge, thickness of the door frames 51 mm, opening the 55 Misters.
|
|
This new system, of high safety provisions and maximum insulation, is the
high range of the mixed systems.
Coefficient of Thermal Transmission: U (W/m2. K) = 1,9
Results reached in laboratory accredited by ENAC:
Air Permeability: Class 4 (Max)
Watertight: E 1500 (Exceptional)
Wind-Resistant: C5 (Max)
Soundproofing: 39 dB
*Test realized in window of two leaves with ledge.
Section of Carpentry: : 67 mm (s/p) || 107-127 147 and 157 mm (c/p)
Section of Leaf: 69x80mm. Glazing: 30 mm.
Axle Channel Iron-work: 113 mm. Offering major safety anti-plaque.
A perimetrical continuous gasket in Frame + A perimetrical continuous
gasket in Leaf: Excellent Watertight.
Inverter: It provides symmetry in the leaves, both from the interior and from the
exterior.
Monoblock PVC: It provides good watertight and makes easier the assembly
of work.
Optional Secret Iron-Work: It improves the aesthetics of the window.
Optional Security WK2: It includes iron-works in steel that they increase the
safety.
|
|
Indicated for urban projects of both building and restoration, where priority is given to the solution of easy placement in work. The version R or C define the profile of straight or curved aluminium.
Coefficient of Thermal Transmission: U (W/m2. K) = 2,0
Results reached in laboratory by accredited ENAC:
Air Permeability: Class 4 (Max)
Watertight: E 1050 (Exceptional)
Wind-Resistant: C5 (Max)
Soundproofing: 35dB
*Test realized in window of two leaves with ledge.
Section of Carpentry: 60 mm (s/p) || 100-120-140 and 150 mm (c/p)
Section of Leaf: 62,5x68mm. Glazing: 22 mm.
Axle Channel Iron-work: 9 mm.
A perimetrical continuous gasket in Frame: Excellent Watertight.
Monoblock PVC: It provides good watertight and makes easier the assembly
of work.
Optional Secret Iron-Work: It improves the aesthetics of the window.
Optional Security WK2: It includes iron-works in steel that increase the safety.
|
|
Being XANA our ecological window, it is made of wood with FSC stamp of controlled felling.
Coefficient of Thermal Transmission: U (W/m2. K) = 2,0
Results reached in laboratory accredited by ENAC:
Air Permeability: Clase 4 (Max)
Watertight: E 1050 (Excepcional)
Wind-Resistant: C5 (Max) Aislamiento
Soundproofing: 35dB
*Test realized in window of two leaves with ledge.
Section of Carpentry: 60 mm (s/p) || 100-120-140 and 150 mm (c/p)
Section of Leaf: 62,5x68mm. Glazing: 22 mm (bajo emisivo).
Axle Channel Iron-work: 9 mm.
A perimetrical continuous gasket in Frame: Excellent Watertight.
Monoblock PVC: It provides good watertight and makes easier the assembly
of work.
Seguridad WK2: It includes iron-works in steel and down Lever in passive leaf
that increase the safety.
Laminated Certified wood
|
|
