| The Hörmann STA Sliding Gate Operator is characterised by its compact, robust housing in aluminium and plastic and its reliable operator electronics. Further benefits of the operator concept are the extremely sturdy, height-adjustable ground bracket and the adaptable toothed rack which can be easily matched to your gate construction. Everything is of course weatherproof: no need to oil, grease or lubricate. |
|
| The manual cantilevered gate Equilis® adapt to all ways of installation thanks to two types of fixation : to be screwed or sealed. |
|
EQUILIS® cantilevered gate
The manual cantilevered gate Equilis® adapt to all ways of installation thanks to two types of fixation : to be screwed or sealed.
|
|
EQUILIS® sliding gate
The manual gate EQUILIS® adapt to all the ways of installation thanks to the two versions proposed : to seal or to screw.
|
|
OXYLIUM® is an innovative product on the market: the motorisation unit is integrated into the gate beam, which prevents thermal deformation of the gate thanks to its composite coating and vertical/lateral adjustment at a single point via the load wheel.
RELIABILITY AND PEACE OF MIND – THERE IS NO THERMAL DEFORMATION OF THE LEAF BY SUNLIGHT:
- Not affected by temperature variations.
- Expansion-resistant.
- Thermal deformation is reduced 10 fold.
VANDAL-PROOF:
- Automatic gate locking (1 ton resistance).
- Invisible presence detectors integrated into the posts.
- Motorisation integrated into the beam.
AESTHETICS :
- Stylish design for beam and profile.
- Option of combining different colours for the leaf, posts and coating.
- Safety devices integrated into the structure.
SILENT OPERATION:
- Variable speed drive for smooth, jerk-free operation.
WIDE RANGE:
- Opening length of up to 12 m.
- Height of up to 2.50 m.
SAFETY FOR USERS THANKS TO REDUCED RISK AREAS:
- Drive system integrated into the structure.
- No rail.
- Stop blocks integrated into the structure.
EASY INSTALLATION :
- Reduced-size concrete blocks as the drive system is integrated into the structure.
- Simple adjustment to ensure accurate leaf alignment: a single adjustment point within easy reach and simple to use.
- No rail adjustment.
- Motorization pre-wired in-factory. |
|
The range of OPPIDUM® Design gates combines safety, attractive design, high-performance and ease of installation. 3 models are available: swing, sliding or cantilever gates which are either manual or motorised. Combined with AXIS® Design fencing, they form a complete and attractive solution. Complies with European standard NF EN 13241-1.
OPPIDUM® SWING GATE:
Because of their design an profile, OPPIDUM® small gates and swing gates combine sturdiness and aesthetics. Combined with a large gate (swing, sliding or cantilevered), OPPIDUM® swing and small gates are ideal for pedestrian access.
OPPIDUM® DESIGN SLIDING GATE:
Resolutely modern and avant-garde, the OPPIDUM® Design sliding gate adds value to your site while effectively making it secure.
OPPIDUM® DESIGN CANTILEVERED GATE :
With its stylish design, the OPPIDUM® Design cantilever gate is reliable, robust and easy to use. |
|
The ALLIANCE gate range, comprising 4 models – a swing gate, two sliding gates and a cantilever gate – offers easy installation, a simple design and good value for money. Complies with European standard NF EN 13241-1.
ALLIANCE SWING GATE:
Available in 2 versions: small gates for pedestrian access and double leaf swing gates for closing a main access, ALLIANCE swing gates provide a good Quality / Price ratio.
ALLIANCE SLIDING GATE:
ALLIANCE sliding gate is unobtrusive and fit in with all types of fence. It provide a good Quality / Price ratio.
ALLIANCE CANTILEVERED GATE:
ALLIANCE cantilevered gates combine unobtrusive lines and ease of use. They offer a good Quality / Price ratio. |
|
Rectilinear Sobrement or deploying its curved smooth, the Contemporain range proposes nearly 40 basic models available in version beating to two casements or version sliding. Special options widen the pallet of the designs.
|
|
Range "Piano": Garden gate and gate 1 casement
Range "Piano": Manual model beating
Range "Piano": Manual sliding model
- Does the coast have is with? to 40% of the gate.
- Amount: 94 X 61 mm
- Cross-piece: 94 X 49 mm
- Bar: 92 X25 mm
- Filling: 163 X25 mm |
|
Range "Double bass": Garden gate and gate 1 casement
Range "Double bass": Manual model beating
Range "Double bass": Manual sliding model
- Amount: 94 X 61 mm
- Cross-piece: 94 X 49 mm
- Bar: 92 X25 mm
- Filling: 163 X25 mm |
|
| Whatever the sector of activity or construction site needs, Sapa Building System will present a competitive solution to all standard or innovative demands, may it be commercial or residential projects, large or small, for new build or renovation. |
|
The Tradition range offers a broad choice of styles of gates, déclinables in version with two casements or version sliding, with matched wicket. This style is appropriate particularly for the classical architectures, houses of yesterday, old residences. This range replaces more and more the iron gates of which they adopt the style and elegance, without having the disadvantages of corrosion and maintenance.
|
|
This gate of the Contemporain range has a barreaudage open-type screen
who can be positioned either vertically, or horizontally.
The aluminum bars have a profile in wing of plane. They prevent from seeing
inside the property, while letting pass the air,
what gives him the least taken with the wind. The barreaudage open-type screen
bring a modern dimension and widens the pallet of the Contemporain designs.
Available in version beating and sliding, this model is motorisable.
Leaf, it can be equipped with the invisible motorization Axialmatic (exclusive patent horizal) integrated in the amount-pivot during its manufacture.
Conform to standard NF of THEM 13241-1 |
|
The Tradition range offers a broad choice of styles of gates, déclinables in version with two casements or version sliding, with matched wicket. This style is appropriate particularly for the classical architectures, houses of yesterday, old residences. This range replaces more and more the iron gates of which they adopt the style and elegance, without having the disadvantages of corrosion and maintenance.
|
|
Rectilinear Sobrement or deploying its curved smooth, the Contemporain range proposes nearly 40 basic models available in version beating to two casements or version sliding. Special options widen the pallet of the designs.
|
|
Range "Violin": Garden gate and gate 1 casement
Range "Violin": Manual model beating
Range "Violin": Manual sliding model
- Does the coast have is with? to 70% of the gate.
- Amount: 94 X 61 mm
- Cross-piece: 94 X 49 mm
- Bar: 92 X25 mm
- Filling: 163 X25 mm |
|
The gate automated Porteo Trafic consists of a sliding gate, assembled on wheels with ball bearing, of an intelligent column and a column slave out of galvanized steel. The unit is made out of coated sheet and is painted by thermo lacquering out of powder.
The intelligent column shelters the various elements necessary for the automation of the gate and the respect of the safety requirements: an engine FAAC 844 three-phase current with oil bath involving the gate in translation using a connection gable toothed rack associated with a programmable automat and a variator of frequency integrated in the wardrobe with management fixed in the intelligent column (the food remains however mono 240V/50Hz). The access to the various elements of automation is done by the door located on the interior frontage of the intelligent column. This steel door is assembled on hinges and is locked using a ¼ of key turn.
Automation is equipped with a anti-crashing security located on the section of the gate, of photoelectric cells ordered in closing, and a blocking stopping device of the gate, as well as ordering of manual releasing in the event of interruption of current or breakdown of the system, exclusively accessible to the only authorized people. |
|
The gate automated Porteo Monceau is a beating gate made up of two casements and two intelligent columns. The connection of the casements is carried out by actuator FAAC 750 bellow, and by a bearing with simple line of balls in top. The unit is made out of sheet and steel galvanized and painted by thermo lacquering out of powder for the structure, and the casements are sanded metallized and painted by thermo lacquering out of powder.
The intelligent columns shelter the various elements necessary for the automation of the gate and the respect of the safety requirements:
- A standard management board FAAC 462
- A set of integrated cells ordered in closing
- A twinkling lamp
- A lamp of lighting of zone
- A jack of the type FAAC 750
- A "gatecoder" with the adaptation kit for engine 750
The access to the various elements of automation is done by the door located on the interior frontage of each intelligent column. This steel door is assembled on hinges and is locked using a ¼ of key turn.
Automation is equipped with a anti-crashing security located on the section of the first casement, of a turntable power station to be sealed containing and the blocking stopping device of the gate actuated at the time of its movement by engine FAAC 750, as well as ordering of manual releasing in the event of interruption of current or breakdown of the system, exclusively accessible to the only authorized people.
The retractable system of thrust allows, once the opened gate, not to present an asperity more being able to obstruct the passage of the vehicles. |
|
The gate automated Porteo Similaire is a beating gate made up of two casements and an electronic enclosure. The connection of the casements is carried out by a conical roller bearing low, and by a bearing with simple line of balls in top. The unit is made out of sheet and steel galvanized and painted by thermo lacquering out of powder for the structure, and the casements are sanded metallized and painted by thermo lacquering out of powder.
The enclosure shelters the various elements necessary for the automation of the gate and the respect of the safety requirements: a standard management board FAAC 462 manager two sets of cells, a twinkling lamp, a lamp of lighting of zone. Each ventail is actuated by a jack FAAC 400 associated with its "gatecoder".
Automation is equipped with a anti-crashing security located on the beaten section of the ventail including/understanding, of a turntable to be sealed containing and the blocking stopping device of the gate (electromechanical lock). |
|
| The gate 1000 offers a speed of operation (30 cm/sec.) which guarantees a good filtering of the vehicles and pedestrians of use of access control as well as a good robustness. |
|
PRODUCED CONCEPT:
Aluminum range shaped conceived for the manufacture of beating gates 1 and 2 casements. The range of shaped aluminum SHAR-PEI enables you to answer all current esthetics: rights, inclined or curved, in the shape of cocked hat, with various types of filling: with full or openwork blades, tubes or sheets...
|
|
The heavy industrial series is reserved for the gates of width of passage ranging between 8m00 and 12m00.
It is characterized by a low beam with high module of inertia: section height 250 mm, width 100 mm, steel thickness 4 Misters.
This type of beam gives to the gate a very large side rigidity and prète particularly well with a motorization.
The use of 2 pillars of guidance and a pillar of reception reinforced returns this gate of a very sure handling.
The pillars of guidance are provided with nylon wheels, with side adjustment, ensuring a precise centering of the casement and a good bearing on the rail.
The wheels are out of galvanized steel, with ball bearings, in diameter 160.
The lock is out of stainless steel, with swivelling wing - what avoids possible deteriorations of the trowel. Roll Vermigli.
The thrust of stop is provided with a progressive rubber thrust.
|
|

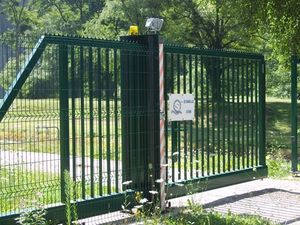

The self-supporting gate, still called gate cantilever, is a sliding gate which is characterized by the absence of rail on the ground.
The installation of this type of gate is extrèmement fast, since a longitudinal beam is not necessary and that only a principal solid mass intended is enough to support the rollers.
For the user, the advantages are the absence of rail on the ground, which involves:
the possibility of having an excavated central passage,
the absence of sudden start at the time of the passage of the vehicles,
no accumulation of died sheets, stones, etc, which end up degrading the operation of sliding on traditional rail.
The low beam is consisted the superposition of a rail in section 136x143 thickness 6 mm, and of a beam section 250x100 mm, thickness 4 Misters.
This type of assembly gives to the gate a very large vertical rigidity as well as side and prète particularly well with a motorization.
|
|
PRODUCED CONCEPT:
Aluminum range shaped conceived for the manufacture of sliding gates. The range of shaped aluminum SHAR-PEI enables you to answer all current esthetics: rights or in the shape of cocked hat, with various types of filling: with full or openwork blades, tubes or sheets...
|
|
