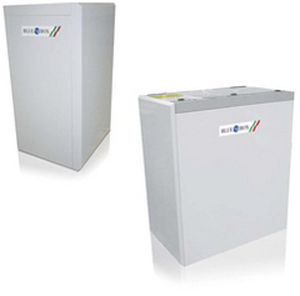

High-temperature ground-source (earth or groundwater) reversible heat pump for heating of individual homes and small businesses. Built with all the necessary hydraulic components on the sensor and emitter side. As it operates in the high temperature ranges (+65°C), it can be connected to emitters such as terminal units (e.g. fan coil units and water cassettes) or radiators. Specially designed to replace a boiler connected to radiators, with a water temperature difference of 20 K. May be installed in new or renovated housing and buildings to replace or be used in conjunction with a gas or oil-fired boiler. Provides complete autonomy and offers comfort and real energy savings when combined with a domestic hot-water tank and a buffer tank.
Seven models available
Heating capacity: 17 to 25 kW
- Complete packaged unit,
- Coated, corrosion-resistant galvanised steel casing,
- ABS exterior panel,
- Free-standing inside frame separated from main frame by vibration isolators,
- Scroll compressor,
- Water-cooled brazed plate heat exchangers,
- Hydraulic module on both exchangers, with accelerator pump and expansion vessel,
- Microprocessor-based control unit with MICROCONNECT two-wire remote control.
- Inrush current limiter as standard on single-phase model, as required by French standard NF C 15 100
- Domestic hot-water tank optional.
|
|
Chiller connectable to groundwater or underground loops or a medium-capacity dry cooler or cooling tower to cool residential buildings and commercial, industrial and healthcare facilities. May be connected to emitters such as underfloor heating and cooling systems, terminal units (such as fan coil units and water cassettes) or air handling units. Designed as standard for installation in heated or insulated enclosed rooms.
15 models available
- LGP: With air-cooled condenser
- ILG: Without condenser, may be connected to a dry air cooler.
Heating capacity from 40 to 415 kW
Cooling capacity: 35 to 350 kW
|
|

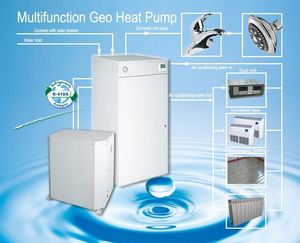

Ground source smart Combination heat pump 12KW,15KW,25KW
www.china-heatpump.com
info@china-heatpump.com
1.One solution for 1)Air conditioning heating 2)Air conditioning cooling 3)And Clean Sanitary Domestic Hot Water Heat Pump Heater.
2.Two Water Tanks Built Inside. Seperate Water Cycle For Air Conditioning and Domestic Water.
3. Four Times Energy Saving as Normal Gas or Petrol Heater.
4. 1/4 OF Normal electricicty power Bill Help You to Win the Whole Unit Free In One Year.
5. 80% Hydraulic parts are built inside to simply installation.
6. Recirculation Heat Pump technology enable slim size water tanks.
7. Super low temperature heating start to -25centigrade.
8. Can be connected with solar water heater system.
9. Fault self diagnosis and warning function.
|
|
|
|
|
|
Ageo
High-temperature ground-source (earth or groundwater) reversible heat pump for heating and cooling of individual homes and small businesses. Built with all the necessary hydraulic components on the sensor and emitter side. May be connected to emitters that radiate gentle heat, such as underfloor heating and cooling systems, terminal units (such as fan coil units and water cassettes) or low-temperature radiators
Seven models available
Heating capacity: 9 to 36 kW
Use:
Air-cooled chiller for cooling of individual homes and small businesses. Built with all the necessary hydraulic components on the sensor and emitter side. May be connected to emitters such as underfloor heating and cooling systems or terminal units (such as fan coil units and water cassettes, etc.).
- Complete packaged unit,
- Coated, corrosion-resistant galvanised steel casing,
- ABS exterior panel,
- Free-standing inside frame separated from main frame by vibration isolators,
- Scroll compressor,
- Water-cooled brazed plate heat exchangers,
- Hydraulic module on both exchangers, with accelerator pump and expansion vessel,
- Microprocessor-based control unit with MICROCONNECT two-wire remote control.
- Inrush current limiter as standard on single-phase model, as required by French standard NF C 15 100
- Domestic hot-water tank optional.
|
|
|
|
|
|
The company "MY Geothermics" with Velaines in strong Meuse of its experiment
decided to put on the market of the CAP in Geothermics and
Aquathermy, low and high temperature, its own heat pump.
Quality of manufacture and performance with return!
Let us speak to start of its design, body of color metallized black, aluminum mask brushed, version compact...
A true S.A.V carried out by the writing desk of research and development.
For the technique I let to you judge by you same,
Compressor COPELAND Scroll (EVI following model)
Regulation ELIWELL adapted to the customer requirements
Management of the remote regulation by WEB TO ADAPT
Circulators WILO with low fuel consumption of energy
Electronic pressure controllers low and high pressure EMERSON
Progressive starter EMERSON
Telemechanic protector TESYS
Filter dehydrator ALCO
Fluid R410A or R407C HydroFluoroCarbures
Controller of integrated flow
Surge tank integrated
Frame car carrying
Silent block under the CAP
Silent block under the frame Car carrying
Silent block under the compressor
True Soundproofing heavy insulation
Insulation of the drains gas
Temperature left water until 55°C in version low temperature
Temperature left water until 65°C in version high temperature
Possibility of production ECS on CAP
COP going up to 4.60 in 0/-3°C --- 30/35°C
COP going up to 6.28 in 10/6°C --- 30/35°C
CERTIFICATION PERFORMANCES MACHINES
According to the specifications IN 14-511
CERTIFICATION ISO 9001
Power from 6 to 28 kw
FRENCH manufacture
It any more but does not remain you to follow the bond towards the site of the manufacturer
|
|
The range SunéoR Giordano indifferently draws from the environment the solar energy stored in the air, the ground, water of ground water etc... it thus offers the advantage of being "Multicaptage", and will be fed in energy either by geothermic sensors, or by collecting on the air thanks to the innovating concept of the aerothermic sensor Giordano.
The range SunéoR Giordano adapts to all the types of heating, for an optimal effectiveness, it will be connected to a floor heating or of the radiators average temperature. In restoration, it will adapt to the existing installation
Produced advantages:
A highly respectful product of the environment with the lowest sound level of the market, a raised COP, a robust and reliable system with a Scroll compressor, a powerful regulation for a comfort and economies optimum.
Associated with a solar boiler Giordano, they ensure 100% of the needs for heating and domestic hot water and allow up to 80% of energy saving.
|
|
|
|
|
|
The company "MY Geothermics" with Velaines in strong Meuse of its experiment
decided to put on the market of the CAP in Geothermics and
Aquathermy, low and high temperature, its own heat pump.
Quality of manufacture and performance with return!
Let us speak to start of its design, body of color metallized black, aluminum mask brushed, version compact...
A true S.A.V carried out by the writing desk of research and development.
For the technique I let to you judge by you same,
Compressor COPELAND Scroll (EVI following model)
Regulation ELIWELL adapted to the customer requirements
Management of the remote regulation by WEB TO ADAPT
Circulators WILO with low fuel consumption of energy
Electronic pressure controllers low and high pressure EMERSON
Progressive starter EMERSON
Telemechanic protector TESYS
Filter dehydrator ALCO
Fluid R410A or R407C HydroFluoroCarbures
Controller of integrated flow
Surge tank integrated
Frame car carrying
Silent block under the CAP
Silent block under the frame Car carrying
Silent block under the compressor
True Soundproofing heavy insulation
Insulation of the drains gas
Temperature left water until 55°C in version low temperature
Temperature left water until 65°C in version high temperature
Possibility of production ECS on CAP
COP going up to 4.60 in 0/-3°C --- 30/35°C
COP going up to 6.28 in 10/6°C --- 30/35°C
CERTIFICATION PERFORMANCES MACHINES
According to the specifications IN 14-511
CERTIFICATION ISO 9001
Power from 6 to 28 kw
FRENCH manufacture
It any more but does not remain you to follow the bond towards the site of the manufacturer
|
|
|
|
|
|
Responsible Charles Dubant thermal research department,
Extremely on my experiment in the field of architecture, I decided to implement my knowledge in the field of renewable energies and the thermal studies.
Several formations were necessary to me to enable me today to be able to give you the best result with regard to marvellous field which is the heating of each one.
Today I insist on the importance of the approvals acquired by the company,
Qualipac being best approval European of the heat pump,
QUALIFELEC Electrothermics,
Promotelec the guarantee quality,
And of course EDF Blue Sky of which we are partner.
You are particular,
You want to know the power of heating necessary to your dwelling to be able to gauge your radiators.
To envisage your consumption of energy according to the type of insulation.
You are professional,
You want to give best services to your customer,
To finally be able to gauge the radiators or the heating floor according to
a real study of loss.
Thanks to software approved by the CSTB and respecting standards NRT 2005 and the rules INTO 12831 and according to your plans we can carry you out,
HPE
HPE EnR
THPE
THPE EnR
HQE B
HQE P
HQE TP
BBC
Study of Tic, C, Créf, Ubat, U...
RT 2005 for new project
RT 2008 for reabilitation and restoration
Thermal feasibility study
General thermal study and item by item
Plan of calepinage for heating floor
Calculation of the precise pressure losses on networks
Assessment of the CO2 rejections
Estimated of consumption of energies
|
|
The Zehnder Comfosystems are fresh air systems that recycle approx. 90% of the heat in the exhaust air and use it to heat the fresh air. This saves considerable heating costs. An upstream earth heat exchanger pre-conditions the outside air. This increases the effective heat recycling efficiency by another 4 to 5 %.
The earth heat exchanger systems Zehnder ComfoFond use the slow-changing temperature of the earth in approx. 1.50 to 2.00 m depth. In winter, the earth has an approximate temperature of 8°C, and warms the air before it reaches the ventilation system. In summer, the earth temperature is approx. 12°C and the principle works in reverse. The warm outside air is cooled in the earth and directly piped into the house. This cooling effect makes it possible to keep the windows closed and to keep the warm air outside.
|
|
TERMEO - Dual water heat exchanger system

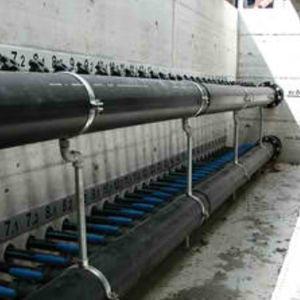

Ground heat is absorbed using buried loops, a system of plastic coils (cross-linked polyethylene) containing a mixture of water + antifreeze solution.
Three collector systems are available for all kind of external ground areas.
- The traditional horizontal collector will cover, depending of the climatic conditions, an area of 120 up to 150% of the floor surface area. The collector loops are buried 60 – 100cm below the ground.
- Vertical probe in case of very small or steeply sloping areas. Probe length could reach a 100m, even more.
- Ground water installations for small or sloping external areas. Underground water is taken from relatively shallow water reservoirs at a depth of 10 to 20 meters.
A hydraulic distribtution circuit transfers the useful heat into the house via a underfloor heating, radiatiors (maximum temperature of 47°C) or any other solution that uses hot water to transmit heat.
|
|
NATEA - the Total DEX technology (Direct Expansion)
Ground heat is absorbed using buried loops, a system of polyethylene-coated copper coils containing refrigerant fluid.
The loops are buried about 60 cm below the ground over a surface area that is 100% to 120% the size of the home to be heated.
The refrigerant fluid circulates continually through the outdoor and indoors coils. As the condensation process releases energy, the useful heat is transmitted by the loops in the home's flooring. The heating coils embedded in the floor are made of polyethylene-coated copper.
|
|
- High efficiency even in extreme winter conditions
- Optimized hot water production
- Leaving water temperature up to +65°C
- Integrated 180L tank
- Passive/Active cooling optional
- Aesthetic design
- User friendly control and monitoring system
- Stainless steel water tank
|
|
CALIANE - The single DEX technology (Direct Expansion)
Ground heat is absorbed using buried loops, a system of polyethylene-coated copper coils containing refrigerant fluid.
The loops are buried 60 cm below the ground, over a surface area that is 100% to 120% the size of the home to be heated.
A hydraulic distribution circuit transfers the useful heat into the house via a underfloor heating, radiators (maximum temperature of 47°C) or any other solution that uses hot water to transmit heat.
|
|

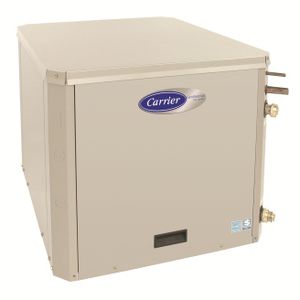

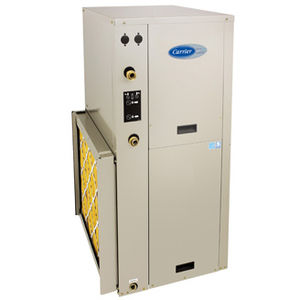

50RHC006-060 and 50RVC009-060 units cover Standard (60° to 95° F) range commercial waterloop (boiler/tower) new and replacement type applications.
All Commercial water-to-air Water Source Heat Pumps are packaged water-to-air units, which are factory wired, piped, charged with refrigerant R-22, tested, and ready for installation.
|
|
|
|
|
|

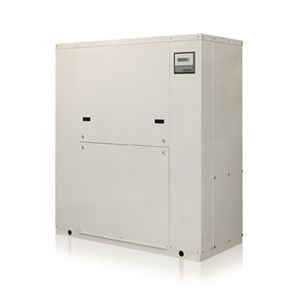

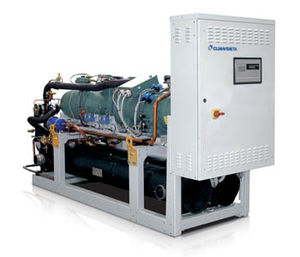

Water chiller
Water cooled
Indoor/outdoor installation
Capacity from 197 to 511 kW
The WSH-SC units belong to the SPINchiller family and therefore feature high energy efficiency, self-adaptation and reliability.
-Compactness: when designing the unit special attention was paid to reducing the dimensions of the front as much as possible. The width in the units up to 500 kW capacity has been reduced to just 85 cm so that they can pass through normal doorways.
-Special attention has been paid to making connection to the service system easy so that work requiring specialised personnel is drastically reduced thereby allowing installation costs to be cut considerably. This same policy ensured that attention was paid to easiness of controls and maintenance on all the most sensitive parts.
-EFFICIENCY that increases as the heating load decreases, while guaranteeing maximum requested load when necessary. SPINchiller always ensures maximum comfort with very high efficiency and consequently considerable energy savings;
-The particular abundance of optional accessories allows customisation of the unit, also for special requirements both in the civil and technological air-conditioning sphere. In particular the optional for the HydroPack water circulating unit, consistent with the concept of modularity, has several pumps in parallel (up to 3), to monitor the system load variations better and to regulate the water flow in the critical system starting (or restarting) stages so that outside servicing is avoided.
|
|
|
|
|
|
Water chiller
WDH: cooling only
Water cooled
Indoor installation
Capacity from 408 to 1537 kW
The experience gained by Clivet in the high-capacity chiller sector has resulted in the WDH series, with the following features:
-EFFICIENCY - Eurovent energy efficiency Class A and B thanks to the new high capacity screw compressors and to the shell-and-tube exchangers specially developed for the gas R-134a: the best compromise to boost efficiency while limiting costs. The compressors are managed with continuous adjustment of the capacity. The heat exchangers are specifically sized for best adaptation to the other parts of the refrigerant circuit. The latter is fitted with an economiser exchanger for further operating efficiency;
-SELF-ADAPTATION - New, modern and intelligent electronic control directly developed by Clivet. This customisation allows better management of all the circuit components.Continual adapting of chiller operating parameters to the load conditions of the system in which it is installed reduces consumption while the working life of the parts increases;
-STURDINESS - Load-bearing frame in enamelled hot-galvanised sheet metal with semi-hermetic double-screw compressors and shell-and-tube evaporator ensuring reliability and constant performance.
These units may be combined with the dry coolers of the REM series.
|
|
EHW Residential heat pump
Water-water chiller with water circulating assembly utility side
Optional: Remote controller (cod. 07225040).
Optional: Pressure valve for cooling mode (part no. 07225010 or part no. 07225020), for reducing condenser water consumption. In chiller heat pumps, this valve must be by-passed by another valve when the unit i
|
|
Energy from the ground can be used by a heat pump to provide useful energy to heat the home. Ground source heat pumps offer excellent energy savings as up to 75% energy for heating can be extracted from the ground.
geoTHERM is the ideal solution for heating your home. geoTHERM can be connected to a suitable high performance hot water cylinder for domestic hot water and to an underfloor heating or radiator system for space heating.
|
|
Energy from the ground can be used by a heat pump to provide useful energy to heat the home. Ground source heat pumps offer excellent energy savings as up to 75% energy for heating can be extracted from the ground.
geoTHERM ground source heat pumps are the ideal solution for heating your home. They can be connected to a suitable high performance hot water cylinder for domestic hot water and to an underfloor heating or radiator system for space heating.
geoTHERM exclusive offers a complete solution to your home comfort providing heat in the winter, cooling in the summer and domestic hot water throughout the year, all from a single unit.
|
|
| ... products without information |
| |
... see all the products in the category
Heat pumps
|

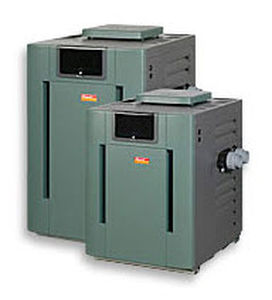

Sofath pool heating: Increase the pleasure decrease the costs. Sofath geothermal heating is also available in an integrated package to heat your swimming pool.
The thermal heat exchanger uses your geothermal heating to provide an agreeable water temperature and a longer bathing season with all the cost advantages of geothermal.
|
|
|
|
