Product Attributes
For areas where an open cell design is required, the Visual range offers 2 cell sizes for installation on 15mm grid. Visual tiles provide a monolithic ceiling appearance and integrates effectively with recessed luminaires, custom made downlighters and air handling diffusers.
|
|
DESCRIPTION
With a solid position in the field of open cell ceiling for years now, the model BASE 15 is distinguished essentially by the composition of the panel, composed of elements with a greater visible surface and lateral closure profiles to rest on visible structure base 15.
TECHNICAL SPECIFICATIONS
False ceiling realised in pre-painted aluminium with a thickness of 0.5 mm. The load-bearing structure with a reverse-T cross section (Steel Strong Atena - Steel Strong Easy Base 15) constitutes a square mesh measuring 600x600 mm upon which will rest the grille panel composed of elements (TM and TF) with a U-shaped cross section with height 37.5 mm and base 15 mm which intersect with one another to form the desired mesh. The panel is supplied with a slotted lateral element to be inserted for the closure of the four sides of the grille created. The load-bearing structure will be hung from the ceiling using stiff suspension wires Ø4 adjusted by springs. On the edge, an edge profile will be applied, with an L-shaped or C-shaped section and in the same colour as the grille.
|
|

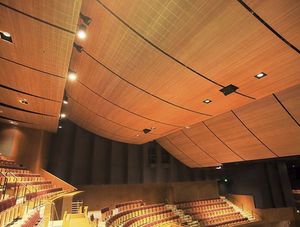

Haver & Boecker Woven Wire Cloth offers an array of exciting design-oriented solutions for creative ceiling projects. With individual aesthetic features and reliable functionality:
* segment-, roll- or frame-constructions
* integrated lighting systems
* acoustic systems
* enclosures concealing technical installations
* fire protection
Project Example: Airport Düsseldorf
The ceiling mounted sprinkler system is elegantly concealed behind non-combustible wire cloth elements, and at the same time is unimpaired in it's functions.
The wire cloth elements made from DOKAWELL-MONO 8965 cover an area of approximately 20,000 square meters. Each element was individually tested in our factory for uniform sagging. The unique fixing system uses slotted profiles and allows each individual element to be easily moved for access and maintenance work.
|
|

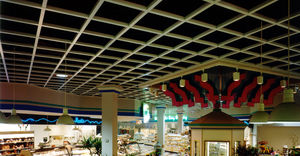

Our open-cell ceilings help define a space and create interesting shadows and lighting effects. Available in a range of sizes and colours, our cell ceilings provide a plenum mask that emphasizes creativity. We offer two open cell ceilings: Cell systems, a fully flexible, modular system Cell tiles, a standard-sized product
Cell systems create a spacious appearance ideal for spaces where open, light constructions are desired. These systems make it easy to create different modules in one ceiling.
• Sliding Clip, hook-in or swing-down system
• Modules from 50 x 50 to 200 x 300 mm
• Cell heights from 22 to 56 mm
• Options for very small plenum depths
• Design combinations of cell 22 and 50 are possible Cell tiles are open
ceilings with a modern, distinctive character. The tiles are suitable for
the universal T-grid system.
• T-grid suspension system
• Tiles 600 x 600 mm or 600 x 1200 mm
• Four different designs for Unigrid
• Lay-on, Lay-in or concealed
|
|
REFLEX is the aluminium open cell ceiling system developed on a new concept.
Thanks to its "V" parabolic shape profiles and the material employed (anti-iridescent semi-specular, anodised aluminium), REFLEX is ideai for settings requiring a high light intensity, like rooms equipped with video terminals, showrooms, shops, banks, etc.
REFLEX ensures a ceiling system with high quality lighting technology and great architectural effect.
FEATURES
REFLEX features 800x800 or 1200x600 mm modular panels, made of "V" profiles 30 mm high, which suitably assembled form a square cell. Standard celi size 50x50 mm. Height 30 mm. Upon request, special modules and celi sizes are available.
The REFLEX blades are made by BENDING SYSTEM, which gives: the accuracy of profiles, more square edges and blades perfectly straight.
REFLEX is usually supplied in anti-iridescent semispecular anodised aluminium or gold finish.
REFLEX - LlGHTING SYSTEM
REFLEX excludes any glare, both direct and indirect.
The special paraboliticity of the grill prevents the direct giare and the reflection of lighting on the ceiling surface.
Thanks to its lighting technology, REFLEX has the double effect of a diffuser for artificial lighting and a diffuser for natural light, with energy saving thanks.
|
|
TETRÀL s15 & s24 are the aluminium open cell ceilings inspired in the classic wooden grid, made up of "U" shaped profiles with a width of 15 or 24 mm and height of 40/50 or 35 mm.
Specifically designed to fit into standard 15 or 24 mm wide T-grids, they provide a trackless appearance of the ceiling.
TETRÀL s15 & s24 are high quality products for easiest placement and removal of the panels.
FEATURES
TETRÀL s15 & s24 mm feature 600x600 mm modular panels, made up of "U" shaped profiles with 15 and 24 mm base, which suitably coupled form a square cell, to be inserted in a frame.
Cell sizes from 60x60 mm up to 300x300 mm.
Heights 30/40/50 mm (s15) and 35 mm (s24).
TETRÀL s15 & s24 blades are made by BENDING SYSTEM, which gives: the accuracy of profiles, more square edges and blades perfectly straight.
TETRÀL s15 & s24 mm can be supplied either plain or perforated, to achieve aesthetic and acoustic requirements.
Standard perforation patterns are as follows:
hole Ø 1,50 mm, 22% free opening, 3 mm pitch
hole Ø 2,50 mm, 19% free opening, 5 mm pitch.
A wide range of finishes either from pre-painted or post-painted aluminium is available, according to the RAL, NCS, PANTONE and SIKKENS colours.
|
|
GRIGLIATI are the monoblade aluminium open cell ceilings made of assembled strips to form square or rectangular cells. Their effect is highly decorative, allowing for an indirect diffusion of light. The small cells make GRIGLIATI suitable for many applications, like covering air condition machinery, lift application, vertical mounting and decoration.
FEATURES
GRIGLIATI are mainly provided in 3 variations: OR1, ORi and ORs depending on the face of the celi provided.
OR1: the face is flat
ORi: the face is flat with inclined strips
ORs: the face is cubico
GRIGLIATI feature 1200x600 mm modular panels, made up of aluminium strips, which suitably assembled form square celi with a dimension and height depending on application.
Celi sizes from 13x13 mm up to 150x150 mm. Heights from 13 mm up to 80 mm.
GRIGLIATI can be supplied either plain or perforated, to achieve aesthetic and acoustic requirements, Standard perforation patterns are as follows:
hole Ø 1,50 mm, 22% free opening, 3 mm Pitch
hole Ø 2.50 mm, 19% free opening, 5 mm Pitch
A wide range of finishes either from pre-painted or post-painted aluminium is available, according to the RAL, NCS, PANTONE and SIKKENS colours. Enamelled after assembly, GRIGLIATI are designed not to show uncoated edges.
|
|

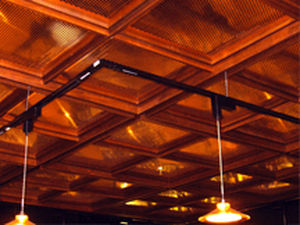

Type F.
It is a strong stiff wire cloth. It has a relatively flat surface allowing for excellent light reflection.
|
|

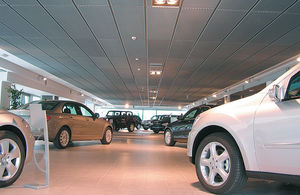

PROMETAL® open cell ceilings are particularly suitable for entrances, large public areas, shopping centres, etc.
Smokes can be extracted through the grid design, which also hides the relevant systems and at the same time provides a uninterrupted, uniform overall look.
|
|
Electrogalvanized steel panels, th. 0,6 - 0,7 - 0,8 mm, rectangular shape: width from 300 to 600 mm and length up to mm 1900 - square shape: up to 1170x1170 mm. As an alternative, grated panels Alugrid with customised sizes.
Electrogalvanized steel structure th. 1 mm, standard width 100 and 200 mm and length up to 1900 mm. Crossing links in standard sizes: 100x100 mm and 200x200 mm (side drawings of link-structure-panel unit).
Powder painting 70-80 microns.
Standard col. Ral 9010.
Minimum air space overall dimensions: mm. 100.
Flexibility: it allows for the composition of a pratically andless number of units, with aquare or rectangular panels, with straight or chamfered edges.
Simple and quick installation.
Full inspection of the false ceiling and easy access to the air space, without any tool.
Comlement lighting fixtures, both in panels and structure.
Location of partitioning walls under the structural elements, acting as counterpush.
Sound-proofing:
horizontal, by the insertion of soundproof panels on the whole surface of the false ceiling.
Vertical: by inserting plaster/paper sound-proof baffles at the walls.
Acoustic absorption:
different holes (see table) are available to the purpose, making the false ceiling soundproof together with soundproofing materials: specially suitable is the black Soundtex "paper tissue" film that dramatically reduces reverberation time and noise levels in general (see acoustic certifications).
|
|

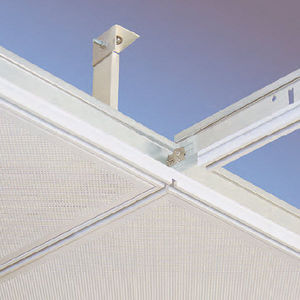

Sterling Crown is recognized in Malaysia as one of the leading manufacturer of Ceiling systems. We have been supplying the building and architectural industry with the finest quality of exposed Lay-in grid Metal Ceiling Suspension Systems (also known as T-Bar suspension systems). The main components of the system are manufactured from hot-dipped galvanized steel and capped with pre-painted galvanized steel.
It comprises of self-interlocking main tees, cross tees and wall angles which are designed to provide optimum benefit in strength and durability. The grids are termite resistant and are supplied with clean finish to enhance in its structural stability and aesthetic value.
The grids are fully engineered and tested to meet International standards and are available in both Intermediate and Heavy Duty Series to meet various load carrying capabilities depending on your client’s requirement. Our tees have a straight push-in locking system designed for ease of installation and removal. The hanger holes in the grid bulb and body provide complete installation flexibility. Available in white or natural aluminium finish, Sterling Crown tees are designed to provide maximum corrosion resistance.
|
|

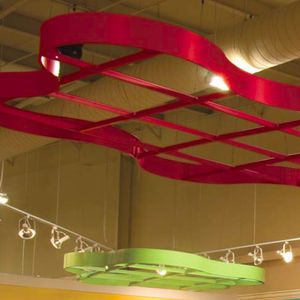

Folding technology, bending technology and domes for innovative cover organization.
Prefabricated elements with V-milling as folding technology, curved plates, form disk elements and parallel slitting as bending technology, kits for domes.
|
|
| ... products without information |
| |
Tartan-grid systems are especially suited to large rooms in which longitudinal or transverse subdivision is desired.
Rectangular or square panels and commercial lighting systems in various designs and shapes offer a host of different options for the visual and functional design of such ceilings. The grid accentuation by crossing boxes and trim strips can be further emphasized by the use of appropriate colours. Extremely decorative highlights can be achieved by the use of pyramid-shaded and oversized panels. Partition walls of various designs can easily be situated, relocated and removed under trim strips. Longitudinal and transverse walls meet one another beneath a crossing box. This makes it possible to create any configuration of square or rectangular office spaces within a selected grid area.
To find out more about the tartan-grid system series, select a system from the options above. These are classified by their suspension mode:
K-H Hook-on systems
K-C Clip-in systems
|
|
|
|
