These touch-free dryers offer contemporary architectural styling. The 100mm projection complies with most barrier free requirements. The Surface-Mounted installation makes the new hand dryers ideal for additions or after-market renovations. Available in white coated steel (B-7120) or satin finish stainless steel (B-7128), these dryers enhance the look of any washroom. 115V or 230V.
|
|
Touch free controlled hand dryer "Mr. Twister" for wall mounting, electronic warm air hand dryer, made of stainless steel, surface satin finished with InoxPlus surface refinement for the reduction of finger marks and better cleaning characteristic (easy to clean), material thickness 2 mm, casing with revolving shadow gap and curved profile, infrared sensor activity for non-touch operation, drip proof IPX1, sensor range adjustable from 5 to 33 cm, automatic power shut-off after 60 seconds, due to the extreme high adjustable air velocity the drying time is shortened massive although the blower output is not that high, cable and plug not included, incl. screws and dowels.
Electrical data: 230V, 50 Hz
Total output: 1500 W
Heating: 800W
Motor: 700W
Blower output: 120 m³/h
Air velocity 75-110 m/s
340x180x300 mm
|
|
Vitreous enamel, drawn-steel cover, white only.
115V AC, 20 Amp, 2300 Watts, 50/60 Hz, or 208-240V AC, 9-10 Amp. 1900-2300 Watts, 50/60 Hz, VDE approved and CE marked.
Limited warranty: motor brushes for 3 years; all other parts for 10 years.
Patented.
Installation: Automatic hand dryers should be installed 15" (380mm) above any projection or horizontal surface which may interfere with the operation of the automatic sensor.
|
|
Surface mounting.
Suitable for very high traffic facilities.
Ideal location: between the wash-basin and exit.
If installing automatic dryers over marble surface or ledge, the minimum distance from the dryer to the ledge must be 400 mm.
|
|
|

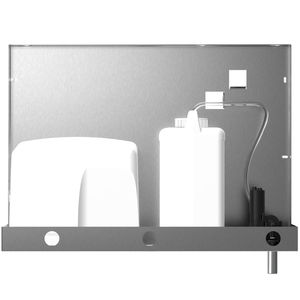

All-in-one wash place sanitary module for touch free, opto-electronic controlled dispensing mechanism for water, soap and hand dryer. Pre-manufactured modulary system for mounting into self support installation systems. Mounting plate incl. premounted electronic control system for dispensing temperature controlled water, soap and air. Foldable mirror incl. gas fi lled spring device. Stainless steel covers incl. three integrated sensors above wash basin. two spouts for water, soap and air outlet. Stainless steel covers contain upper and lower wall covering, material thickness 1.5 mm, rounded edges, incl. fi xing construction and fl oor completion sheet.
|
|
Hand dryers
- Maximum durability
- Infra-red sensor / auto shut-off
- Brushed metal housing
- TÜV approved
|
|
Making a hand dryer that works properly doesn't happen overnight.
In fact, Dyson engineers spent 3 years creating Dyson AirbladeTM. During that time they applied and developed entirely new types of technology.
|
|
Ref.: 49.24.04
Use: Medical buildings
Conditioning: Unit
Capacity: None
Completion/Color: brushed stainless
Category: B
0
Stainless hand dryers brushed AISI 304, thickness 1,5 mm
Automatic operation by electronic cell IR - IP 21
Classify II (connection 2 wire without grounding) - 220/240 V
1.640 W - Engine: 140 W
Air flow at exit of tube: 240 m3/H (4.000 l/min.)
Production of air of the fan: 280 m3/H (4670 l/min.)
Sound level: 60 dB (calculated at a distance of 5 meters)
Velocity emission of air: 65 km/h
Time of drying: 38 '' - Resistance: 1.500 W
Temperature at a distance of 10 cm: 52°C - Thermostat of security
Dimensions: 302 X 255 X 140 mm
Weight: 4,25 kilos
|
|

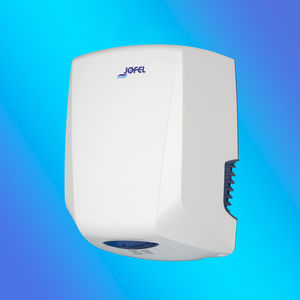

Hand dryers electronics with cell will infra red in white ABS.
Quality ratio/prices excels.
IP 21 - Classify II - Thickness of the body: 3 mm
Power: 1.640 W - Resistance: 1.500 W - Engine: 140 W
Air flow: 240 m3/H - Production of air of the fan: 280 m3/H
Sound level: 60 dB
Time of drying: 38 "
Guarantee 2 years
Dimensions: 302 X 253 X 153 mm
Weight: 3 kilos
|
|
|
|
|
|

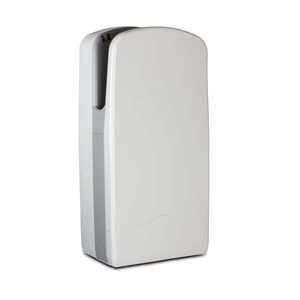

Hand dryers DUALFLOW new generation effectively dry the hands into 10 to 15 seconds thanks to the micro propulsion of a flow of massing air diffused at high speed.
Esthetics: of a design innovating and elegant, it is integrated harmoniously into all the styles of decoration.
Hygienic: its surface of drying is made up of a microbial anti material to prevent the development of the revivifiable bacteria.
Envisaging: an internal vat recovers free water of drying, to leave the impeccable places and to avoid the risks of slips. A sound and visual alarm informs you when the vat must be emptied (approximately 2000 and 2500 cycles).
Robust: it is conceived out of resistant super material for the most significant public places.
Comfortable and easy to use: Put your hands wet vertically in the part open in top of the hand dryers. Detectors are carefully placed in order to activate the air blasts dice detection of the presence of your hands. The hand dryers will function until the hands are withdrawn. If the hands are held during an excessive time, the hand dryers will stop after 23 seconds.
Classify II - IP 33
Body in ABS high 3 mm thickness strength (completion white ABS or ABS glossed color stainless)
Power engine: 880 W - Very high speed 30000 tours/mn, class F
Number of words: 2
Protector "microban" antibactérienne
Filter deodorizing in option
Time of drying short and effective - High efficiency - easy Maintenance and absence of waste - Low fuel consumption - Ecological
Conform to the European standards.
|
|
Hand dryers electronics out of stainless AISI 304 glossed completion (exists out of white epoxy steel)
These hand dryers extraplat are integrated in any exiguous room.
The time of drying is high-speed
Thickness of the body: 1,5 mm (4 provided fastening screws)
Automatic operation by electronic cell IR - IP 23
Classify I - 100-120 V (9,5 A)
1.150 W - Engine 250 W - 50/60 Hz
Temporization: 120 "
Very powerful engine (adjustable speed manually by potentiometer)
Air flow at exit of tube: 61-98 m3/H (1.012-1.632 L/min.)
Production of air of the fan: 73-118 m3/H (1.215-1.958 L/min.)
Sound level (to 2 m): 64-74 dB
Velocity emission of air: 90-180 km/h
Time of drying: 10-12 ''
Temperature at a distance of 10 cm: 41-44°C - Thermostat of security
Dimensions: 289 X 266 X 100 mm
Weight: 3,6 kilos
Conform to the European standards 73/23/CEE and 89/336/CEE
Antivandalism - High strength
Guarantee 3 years
|
|
FEATURES:
- Quick Drying - Under 30 Seconds
- No Touch - Energy Efficient Operation
- Universal Voltage - Automatically Adjusts
- Modern Design and Durable
Electrical Specifications:
Motor: 1/4 HP - 7500 RPM - Brush Type
Voltage: 100-240 %u2013 50/60 Hz
Air Output: 180 CFM - Temp: 140° F (60° C)
Heater: 1620 Watts
Current: 16 Amps @ 120 Vac
Color Options:
Grey (see color chart)
Add suffix to Model Number.
White is standard if no color is indicated.
|
|
Hand dryers - Serie FastFlow
Casing:
Aluminium, 2 mm thickness.
Casing finish:
Polished chrome.
Operation:
Electronic sensor.
Anti-vandalism structure.
|
|
XLerator® model for ultra-fast drying, surface mounting
- Series commutated, through-flow discharge, vacuum type motor/blower combination
- Infrared Optical Sensor with thirty-five (35) second lockout feature
- Air velocity of 16,000 LFM (linear feet per minute) at an outlet temperature of 135°F/57°C at a 72°F/22°C ambient room temperature
- Decibel Rating of 78-80 dB
- Heating element constructed of Nichrome wire and protected by an automatic resetting thermostat
- One-piece heavy-duty rib reinforced die cast zinc alloy housing
- Bright chrome plate or chip-proof electrostatically-applied epoxy finish
- Tamper-proof cover fasteners are included
|
|
