POROTHERM brick ceilings
Brick ceilings - 6 walls of brick
Brick ceilings create the ideal conditions for a healthy and comfortable room climate, whereby solid brick ceilings and floors are particularly well suited for single family homes.
Brick ceilings offer many advantages:
- simple, quick, economic and safe to use; uniform plastering base of walls and ceiling
- healthy and comfortable indoor climate thanks to an optimal storage capacity
- favourable biological construction properties thanks to the low content of concrete and reinforcement
- highest flexibility in planning and use thanks to the simple system components of "load-bearing beams and inlay bricks"
|
|
POROTHERM - load bearing and non load bearing inner walls
The ideal combination of optimal fire and sound protection as well as high thermal insulation
Advantages of load-bearing internal walls made from POROTHERM clay blocks
- uniform plastering base
- high level of fire, sound and heat protection
- simple and safe fixing options
- high static safety
Advantages of non load-bearing walls made from POROTHERM clay blocks
- uniform plastering base across the entire basic construction (external and internal walls)
- high level of fire protection (F90 with a wall thickness starting at just 8 cm)
|
|
|
|
|
|
POROTHERM clay blocks for exterior walls
There are four variants for external walls made of clay blocks
The monolithic external wall
consists of just one wall construction material (other than plaster and mortar). Here, the POROTHORM clay block fulfils the requirements for thermal insulation, sound insulation, fire protection and static as well as ensuring a pleasant indoor climate.
The cavity wall with facing bricks
This type of cavity wall is one of the most important external wall constructions in many European countries.
The logical separation of the external wall by function into:
-a load-bearing clay block wall
-a thermal insulation layer incl. back ventilation
-a façade made from facing bricks
allows the outstanding properties of the load-bearing clay block wall and the facing bricks to be fully exploited.
The cavity wall with a plaster façade
In this type of cavity wall construction, the façade is not made of facing bricks, but of plastered 10 or 12 cm POROTHERM clay block.
The external wall with additional thermal insulation
An additional layer of thermal insulation is applied externally to a load-bearing POROTHERM clay block wall. In a construction with additional heat insulation, the POROTHERM clay block takes over not only the static functions, but also those of sound insulation and heat storage.
|
|
|
|
|
|
The new generation: POROTHERM flat clay block
- Systematic construction: The heat optimised POROTHERM clay blocks are ground flat on both sides in a computer-controlled process. Bricklaying is precise, simple and quick. The use of just 1 mm special mortar ensures optimal thermal insulation and minimal damp; the basic building is virtually dry and ready to move into earlier.
- Quick and simple use: The special mortar is applied with a roller; afterwards, the flat clay blocks are simply placed onto each other one by one. In addition to quick handling and the rapid progress of construction, the mortar allows up to 10,000 litres of wet mortar to be saved on an average single-family house, thereby reducing the humidity in the brickwork.
- Precise and clean brickwork: Using the POROTHERM flat clay block system for all external and internal walls allows visually perfect, clean and stainless brickwork to be erected. A basic flat clay block construction has a high-quality appearance, even from a distance.
|
|
|
These bricks can be used as an internal or external wall cladding for bricks or concrete surfaces. For bearing walls, jambs, pillars, lintels, clad partitions.
|
|
|
Pale Yellow, Antique Rose, Red, Shaded and Waved: these are the colours of the Pica facing brick. Following a 50-year-old tradition, Pica produces over 20 types of facing brick in 4 colours, 6 finishes and 4 formats. Colours: natural or pigmented. Finishes: Plain, Smooth Sand-faced, Sand-faced, Rusticated or Coarse Sand-faced and Waved. Formats: the widest range on the market. The facing brick range is completed by extruded pieces: Listellos, Slip Bricks, and Corner Slip Bricks, essential complements. The Pica Facing Brick meets the highest quality demands (thermal inertia, immunity to weather conditions, sound insulation and mechanical resistance); it is easy to lay, thanks to the chamfer along each edge, that not only ensures a heightened aesthetic effect, but also preserves the brick from any damage caused in transit and handling on site.
|
|
|
They are defined in the hollow brick, to be put to work with the holes perpendicular to the plane shutter. their share of drilling varies between 15 and 45%. they are used mainly for the construction of masonry load-bearing, and in some cases even as tamponade.
|
|
Dimensions
40x20x15
Weight
7,500 kg
Units/m2
12,50
|
|
Type of material
BASE 19
Dimensions
L A E
30x19x19 75
Units/
pallet
75
Weight/unit kg
8,500
Units/
m2
16,6
|
|
Dimensions
24x11x10
Weight
2,150 kg
Units/m2
34,72
|
|
|
BASE 29 30x19x29 45 12,600 16,6
|
|
|
They are defined in the hollow brick, to be put to work with the holes perpendicular to the plane shutter. the percentage varies drilling exceed 45%. they are used mainly for the construction of masonry shells.
|
|
Dimensions
24x11x5
Weight
1,560 kg
Units/m2
69,44
|
|
OPTIBRIC STATEMENT 15
Dim. L X L X H (mm) 500x274x150
Assembly
Thin joint
Quantité/m2
7,2
Unit weight
16,9 kg
Quantity/pallet
64
No installation
27,5 cm
Thickness of the horizontal joint
1 mm
Accessories
Optibric statement 15 of calepinage JM + Lintel
Thermal resistance
0,68 m ² K/W
Mechanical resistance
7 MPA
Nonseismic area
Quantity of mortar JM: HORIZONTAL joint ONLY 0,72 bag/pallet - not delivered with brick
Seismic area
Quantity of mortar JM: HORIZONTAL AND VERTICAL joint 1,04 bag/pallet - not delivered with brick
|
|
|
The brick Monomur Gelis is an insulating carrying brick (with insulation distributed), inalterable, rectified faces.
|
|
|
Insulating carrying brick (with insulation distributed), inalterable, rectified faces.
|
|
OPTIBRIC
Dim. L X L X H (mm) 560x200x274
Reference ref. 270 and 271G
Quantité/m2
6,5
Unit weight
18,5 kg
Quantity/pallet
64
Assembly
Thin joint
No installation
27,5 cm
Thickness of the horizontal joint
1 mm
Quantity of mortier/m ²
1,3 kg of thin mortar joint, NOT BOOK WITH BRICK
Mechanical resistance
4 Mpa
Thermal resistance
0,75 m ² k/w (throat not filled)
0.71 m ² k/w (throat filled)
Soundproofing
cf.consultez the list of statement
Protector sets fire to
Classification noncombustible A1 material
Coating %u2013 Classification of
support d%u2019enduit
Support A. Apte to receive all the d%u2019enduits types
Certification
Technical opinion 16/03-451
Thermal certification opinion CTAT n°52
Use Brick for realization of load-bearing walls frontage (insulation to be paid) and cross walls for all types of buildings (houses, apartment building, ERP...)
|
|
UNCHANGED BY THE PASSING TIME
The behaviour of Klinker Greco facing brick in the face of the problems generally suffered by traditional ceramics is unbeatable:
Norms for the correct use of klinker Greco.
We can only give two pieces of advice:
- Do not wet the bricks before placement, thanks to its low suction, for the agility of the construction and correct setting of the mortar, it is not necessary as in other traditional ceramics to maintain it in water.
- Mix bricks of two or therr pallets to archieve a harmonic effect for the facade, as a variety of tones sets off the beaty of the product.
Rustic brick
SIZE: 24x11,5x5 / 27,8x3x5
WEIGHT/PALLET:
965kg / 853kg
|
|
UNCHANGED BY THE PASSING TIME
The behaviour of Klinker Greco facing brick in the face of the problems generally suffered by traditional ceramics is unbeatable:
Norms for the correct use of klinker Greco.
We can only give two pieces of advice:
- Do not wet the bricks before placement, thanks to its low suction, for the agility of the construction and correct setting of the mortar, it is not necessary as in other traditional ceramics to maintain it in water.
- Mix bricks of two or therr pallets to archieve a harmonic effect for the facade, as a variety of tones sets off the beaty of the product.

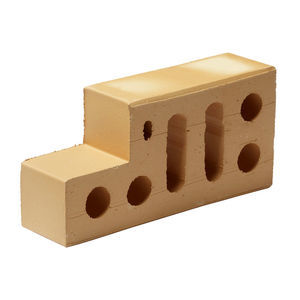

brick angle (136º)
SIZE: 29,5x12,5x5
WEIGHT/PALLET:
611kg
|
|
| ... products without information |
| |
| ... products without information |
| |
Under the TERCA brand, Wienerberger offers a diverse selection of facing bricks,engineering bricks and paving bricks. This extensive selection opens up unlimited possibilities in the design of facades, surfaces, paths, courtyards and gardens.
Engineering bricks are produced by firing at temperatures above 1100 degrees Celsius. At these temperatures, the brick begins to melt, called "sintering". The fine pores in the raw material close. The finished engineering quality brick has an extremely high density and is very hard and frost-resistant. Water cannot penetrate, thus being impervious to moisture.
|
|
Under the TERCA brand, Wienerberger offers a diverse selection of facing bricks,engineering bricks and paving bricks. This extensive selection opens up unlimited possibilities in the design of facades, surfaces, paths, courtyards and gardens.
TERCA extruded bricks from Wienerberger are produced through extrusion of the carefully prepared clay. This gives them clear edges and smooth surfaces to which additional texturing can be added through sanding, milling, engobing, glazing or brushing. It is also possible to give them an "antique" look through subsequent tumbling of the bricks.
|
|
|
|
