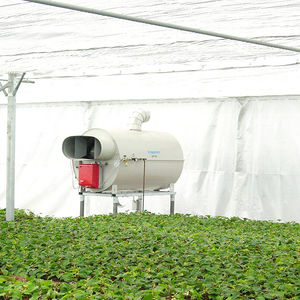

Farming hot air generator completely autonomous with heating gas oil, natural gas or liquefied petroleum gases (butane gas, propane gas) operation.
These equipments function is that one of heating the environmental air by means of the thermal energy produced by the equipment.
The produced heat is driven to the premises that must be conditioned by means of two centrifugal fans.
The combustion products are extracted through a chimney in order to ensure that the driven hot air is exempt of smokes and bad smells.
The main features are the following ones:
-Heating gas oil, natural gas or liquefied petroleum gases operation.
-Closet made with galvanised sheet, covered with polyester dust and dried in the oven at 200ºC.
-Combustion oven designed for obtaining a performance of 92%.
-Electronic control with a display of the temperature driven to the premises.
-Environmental thermostat with a five-meter hose included in the equipment.
-Double deflection air impulsion grid.
-There is the possibility of coupling a digital time-programmer in order to start the equipment up and stop it automatically according to users’ necessities.
FUEL:
Heating gas oil /natural gas /LPG
APPLICATIONS:
Small and medium industry, material warehouses, greenhouses, farms and any premises with a volume between 860m3 and 1.420m3 approximately
DESCRIPTION:
Completely autonomous industrial hot air generator that operates with heating gas oil, natural gas or petroleum liquefied gases (butane gas, propane gas).
These equipments function is that one of heating the environmental air by using the thermal energy produced by the equipment. The produced heat is driven to the premises that must be conditioned by means of one or two centrifugal fans.
Combustion products are extracted through a chimney in order to ensure that the driven hot air is exempt of smokes and bad smells.
The main features are the following ones:
- Heating gas oil, natural gas or petroleum liquefied gases operation.
- Closet made with galvanised sheet with polyester dust cover and dried in the oven at 200ºC.
- Combustion oven designed for obtaining a performance of 90%.
- Electronic control with a viewer of the temperature driven into the local.
- Environmental thermostat included in the equipment.
- Base equipment prepared for being connected to air distribution pipes. You can ask for a four-direction air distribution box with air directional grids.
- Possibility of joining a digital hour programmer for starting the equipment up and stopping it according to user necessities.
FUEL:
Heating gas oil / natural gas / LPG
APPLICATIONS:
Medium and big industries, events marquees, greenhouses, farms and whatever premises with a volume between 2.000 and 3.115 m3 approximately.
Leader in the production of quality residential generators, Aircalo proposes 3 models from17 to 29 kW for operation with natural gas or propane.
- Languedoc 150 ME Power 17.4 kW
- Languedoc 200 ME Power 23.4 kW
- Languedoc 250 ME Power 29.0 kW
This type of equipment is fitted with integrated atmospheric burner, electronically fired, and manual reset on façade. This range originates from the analysis of the new thermal and acoustic requirements and take into account the main criteria :
- Simplicity of use and maintenance
- Money saving operation
- High efficiency up to 90 % depending upon the type of equipment
- Reduce dimensions
- Material that can be recycled up to 95 %
- Ergonomic design
- Best quality vs price ratio.
They are used particularly for the heating of small volumes such as residences, vocation centres, conference house, shops...
-Small size indirect fired heaters
-Low speed axial fan ( 900 rpm )
to reduce noise levels
-High efficiency heat exchanger with a 4 tube circuit
-Sealed combustion with automatic ignition
-Multiple torch burners in sealed section
-Fumes extraction fan allows direct evacuation to the
building facia ( concentric wall exhaust ) or connection
via a flue ( concentric roof exhaust or simple chimney )
-Power supply in 230 V single phase
-Double deflection air supply grill
-Low weight to reduce the constraints of support frames
-Automatic fan thermostat
-Overheating thermostats ( automatic + manual )
-Controlled via a pilot wire : only 1 thermostat ( optional )
is necessary to operate up to 6 heaters
-Ionisation permanent flame control
-Gas pressure supply: 20 or 25 mbar ( natural gas ) or 37 mbar ( propane gas )
-Indirect fired heaters
-Double steel panels for thermo-acoustic insulation
-Stainless steel combustion chamber operating
with flame inversion system
-Highly efficient heat exchanger with inspection hatch
and stainless steel vanes
-Sealed electrical control panel with protections
-Function selector 3 positions: fan only / stop / heating + fan
-Automatic burners with high pressure fuel pump and fuel
filter with simply cleaning cartridge without replacement
-High pressure centrifugal fan installed on silent blocks
-Control fan thermostat
-Overheating thermostat
-360° pivoting air outlet with adjustable horizontal deflectors
-4 way air outlet plenum available ( optional )
-Power supply in 230 V single phase

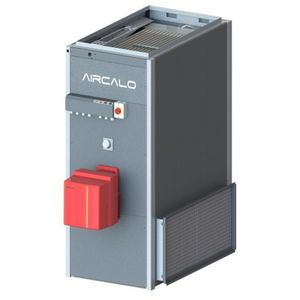

Our new range of hot air generator Aircalo series “Aquitaine 2000” of modern design and production meet present technical installation and use requirements.
This equipment is in accordance with European directive related to gas fired equipment 90/396/CEE under n° 49AQ1369 and 1370 and electro-magnetic compatibility CEM 89/336/CEE and low voltage 73/23/CEE.
No asbestos based or derivates are used in the production. This new range of 25 models covers a wide scope of powers from 18 to 800 kW, with flows varying from 1 800 to 49 000 m3/h.
This range was designed after full analysis of the new thermal and acoustic requirements within buildings and take into account the main criteria :
- Easy use and maintenance
- Money saving operation
- High efficiency (85 to 94 % depending upon type of equipment and range of use)
- Small size dimensions
- Materials that can be recycled up to 95 %
- Ergonomic design
- Best quality vs price ratio.
Two versions are proposed for internal or external used :
- vertical
- horizontal
Numerous standard options are available :
- exchanger/body in stainless steel
- control for modulating burner
- direct blowing cover
- extra filter box
All special applications may be studied on request.
Completely autonomous hot air generator designed for conditioning covered swimming pools. This equipment can operate with heating gas oil, natural gas or liquefied petroleum gases (butane gas, propane gas).
These equipments function is to heat environmental air inside the premises by means of the thermal energy produced by the equipment.
The produced heat is driven to the premises that must be conditioned by means of a centrifugal fan.
The combustion products are extracted through a chimney in order to ensure that the driven hot air is exempt of smokes and bad smells.
The main features are as following:
-Heating gas oil, natural gas or liquefied petroleum gases operation.
-Cupboard made with galvanised sheet covered with polyester dust dried in the oven at 200ºC.
-Combustion oven designed for obtaining a performance of 90%.
-Three-speed centrifugal fan.
-Electronic control with a display of the temperature driven to the premises.
-Environmental thermostat incorporated in the equipment.
-Air impulsion in elbow shape at 90º with double deflection grid incorporated on it.
-It incorporates a digital time-programmer for starting-up and stopping automatically the equipment.
-Extractible air admission filter.
FUEL:
Heating gas oil / natural gas /LPG
APPLICATIONS:
Covered swimming pools, events tents, small industry and any premises with a volume between 750m3 and 1.075m3 approximately.
