The S – Small series allows the installation of DomusLift even in very narrow shafts. The car minimum dimensions (up to 580x550mm) guarantee the necessary space for free movements.
Aesthetic features are refined and smart thanks to:
walls made of a single panel, without aluminium profile;
wide range of finishes: plastic, painted and stainless steel laminate;
the same accessory range as the standard model, depending on the reduced dimensions.
Same minimum headroom and pit height. |
|
The compact hydraulic passenger lift mainly for residential buildings with capacity raging from 180 Kg to 550 Kg and speed up to 0.5 m/s.
Available also with 200 mm pit, 2600 mm headroom and with structure supported frame both for internal and external applications. Lift can be equipped with automatic or semiautomatic doors, an ideal solution for existing buildings. The lift for the impossible space. |
|
Lift drive system Hydraulic
Motor room position Adjacent to lift shaft
Rated Load 10 persons - 800kg
Rated Speed 0.63 m/s (Option for 1.0m/s)
Lift Travel (Estimated) Maximum 18000mm
Number of floors served Maximum 7 openings
Entrance type Single entry
Landing entrances Front only
Internal car dimensions 1350mm wide x 1400mm deep x 2200mm high
Shaft dimensions 1800 wide x 1800mm deep
Headroom 3500mm To underside of shaft roof capping
Pit depth 1300mm |
|
Hydraulic lifting platform with capacity of 250, 350 or 500 Kg.
Available with 100 mm pit, 2450 mm headroom and with structure supported frame both for internal and external applications. The solution for one-family houses and residences, especially in presence of elderly and persons with impaired mobility. |
|
Lift model Superidrofit has the power unit inside lift shaft. The controller and all electric equipments are placed inside a landing door frame.
No machine room needed. Main switches, thermostat detecting the temperature of the area, lamps, are inside the landing door frame. The floor where the power unit and electrics is located can be the first or any intermediate or upper floor.
The minimum dimensions of the headroom and the pit are the same as for a conventional lift with a machine room. In other words the power unit in shaft do not affect the pit and headroom dimensions. Power unit and controller are very close to each other. This will simplify erection, maintenance and rescue operations. The power unit is very slim; so the shaft size is not increased due to this component.
Different layouts are available: 1 car entrance, 2 opposite, 2 adjacent entrances. Noise level is same as traditional lift.
|
|
The machinery occupies 0.5 m2 (width 950 mm, depth 550 mm), compared to the about 3 m2 required by a traditional machine room (for example width 1500 mm, depth 2000 mm). All the components such as the main and light switches, thermostat detecting the temperature of the area and lamps, are now placed inside a cabinet, 2 m high (minimum height to allow maintenance operations).
Power unit and controller are very compact, making installation, maintenance operations and emergency rescue easier.
The cabinet dimensions remain the same, independently of the machine features (capacity, speed, number of floors served): it can be installed close to the shaft up to 15÷20 metres from the lift (depending on the hydraulic piping run).
If the shaft is not fire protected, or particular fire-fighting features are not required, the cabinet can be located inside the wall, partially or totally, thus reducing the depth space required.
|
|
A single motor room in a metal closet with overall size of less than 0,35 square meters to place everywhere you wish.
Once upon a time there was the machine room; today there's the FLAT pump. |
|

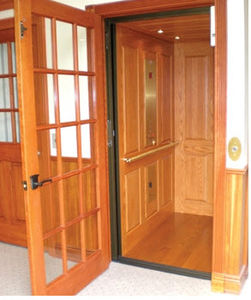

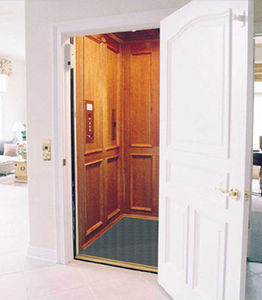

Our solid hardwood cars may be constructed from our standard woods or an exotic wood of your choice depending on availability. We have compiled ten configurations of standard option panel designs. Custom design treatments may be considered from your drawings. Combinations of wood species offer beautiful contrast and truly unique designs.
Featuring:
Walls and Ceiling - true raised panels
Handrail - polished or brushed muntz or chrome
Kick Plate - matching
Station Finish - polished or brushed muntz or stainless steel
Floor - unfinished floor
Lighting - four 4" recessed down lights with brass trim rings
Accordion Gate - choice of clear or bronze acrylic panels |
|
Interior - Cherry walls & ceiling panels with hardwood trim (finishes: our special blend, natural or unfinished), other woods are available for an additional charge
Arched Valance - cherry wood
Handrail - polished brass
Kick Plate - polished brass
Station Finish - polished muntz
Floor - unfinished floor
Lighting - four 4" recessed down lights with brass trim rings
Accordion Gate - choice of clear or smoke acrylic panels |
|
| A hydraulic elevator platform with capacities of between 250kg and 500kg. Available with 100mm pit and 2450mm headroom, with optional support structure (internal or external). The ideal solution for detached houses and care homes for the elderly and the disabled. |
|
Interior - Cherry walls & ceiling panels with hardwood trim (finishes: our special blend, natural or unfinished), other woods are available for an additional charge
Arched Valance - cherry wood
Handrail - polished brass
Kick Plate - polished brass
Station Finish - polished muntz
Floor - unfinished floor
Lighting - four 4" recessed down lights with brass trim rings
Accordion Gate - choice of clear or smoke acrylic panels |
|
| Interior design requirements vary from client to client. Therefore, our cabins can be decorated in a variety of colors and linings. Together with all the complementary accessories that can help to make the cabins more beautiful. |
|

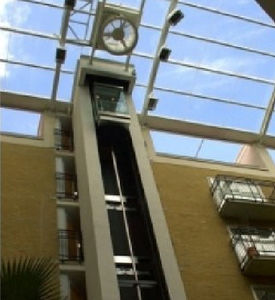

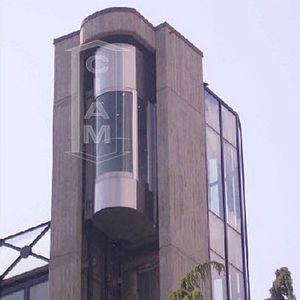

Ideal for places where the "look" is essential, making the panoramic lift a point of reference for the whole place. Travelling on a panoramic lift is different than the normal lift because you have excellent wide views through the crystal walls, making the trip more pleasant. Liftex lifts guarantee a smooth ride in all its types of lifts, with emphasis on a safe and secure environment.
This kind of lift is easily adapted to all types of buildings such as large indoor installations like commercial centers and hotels, or smaller concerns such as homes,office blocks or villas and could be installed internally or externally. |
|
These lifts are allowed for the transport of persons. They comply with European Directive 95/16/CE as well as European standard EN 81.2

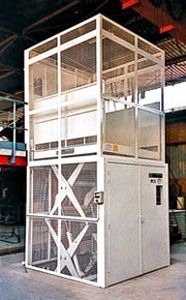

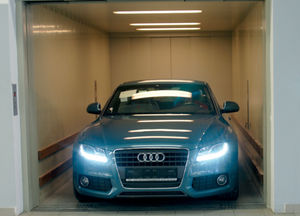

To be in compliance with current European regulations, goods lifts must be equipped with:
a braking system to ensure the safety of personnel and goods in case of overspeed or cable failure.
a double automatic door linked to the presence of the cabin at the proper floor.
an audio link between the cabin and outside.
a regular maintenance visit every six weeks. |
|
COMPLETE HYDRAULIC SYSTEMS WITH MACHINE ROOM
In cases where a machine room solution is applicable, a LEISTRITZ complete system is among the most economical, tasted and guaranteed propositions in the market. |
|
Pack One is a privative elevator of entry of range which combines comfort, quality and gravitational price. New and interesting: a range of very particular privative elevators, for the private individuals.
Etna Private Lifts launches the privative elevator. A new product which revolutionizes the design of a house or a duplex.
Become accessible, the privative elevator is intended to become a must for all the owners of houses and duplex. The comfort which it brings, the security of its design, its design have very to allure. And, favors additional and considerable, the standing which it confers on a good brings him an appreciation to lower costs. We invite you to discover it.
|
|
Generally, in the language running, the elevator term describes for the majority among us vertical transport people. The lifting term is often associated by general public with the lifting trolley of handling.
Cock: it is spring all the year in your privative elevator
|
|
Generally, in the language running, the elevator term describes for the majority among us vertical transport people. The lifting term is often associated by general public with the lifting trolley of handling.
Aro: a decoration Zen to meditate in its privative elevator. |
|
Generally, in the language running, the elevator term describes for the majority among us vertical transport people. The lifting term is often associated by general public with the lifting trolley of handling. We thus chose to use the word elevator to allow our customers to have a better comprehension of the product than we propose to him.
spice wood: knack of a very English decoration in your privative elevator
|
|
MAISON
LEISTRITZ meets your needs by offering the ideal solution when a residential lift is required. Maison is a hydro solution that epitomizes all those elements required for use in maisonettes or even in workspaces, with low shaft pit depths. Absolutely fit for disabled/wheelchair using individuals due to the large dimensions of cabins and doors.
Max number of stops: 4
Max rated load: 450 kg
Low electricity consumption (2 - 2.5 kW)
Operating also with single phase motor (220 V - 50 Hz) |
|
SLIM-LINE
The total solution for a machine room-less lift
with the best cost/performance rating.
Ideal for buildings up to 6 landings.
The Slim-Line brings all the great advantages of the hydraulic lift together:
Small shaft dimensions
Various cabin sizes
Adapted for upgrading and modernization projects
Short installation time
Service friendly
Short lead time
Additional Advantages:
Space and cost saving location of the power unit with controller in a cut out at the shaft wall.
No machine room
Slim line is an open system and can also work with other controllers.
The Slim-Line is delivered as a Leistritz complete package from one source only, adopted to suit your individual installation.
The following is part of our scope of supply:
%u2022 Well designed sling with a long track record
%u2022 Leistritz quality power unit and cylinder
%u2022 Micro-processor based controller with pre-wired complete
%u2022 plug-in cabling for a multitude of functions
%u2022 Cabins, LOP's and COP's in stainless steel with dot matrix indications
%u2022 VVVF controlled door drives
%u2022 Landing doors and cabin doors are either with powder coated base paint or in stainless steel with various textures
%u2022 Attractive cabin designs available from our large delivery program
Integral
The power unit with the built-on control cabinet for machine room-less lifts For high capacity up to 540 l/min
%u2022 Can be installed outside the hoist-way
%u2022 No machine room necessary
%u2022 The system is supplied complete with a standard electronic controller or can be equipped with any controller of customer's choice
lim-Line Integral |
|
COMPLETE HYDRAULIC SYSTEMS WITH MACHINE ROOM
In cases where a machine room solution is applicable, a LEISTRITZ complete system is among the most economical, tasted and guaranteed propositions in the market.
Products / Lift Assemblies / Cabins / Panoramic
LEISTRITZ panoramic cabins - internal or external - add value to the building, highlighting the uniqueness of the style and design.
The passenger movement offers exceptional experience and comfort.
With a flexible system of design and manufacture, the panoramic cabins of LEISTRITZ can meet all requirements and architectural challenges.
Our wide selection of panoramic cabins or a cabin manufactured according to your design becomes the ideal choice for maisonettes and villas, hotels, shopping centers, office buildings and other public places.
LEISTRITZ sets the standard for the panoramic style, inside or outside your building. |
|
Panoramic cabin for elevators made with steel finished like stainless steel.
Security mirror,halogenous light and keypad |
|
Cabin of elevator constructed on galvanized plate panels.
Inner melamine panels.
Halogenous light,Stainless banister rails.
Stainless steel skirting and joints
Button panel, emergency light and y fotoelectric barrier. |
|
Cabin constructed over galvanized plate panels
Inner panels of melamine, red oak colour.
Halogenous light.
Stainless Steel banister.
Fotoelectric barrier.
Emergency Light. |
|
Cabin of elevator made of galvanized plate panels.
Stainless steel inner panels.
halogenous light
Stainless hand trails
Stainless steel skirting and joints
Button panel, emergency light and y fotoelectric barrier. |
|
| Panoramic cabin made with stainless steel. Automatic door in the cabin, halogenous light and integrated keypad made of stainless steel. please, contact us for product updates and more info. |
|
|
|
