Automatic cool down
Ironing speed automatically adjusted according to the
residual moisture (Patented)
Energy economizer
-Polished steel cylinder.
-Excellent quality of drying and ironing by the pressing
roll and -Nomex quality belts.
-Temperature regulated by thermostatic regulator.
-Speed of ironing by means of one electronic regulator
from 0.1 m/mn to 9 m/mn.
-This machine can be leaned against a wall.
-The steam exhaust is located on the top of the
machine.
-Safety for the hands.
-Heating electric or gas.
-Electronic frequency controlled drive motor.
-Option: chromed cylinder, smart system.
|
|
Efficient, Easy to use, Safe Operation, High Throughput, Modern design and Ecological
A flatwork ironer with unique features. Efficient, Easy to use, Safe operation, High throughput, Modern design and Ecological, all combine to offer a top level of performance.
PRODUCTS. HEAVY-DUTY LAUNDRY DIVISION
Flatwork ironers wall type
Equipment information Linen processing
Efficient, Easy to use, Safe Operation, High Throughput, Modern design and Ecological
A flatwork ironer with unique features. Efficient, Easy to use, Safe operation, High throughput, Modern design and Ecological, all combine to offer a top level of performance.
Unique and exclusive Innovations
Autospeed (Mod. PS-32 & PS/PSP-51) automatically adjusting the ironing speed depending on type of material and humidity.
Kinematic strap tensioning system, assuring an exceptional ironing quality and smoothness.
Cylinder is fabricated in steel, machined, polished and finished in chrome.
Powerful extractor fan.
|
|

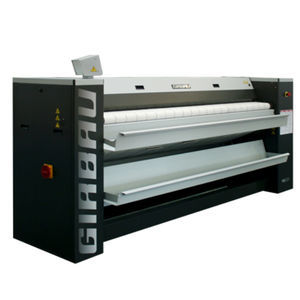

DRYING FLATWORK IRONER Mod. MC/M Ø 50 cm. complete with:
-Folding System
-Frontal linen entry
-INVERTER for the electronic regulation of speed
-Cool down, suction, hours counter
-Primary fold
-Possibility to choose frontal or back linen exit
-Working on two independent working lines and possibility to store up to 128 ironing programs
Available Optional Functions: Feeder
|
|
FLATOWORK IRONER Mod. FI
Models 25mm roller, productivity:
FI 1000: 15-25Kg / FI 1250: 20-30Kg / FI 1500: 25-35Kg
Models 33mm roller, productivity:
FI 1500: 30-40Kg / FI 1500: 40-50Kg / FI 2000: 50/60Kg
ASPIRATION AS STANDARD
- UNIFORM CHEST PRESSURE across the length of the roller.
- UNIFORM CHEST PRESSURE in time.
- Adjustable UNIFORM CHEST PRESSURE according to the kind of fabric.
- Versatile and User-Friendly Microprocessor.
- Possibility of setting ironing cycles controlling Temperature, Speed and Ironing Pressure.
- 4 outstanding security measures:
* SAFETY-BAR
* HAND-SAFETY BAR
* EMERGENCY STOP
* PEDAL
Optional available on request:
-Aspiration for models with 25mm roller
- Mechanical or Electronic Coin box
For model with 33mm roller only: Laminated metal mesh + Nomex cover
|
|
- Cylinder ironer
- Easy handling
- Microprocessor control: user-friendly and efficient
- Inverter drive regulates optimum speed: increased life span of the ironer
- Ironing belts placed on the pressure roller, increasing the ironing capacity and quality
|
|
- Thanks to a heavy duty construction, the frame cannot deform and long life is guaranteed.
- Oversized bearings ensure a long lifespan and troublefree operation.
- Durable ironing belts.
- Powerful ventilators provide more efficient drying.
- Frequency controlled motor.
- Safe design: no moving or hot elements can be accessed by hands or fingers.
- Automatic cooling down: the machine will not stop until the temperature drops below 80°C.
|
|
Chrome-plated cylinder as a standard feature. The cylinder has a much better thermal conduction.
- Heavy duty construction
- Oversized bearings ensure a long lifespan and troublefree operation.
- Durable ironing belts.
- Powerful ventilators provide more efficient drying.
- Frequency controlled motor.
- Safe design: no moving or hot elements can be accessed by hands or fingers.
- Automatic cooling down: the machine will not stop until the temperature drops below 80°C.
|
|
- Roller ironer
- Homogeneous ironing pressure, ensuring excellent performance & perfect quality finish
- Microprocessor controlled: efficient & user-friendly
- Electronic thermoregulation offering better temperture distribution & reduced energy consumption
- Vital parts easily accessible for service
- Top safety features: standard finger guard protection & emergency stop button
|
|
|
Professional dryer ironer with electric heating gas or vapor which can be equipped with a feeding machine and or a sparing folding machine in energy
|
|
On Premises Flatwork Finishers
Huebsch's full range of heated cylinder flatwork finishers are built to meet the needs of hotels, nursing homes, hospitals and on premises laundries. Easy to operate, these flatwork finishers will save you in labor and energy costs, and their smart design is a space saver as well!
Key Product Features:
Frequency-controlled Motor
Suspended Roll
Nomex Ironing Belts
Finger Guards
Safety Handle
Optimized Exhaust System
Heavy Duty Steel Frame
Polished Steel Cylinders
|
|
Huebsch's full range of heated cylinder flatwork finishers are built to meet the needs of hotels, nursing homes, hospitals and on premises laundries. Easy to operate, these flatwork finishers will save you in labor and energy costs, and their smart design is a space saver as well!
Available with 8", 13" and 20" rolls. Huebsch flatwork finishers are designed to boost the efficiency and productivity of each laundry operation.
|
|
- Roller ironer
- Homogeneous ironing pressure, ensuring excellent performance & perfect quality finish
- Microprocessor controlled: efficient & user-friendly
- Electronic thermoregulation offering better temperture distribution & reduced energy consumption
- Vital parts easily accessible for service
- Top safety features: standard finger guard protection & emergency stop button
|
|
- Faster drying and superior finish is obtained by constant hydraulic pressure
- Thick padding and numerous springs ensure best finish
- More contact surface under pressure improving quality
- Moving chest is self-aligning, requires less mechanical parts for lower maintenance costs
Applications: Our heated chest ironers are selected by medium to high production laundries that place an emphasis on obtaining a five star premium quality finish, lower maintenance and utility costs.
Examples: Hotels, nursing homes, industrial laundries, hospitals and professional cleaners
|
|
Applications: Our heated roll ironers are selected by small to medium volume laundries that place an emphasis on obtaining a high quality finish, want equipment that is economical to purchase and easy to use. Examples: Motels, inns, hotels, nursing homes, restaurants, linen rentals and professional cleaners.
- Finishing width from 1400mm up to 3200mm
- Roller diameter from 200mm up to 500mm
- Adjustable Ironing Speeds
- No Wax Required
- No Lubrication Required
- 1-year Limited Warranty on Non-wearable Parts
|
|
|
|
|
|
IRONING MACHINES
- Ironers and Flatwork-Ironers with different capacities with or without automatic folding.
WALL IRONERS:
-Models with 25 and 30 cm diameter rollers and with roller lengths of 100, 120, 140, 160 and 200 cm
-White lacquered steel outer unit.
-Aluminium ironing plate.
-Roller coated with NOMEX.
-Pedal operated
-Frontal loading and unloading.
-Hand protector shield.
-Electronic microprocessor for temperature regulation.
-Safety thermostat.
-Electrical heating system.
-Microprocessor process control.
-Frequency variator and vapour extraction system in 30 cm diameter roller.
WALL FLATWORK-IRONERS:
-Models with 35 and 50 cm diameter rollers and with roller lengths of 140, 160, 190, 200, 250 and 320 cm
-Gas, electricity and steam heated versions.
-White lacquered steel outer unit.
-Steel coated roller
-NOMEX-POLYESTER conveyor belts
-Special NOMEX ironing strips.
-Frontal loading and unloading.
-Hand protector shield.
-Speed and temperature control by means of microprocessor with fault diagnosis.
-Safety thermostat.
-Automatic stop system due to cooling (80ºC).
-Built in extraction system.
-Ironing speed: 7 speeds adjustable by frequency variator between one and 7.5 m/min
|
|
Performance specifications
Roller diameter: 25 cm
Roller length: 165 cm
Ironing throughput: 47 kg/h according to DIN 11902
at 25 % initial residual moisture
Control system
Infinitely variable temperature control
Roller speed freely selectable
Connection for coin mechanism
Features
Steel wool padding with ARAMID needle felt cloth
Treadle switch controls
Laundry pickers
Laundry box for storage on in-feed side
Extraction fan
Heating
Electric
Design
Return feed operation
Aluminium trough
Roller bearings on both sides
H x W x D: 104 x 216 x 59 cm
Safety feature
Patented finger guard
Temperature limiter
|
|
Specifications
Roller diameter: 30 cm
Roller length: 175 cm
Laundry throughput: 75 kg/h (EL)
According to DIN 11902 based on 25% residual moisture
Controls
Infinitely variable temperature control
Roller speed freely selectable
Features
Steel wool padding with ARAMID needle felt cloth
Optional: Elastopress spring padding with ARAMID needle felt cloth
New eccentric-drive trough-raising mechanism for uniform contact pressure
'FlexControl' treadle switch controls
Automatic laundry pickers
'EasyFold' laundry table with honeycomb structure and thermodynamic cool down
Laundry box on in-feed side
Extraction fan
Optional: Feed belts; return-feed module
Heating
Electric, gas
Design
Extruded aluminium trough with contact angle of 167°
Roller bearings on both sides
H x W x D: 109.5 cm x 247.8 cm x 137.7 cm
(with laundry outfeed table and laundry box)
Safety features
Automatic finger guard
Manual trough release in event of power failure
Temperature limiter
|
|
Performance specifications
Roller diameter: 21 cm
Roller length: 100 cm
Ironing throughput:14 kg/h according to DIN 11902 at 25% initial residual moisture
Control system
Infinitely variable temperature control
Roller speed freely selectable
Features
Steel wool padding with ARAMID needle felt cloth
Treadle switch controls
Chrome-plated airing bar
Heating
Electric
Design
Return feed operation
Aluminium trough
Roller bearings on both sides
H x W x D: 98,6 x 128 x 41,5 cm
Safety feature
Patented finger guard
Manual trough release in event of power failure
Temperature limiter
|
|

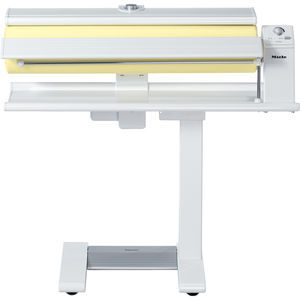

Performance specifications
Roller diameter: 16 cm
Roller length: 83 cm
Ironing throughput:15 kg/h according to DIN 11902 at 20% initial residual moisture
Control system
Infinitely variable temperature control
5 roller speed settings
Features
Polyester needle felt roller cover
Water reservoir for steam ironing
Treadle switch controls
Chrome-plated airing bar
Heating
Electric
Design
Return feed operation
Aluminium trough
Folding frame for ease of storage
H x W x D: 96 x 98 x 38 cm
H x W x D when folded: 105 x 50 x 38 cm
Safety feature
Patented finger guard
Manual trough release in event of power failure
Temperature limiter
|
|
Performance specifications
Roller diameter: 50 cm
Roller length: 175 cm
Ironing throughput: 70 kg/h at 53 % initial residual moisture
Ironing throughput: 80 kg/h at 40 % initial residual moisture
according to DIN 11902 at 46 % initial residual moisture
Connected load: 42 kW
Control system
Digital temperature indicator
Roller speed electronically controlled, infinitely adjustable
Features
Steel wool padding with ARAMID needle felt cloth
Laundry feed belts
Laundry pickers
Laundry table
Laundry box for storage on in-feed side
Extraction fan
Automatic finger guard
Optional: Elastopress padding; Treadle switch; Cover; Compressor; Trough cleaning cloth
Heating
Electric
Design
Aluminium trough
Roller bearings on both sides
H x W x D:115 x 245,1 x 174,6 cm
|
|
Technical Information - D1400
Productivity 10/20 kg/h
Roller dimensions (long.x diam.) 1400 x 325 mm
Speed Roller 0,1 - 9 mt /m
Motor power 0,34 kw
Power of the Ventilator 0,12 kw
Dimensions (AxPxH) 1942 x 660 x 1112 mm
Net weight 480 kg
Electrical
Electrical power 12 kw
Voltage 400 III+N 50 Hz- 20A
Gas
Power gas 12.040 kcal/h
Entrance gas 3/4''
Voltage 400 III+N 50 Hz- 2A
|
|
Technical Information - B2005
Productivity 60 kg/h
Roller dimensions (long.x diam.) 2000x500 mm
Speed Roller 1,5-8 mt/m
Motor power 0,37 kw
Power of the Ventilator 0,18/0,25 kw
Dimensions (AxPxH) 2750x1570x1568 mm
Net weight 1220 kg
Electrical
Electrical power 38 kw
Voltage 380 III+N 50 Hz- 63A
Gas
Power gas 30.960 kcal/h
Entrance gas 3/4''
Voltage 380 III+N 50 Hz- 2A
Steam
Consumption steam 49 kg/h
Entrance steam 3/4''
Voltage 380 III+N 50 Hz- 2A
