- The controller has a built-in:
. 2-channels RF receiver (433 MHz)
. 1 proximity reader
- 3-digit 7 segment display
- Up to 3-door access, 1 access controlled by the RF
receiver and 2 accesses by other readers:
. 1 or 2 proximity readers (DGLP, DGLP/T, DGLI)
. 1 or 2 keypads (KCP, KCP/BP)
. 1 or 2 magnetic stripe readers (DGLM)
- Capacity of 800 users
- Access level definition
- Capability to make a backup of the UCA3 units
(with LOG/UCA3 software)
- Capability to connect readers from different technology
on the same unit
- Programmed via the front panel or by PC
- Easy and fast access to the menu
- 3 relay outputs N/O and N/C contacts 8 Amp @ 250V
- 2 request-to-exit inputs
- Latched or timed out
- RS232 output for PC connection (need to add the BMU
interface unit)
- Real-time events printing
- Input voltage: 12V AC/DC
- Consumption: 500mA when 3 relays activated
|
|
- 12-digit membrane keypad keys
- 5-digit programmable master code
- Audible & Visual feedback (buzzer & LED)
- 500 programmable proximity badges and 500
programmable user codes
- 1 request-to-exit input
- Tamper switch
- 1 door relay output 3 Amp @ 125V N/O & N/C contact
- 1 alarm relay output 3 Amp @ 125V N/O & N/C contact
- Door status monitoring
- Resin coated
- 3 operating modes:
. Mode 0: badge and code
. Mode 1: badge only
. Mode 2: badge or code
- Input voltage: 12VAC/DC Digiprox®
- Consumption: 250mA
|
|
|

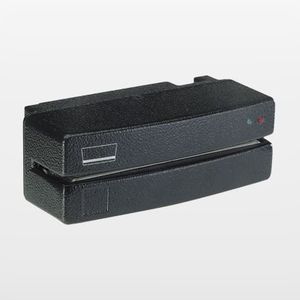

The GE Model 430 and 435 Magnetic Stripe readers are rugged, reliable, and easy to install. Model 430 is a magnetic stripe technology reader that can emulate the operation of an IBM 5029 reader, allowing for communication with older IBM microcontrollers. Simply set a jumper to select 5029 emulation mode.
|
|
|
BC43 is a card and PIN reader for SiPass Entro or SiPass Entro Lite. Two units can be installed for indoor/outdoor use. The keypad is equipped with background illumination. For flush mounting, use the BB4 flush mounting unit.
|
|
The CASI Model 840 and Model 845 Contactless Smart Card Readers provide superior access control with Mifare® 1 badges. There is no need for a smart card application programmer.
Models 840 and 845 are compatible with the entire CASI Micro/5 family of microcontrollers and related 2RP, 2SRP and 8RP reader processors, and the Micro/PX-2000 and Micro/PXN-2000 microcontrollers.
|
|
|
Only two products are necessary for a SiPass standalone installation: one ARS6311-RX card reader and one ACS6311 IO-board. A SiPass standalone installation can also use two ARS6311-RX card readers (one at the entry, the other at the exit side of the door), enabling two-way passage control. The system setup utilizing an ACS6311 provides a higher level of security for access control by separating the reader at the door from the relay board mounted in the secure area.
|
|
The card reader integrates access
control into the integral appearance of
the sytem design, including card
guidance and pilot LEDs. The security
technology of all leading card reader
suppliers fits neatly behind the Siedle
front.
|
|
Electromechanical locks deliver an added value to hotel guests and staff. Ease of administration, increased security and convenience are just a few of the obvious benefits.
With solutions over in 5 million hotel rooms, ASSA ABLOY Hospitality is clearly the world's largest provider of hotel locking systems. We provide customer-focused, turnkey solutions in over 155 countries around the world
|
|

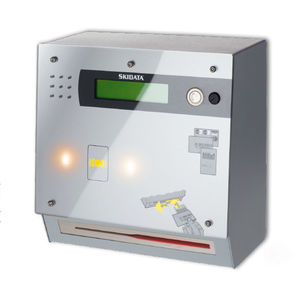

Our parking management option enables efficient and secure use of parking lots. A barrier is normally insufficient for this task. You can control access to the parking area and evaluate data individually for each person and also reserve parking facilities for visitors. The Kaba exos parking management feature is an element of our integrated overall system for access control and time & attendance.
Your advantages at a glance
Individual assignment of parking lots
Automate management
Reserving visitor parking lots
Originator accounting
|
|
