Economic, quiet, environmentally-friendly: Weishaupt oil condensing systems for steel and cast iron boilers take the heat energy contained in the combustion flue gases and feed it to the heating circuit. The effect is that your heating oil requirement drops noticeably. At the same time, emissions are significantly reduced. The flue gas condenses and is drained into the waste water system. The remaining flue gas can escape via inexpensive plastic pipes.
Reliable, efficient, long-lasting: The body of the Weishaupt Thermo Unit G boiler is cast in one piece. House owners value the heating unit, which has been proven 100,000 times, as a long-lasting partner and as an exemplary and reliable energy-saver.
The Vitorond 200 with its triple-pass design brings your heating system up-to-date with innovative heating technology: the triple-pass design provides reduced emissions, efficient fuel utilization and low heating costs.
Highest quality and top performance - this is what the Vitola 200 offers. With its biferral heat exchanger surface, the Vitola 200 sets a new standard, which has written heating history. The heat exchanger surface has a decisive advantage compared to conventional heating surfaces.

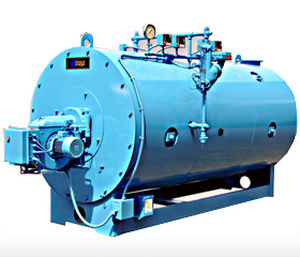

Type M233, low-pressure steam generator with a steam output of 2.6 to 4.5 t/h (1890 to 3270 kW).
Vitomax 200 is a low pressure steam boiler for a permissible operating pressure
of 1 bar.
Highest quality and top performance - this is what the Vitola 200 offers. With its biferral heat exchanger surface, the Vitola 200 sets a new standard, which has written heating history. The heat exchanger surface has a decisive advantage compared to conventional heating surfaces.
Type M233, low-pressure steam generator with a steam output of 2.6 to 4.5 t/h (1890 to 3270 kW).
Vitomax 200 is a low pressure steam boiler for a permissible operating pressure
of 1 bar.

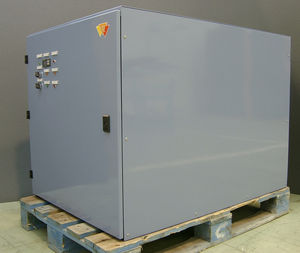

Boilers with no cracking effect which offer a longer useful life.
¬ Maximum temperature precision:+/- 0.5ºC.
¬ Power gradation with self electric control system for all power grades.
¬ Integrated electric control.
¬ Easier installation.
¬ Suitable for temperatures up to 300ºC.
Power:
¬ 30–500 kw.
¬ For more power and specific projects, please contact us.
Capacity:
¬ 25,800–430,000 kcal/h.
Work pressure:
¬ atmospheric.
Voltage:
¬ 400V,III,50/60 Hz.
Resistance:
¬ Inox 321.
¬ With insulation of powdered magnesium.
Integrated Electric Panel:
¬ Fractional power: Three stages in all grades.
¬ All stages with their own differential switch, automatic switch and contactor.
¬ Linear sequence grade control.
¬ Forced air circulation within the control panel.
¬ Copper sealing protected with methacrylate.
¬ Circuit cut-out breaker in main plug.
Temperature control:
¬ Electronic thermometer/thermostat with data reading.
Security systems:
¬ Pressure safety valve.
¬ Temperature cut-out.
Optical signalling:
¬ General status signal unit (On-Off).
¬ Activated grades.
¬ Security status in all grades.
¬ Number of activated stages.
Tank:
¬ In steel/carbon.
¬ Insulation of kaolin wool.
Accessories:
¬ Supply meter (kw/h).
Outside finish:
¬ Assembled on a tubular chassis.
¬ Covered with a sheet of wood and paint furnace finished Epoxi.
