Installable anywhere
Thanks to its versatility, ERGON indoor door can be installed in any place: schools, hospitals, hotels, old people's residences, etc.... No special dimensional and/or constructive constrainsts prevent the installation of ERGON door: it is enough to arrange a normal secondary frame.
Innovative technology
The space occupied required by the simultaneous movement of rotation and translation made by the leaf during opening and/or closing phases is so reduced to make even very small rooms accessible. Its push system is as easy as the one of any leaf door.
No doubts on the opening direction
The double-swing ERGON door can solve safety problems related to exit routes.
Ideal for disabled people
The longitudinal arch movement of the leaf and the double-swing system allow disabled people to enter or exit the same room simply by pushing the leaf. The door is no longer an architectural barrier for handicapped people. |
|

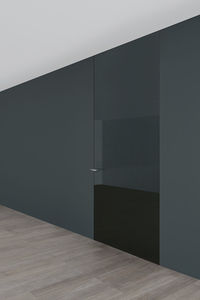

A patented system of oscillating doors or vertical pivot doors that lie flush with the wall and open turning on themselves.
The patented system for oscillating doors/ panels or vertical pivot doors (from 180° to 360°) that lie flush with the wall with hidden aluminium and hidden rotating pins.
The movement of the panel is determined by the hidden pins, that when installed may be positioned at distance of 6. 5 cm from the post to the exact centre of the panel.
This unique feature creates an incredible aesthetic movement and also allows for space saving when panel itself is opened.
The L’ Invisible vertical oscillating system is made up of:
• a nucleus structure in extruded aluminium alloy “ 6060 T5 Anticorodal 063”, predisposed for the push or pull opening of the panel and adaptable to all depths of wall plaster, plasterboard or other material to be painted with water based paints or enamels;
• A 50mm thick veneered panel (honeycomb) made of hard wood, perimetral on the four sides and faces in smooth MDF (depth 4mm /-0.2)
Closure is guaranteed by rubber seals on the two posts and by traditional locks.
|
|
A patented system of oscillating doors or vertical pivot doors that lie flush with the wall and open turning on themselves.
The patented system for oscillating doors/ panels or vertical pivot doors (from 180° to 360°) that lie flush with the wall with hidden aluminium and hidden rotating pins.
The movement of the panel is determined by the hidden pins, that when installed may be positioned at distance of 6. 5 cm from the post to the exact centre of the panel.
This unique feature creates an incredible aesthetic movement and also allows for space saving when panel itself is opened.
The L’ Invisible vertical oscillating system is made up of:
• a nucleus structure in extruded aluminium alloy “ 6060 T5 Anticorodal 063”, predisposed for the push or pull opening of the panel and adaptable to all depths of wall plaster, plasterboard or other material to be painted with water based paints or enamels;
• A 50mm thick veneered panel (honeycomb) made of hard wood, perimetral on the four sides and faces in smooth MDF (depth 4mm +/-0.2)
Closure is guaranteed by rubber seals on the two posts and by traditional locks.
|
|
| Synua Door Opening the door is our first introduction to a new environment and an insight to an individual's lifestyle and taste. We have expanded on this to allow a choice of wood, glass, steel, materials and colour. This project incorporates the latest in style, functionality and design to serve all needs. Now its your turn to enter our world. Through Synua of course. |
|
Synua
Doors are one of the architecture key points. A new symbolic and representative role is added to their fundamental function. Doors not only introduce, but also give a presentation of who is living that architecture. This is why Synua has a high level of customization, based on a constructive system which makes it possible to obtain the maximum modularity level of the panels. |
|
| Synua's vocation is furnishing and Synua is proud to show it. It is expressed by its natural extension. Wall System takes advantage by the perfect coplanarity of the door to create walls that share the same aesthetic concept, made by modular sectors of several prestigious materials and trendy finishings. What comes out are modern and spectacular boiseries, but also proper and genuine walls: a masterpiece of interior design. |
|
| Synua With Fixed Glass Synua can easily be placed outdoor in an environment protected from direct agents, like a roofing or a porch. Its beauty will be unaltered, fully exalting its panelling aesthetic value, being them woods, lacquered, steel or glass, and giving to the entrance the wonderful light which is inside its design. |
|
| The door Light Plus, is renewed with the operation Bilico. This technology handling, combined with interesting technical profile Light Plus, it allows the creation of individual shutters with dimensions never seen before (1800 X 2700H). We are therefore able to replace the traditional door with two doors flying with a singla door unbalanced, certainly more versatile and great aesthetic impact. |
|
New space concept with doors - the space savings door of Rubner
The Rubner door work presents attractions for touching with its fair appearances: a new space concept with doors, which it permits to use conventional revolving doors substantially more space-saving and also aesthetically effectively. |
|
With thousands of doors successfully installed and used in public environments, ERGON ® has now given itself the attractive covering of wood to satisfy requirements for the private sector.
READY FOR INSTALLATION ANYWHERE The ERGON ® internal door offers a versatility that allows it to be installed anywhere. There is no particular dimensional or constructional restraint that prevents the ERGON ® door from being installed. All that is necessary is a normal sub-frame.
INNOVATIVE TECHNOLOGY The simultaneous swinging and sliding movement of the door during opening or closing ensures highly reduced overall dimensions so that even the smallest of rooms becomes accessible. The swing opening is as easy as that of any hinged door.
NO UNCERTAINTY AS TO THE DIRECTION OF OPENING The door is opened from either side, whether entering or leaving a room. Closing it again is extremely easy. The double swing is the answer to the problems tied to exit routes.
A SPECIAL DOOR AT NORMAL COSTS Doors with the ERGON ® system are attractive to look at. The swinging- sliding movement with double swing has been conceived for making doors in a wide range of finishes and sizes, with no special maintenance requirements and no bothersome noises of sliding. A door fitted with the ERGON ® system is extremely cost-effective related to the "useable space" gained and the versatility of use.
|
|
NO SHARP CORNERS AND ABSOLUTE LEVELNESS Its versatility, lack of sharp cornersand levelness of the elements make the ERGON ® swinging-sliding doorsuitable for environments whereItalian Law 626/94 and hygiene-health regulations call for frequentand quick antiseptic cleaning, suchas hospitals, wardened homes,schools, kindergartens and allplaces open to the public. There isno particular dimensional orconstructional restriction to installing the ERGON ® swinging-sliding door:the only necessity is a normal sub-frame.
INNOVATIVE TECHNOLOGY The simultaneous swinging and sliding movement of the door during opening or closing ensures highly reduced overall dimensions so that even the smallest of rooms becomes accessible. The swing opening is as easy as that of any hinged door.
NO UNCERTAINTY AS TO THE DIRECTION OF OPENING
The door is opened from either side, whether entering or leaving a room.
Closing it again is extremely easy. The double swing is the answer to the problems tied to exit routes.
IDEAL FOR EVERYONE
The segmented arched door movement combined with the double swing leaves more space for manoeuvring to pass through doorways hitherto inaccessible. A person confined to a wheelchair or with walking difficulties may enter/exit from the same room by simply pushing the door, which can also be closed very easily. With ERGONS the door is no longer an architectural barrier for the disabled.
|
|
Doorsystem
• Door out of one structure
• Pivoting doors (with or without floorspring) (no hinges)
• Execution made to measure in function of the desired width, height, finishing touch (glass,
plexi, plastic, alu wood, …)
• Possible combination of doors with monovolume wall
|
|
THE MECHANISM IN KIT
The blacksmith shop ergon® series forty is born which evolution of the technology ergon® community applied series 50 from by now ten years in the sanitary structures through the supply of doors ended in metallic case. Ergon® series forty is distinguished for its economization of price and in order to concur the construction of the parts in wood being respected the most common constructive standards. The detail technology ergon® is now available to every producer of inner doors in order to prepare any dimension of inner locking and in any finish. Ergon® system series 40 has exceeded with succeeding rigorous tests of fatigue second norm EN 1191/00.
The equipped inner doors of the technology ergon®:
- They reduce blocks to it otherwise freeing spaces dedicated to the movement of the anta.
- Fit for use atmospheres Improve accessibility rendering narrow little ones and
- They resolve the conflict between contiguous doors
- The exodus ways Are always rispettose of the long sense of opening.
- They facilitate the movimentazione of the various skillful subjects. |
|
|
|
