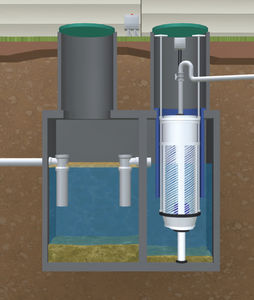

BioSTEP® screened pumping systems are versatile pump packages designed to transfer screened liquids in numerous small-diameter, decentralized collection applications. Each pre-packaged BioSTEP combines proven, low-maintenance components with unique, pre-engineered features to create an innovative solution for a wide variety of design needs.
|
|
|

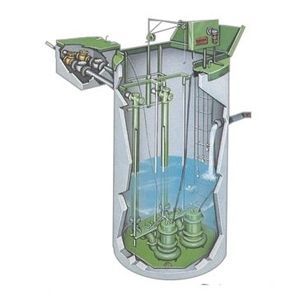

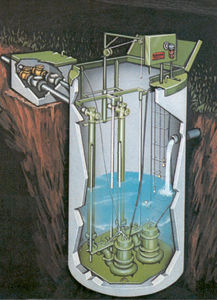

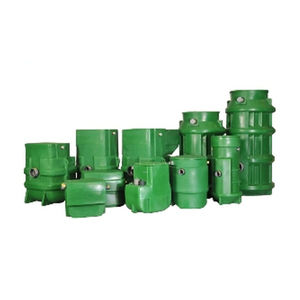

Pumping stations can pump fluids towards a higher level. The type of pumping station needed is determined by several factors such as the vertical and horizontal distance that has to be covered, the type of fluid (rainwater, wastewater, toilet water), the maximum peak flow and the necessity to place 1 or 2 pumps. All Boralit pumping stations can boast high durability and conformity with all laws in force.
|
|
|
|
|
|
The Brac Systems Sump and Pump Kit
Because the BRAC system relies on gravity for greywater to drain from your bath or shower into the inlet of the Brac System, owners with single level homes on a slab foundation (or other single-level structures) require this kit to pump the greywater up to the inlet of the Brac System. The sump is installed in the foundation or floor, below the level of the lowest drain you intend to capture greywater from. As greywater collects in the sump, a float-activated sump pump elevates the greywater to the inlet of the Brac System. Standard Plumbing Codes will permit a maximum of four (4) tubs/showers to be drained through the 2" inlet port of the sump basin. Kit includes tank, lid, sump pump, pump manual, and two-year warranty.
If you require a larger capacity pump or sump, click here to view our LSP-300 Lift Station Pump with a 300 litre capacity and 4" inlet.
Technical Specs
Overall Size
15" height (38 cm)
15" width (38 cm)
15 lbs (6.8Kg) Shipping Weight
Inlet/Outlet Port: 2"
Nominal Tank capacity (below drain)
(approximate, and not including displacement by sump pump)
19 liters
5 US gallons
4 imp. gallons
Pump Specs
1/4 hp, 3A (7.5A startup)
115VAC/60Hz (230v/UK version also available)
2100 USGPH @ max lift of 10’
|
|
|

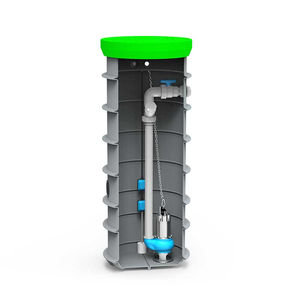

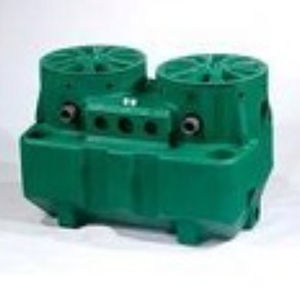

Premier Tech Environment provides three pump station models that, when necessary, pump wastewater to an Ecoflo ® Biofilter or to any other type of disposal field installation
|
|
|
Pumping stations must comply with various standards with regard to both construction and performances.
|
|
Pumping stations must comply with various standards with regard to both construction and performances.
For this range, the maximum flow rate is 30 m3/h for a 14 m water head.
|
|
ABS light drainage pump IP
Stainless steel pump for corrosive media with vortex hydraulics available with or without float switch. A combination of high grade (AISI 316) stainless steel, static seals of Viton and mechanical seal of silicon carbide, plus other features, make this the ideal pump for chemically contaminated wastewater, industrial effluent, and for use in agriculture. Discharge 2".
|
|
ABS submersible wastewater pump AS
Robust, reliable, ABS submersible sewage and wastewater pumps from 1 to 3 kW for the dewatering of buildings and sites in private, commercial and communal areas as well as industrial applications. Water pressure-tight encapsulated fully flood-proof motors in standard or explosion-proof versions. Hydraulics with ContraBlock system or vortex impellers for blockage free operation. Suitable for portable as well as in stationary installations. Avaiable in discharge sizes DN 50 (2 inch), DN 65 (2 1/2 inch), DN 80 (3 inch)
|
|
ABS light sludge pump MF-VO
MF-VO 354-804 is a submersible drainage pumps for light dewatering with vortex impeller. The water tight, fully flood proof motor and the hydraulics section comprise a compact robust unit construction. The pumps come with strainer and are intended for emergency dewatering of buildings sites, ditches and other flooded areas. Available with or without automatic float switch level control.
|
|

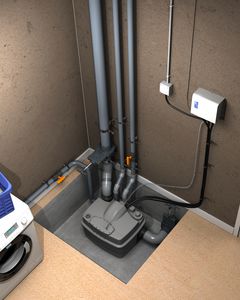

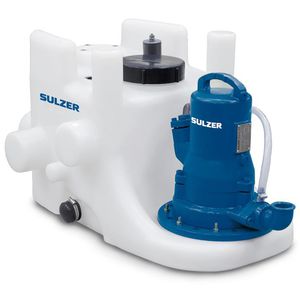

ABS lifting station SANIMAT 1002
Flood proof lifting station for the automatic removal of sewage from areas below the back-wash level, in accordance with DIN 1986. Ideal for effective sewage removal from apartments, large buildings and for both new and renovated structures. Robust synthetic (PE) collection tank of compact design. Easy to transport and install. Simple discharge line connection by means of the patented quick coupling system. A variety of inlet port sizes DN 50/100/150, in various locations to suit all applications, is standard with all units.
|
|
ABS ROBUSTA light drainage pump
The ROBUSTA series has been designed for pumping clear and wasterwater from house, garden or yard, and is supplied with built-in level control and check valve. The pump and motor section form a pressure-tight encapsulated unit, fully flood-proof, with motor housing constructed from corrosion resistant material, and the outer jacket and impeller of durable plastics. The unique hand/auto switch makes the pump suitable for manual or automatic operation.
|
|

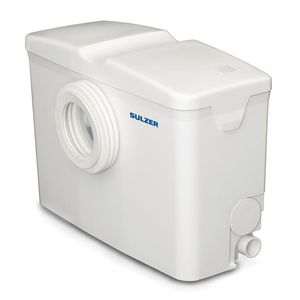

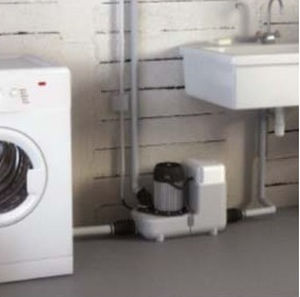

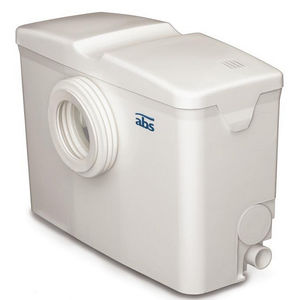

ABS lifting station PIRANHAMAT 100/120
Compact faecal pumping unit for direct connection of 1 WC and also suitable for connection of 1 wash-hand basin, 1 shower and 1 bidet.
The unit is supplied ready for plugging in and comprises a gas and odour tight synthetic tank fitted with a powerful PIRANHA grinder pump which is controlled automatically by the integral level control system. As the waste is cut up thoroughly it is possible to pump it away through pipes of 25 mm (1") size.
|
|
