SISTEMA MEN has perfected its raised flooring system for commercial and business spaces.
Structure
Screwing the panels into designated spaces instead of just laying them into an under structure assures:
-stability and durability
-noise reduction
-hermetic seal against water and washing detergents
-automatic grounding for all elements
-no static electricity produced from tread
Elements
Panels are made of metal sheets combined with cement and a perimeter of steel thaat are fused together.
'Nude Version'
SISTEMA MEN loose lay flooring is also available in a 'nude' version with rough zinc panels ready for any loose lay finishes.
Dimensions
Panel dimension: edges 600 x 600 mm +/- 0,1mm
Squareness diagonal: 848,5 mm +/- 0,1 mm
Thickness: 32 mm
Panel weight: Kg 18
|
|
|
|
|
|
Savour comfort when walking

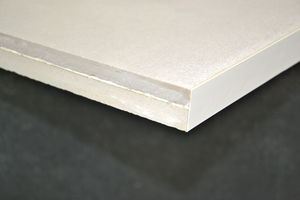

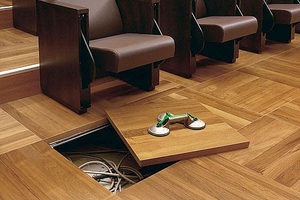

The ultimate underfoot experience with NORTEC raised floor panels made of calcium sulphate (gypsum fibre) - a non-combustible material with excellent structural and physical properties.
NORTEC floors offer an exceptional range of benefits:
* Extreme strength
* Highest quality from raw material to the finished panel
* Highly effective sound-proofing
* Calcium sulphate panels are virtually emission-free (Institute for
Construction Biology in Rosenheim)
* Many options for combining with other flooring systems
* Unique appearance, available in factory-bonded stone or parquet or a
standard floor covering, such as rubber, PVC, HPL or carpet.
Looking for a state-of-the-art product with outstanding properties? Then NORTEC is the right product for you.
NORTEC raised floors and the Lindner dry flooring system FLOOR and more® are available as "FLOOR and more® sonic" offering ventilation and outstanding acoustics, "FLOOR and more® power" which withstands particularly arduous loads and "FLOOR and more® comfort" which integrates heating and cooling technology.
|
|
The first modular raised floor heating, with removable panels. The possibility of inspecting any component of the installation is combined with the greatest comfort of a panel heating. This kind of modular raised floor heats any room through a low temperature system installed in every module Electrical and network cables can be easily reached in the hollow space of the flooring. The full working of the system is very fast due to the small thickness of the eating module, which gives more flexibility to its functions. With the new modular raised floor heating, it is possible to match the expectations of flexibility and the quality of the office life.
Planium srl, manufacturer of modular flooring surfaces and personalised solutions for architectural and contract design, has developed with Eurotherm spa, leading company in raised floor heating systems, the new modular raised floor heating system.
|
|
|
|
|
|
Ready for anything
A flooring system that adapts to your needs - ideal for entrance areas and atria, as well as offices and industrial plants.
FLOOR and more® is an interlocking tongue and groove hollow floor system, which can be used within 24 hours of installation and which can be finished with any conventional floor covering of your choice! Factory-application of the flooring ensures shorter construction and drying times. Select from stone finishes, parquet flooring and much more.
FLOOR and more® is also available in different options to suit your project needs:
* FLOOR and more® comfort: with integral underfloor heating for excellent
comfort and exceptional efficiency.
* FLOOR and more® sonic: with sound-proofing. Perforations in the floor
panels guarantee not only air ventilation but also outstanding sound-
proofing.
* FLOOR and more® power: a heavy-duty floor system, perfect for
production plants - but also ideal for showrooms, museums and libraries.
* FLOOR and more® hydro: water-repellent, specially-treated hydrophobic
panel. The surface as well as the entire floor panel is treated in this way.
Functional but also aesthetic: Lindner engineers find solutions for even the most unusual projects.
|
|
|
|
|
|

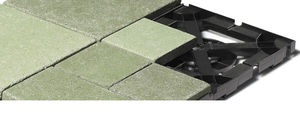

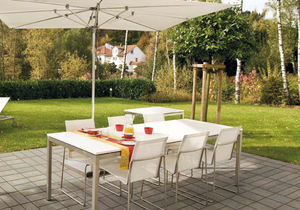

Previously to lay floor tiles on terraces was a problem. Infiltrations were everyday occurances because of structural adjustment, temperature changes, under-tiles layers. Nowadays there is Grintec®, the raised flooring system for outdoor areas which eliminates every inconvenience: the modular panels, which the floor is composed of, are placed on special plastic material supports that raise them from the underlaying waterproof layer. The Grintec® system was conceived by Intec design creativity and technological research. Each panel is composed of a structure made of composite material, with inner steel reinforcement to guarantee the requested load bearing, and of a Porcelain Stoneware top finish.
Grintec® can easily be laid with dry installation procedure in every season and the blanket can be checked.
The air chamber between the underside of the panel and the slab permits a better thermic proofing.
Grintec® can absorb the slab expansion due to the temperature range.
The slight room among the panels allows water to flow quickly away.
|
|
1 Core
28/30/34 mm thk. high density calcium sulphate =1450 kg/m3, reinforced by cellulosic
organic fi bres , class "0" of reaction to fi re, according to International standards
2 Edge trim
0,8-1,2 mm thk., no-creak, self-estinguishing plastic band, black/grey colour
3 Top covering
ceramic grés
4 Bottom covering
G28/30/34HAK: 0,05 mm pvc protected no-scratch and no-rip aluminium foil to provides an optimal barrier to the moisture and improved the electrical conductivity
G28/30/34HTK: fi nished by steel tray 0,5 mm thk. to provide a proper isolation to the moisture and improve the mechanical performance and the electrical conductivity
Dimensions 600 x 600 x 28/30/34 mm + top covering thk.
|
|

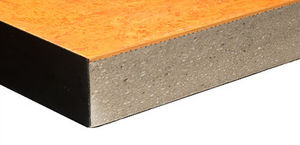

1 Core
38 mm thk. high density chipboard 720 kg/mc, mixed with thermosetting resin, low emission E1 class as per EN312-1 norm
2 Edge
trim 0,5 mm thk. no-creak self-estinguishing plastic band
3 Top covering
Parquet
4 Bottom covering
T38AAP: 0,05 mm. pvc protected no-scratch and no-rip aluminium foil to provides an optimal barrier to the moisture and improved the electrical conductivity
T38ATP: fi nished by steel tray 0,5 mm thk. to provide a proper isolation to the moisture and improve the mechanical performance and the electrical conductivity
Dimensions 600 x 600 x 38 mm + top covering thk.
|
|
Current need to inspect and distribute utility systems make raised floors the most suitable.
These can be made using porcelain stoneware, marbles, granites, laminates, woods, PVC, rubber.
|
|
|
|
|
|
Kingspan is the largest access floor manufacturer in the world and is market leader in the USA, the UK and Ireland.
As the leading innovator and supplier of raised access floors, these products are installed in most major projects worldwide.
The main markets for access floors are in high-rise office developments, call centres, web farms, retail developments and air traffic control centres.
Competitive strengths:
Strong World market leader
Superior technical capability
Capacity and resources to manage major projects
Markets served:
High rise office developments and call centres are the main market for raised access floors. The four manufacturing plants, two in the USA, two in the UK, and a large number of sales offices enable Kingspan to efficiently serve the worldwide market
The modern office environment is constantly evolving and in order to compete in the global marketplace, changes and churn rates are increasingly high. .
Buildings need to be safely adaptable with minimum disruption.
Adapting to constant change, requires buildings designed not only for today, but for the future.
Kingspan's Building Technology Platform® provides a fully accessible interstitial space to house critical services such as power, voice, data, heating, ventilation and cooling systems. Fully integrating with building design and internal architecture, Kingspan facilitates quicker occupancy compared to traditional service distribution systems.
|
|
|
Problems related to the incompatibility between traditional building structures, conceived as to remain unaltered in time, and technical wiring, which need to be changed continously and adapted to user new necessities, are extremely important in buildings provided with high technological environments. In the beginning, access floors had been projected only to solve problems of plant engineering in data processing centres. Today, access floors are the best solution for many other projects where technical flexibility is required.
|
|
|
|
|
|
Monointec is the most innovative, technological system produced by Intec, because it has revolutionised the raised floor, with the introduction of the concept of the “reinforced minislab”, where the finish adheres to the composite material of the support thanks to an aggressive and impermeable bond: all without glue. The result is a single and thin monolithic block with outstanding chemical and physical characteristic: highest dimensional stability, sound proofing and a higher resistance to water and humidity, as well as to the fire and to acids; a high aesthetical solution; maintenance and cleaning as for a traditional floor. Monointec has been specifically engineered for use with top finishes such as porcelain stoneware, marble and granite and allows to make the most out of this kind of finishes, above all where water and acids in-absorbency are concerned, thus preserving their extraordinary properties of durability and cleanability.
Moreover, the minimal thickness makes it particularly suitable for restoring projects, in other words, cases where a conventional floor has been removed. Monointec allows the height required to install the raised floor to be kept at the lowest: the underfloor plenum, in which the structure complete with stringers is laid, and the thickness of the panel with porcelain stoneware top finish can all be included in just 6 cm height.
|
|
The main elements of the system are divided in:
- Structure, composed by different elements in charge to sustain
the pavement and to equip it with the necessary height and rigidity marked in project.
- Panel, like component that contains coating in its face
superior and that as it leaves from the system will contribute of decisive way
in aspects how the acoustics, characteristics in front of the fire, resistance
mechanics and electrical characteristics of the system.
Description:
- PANEL trained by material with an agglomerate wood soul with a thickness 38 mm related by resins of high benefits.
- PEDESTALS, element realized completely in galvanized steel in charge to equip to the pavement of the height necessary for the project to realize, these elements incorporate in their head meetings plastic anti-noise with four projections of positioning. Between its qualities we emphasized the one of being vertically adjustable thanks to a threaded bolt of metric 14.
|
|
The main elements of the system are divided in:
- Structure, composed by different elements in charge to sustain
the pavement and to equip it with the necessary height and rigidity marked in project.
- Panel, like component that contains coating in its face
superior and that as it leaves from the system will contribute of decisive way
in aspects how the acoustics, characteristics in front of the fire, resistance
mechanics and electrical characteristics of the system.
Description:
- PANEL trained by material with an agglomerate wood soul with a thickness 38 mm related by resins of high benefits.
- PEDESTALS, element realized completely in galvanized steel in charge to equip to the pavement of the height necessary for the project to realize, these elements incorporate in their head meetings plastic anti-noise with four projections of positioning. Between its qualities we emphasized the one of being vertically adjustable thanks to a threaded bolt of metric 14.
|
|
An extremely wide choice of materials allows to customize Uniflair access floors to the most demanding needs:
- from carpeting to fine wood,
- linoleum to Florentine cotto,
- ceramic to marble,
- and recomposed stone, each area of a building can have its architectural style..
|
|
The main elements of the system are divided in:
- Structure, composed by different elements in charge to sustain
the pavement and to equip it with the necessary height and rigidity marked in project.
- Panel, like component that contains coating in its face
superior and that as it leaves from the system will contribute of decisive way
in aspects how the acoustics, characteristics in front of the fire, resistance
mechanics and electrical characteristics of the system.
Description:
- PANEL trained by material with an agglomerate wood soul with a thickness 38 mm related by resins of high benefits.
- PEDESTALS, element realized completely in galvanized steel in charge to equip to the pavement of the height necessary for the project to realize, these elements incorporate in their head meetings plastic anti-noise with four projections of positioning. Between its qualities we emphasized the one of being vertically adjustable thanks to a threaded bolt of metric 14.
|
|
An extremely wide choice of materials allows to customize Uniflair access floors to the most demanding needs:
- from carpeting to fine wood,
- linoleum to Florentine cotto,
- ceramic to marble,
- and recomposed stone, each area of a building can have its architectural style..
|
|
An extremely wide choice of materials allows to customize Uniflair access floors to the most demanding needs:
- from carpeting to fine wood,
- linoleum to Florentine cotto,
- ceramic to marble,
- and recomposed stone, each area of a building can have its architectural style..
|
|
Slip-resistant surface with both upward and downward facing holes
The downward-perforated holes have a diameter of 8 mm, whilst the upward-perforated holes have a diameter of 4.5 mm.
You can use STEPHUIT® particularly as gangways and stairs in industrial and public areas, for example at administration buildings, schools or in stadions.
|
|

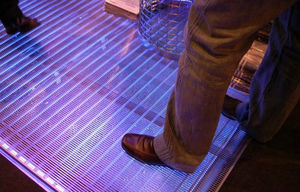

METALLIC GROUND
Metallic fabrics, you enmesh flexible or rigid with multitude of forms and designs that allow to cover great outer surfaces, to create inner virtual spaces or simply to generate illusions visual combining light and color.
The stainless steel fabrics are very versatile as much in their applications as in their characteristics, with a great variety of models that can make in the measures that the project demands and use the more appropriate systems of anchorage for each application.
Outer closings of great spaces that combine esthetic and functionality in a same material. Applications for interiors, panelado of walls, division of spaces or subtle light filters.
|
|
|
|
|
|
The TK SOFT solution is the only patented system with certified performance which drastically reduces the impact noise transmitted from one floor to another.
Our solution means that noise levels considerably lower than those required by law can be achieved thus combining the advantages of a raised floor system with those of noise insulation: another Teknofloor® breakthrough.
In Italy legislation on permissible noise levels states that in this field the framework law no.447 dated 26 October 1995 applies. This law establishes the sphere of jurisdiction of the State, Regional authorities, Provincial authorities and Municipalities, introducing plans for acoustic remediation and supplying dispositions on the matter of acoustic impact.Law no. 447 "Passive acoustic requisites for buildings" Ministerial Decree 5/12/1997 indicates the maximum limits for the level of impact noise transmitted (L'nw):
Type of building
L'nwResidential, Hotels 63 dB
Hospitals, nursing homes, schools 58 dB
Offices, places of worship, commercial premises 55 dB
The law lays down that the impact noise perceived one floor away must not exceed a certain level. It is therefore clear how important the observance of such requisite is, both to avoid economic damage and to guarantee maximum comfort to the future occupants.For example, in the case of offices, with a floor 20 + 4 cm high in a clay /cement mix (300 kg/m2) a foreseen noise level of 77 dB is established: our system permits a reduction of 33-35 dB, to achieve a transmitted value of approximately 42-44 dB: absolutely superior performance compared to traditional systems.
|
|
We at Teknofloor® research and develop innovative technologies so as to improve raised floor systems both from a technical and aesthetic point of view.
We do our work with passion, translating the experience built up in this area into the desire to continually improve our products, offering a service tailored to our clients’ needs.
Thanks to our patented system, in-house production and research we can supply raised floor systems with certified levels of sound absorption, non-standard measures and products with innovative performance, able to enrich the raised floor with features which were up till now the exclusive privilege of traditional floors, making raised floor systems the ideal solution.
|
|
|
|
|
|

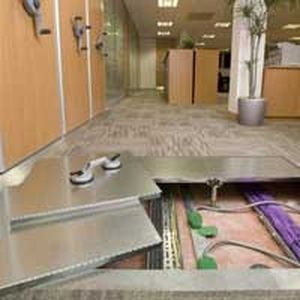

FEATURE BENEFITS
Lock down system for maximum rigidity and stability
Light weight reduces floor slab loadings - makes lifting easy
Solid underfoot - no creaking or rocking
Unauthorised entry deterred
Fully accessible and interchangeable panels
Chamfered panel edges that ease lifting and replacement
TYPICAL AREAS OF APPLICATION
General office areas, light and medium use.
DESCRIPTION
This lock down floor panel range is fully rated to the requirements of the Harmonised European Standard for raised access floors, BSEN 12825. The design incorporates a unique lock down system which allows a minimum number of fixings to be used. The D-Lock system provides a cost effective solution to providing a solid platform with all of the attributes that are required of a raised access floor system.
CONSTRUCTION
These floor panels are based on a 600mm square module constructed around a high performance chipboard core. This chipboard core is machined by a process that ensures the required tolerances are met. This machining process also includes the provision of the corner lock down facility. Corner locking is achieved using a clamping washer and screw, eliminating panel movement and limiting unauthorised access to the floor void. The pedestal head cap includes a plastic moulding that provides positive location for the panel and includes provision for the lock down screw.
|
|
System Description
The system comprises of an engineered nominal 600mm x 600mm x 31mm P6 high density particle board panel encased in 0.5mm galvanized steel lid and bottom steel tray. The panel is designed to receive a multitude of different finishes to suit clients requirements. The panel is gravity laid onto all steel electro plated adjustable pedestals which are fixed to the sub-floor, either by polyurethane adhesive or by a combination of this adhesive and mechanicalfixings. The pedestals are leveled using laser levels to achieve a flat and even surface. This produces a level working platform with an accessible 600 x 600 grid for finishing with carpet tiles suitable for general office use. Access to the void is achieved using a simple suction lifting device.
|
|
System Description
The system comprises of an engineered nominal 600mm x 600mm x 31mm P6 high density particle board panel encapsulated in 0.5mm galvanized bottom steel tray. The panel is designed to receive a multitude of different finishes to suit client requirements. The panel is gravity laid onto all steel electro plated adjustable pedestals which are fixed to the sub-floor, either by polyurethane adhesive or by a combination of polurethane adhesive and mechanical fixings. The pedestals are leveled using laser levels to achieve a flat and even surface. This produces a level working platform with an accessible 600 x 600 grid for finishing with vinyl tiles suitable for general office use. Access to the void is achieved using a simple suction lifting device.
|
|
System Description
The system comprises of an engineered nominal 600mm x 600mm x 41mm P6 high density particle board panel encapsulated in 0.5mm top tray and 0.8mm bottom tray galvanized steel. The panel is designed to receive a multitude of different finishes to suit client requirements. The panel is gravity laid onto all steel electro plated adjustable pedestals which are fixed to the sub-floor, either by polyurethane adhesive or by a combination of polurethane adhesive and mechanical fixings. The pedestals are leveled using laser levels to achieve a flat and even surface. When used in conjunction with structural stringers fixed to the pedestal heads meets the requirements for Extra Heavy Grade systems as defined in the PSA. This produces a level working platform with an accessible 600 x 600 grid for finishing with carpettiles suitable for general office use. Access to the void is achieved using a simple suction lifting device.
|
|
The Future of Building Construction
-Raised Access Floor System
-Underfloor HVAC System
-Plug 'n' Play Electrical Distribution System
-Modular Carpet Tile
Building on a successful and innovative past, ASM has developed the Environmental Systems Workplace (ESW).
ESW is the culmination of proven technologies, adapted to the demands of today's rapidly changing work
environment. Designed for the workplace of the information age, with advanced communications, for tomorrow
and beyond.
ESW completely integrates the technological requirements of occupant health, comfort, and environmental
efficiencies into one cost-effective ultimately flexible system.
From the boardroom to the classroom, and all applications in between, ASM's new Environmental Systems
Workplace just makes sense.
|
|
|
|
|
|
Intercell® is a modular flooring system from InterfaceFLOR that instantly solves the problem of cable management in the modern workspace. Designed to accommodate and conceal the complex wiring systems required for today's electronic office, Intercell® is space-efficient, neat and strong.
Intercell® Key Benefits
Makes workspaces tidy and safe
Facilitates office reorganisation
Strong, convenient, space-efficient
The sheer volume of electronic appliances used in modern offices and workspaces poses a problem for designers: what to do with all the cabling?
The answer is Intercell® from InterfaceFLOR. Each Intercell® module is a 50cm square plate with 16 short pedestals between which cables can be neatly bundled and tied. Once the cabling has been installed, sturdy square steel panels are fitted over the top to create a tidy empty floorspace, on which InterfaceFLOR carpet tiles can then be laid.
Conventional InterfaceFLOR carpet tiles can be fixed to Intercell® with low-tack adhesive or, for even greater convenience, customers can order special tiles with a magnetic backing which can simply be laid directly into the steel surface.
With Intercell® installed, space is immediately optimised since no surface area needs to be reserved for cable runs.
When the time comes for re-organising the workspace, all the cables can be easily accessed simply by lifting the carpet tiles. The cables can then be re-routed to suit the new layout.
Intercell® gives designers and facilities managers genuine flexibility in terms of optimising valuable commercial space, and creates a tidy environment that will benefit the people who work there.
|
|
|
|
|
|
Intercell® is a modular flooring system from InterfaceFLOR that instantly solves the problem of cable management in the modern workspace. Designed to accommodate and conceal the complex wiring systems required for today's electronic office, Intercell® is space-efficient, neat and strong.
Intercell® Key Benefits
Makes workspaces tidy and safe
Facilitates office reorganisation
Strong, convenient, space-efficient
The sheer volume of electronic appliances used in modern offices and workspaces poses a problem for designers: what to do with all the cabling?
The answer is Intercell® from InterfaceFLOR. Each Intercell® module is a 50cm square plate with 16 short pedestals between which cables can be neatly bundled and tied. Once the cabling has been installed, sturdy square steel panels are fitted over the top to create a tidy empty floorspace, on which InterfaceFLOR carpet tiles can then be laid.
Conventional InterfaceFLOR carpet tiles can be fixed to Intercell® with low-tack adhesive or, for even greater convenience, customers can order special tiles with a magnetic backing which can simply be laid directly into the steel surface.
With Intercell® installed, space is immediately optimised since no surface area needs to be reserved for cable runs.
When the time comes for re-organising the workspace, all the cables can be easily accessed simply by lifting the carpet tiles. The cables can then be re-routed to suit the new layout.
Intercell® gives designers and facilities managers genuine flexibility in terms of optimising valuable commercial space, and creates a tidy environment that will benefit the people who work there.
|
|
|
|
