THE FAAC CITY BOLLARDS – automatic version
FAAC City 220 automatic model
The FAAC City 220 automatic concealing traffic bollard is the version made for residential use when a limited number of daily transits is expected (about 60 manoeuvres/day). It can be activated automatically by commands effected by authorised persons (cards, remote-controls, etc.), or by pre-set timed automatic commands (hourly programmer). The device is equipped with double-effect pneumatic drive, with an external motion station.
FAAC City 275 automatic model
The FAAC City 275 automatic concealing traffic bollard is advisable when many transits are expected per day.
It can be activated automatically by commands effected by authorised persons (cards, remote-controls, etc.), or by pre-set timed automatic commands (hourly programmer). The device is equipped with double-effect pneumatic drive, with an external motion station.
Version for intensive use approved by the Ministry of Transport.
FAAC CITY K Model
Version for applications with a high degree of impact safety.
It is specifically designed to respond to the ever growing demand for safety; it is used in applications to create protective barriers or to allow access to particularly sensitive zones, e.g. Embassies, Consulates, Public Offices, Banks etc. It is hydraulically activated, with a hydraulic unit integrated in the bollard, controlled by an externally managed electronic control unit.
|
|
PILOMAT@ PASS 275/P-600A IRON PAINTED
Cilinder: steel mode FE37 painted anthracite
Cilinder Height: 600 mm.
Cilinder Diameter 275 mm.
Cilinder Thickness: 6
Moving Speed: 10 cm./s.
Manual neutral pulling: yes
Safety pressure switch: yes
Connection line to SP station: 10 mt.
Hydraulic pump: yes
Housing frame: yes
Counter-frame to be walled in: yes
Category Retractable Bollard - Retractable Bollards
|
|
Frontier Pitts Hydraulic Rising Bollards provide heavy duty vehicle access or protection against ram raiding. Hydraulic Rising Bollards are manufactured with a lifted height of 600mm, with a 900mm hydraulic bollard available for special applications.
The Terra Bollard is part of the Frontier Pitts high security Anti Terra range and has been designed to stop a 7500kg lorry travelling at 50mph. The Terra Blocker is manufactured with a lifted height of 900mm. The Terra Bollards have been tested as a single unit and dual unit to PAS 68: 2007 and DoS K12 standards
|
|
PILOMAT@ PASS 275/K-700A IRON PAINTED
Cilinder: steel mode FE37 painted
Cilinder Height: 700 mm.
Cilinder Diameter 275 mm.
Cilinder Thickness: 10
Moving Speed: 8 cm./s.
Manual neutral pulling: yes
Safety pressure switch: yes
Connection line to SP station: 10 mt.
Hydraulic pump: yes
Housing frame: yes
Counter-frame to be walled in: yes
Category Retractable Bollard - Retractable Bollards
|
|
DISSAUSORE PILOAMT 275/K-12 L1 AUTOMATIC RIFLE
H. 900mm
From the 2006 we have dedicated to the development of traffic spikes of high emergency anti-terrorism called series K 12; to coronamento of this cycle in date 18.05.2007 we have executed near Institute TTI in Texas crash a test and obtained the certification K12 relative L1 to disciplining of the Department of State American: SD - STD - 02,01, Review To - March 2003.
Criterion of movimentazione: oleodinamico
Resistance to the collision with operation continuity: 19,000 J
Resistance to the break through: 1.800.000 J - a motor vehicle of 6.800 impatta Kg that to 80 Km/h. (developing an energy of equal collision to 1.685.000 J), also permanently deforming the PILOMAT (with consequent block to the operation) it arrests the vehicle.
|
|
|
|
|
|
Terminal Car is a traffic bollard completely laid underground. If necessary, it can
be extracted and repositioned in its seat, thus making the area completely free
and practicable.
Traffic bollards are used to regulate motor vehicles when either moving or
stopping. They are particularly suitable for historic city centres, squares, residential
areas, commercial centres, etc.
Extraction occurs completely automatically by means of a microprocessor-based
electronic central unit controlling an electric motor. This is offering the advantage
that a traffic bollard can continue to work even in case of a power failure.
The hot-galvanised FE 510 massive structure can provide for excellent resistance
to corrosion.
The floor surface is made up of a nodular cast iron ring having a 250 KN capacity
and therefore also fit for heavy motor vehicles.
The traffic bollard is complete with high-luminosity blinking leds as well as with a
reflex reflector providing for excellent visibility.
An acoustic signal completes the system of signals.
|
|
PILOMAT@ PASS 220/C-600A IRON PAINTED
Cilinder: steel mode FE37 painted anthracite
Cilinder Height: 600 mm.
Cilinder Diameter 220 mm.
Cilinder Thickness: 4
Moving criteria: Pneumatic
Moving Speed: 5 cm./s.
Connection line to SP station: 10 mt.
Housing frame: yes
Counter-frame to be walled in: yes
Moving cylinder head: checkered plate
Category Retractable Bollard - Retractable Bollard
|
|
PILOMAT@ PASS 127/P-800A IRON PAINTED
Cilinder: steel mode FE37 painted anthracite
Cilinder Height: 800 mm.
Cilinder Diameter 127 mm.
Cilinder Thickness: 6
Moving Speed: 10 cm./s.
Manual neutral pulling: yes
Safety pressure switch: yes
Connection line to SP station: 10 mt.
Hydraulic pump: yes
Housing frame: yes
Counter-frame to be walled in: yes
Category Retractable Bollard - Retractable Bollards
|
|
PILOMAT@ PASS 220/C-600A STAINLESS STEEL SILKING
Cilinder: stainless steel AISI 304 painted anthracite
Cilinder Height: 600 mm.
Cilinder Diameter 220 mm.
Cilinder Thickness: 4
Moving criteria: Pneumatic
Moving Speed: 5 cm./s.
Connection line to SP station: 10 mt.
Housing frame: yes
Counter-frame to be walled in: yes
Blinking lifghting point: yes
Moving cylinder head: checkered plate
Category Retractable Bollard - Retractable Bollards
|
|
RETRACTABLE BOLLARDS
Retractable bollards are designed to control access to public or
private roads. There are two versions: automatic retractable bollards
or BEAs and mechanical ones, or BEMs. BEA bollards retract into
the ground thanks to a remote control (transmitters, proximity cards
or magnetic loops, etc.); thus freeing the roadway.
It remerges automatically after the vehicle has passed over it.

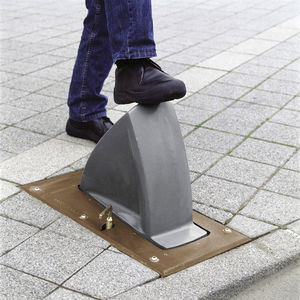

BEM bollards are activated thanks to a key that releases the
mechanism. A simple push on the head of the bollard makes it go
into the ground, locking it into the closed position. Turning the key
unlocks the bollard re-emerge to lock into the high position.
|
|
|
The Jolly Stop bollards in fixed or retractable version, ideal to control the access points or to delimit areas, can be inserted with elegance in any type of urban furnishings. Their use integrates with convenience and functionnality the protection systems for the public or private areas. The Jolly Stop bollards are manufactured according to the highest standards offering however an elevated possibility to customize.
|
|
Created to guarantee security of strategic access-ways
against “ram vehicles”, the High Security bollards meet
the most demanding requirements on the subject of
access control and shock resistance.
Often vehicles are use to ram and crash through shop
windows, doors, and gates at luxury shops, shopping
malls, factories, hangars, military bases, airports, ports,
shops, embassies, banks or public buildings.
Their sturdiness and reliability are such that Urbaco’s
bollards are the only ones able to protect access-ways
from attempts at breaking and entering.
|
|
Anti intrusion Bollard
High Strength - High Safety - Anti-Intrusion - Robust
- Very high degree of impact strength
- Perfect Integration with any site
- Ideal for a antiterrorism use and anti-intrusion
This bollard of access control is designed on an anti-corrosion and painted treated steel cylinder.
The rising of the cylinder is carried out thanks to a hydraulic actuating
A robust construction as well as a clever system of absorption of the shocks confers a very high degree of strength against many aggressions.
|
|
Bollard retractable, Hydraulic
Strength - Speed - Design
High resistance to shocks
Fast moving (2 s)
Silent, aestheticism
Seamless integration
|
|
Material: Bollard and structure made of stainless steel. Finishing caps made in ductile cast-iron.
Operation: It is operated through the commandment box, where the control system is found, and through a remote controller, that it is used for raising or lowing it. Low power consumption. Just one control box to manage up to 3 bollards (Ref. H275AE, H275AE2, H275AE3).
Installation: Draining required to make water drainage easier. (Find installation instructions in a separate manual).
Optional: ECOLOGICAL and solar system that may replace the electric power line.
|
|
The BORNOSOL can be regarded as belonging to the urban furniture; it makes it possible to control or prohibit the circulation of any type of vehicle.
Its hydraulics, operating modes or tire, put it at the shelter problems involved in the water infiltration. Equipped with inductive sensors, it is completely sinkable.
|
|
