Prefabricated thermal insulating board
Prefabricated thermal insulating board in EPS class 100 (various thicknesses) for external and internal thermal insulation.
Ecap board have a cement based smoothing mortar with a fibreglass mesh covered by the smoothing mortar and with prearranged overlaps, with punched holes for the insertion of the anchors.
After the application, it is only necessary to apply a finishing layer to obtain a perfect final result.
|
|
|
|
|
|
Competitive Strengths
Market leader
Efficient distribution channels
Comprehensive product range
Markets Served
Insulation Boards are supplied to industrial and commercial building projects and domestic housing. The products servicing the HVAC industry are supplied on a worldwide basis to projects such as airports, hotels and leisure centres. There are four manufacturing plants based in the UK, Ireland and Holland serving these markets.
Building Fabric Insulation Applications
There has never been more pressure on architects and specifiers to reduce carbon dioxide and greenhouse gas emissions by building more energy efficient buildings. It is well documented that better thermal insulation is a good means of tackling the issue of global warming by reducing the energy used in heating and the burning of fossil fuels.
Kingspan specialise in the solution of insulation problems and offer the most comprehensive range of products available from any UK or Irish manufacturer. Kingspan products are amongst the most thermally efficient and technically advanced insulation products available and have many advantages over traditional insulation materials such as mineral fibre.
The range of roof, wall and floor insulants offers the following:
premium performance phenolic insulation
high performance rigid urethane insulation
high performance extruded polystyrene insulation for specialist applications.
|
|
|
Roof is the most exposed element of a facility. It should defy changeable weather conditions, assure water-resistance, and offer protection against cold in wintertime. Simultaneously it shall prevent overheating of the attic rooms in summer time and assure low level of transmission thermal losses in time of winter heating of attic rooms.
|
|

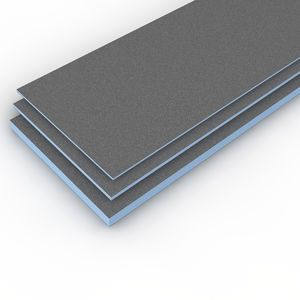

Expanded polystyrene panel of strong density on right board. This PSE is of color silver plated gray.
Panel in PSE of strong density on right, gray board silver plated. EPSISOL gets busy for the insulation of the grounds of the apartment buildings, tertiary sectors and of the establishments receiving of the public. It is intended for the thermo isolation:
- under-face of the quay levels of houses,
- under cover of the floors located in top of basement, on underfloor space, external passage or quay level,
- floors (low or intermediaries) heating with warm water low temperature, reversible and radiant electric.
|
|
|
Polystyrene rigid foam panel extruded (XPS) of blue color, slotted on the two longitudinal sides and covered of a protector of 10 mm out of mortar modified cement, of strong mechanical resistance.
|
|
Produced description
Rigid panel in rock wool to double density, resistant to jam, calpestabile, not covered for the thermal insulation and acoustic.
Applications
Isolation to the upper wing surface of slanted and flat roofings (warm roof).
Slanted roofings: particularly indicated in the event of roofs in wood and ventilated where it brings a meaningful increment of the acoustic performances.
Flat roofings: it is recommended for applications in which the impermeabilizzazione it is realized with liners or bituminous girdles.
|
|
Produced description
Rigid panel in rock wool to high density, resistant to jam, calpestabile, not covered for the thermal insulation and acoustic.
Applications
Isolation to the upper wing surface of roofings flat (warm roof) and tilted.
Flat roofings: it is recommended for applications in which the impermeabilizzazione it is realized with liners or bituminous girdles also in case of absence of mechanical implantations (incollaggio).
Slanted roofings: particularly indicated in the event of roofs in wood and ventilated where it brings a meaningful increment of the acoustic performances.
|
|
|
|
|
|
The POWERDECK is a panel of heat insulation with rigid a foam heart of polyisocyanurate covered, on two faces, of a facing aluminum corrugated 50µ.
Dimensions of the panels: 2500 X 1200 mm, 1000 X 1200 Misters Epaisseurs: With flat rims: 30,40,50,60,70,75,80 Misters.
With edges rabbets on 4 with dimensions: 90,100,120 Misters.
Us to consult for flat rims into 90,100 and 120 Misters.
Useful dimensions of the panels rabbets: 2485 X 1185 mm and 985 X 1185 Misters.
Density of foam: 32 kg/m3 ± 2.
Classify compressibility: >150 kPa for a deformation of 10%.
Rigid insulation and resistant of class C.
Tensile strength perpendicular: >80 kPa.
Behavior in fire: Classification Euroclasse B-s2, d0 on vat steel.
Classification Factory Mutual: classify 1 (according to various complexes of roofing).
Thermal coefficient of conductivity certified: value D: 0,024 W/m.K.
ACERMI n° 04/003/329
Implementation: Support of sealing on steel or wood.
In the receiving case of the buildings of the public, a heat shield will be implemented between the support vat steel and the POWERDECK, in accordance with the provisions of the "Guide of use of combustible insulations in ERP" appendix II of the article AM8, Arrêté of October 6th, 2004 and appreciation CSTB bearing n° RS08-174 on the provisions against the fire hazards in the ERP.
This heat shield can be made up of a bed of panels of pearlite on right board of dimension 1200 X 1000 mm, thickness 50 mm with a thermal resistance R = 1 m2 K/W or of any other type of heat shield defines in the AM8.
|
|
|
|
|
|
Support of sealing for roofing concrete, wood or derived from wood.
Effective and powerful insulation for the roofings terraces accessible, inaccessible and technical.
EUROTHANE Br BIO is a panel of heat insulation with a foam heart
rigid polyurethane covered, on two faces, with a composite facing tight with the air, aluminum and kraft.
Scope of application:
Last nines and rehabilitation.
All types of buildings.
Accessible, inaccessible, technical roofings.
Direct support of independent sealing under heavy protector only.
Until RD = 10,30 m2. K/W with 2 beds of 124 Misters.
Very good dimensional stability.
Dimensions panels: 600 X 600 Misters.
Thicknesses: 30-40-50-60-72-82-90-102-110-120-124 Misters.
Classify compressibility: >150 kPa rigid insulation and resistant of class C.
Thermal coefficient of conductivity: 0,024 W/m.K.
Regulation: ACERMI n°04/003/127
DTA (Technical opinion) n°5/02-1665.
Implementation: on roofing concrete in conformity with the DTU 20.12, slope of 0% has 5%. The installation of insulation EUROTHANE Br BIO is done into 1 or 2 beds in free installation without unit limitation of surface of terrace according to DTA (Technical Opinion)
|
|
|
|
|
|
Support of sealing for roofing concrete, wood or derived from wood
The good answer for the insulation of the roofings terraces.
EUROTHANE AUTOPRO IF is a panel of heat insulation with rigid a foam polyisocyanurate heart (TAUfoam by RECTICEL) covered, on two faces, of a facing composes of a multi-layer coating seals polyester, kraft and aluminum.
Scope of application:
Last nines and rehabilitation.
All zones of wind.
All types of buildings.
Roofings accessible pedestrians, inaccessible, technical, vegetalized.
Minimum Leger, obstruction, do not overload the structure.
Saving of transport, handling and storage.
Until RD = 10 m2. K/W with 2 beds of 120 Misters.
Dimensions panels: 600 X 600 Misters.
Thicknesses: 30-40-50-60-70-80-90-100-110-120 Misters.
Classify compressibility: >150 kPa rigid insulation and resistant of class C.
Tensile strength perpendicular: >150 kPa.
Thermal coefficient of conductivity: 0,024 W/m.K.
Regulation:
ACERMI n°03/003/127
D.T.A. (Technical opinion) n°5/07-1972
DTU 20.12 and 43.4.
Implementation:
The installation of insulation is done into 1 bed poses free or in 2 beds stuck by studs of cold or fixed adhesive mechanically.
The watertight facing will be either in independence with heavy protector, or apparent poses in semi-independence (membrane bituminizes modified semi-adhesive or fixed mechanically and mechanically fixed synthetic membrane)
|
|
|
|
|
|
POWERWALL: Thermo isolation by Outside - ITE -
SCOPE OF APPLICATION: System of thermo isolation by outside, in new work and rehabilitations, for collective housing units of dwelling, tertiary sectors and houses: In cladding brought back with board of air ventilated, in vêtage, vêture, hollow of wall.
The POWERWALL is usable for the dwellings within the framework of the code of construction and the dwelling.
The POWERWALL is usable for the ERP within the framework of the IT frontages n°249.
The POWERWALL is a panel of heat insulation out of rigid foam of polyisocyanurate (PIR) TAUfoam by RECTICEL faced of a watertight facing aluminum 50 µ out of the two faces. This facing with low emissivity improves thermal comfort of summer, avoids the phenomenon of steam migration and offers a better resistance to the ageing of insulation.
Dimensions of the panels: Flat rims: 600 X 1200 mm
Matched grooved edges: 600 X 1200 mm useful 590 X 1190 mm
1000 X 1200 mm useful 990 X 1190 mm
Thicknesses: 80,90,100,110,120 mm
Density of foam: density 32 kg/m3 ± 2.
Behavior in fire: Classification Euroclasse D-s2, d0
Thermal coefficient of conductivity certified: 0,024 W/m.K
Thickness up to 240 mm in two beds is until RD = 10 m ². K/W.
ACERMI N° 08/003/501 Classification INSULATES: I3 S1 O2 L2 E1
Implementation:
In ventilated cladding, put in œ uvre according to reference documents of system (schedule of conditions, DTA, book of the CSTB)
In system vêtures and vêtages according to regulation of the process
In hollow of assembled built wall external with advance.
|
|
|
|
|
|
EUROTHANE G
Optimized interior insulation
The complex of doubling high efficiency
Polyurethane RECTICEL foams are among most powerful of the market and make it possible to obtain an excellent insulation ratio/thickness.
The EUROTHANE G integrates an insulation with avoids vapor which avoids the degradation of the wallcoverings and accentuates the feeling of comfort.
Scope of application: Last nines and rehabilitation, Buildings tertiary, apartment Buildings, Buildings ERP.
Features:
The EUROTHANE G is a thermal complex of assembled doubling high performance machines some by joining between a facing in plasterboard on thinned board thickness a 10 mm and a thermal insulation panel with rigid a polyurethane foam heart covered on each face of a facing seals composite aluminum, kraft.
Dimensions of the panels: 2500 X 1200 mm, 2600 X 1200 mm
Thicknesses facing plasterboard + insulation panel:
10 + 31 - 10 + 41,10 + 52,10 + 62,10 + 82,10 + 103 mm
Density of foam: 30 kg/m ² ± 2
Behavior in fire: Euroclasse F
Perméance of the complex of doubling: Doubling EUROTHANE G is of P3 category for all the thicknesses above.
Thermal coefficient of conductivity certified: Value: 0,023 W/m.K.
Regulation:
NF IN 13165
ACERMI n° 03/003/279 (valid for insulation, added 0,05m ². K/W for the plasterboard)
Extension of Technical opinion n° 9/98-657
DTU 25.42 works of doubling and 20.11 & 23.1
Implementation: The thermal complex of doubling EUROTHANE G is implemented by screwing or joining in accordance with the DTU 25.42.
|
|
|
|
|
|
EUROTHANE WALL
Interior insulation mural high efficiency
Insulation in against partition-wall
Polyurethane RECTICEL foams are among most powerful of the market and make it possible to obtain an excellent insulation ratio/thickness.
Scope of application:
Last nines and rehabilitation
Tertiary buildings
Apartment buildings
Buildings ERP
Strong points of EUROTHANE WALL
High thermal performance
Low thickness
Leger, rigid, easy to handle and pose
Adapted to the restoration, implemented economic
Features
Description:
The EUROTHANE WALL is a panel of heat insulation with rigid a polyurethane foam heart covered on each face of a facing seals composite aluminum, kraft.
Dimensions of the panels:
2500 X 1200 mm useful 2480 X 1180 mm
2600 X 1200 mm useful 2580 X 1180 mm
The edges of the panels are grooved matched for an implementation easy, fast and stable.
Thicknesses:
31,41,52,62,82,93,103 mm
Density of foam:
30 kg/m ² ± 2
Behavior in fire:
Euroclasse F
Thermal coefficient of conductivity certified: 0,024 W/m.K.
Regulation: NF IN 13165
ACERMI n° 03/003/279
DTU 25.42 works of doubling and 20.11 & 23.1
Implementation:
On a vertical support in conformity with the DTU 20.1 and 23.1, the EUROTHANE WALL is implemented by fitment without joining or joining at the adhesive mortar. Joining is carried out on a healthy support and dryness is with an adhesive mortar bases plaster or by adhesives ready with employment. A against-partition-wall of doubling (bricks chalk pits, gypsum blocks...) in conformity with the DTU 20.1 and 23.1 will be assembled to advance.
|
|
|
|
|
|
Insulation with a good fire resistance, D-s2 classification, d0
The POWERLINE is a panel of heat insulation with a rigid foam polyisocyanurate heart (TAUfoam
by RECTICEL) covered, on two faces, with a facing aluminum 50μ enamel white, reborde on long the dimensions.
Scope of application:
Agricultural buildings.
Agro-alimentary buildings (storage).
Breeding.
Fermenting room, wine storehouses.
Good fire resistance.
Facilitate maintenance.
Simple and fast installation.
Dimensions panels: length with the request up to 6,50 m - width: 1227 mm
Rebordé grooved over the length.
Thicknesses: 30-40-50-60 Misters.
Behavior in fire: classification Euroclasse D-s2, d0
Thermal coefficient of conductivity: 0,024 W/m.K.
Regulation: ACERMI n°04/003/323
DTU series 40.30 and 58.1.
Implementation: During their fixing, the panels will be well applied the ones against the others so as to ensure an installation on jointed board to avoid the thermal bridges. The longitudinal assembly will be done with sections PETRO Powerline. The transverse assembly will be done with sections PROFISOL Powerline corresponding to the thickness of the panels.
|
|
Thermo isolation under-roofing of cover
EUROTHANE Al Straw is a panel of heat insulation with a heart
out of rigid foam polyurethane covered, on two faces, with a multi-layer facing
color straw.
Scope of application:
Agricultural buildings.
Agro-alimentary buildings.
Profitability of the breeding and storage.
Facilitate maintenance.
Simple and fast installation.
Dimensions panels: length with the request up to 12 Mr.
Width: 1227 mm rebordé grooved over the length,
Thicknesses: Al Straw: 30-40-50-60 Misters.
Behavior in fire: Euroclasse F.
Thermal coefficient of conductivity: Al Straw: 0,028 W/m.K,
Regulation:
ACERMI n°03/003/123 AL Paille,
DTU series 40.30 and 58.1.
Implementation: During their fixing, the panels will be well applied the ones against the others so as to ensure an installation on jointed board to avoid the thermal bridges. The assembly will be done with sections H universal or sections H Profisol Paille corresponding to the thickness of the panels.
|
|
Thermo isolation under-roofing of cover
EUROTHANE Al Straw L is a panel of heat insulation with a heart
out of rigid foam polyurethane covered, on two faces, with a multi-layer facing
color straw.
Scope of application:
Agricultural buildings.
Agro-alimentary buildings.
Profitability of the breeding and storage.
Facilitate maintenance.
Simple and fast installation.
Dimensions panels: length with the request up to 12 Mr.
Width: 1200 mm flat rims or grooved matched or rabbets.
Thicknesses: 70-80-90-100-110-120 Misters.
Behavior in fire: Euroclasse F.
Thermal coefficient of conductivity: Al Straw L: 0,025 W/m.K.
Regulation:
ACERMI n°03/003/125 AL Paille LL
DTU series 40.30 and 58.1.
Implementation: During their fixing, the panels will be well applied the ones against the others so as to ensure an installation on jointed board to avoid the thermal bridges. The assembly will be done with sections H universal or sections H Profisol Paille corresponding to the thickness of the panels.
|
|
|
|
|
|
EUROSOL Thermo isolation of the floors
SCOPE OF APPLICATION: System of heat insulation used, in new work and rehabilitations, for all the types of existing floors on the market, including for all the systems of heating (hot water - electric floor radiating) and of cooling by the ground.
FEATURES: The EUROSOL is a panel of heat insulation out of rigid polyurethane foam (PURE) manufactured without CFC nor HCF, faced of a watertight facing composite polyethylene, aluminum and kraft on the two faces. A face receives a black squaring with the step of 10 cm.
Dimensions of the panels:
Matched grooved edges: 1000 X 1200 mm useful 990 X 1190 mm
Thicknesses: 30,41,51,56,63,80 Misters.
Density of foam: density 30 kg/m3 ± 2.
Classify compressibility: European classification SC1 has 2 Ch
Thermal coefficient of conductivity certified: 0,024 W/m.K
ACERMI N° 03/003/281 Classification INSULATES: I5 S1 O2 L2 E1
The floors isolated with EUROSOL can receive a stuck floor covering (on cover concrete), seal or a floating hardwood floor.
|
|
|
|
|
|
Insulation by the outside of the tilted roofings (method of Sarking) in climate of plain and mountain.
The EUROTOIT is a thermal rigid polyurethane foam insulation panel (PURE) faced of a watertight facing composite polyethylene, aluminum and kraft on the two faces. Rigid insulation and resistant of class C
Thermal coefficient of conductivity certified: 0,024 W/m.K
Density of foam: density 30 kg/m3 ± 2.
Dimensions of the panels matched grooved edges:
2400 X 1200 mm useful: 2380 X 1180 mm
1200 X 1000 mm useful: 1180 X 980 mm
Thicknesses: 60,80,100,120 mm to consult Us for 40,50,70,90,110 mm
The installation is done according to the schedule of conditions of implementation aimed by Alpha Controls.

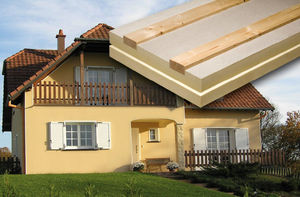

Mode of installation: The system applies to a continuous support being able to act as ceiling fixed on a frame wood.
Pose in a bed or two beds up to 240 mm thickness is until RD = 10 m ². K/W.
ACERMI N° 04/003/345
Simplicity of implementation, the total cover of the frame allows the removal of the thermal bridges, protects it from thermal variations thanks to fitment reinforced from the panels and to leave a visible frame of the interior by preserving livable space of the roofs.
Effective in winter, in addition to sound high capacity insulation the EUROTOIT contributes to the thermal comfort of summer by its reflective completion thus allowing an airconditioning energy saving during the hot season.
The EUROTOIT can be used in new building or restoration for
apartment buildings, ERP, buildings labor regulation subject to the respect of the regulations in force.
|
|
|
|
|
|
Support of sealing on concrete and wood or derived from wood
Lightness with the service of the insulation of the roofings terraces accessible, inaccessible, technical and vegetalized.
EUROTHANE BI3 is a panel of heat insulation with a rigid foam polyurethane heart covered, on two faces, of a facing made up of a grésé bituminized coating with reinforcement veils glass.
Scope of application:
Last nines and rehabilitation.
All types of buildings.
Roofings accessible pedestrians, inaccessible, technical, vegetalized.
Leger and low thickness, true more in restoration.
Great dimensional stability.
Strong mechanical resistance.
Dimensions panels: 600 X 600 mm
Thicknesses: 30-40-50-60-70-81-90-100-110-120 mm
Classify compressibility: >120 kPa rigid insulation and resistant of class C.
Tensile strength perpendicular: >80 kPa.
Thermal coefficient of conductivity:
thickness 60 mm value: 0,027 W/m.K.
Regulation: ACERMI n°03/003/121,
DTA (Technical opinion) n°5/07-1950.
Implementation: The installation of insulation EUROTHANE BI3 is done into 1 or 2 beds. In free installation with coating in independence under heavy protector. By studs of adhesive EAC with coating bituminizes apparent stuck to the EAC or semi-indépendant. By studs of cold adhesive with coating in total adhesion cold.
|
|
|
|
|
|
Support of sealing with form of slope integrated on concrete and wood or derived from wood
Lightness with the service of the insulation of the roofings terraces accessible, inaccessible, technical and vegetalized.
EUROTHANE BI3A is a panel of heat insulation with a rigid foam polyurethane heart covered, on two faces, of a facing made up of a grésé bituminized coating has reinforcement veils glass.
Scope of application:
Last nines and rehabilitation.
All types of buildings.
Roofings accessible pedestrians, inaccessible, technical, vegetalized.
Leger and low thickness, true more in restoration.
Great dimensional stability.
Strong mechanical resistance.
EUROTHANE BI3 has is an insulation with form of integrated slope.
Dimensions panels: 600 X 600 mm, 1200 X 600 mm
Thicknesses: 30-40-50-60-70-81-90-100 - slope 1/80 or 1/60.
Classify compressibility: >120 kPa rigid insulation and resistant of class C.
Tensile strength perpendicular: >80 kPa.
Thermal coefficient of conductivity: 0,028 W/m.K.
Regulation: ACERMI n°03/003/121,
DTA (Technical opinion) n°5/07-1951.
Implementation: The installation of insulation EUROTHANE BI3 has is done into 1 or 2 beds. In free installation with coating in independence under heavy protector. By studs of adhesive EAC with coating bituminizes apparent
|
|
|
|
|
|
Insulation of the accessible pedestrians, inaccessible, technical and vegetalized roofings terraces.
Direct support of sealing asphalts.
The EUROTHANE S Plus 25 has is a panel of heat insulation with a rigid foam polyurethane heart covered, on two faces, of a facing made up of a coating veils microphone-perforated glass.
Scope of application:
Last nines and rehabilitation.
All types of buildings.
On roofing concrete, wood or derived from wood.
Implementation easy and fast.
Climate of plain and mountain
Dimensions panels: 600 X 600 Misters.
Thicknesses: 30-40-50-60-70-80-90-100-120 Misters.
Density of foam: 32kg/m3
Classify compressibility: > 150 kPa rigid insulation and resistant of class C.
Tensile strength perpendicular: >80 kPa.
Thermal coefficient of conductivity: thickness from 30 to 60 mm: 0,028 W/m.K, thickness from 70 to 120 mm: 0,027 W/m.K.
Regulation: ACERMI n°04/003/311, DTA (Technical opinion) n°5/04-1770 and DTU 20.12 and DTU 43.4.
Implementation: Free installation, without unit limitation of surface of terrace, on carrying element in:
Masonry slope null, punt and tilted.
Wood and drifts slope of 3 have 5%.
Gas concrete slope punt of 1 has 5% and inclined > 5% have 20%.
|
|
|
Rigid rockwool panel of strong mechanical resistance. Domisol formwork is intended for the insulation of the first floors of or tertiary sector residential buildings in bottom of formwork. It is compatible with the carparks and the establishments receiving of the public (erp).
|
|
Produced description
Rigid panel in rock wool to double density, not covered, for thermal insulation and acoustic.
Applications
Product specifically conceived for termoisolanti systems to coat.
The panel comes subordinate to an additional heat treatment that renders it suitable to the strict conditions of uses typical of the isolation from the outside.
The range of the spessori (till 24 cm) renders it ideal for the realization of buildings liabilities.
|
|
Produced description
Rigid panel in rock wool to medium density not covered, for the thermal insulation and acoustic.
Applications
Isolation in interstice of partition-walls and perimetrali in gessofibra, cartongesso or tile.
Acoustic 225 contributes in meaningful way to the increment of the acoustic performances and antifire protector.
|
|
|
Rigid rockwool panel, not covered, of high mechanical strength. Rigid rockwool panel, not covered, of class of compressibility B. Solution for inaccessible roofings including the ways of circulation. Heat insulation support of sealing under heavy or mechanically fixed protector.
|
|
Semi-rigid panel to unroll out of glass wool covered with a veil comfort with transverse marking all the 100 Misters is integrated into the systems Intégra Réno and Vario.
The products of range ISOCONFORT are particularly well adapted for an easy installation and rapid between rafters. They allow the maintenance of a board of air ventilated between insulation and the cover for the perenniality of this one. Thanks to marking, cutting is easy. Elasticity and rigidity guarantee a perfect adjustment with the frame.
|
|
|
Semi-rigid panel rolled out of naked acoustic performance, glass wool high, adapted to the system of partition-wall great height. Be integrated into the system of Technostar partition-walls.
|
|
|
Semi-rigid panel naked insulation containing fiber of hemp. Product FLORAPAN MORE meet the usual requirements at the time of the rehabilitation. Product FLORAPAN PLUS is presented in the form of panels, containing fibers of hemp and cotton. It is planned for the insulation of the walls. It should not be exposed with flame or spark. Card of the environmental and medical declaration (FDE&S) which analyzes the life cycle of the product, is available on request.
|
|
|
|
