- Even roofs made up of small tiles, for slopes of 25% or more
- Buildings with low to medium hygrometry
- Buildings with high hygrometry in new construction only |
|
- Exclusive assembly system requiring no power tools
- Simple layout and easy to handle on building site (1 pack = 15 Kg = 6 DEXTER® = 2 usable sq. m)
- Range of preformed accessories for standard flashing
- Aesthetics of zinc roofing with parallel strips
- Installation with aligned or staggered joints |
|
Tech AL
Aluminium roofing system.
Tech Al is a Hedar system that helps constructing aluminium roofing for civil, industrial, commercial, sports and leisure buildings.
The corrugated sheets of the Tech AL system are made of aluminium alloy 3103-H16 (UNI 9003/3) with a thickness of mm 7/10 with corrugated covering. |
|

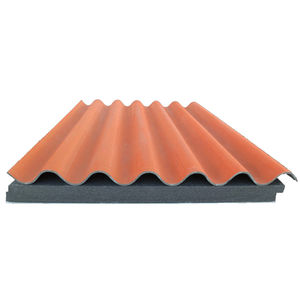

Corrugated sheet
Hedar's line of corrugated sheet for roofing is used for all construction solutions, and the profiles can be ralized with a wide range of materials and finishings, based on the various technical and planning requirements.
Hedar's corrugated sheets are economically advantageous, easy to use and guaranteed logn lasting; these pecullarities, together with a wide range of colors and materials offer to designers maximum freedom and architectonic expression with an extreme high level of construction quality, both for new construction and for rebuilding or renovations. |
|
The sine wave metal sheet for roofing and cladding
The sine wave corrugated sheets manufactured by
LUXMETALL BELGIUM SA are a lightweight, highly sturdy roof and wall covering. Due to its optimal surface profiling, they are ideally suited both architecturally and aesthetically for industrial and agricultural as well as privatesector buildings.
LUXMETALL corrugated sheets are easy to install, highly durable and therefore economical.
|
|
| Rigidal Ziplok is designed for use in 'zip-up' standing seam roofing applications where the actual pitch is 1.5° or greater. Offering exceptional weather resistance and durability the product is suitable for both newbuild and refurbishment applications. |
|
Rigidal's unique Thermohalter can be used in the traditional Rigidal Ziplok system without cold bridging through the system. The liner sheet acts as a template for setting out the halters on site, making this system not only world beating in terms of performance but also very cost effective, quick and easy to install. |
|
The roofing pantile with the invisible fastening system
- ultra light modular
panels
- easy installation
- no visible attachments
- extremely weather-
resistant coating
The new LUXMETALL roof tile panels are easy to install, and may even be applied on roofing
with a low slope.
Simply hook the modular panels into each other, then press down onto lathing and screw tight; no special tools are required for these operations.
This innovative product enables the enthusiastic handyman to perform her/his own roof-tiling easily and cost-effectively, and is suited both for new buildings and those in need of renovation.
Lightweight
panels (870x1115mm) in form of ten tiles patterns are available with various finishes, they set new standards for safe and speedy installation thanks to LUXMETALL‘s patented hook-fast system.
Fixing screws are hidden from view and thus well protected. Surface-coated with high-technology, extremely weather-resistant coating: The surface is smooth and dirt-repellent as well as being scratch-proof and corrosion-proof, and is guaranteed to maintain its appearance for many years.
|
|
SELF-SUPPORTING, MODULAR SYSTEM IN UV-PROTECTED CELLULAR POLYCARBONATE FOR VERTICAL GLAZING, GLAZING AND FLAT/CURVED COVERINGS WITH A FIXED RADIUS OF 3500.
FLAT, SELF-SUPPORTING SYSTEM IN CELLULAR POLYCARBONATE FOR VERTICAL GLAZING, GLAZING AND INDUSTRIAL COVERINGS
CURVED, SELF-SUPPORTING SYSTEM IN CELLULAR POLYCARBONATE FOR ROOFLIGHTS AND INDUSTRIAL COVERINGS. |
|
| SHEETS IN UV PROTECTED CELLULAR POLYCARBONATE FOR FLAT AND CURVED TRANSLUCENT COVERING, INDUSTRIAL AND CIVIL VERTICAL GLAZING. |
|
| MODULAR CORRUGATED SYSTEM IN U.V. PROTECTED CELLULAR POLYCARBONATE FOR ROOFLIGHTS AND FLAT AND CURVED TRANSLUCENT COVERINGS, CONTINUOUS OR COUPLED WITH ASBESTOS CEMENT SHEETS. |
|
MODULAR INTERLOCKING SYSTEMS IN UV-PROTECTED CELLULAR POLYCARBONATE FOR FALSE CEILINGS, VERTICAL GLAZING AND INDUSTRIAL WINDOWS
MODULAR INTERLOCKING SYSTEM IN UV-PROTECTED CELLULAR POLYCARBONATE FOR INDUSTRIAL VERTICAL GLAZING, FALSE CEILINGS AND INDUSTRIAL WINDOWS. |
|
| MODULAR RIBBED SYSTEM IN UV-PROTECTED CELLULAR POLYCARBONATE FOR ROOFLIGHTS AND FLAT AND CURVED TRANSLUCENT COVERINGS, CONTINUOUS OR COUPLED WITH RIBBED PANELS. |
|
| Solarday has developed new projects for glass/glass photovoltaic modules particularly suitable for architectural integration. |
|
| An LPCB approved low pitch secret fix built up roofing system which is has excellent fire properties and offers long spans when used over our structural decks |
|
| The Rigidal Lokroll standing seam roofing system features a unique roll locking fixing method which creates a continuous weathertight roof without any through fixings. The interlocking sections fix directly to the supporting structure, concealing the fixings and providing complete protection from the elements. |
|
Structural liner tray removes the requirement for purlins or rails
The tray is clean and flat internally giving a neat and hygienic finish
Increasing insulation thickness does not impose a significant weight increase |
|
| Ziplok can be curved in a variety of ways in order to suit the required application. Profiles can be concave or convex curved. They will self curve to a large radius, otherwise they can be mechanically smooth curved down to 5 metre radius convex curves, or 11 metre radius concave curves. If required profiles can be crimp curved down to 750mm radius. For economical curves, design above 45 metre convex radius. |
|
Profiled Sheets and Panels for Roofing and Cladding
Profiled sheets from LUXMETALL BELGIUM SA are a lightweight, highly stable roof and wall covering. Due to their optimal surface corrugation they are suited both architecturally and aesthetically for industrial and agricultural as well as private- sector buildings.
LUXMETALL profiled sheets are easily installed, highly durable, and therefore economical.
The surface of the tiles is treated with the color coating of the future, PURLUX, or with POLYESTER-silicon coating, or with elastic PLASTISOL, and thereby able to withstand scratches and abrasion during transport, installation and handling without damage to the base layer of the sheet. The surface of the tiles is also extremely weatherproof, smooth, soil-resistant (Purlux), and corrosion-proof. The tiles are guaranteed to maintain their appearance for years to come.
|
|
TRANSLUCENT AND TRANSPARENT PANELS
We have a broad product range intended for the light propagation, energy of PVC to polycarbonate while passing by reinforced polyester. According to the requirements, these products of quality different are available in forms transparent, translucent, tinted, into simple or double skin for the installation with sandwich panels. |
|
| This light effect is defined by the cooperation of side- and rooflight and the design of the covering. Pyramidal rooflights offer various possibilities for the improvement of light efficiency. Pyramid roofs create an incomparable atmosphere, which leaves a lasting impression. Many planners and architect use our light elements and fastening parts. |
|
The following systems are available for shed roofs:
PC panels with formed coupling for mounting without joining profiles
RT-systems with joining profiles
PC multi-wall-sheets for mounting with joining profiles |
|
QUICK STEP®-Solar PV
Modern roof architecture combined with ecological solar energy extraction
Roof integrated modular technology without any additional fixing
Full-surface, transparent, durable high-tech adhesion
Optimum resistance to aging
Solar energy production with proven QUICK STEP technology
Simple installation on all roofs with pitches between 10° and 75°
Roofing and energy extraction in one
Promotion of public investment |
|
Tile LUXMETALL is a possibility of covering studied well for the roofs. The sections tiles seemingly similar to the conventional tiles are different by their price and the facility from assembly so that in many cases the preference will go to the metal tiles. Those are available in the colors: black, red tile, clear, green, red Bordeaux wine, gray anthracite, gray graphite, blue and brown green in 200 µ Plastisol, like brown dark, gray anthracite and terracotta in 35 µ polyester chechmate.
The profile resists the bad weather and can, in spite of its reduced weight, being subjected to high static heads. The thickness of the steel core is of 0,5 mm and the panel weighs 5,2 kg/m2.
|
|
| Especially for transparent rooflights, RODECA has developed the multi-function-panels in different thicknesses and the RT rooflight systems. |
|

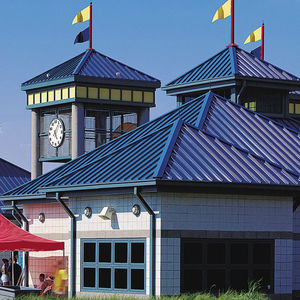

| The angled standing seam is a relatively recent development: though it appears to be wider than the double lock standing seam, it offers a striking effect when used on large surfaces as well. |
|
|
|
