By introducing internationally advanced anti-bacterial coating in the surface of ACP, WILLSTRONG® anti-bacterial ACP is featured with the capability of controlling the activities and propagation of microbes and bacteria and even killing them ultimately. Tests by authorities verifies that 290,000 coliforms and Staphy Lococcus aureus implanted in the surface of ACP in advance, will decrease to at most 5000 pcs under the inside condition of 35 ℃ after 24 hours. Reduction rate reaches 98% according to national anti-bacterial standard for building materials JC/T897-2002. Moreover, the capability of killing bacteria of WILLSTRONG® anti-bacterial ACP will keep in the same level with the surface paint existed. WILLSTRONG® anti-bacterial ACP can make the environment much more clear and fresh,no harm to humankind.
|
|

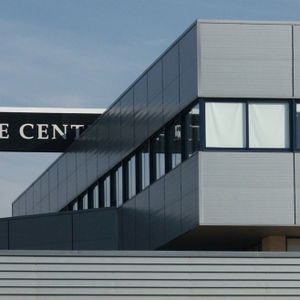

Trimo added a novelty to the existing, well-established construction systems - panels with hidden fixing or Trimoterm INVISIO, which enables performance of vertical façades.
Façade system combines aesthetical accomplishment with excellent technical characteristics. Simplicity and fast assembly stand out among the properties.
Fixing of INVISIO panels is performed by optimised washing elements and self-cutting bolts. All fixing elements are integrated in a panel joint and they are not visible after the assembly.
The range of application is extremely wide since these panels are suitable for representative, commercial, business and industrial facilities.

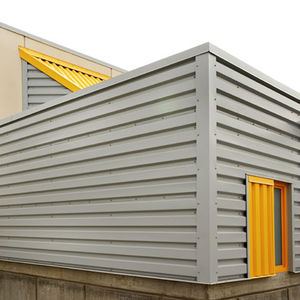

Panel form and fixing method are made to hide the fixing spots. Sheet metal on the external side can be made in micro-lined or stair-like form, the internal sheet metal in stair-like or »v« form.
|
|
Acoustic sound absorbing panels are used for sound damping in internal applications only.
They can be erected as cladding of sound-absorbing cabins, as partition walls and additional cladding on façades and roofs.
|
|
|
|
|
|
Panels of the Trimoterm FTV family are produced in accordance with the patented production process by the use of lamella technique made of uninflammable mineral wool (A1 in accordance with DIN 4102,EN 1182), which assures the best utilisation of compression, tensile and shear properties of the core. Simultaneously they assure optimal thermal and fire characteristics.
The face of a panel is made of hot galvanised (275g/m2) and painted sheet metal in standard thickness of 0.6 mm and 0.5 mm, which gives a panel strong mechanical resistance, durability and aesthetical appearance of a surface.
External anti-corrosion protection is adjusted to climate requirements. Use of corrosive-resistant materials is possible under severe conditions. During the production process both faces of sheet metal are compactly glued with the core by a thin layer of adhesive (3) that meets high strength and durability requirements.
Advantages:
- Strong fire resistance (30 to 180 min)
- Good thermal and sound insulation,
- High load-bearing capacity,
- Water- and air-resistance,
- Durability and
- Fast and simple assembly.
|
|
|
Self-supporting, insulated and fireproofed façade, as state-of-the-art aesthetic experience %u2013 that is Qbiss by trimo. The modular façade system intertwines the purity of architectural form and complete technical solution
|
|
|
|
|
|

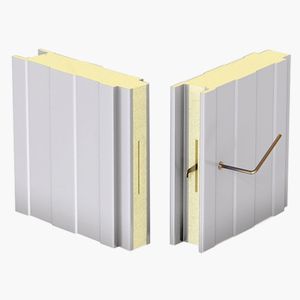

With our Sandwich Wall, you can turn nearly any design into reality. Panels have many joint details and can incorporate false joints, providing limitless options for designers. The standard panels have roll formed sides and cut ends. Unique for Hunter Douglas is the Bi-modular Sandwich Wall with identical joints all-around creating a cassette appearance with insulating properties. A Hunter Douglas designed fully integrated and flush window and door system completes the insulated ‘total’ façade system. In addition, the concealed mounting system ensures that your design is what shines.
SANDWICH WALL
• Made to measure panels
• Up to 12 meters in length
• Standard widths but any panel module up to 1500 mm wide is available
• Choice of skin materials: aluminium, stainless steel, steel and copper
• Superior flatness
• Texture and formed skin shapes
• Total’ façade system including fully integrated windows and doors
• Dry sealed system
• Bi-modular joints, identical joint design at all four panel sides
• Foam or mineral wool core
• Certified fire performance (LPCB/FM/CWCT)
• Horizontal and vertical installations
• Unique, concealed mounting system
• For new build and over-cladding projects
|
|
STEK is a product manufactured by HABITAT Legno and marketed by Linea Legno.
STEK Structural Element with high “K” thermal coefficient is a component of wood-polystyrene foam mixture, which combines the features of high thermal resistance with mechanical resistance.
|
|
Structure of a two-shell
Alu /Alu Sandwich element
Typ AL-WS (plug joint):
surface: ruled on both sides
sheet thickness: 0,65 mm
standard colours: grey white
metallic silver
light ivory
Typ AL-WV (concealed joint):
surface:
ruled and beaded on the outside
ruled inside
sheet thickness:
0,65 mm
standard colours:
grey white
light ivory
metallic silver
|
|
Panel of Cladding Viso Armat Acistim

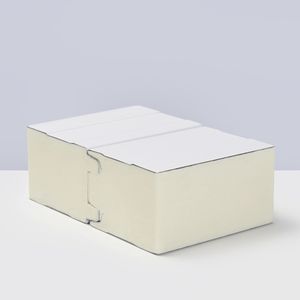

The panel Viso sandwich combines the functions of cladding and heat insulation. It is composed outside an enamelled section, of insulating a polyurethane foam heart and of an interior slightly ribbed steel facing.
Characteristics of the Viso solution
These characteristics relate to only Viso to measure is manufactured in factory with the lengths required in accordance with the plan of calepinage. For the lengths higher than 8 m, to consult us. Technical opinion n°2/03-991.
|
|
|
|
|
|
%u201CLight marble%u201D a seeming contradiction%u2026
The main problems with using stone stem from difficulties in handling and laying it
and from size limits. The slabs generally used have to be 2.5 to 3 cm thick, on average,
to limit the risk of breakage during laying.
Thickness and high specific weight combine to produce averages weight of between
80 and 90 kg per square metre.
Weight thus limits usable dimensions (it%u2019s difficult to use slabs of over 2m2),
it necessitates complex handling and anchoring systems, requires considerable manpower in the assembly stage and significantly increases the cost of the structure (the building
and mechanical parts) that has to support such loads.
As a result, the market is looking to alternative materials, or artificial marble.
Natural Stone Tech has developed the Phidia panel:
thin slab of marble (from 3.5 to 5 mm) on a structural support (from 5 to 40 mm)
with an overall thickness ranging from 8.5 to 45 mm.
The slab weighs around 20 kg/m2, offers a natural stone facing with a back-panel made of a material that allows for rapid installation (with rivets or adhesive, in frames,
anchored directly to the wall with dowels).
This overcomes size-limit problems.
Phidia makes it possible to obtain slabs of up to 6m2 weighing an overall 120 kg against
the 480 kg of traditional natural stone.
|
|
The Promplan panel guarantees the flat appearance of a façade. Its secret fix system and curving possibilities give haute couture steel buildings an exceptional visual depiction.
It has a 2 side interlocking system.
|
|
|
The Metl-Span CF Architectural wall panel is ideal for high-profile architectural applications. The panels may be installed either vertically or horizontally for maximum design flexibility. Multiple module widths and joint reveals add to the design variations available. Attached with concealed clips and fasteners in the side joint, CF Architectural wall panels provide a beautiful flush appearance.
|
|
ISOVENT-TOP®ventilated thermal insulators
The system provides thermal ventilation for civil and industrial roofs and, thanks to its sandwich configuration, offers considerable advantages both in terms of living comfort and easier tile laying.
The thermoventilated ISOVENT-TOP® insulator is made up of a shaped sheet of blue sintered expanded polystyrene, alternatively with added graphite (a material complying with EN 13163 standards), placed between a EUROSTRAND OSB panel and a plywood panel using phenolic glueing or a plasterboard sheet using glue with such physical and mechanical characteristics as to make the insulating component stick perfectly to the whole system.
The ISOVENT-TOP system proves to be practical and convenient. Its dimensions and technical characteristics make it similar to ISOVENT, with the added advantage of an exposed intrados. This leads to considerable savings in the laying of materials since we are dealing with a complete roof pack.
|
|
ISOSANDWICH® structural panel thermal insulator
A system used in flat roofs, pitched roofs or galleries. As well as a sandwich panel with a safely threadable surface, it provides a roof with exposed intrados, thermally insulated and ready for further work. The ISOSANDWICH system delivers excellent results thanks to its panel structure and composition.
ISOSANDWICH® structural panels are made up of a EUROSTRAND OSB panel coupled with a three-layer plywood or plasterboard sheet and a layer of insulating material in between. All materials comply with European regulations.
|
|

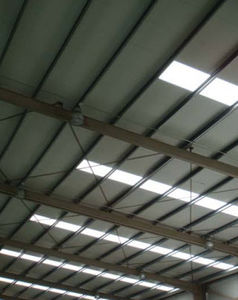

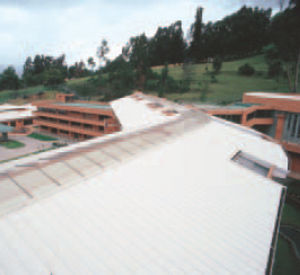

ELYCOP® is a sandwich pre-fabricated roofing system, insulating and self-bearing, precurved to a fixed radius of 3.30 m.
The modular elements create an opaque roof, diffused shed light interrupted by ELYPLAST® (C496) double-walled skylights.
ELYCOP® is used on pre-fabricated structures with alternating wing-shaped or Y beams, to create a light, dependable and functional roof.
|
|
Mineral fibers
Sheet steel with hot galvanizing second EURONORM 142-79. Phosphatizing treatment for better protection to oxidation. Painting consists of a layer of primer and a film of acrylic paint (or PVDF)on the surface outwardly a layer of primer act promote accession of polyurethane to the inner surface.
|
|
Polyurethane foam inserted between the support, gives a perfect insulation between membership and the support.
Sheet steel with hot galvanizing second EURONORM 142-79. Phosphatizing treatment for better protection to oxidation. Painting consists of a layer of primer and a film of acrylic paint (or PVDF)on the surface outwardly a layer of primer act promote accession of polyurethane to the inner surface.
|
|
Expanded Polyurethane inserted inside the support, confers a perfect isolation and adherence within the support.
Sheet stainless steel AISI 304 or316. Treatment of inner surface with a special machining of promoting the adhesion of polyurethane.
|
|
Expanded Polyurethane inserted inside the support, confers a perfect isolation and adherence within the support.
Sheet steel with hot galvanizing second EURONORM 142-79. Phosphatizing treatment for better protection to oxidation. Painting consists of a layer of primer and a film of acrylic paint (or PVDF)on the surface outwardly a layer of primer act promote accession of polyurethane to the inner surface.

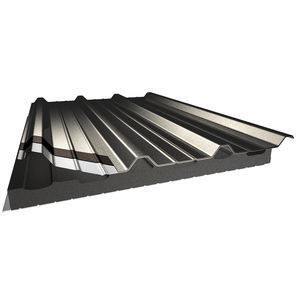

- 3 Greek tightening
- wide range of surface finishes
- ideal for roofing
|
|
Polyurethane foam inserted between the support, gives a perfect insulation between membership and the support.
Sheet steel with hot galvanizing second EURONORM 142-79. Phosphatizing treatment for better protection to oxidation. Painting consists of a layer of primer and a film of acrylic paint (or PVDF)on the surface outwardly a layer of primer act promote accession of polyurethane to the inner surface.
|
|
Polyurethane foam inserted between the support, gives a perfect insulation between membership and the support.
Sheet steel with hot galvanizing second EURONORM 142-79. Phosphatizing treatment for better protection to oxidation. Painting consists of a layer of primer and a film of acrylic paint (or PVDF)on the surface outwardly a layer of primer act promote accession of polyurethane to the inner surface.
|
|

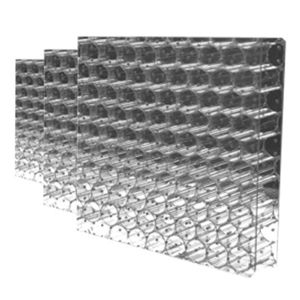

The lightweight panel PRÉGYFAYLITE%u2122 Std BA50 is a panel prefabricated thickness 50 mm made up of a hard-bound network in honeycomb stuck between two plasterboards PRÉGYPLAC%u2122 Std BA10 on thinned board.
· It is intended for the realization of partition-walls of distribution and walls of wall chases.
|
|
· The lightweight panel PRÉGYFAYLITE%u2122 Hydro BA50 is a panel prefabricated thickness 50 mm made up of a hard-bound network in honeycomb stuck between two plasterboards resistant to moisture PRÉGYDRO%u2122 BA10.
· These plates are especially treated to fight the penetration of water or moisture.
· It is intended for the realization of partition-walls of distribution and walls of wall chases.
|
|
The lightweight panel PRÉGYFAYLITE%u2122 Déco BA50 is a panel prefabricated thickness 50 mm made up of a hard-bound network in honeycomb stuck between two pre-printed plasterboards PRÉGYPLAC%u2122 Déco BA10 on thinned board.
· The facings to be decorated received in factory a special treatment which exempts realization of the tack coat on building site.
· It is intended for the realization of partition-walls of distribution and walls of wall chases.
|
|
