The Hörmann STA Sliding Gate Operator is characterised by its compact, robust housing in aluminium and plastic and its reliable operator electronics. Further benefits of the operator concept are the extremely sturdy, height-adjustable ground bracket and the adaptable toothed rack which can be easily matched to your gate construction. Everything is of course weatherproof: no need to oil, grease or lubricate.
EQUILIS® cantilevered gate
The manual cantilevered gate Equilis® adapt to all ways of installation thanks to two types of fixation : to be screwed or sealed.

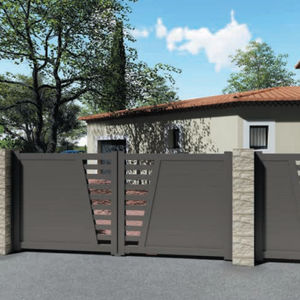

Rectilinear Sobrement or deploying its curved smooth, the Contemporain range proposes nearly 40 basic models available in version beating to two casements or version sliding. Special options widen the pallet of the designs.
The gate 1000 offers a speed of operation (30 cm/sec.) which guarantees a good filtering of the vehicles and pedestrians of use of access control as well as a good robustness.

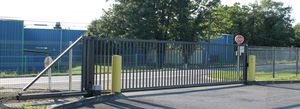

The heavy industrial series is reserved for the gates of width of passage ranging between 8m00 and 12m00.
It is characterized by a low beam with high module of inertia: section height 250 mm, width 100 mm, steel thickness 4 Misters.
This type of beam gives to the gate a very large side rigidity and prète particularly well with a motorization.
The use of 2 pillars of guidance and a pillar of reception reinforced returns this gate of a very sure handling.
The pillars of guidance are provided with nylon wheels, with side adjustment, ensuring a precise centering of the casement and a good bearing on the rail.
The wheels are out of galvanized steel, with ball bearings, in diameter 160.
The lock is out of stainless steel, with swivelling wing - what avoids possible deteriorations of the trowel. Roll Vermigli.
The thrust of stop is provided with a progressive rubber thrust.
Aluminum range shaped conceived for the manufacture of sliding gates. The range of shaped aluminum SHAR-PEI enables you to answer all current esthetics: rights or in the shape of cocked hat, with various types of filling: with full or openwork blades, tubes or sheets...
gate/door weight max. 300 kg
travel length max. 6,000 mm
energy-saving toroidal transformer
safety power deactivation
Also available as individual motor (Item No. 3481V000).
Scope of supply:
sliding gate operator starglider 300 E
bracket for installation
motor control board with integrated radio receiver FM 868.8 MHz Somloq Rollingcode
4-command transmitter FM 868.8 MHz Somloq Rollingcode
4 m plastic rack incl. fixing material
(extendable to max. 6 m)
integrated motor safety device via microprocessor with power and temperature monitoring
power supply - AC 220 ... 240 V, 50 / 60 Hz
electric limit switches (reed contact)
pluggable motor control board, integrated in operator housing
fully automatic force memory with Dynamic Power System (DPS)
DC 24 V output (controlled 0.1 A)
early warning function selectable
soft start / soft stop without power loss
connections for warning light (DC 24 V), integrated evaluation for safety contact strips (electric 8.2 kOhm / optical), floating relay contact, TorMinal
function of safety connection adjustable
floating relay output (function adjustable with TorMinal)
defined drive direction control (gate/door OPEN / CLOSE)
adjustable partial opening of gate/door
2 radio channels
2 pulse inputs
2 safety inputs
automatic close function
operating mode - S3 40%
Up to 400-600-800 Kg.
The BX series adapts to legislative standards through new command electronics which best respond to the different needs of apartment blocks and homes. Customised solutions starting from the 230V versions, all the way up to the low tension, intensive-use ones.
