| Collector with a sandwich type absorber painted with black solar paint in horizontal configuration with aluminum frame anodized, with tempered glass, insulated with 3 cm thick polyurethane lined inside with aluminum foil and outside with aluminum sheet. |
|
| Collector with vertical configuration with high selective absorber of one copper fin laser welded on the copper tubes. The frame is made of anodized aluminum with tempered glass, insulated with 3 cm thick polyurethane lined inside with aluminum foil and outside with aluminum sheet. |
|
| Efficient and environmentally friendly: The sophisticated and graceful Weishaupt flat collectors will save you up to 60% of your heating energy. Fitting takes only a few hours |
|

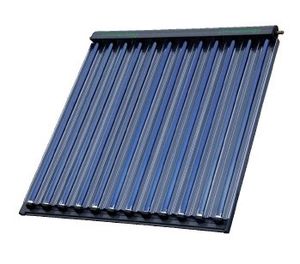

| Collector with vacuum tubes (internally equipped with U-type finned copper tubes) and a flat reflector made of granulated aluminum. The header is insulated with fibre glass and polyurethane in order to withstand high temperatures. These collectors are offered with 12 or 20 tubes. |
|
| Collector with vacuum tubes internally equipped with U-type copper tubes and double fins for higher performance. The CPC reflector, made of highly reflecting aluminum, ensures high efficiency even under the most adverse solar conditions. The header is insulated with fibre glass and polyurethane and finished with black anodized aluminum. Standard size 12 VTN (other sizes from 6 to 16 tubes are available on request). |
|
The BP Solar business became profitable for the first time in 2004 after rapid growth and streamlining. Today, we work in almost 100 countries and produce more than 200 MW of solar technology every year. Our work includes everything from designing and manufacturing solar electric systems, through to marketing them to people, businesses and industries. Here are some recent highlights below.
|
|

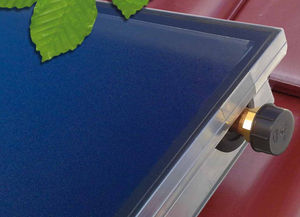

The powerful PHOENIX Infinity flat plate collector
The high-tech PHOENIX Infinity flat plate collector will give you years of pleasure because its powerful, full surface absorber gets the best out of the sun. It can be mounted on end or at an angle. The connection positions are also variable, being either on the short side (standard) or on the long side.
Flexible and quick installation on the roof
The collector frames consist of aluminium sections with an integrated and continuous mounting slot (C-section) along the side edges. This gives you considerable flexibility when installing the system on the roof. Heat loss is considerably reduced by the extra thick mineral wool insulation on the back of the collector. The insulation is highly temperature resistant and is made of non-offgassing material.
The collector is covered with special solar safety glass that reduces the reflection losses from the solar radiation. The glass is sealed along the frames with EPDM rubber (double seal) and thus reliably prevents water from penetrating into the collector.
High solar yield through high-performance coating
The heart of the collector is the copper full-surface absorber with a sunselect coating - a highly selective, particularly environmentally friendly vacuum coating. The full surface absorber both optimises the collector yield and improves the collector's appearance. |
|
Tras la entrada en vigor del nuevo Código Técnico de Edificación en el que se recoge la obligatoriedad, para todo tipo de construcciones, del uso de paneles solares térmicos para la obtención de ACS (agua caliente sanitaria), Thermochip ha desarrollado, para todo tipo de cubiertas, un sistema ideal, el THERMOSUN.
El kit THERMOSUN incluye todos los componentes para poder instalar tu colector solar para ACS. Se coloca fácilmente tanto sobre tu cubierta THERMOCHIP como sobre cualquier otro tipo de cubiertas, con un montaje sencillo y versátil, pues permite cualquier tipo de cubrición posterior. Los captadores quedan integrados en la cubierta, mnimizando el impacto visual de la instalación, remplazando de forma segura la cubierta tradicional, y todo ello avalado por la garantía que ofrece THERMOCHIP en sus productos.
THERMOSUN consta de un captador plano de gran rendimiento para montaje en vertical y horizontal. El marco autoportante y la tapa posterior son de aluminio resistente a la corrosión y dispone de un aislamiento térmico de lana mineral en su parte posterior. Debajo del vidrio solar de seguridad con un espesor de 4mm se encuentra un absorbedor homogéneo de cobre de una sola pieza con recubrimiento Sunselect de una absorción altamente selectiva y una fijación mecánica para el absorbedor. La tubería está colocada en forma de meandro y está. conectada mediante pasos tubulares con aislamiento térmico y sin carga |
|
- Vacuum tube collector according to the
thermos flask principle, therefore very less
heat losses and higher solar gain
- Additional CPC mirror behind the tubes
increases the energy gain, especially in
transitional periods
- High operating reliability because of dry
connection of the tubes and leak-tightness
control (barium getter)
- cost saving and easy installation because the
still pre-assembled collector on the mounting
frame
- flexible choice of collector field connection,
single- and double-sided connection possible
- long lifetime through high quality |
|
Solar thermal collectors VELUX are integrated in any discretion on all the roofs. The use of same connections of sealing as for guaranteed roof windows VELUX an integration made safe in all breeder materials (mechanical roof tiles, roof tiles channel, slates...) and all slopes of roof starting from 15°, as well as a perfect sealing.
Moreover, of the same size than roof windows VELUX, the solar collectors combine harmoniously and in configurations varied with them, so that the roof becomes source of energy and light.
2 solutions of pack balloon to be coupled with solar collectors VELUX:
For the restoration: pack solar balloon VELUX
For the nine: pack solar balloon MG-V ATLANTIC
FEATURES:
Copper absorber covered with a highly selective coating.
Profiled out of dark gray enamelled aluminum.
3 dimensions available (L X H): 114 X 118 (surface of collecting of 1,2 m ²); 114 X 140 (1,4 m ²) or 134 X 180 cm (2,2 m ²).
Certification Solar Keymark and Technical opinion 14/07-1136 opening right to the tax credit of 50%
List solar systems VELUX on the site of ENERPLAN for the attribution of regional aids.
Guarantee: 5 years subject to use of flexible devices VELUX. In the contrary case, the Biennial one applies.
|
|

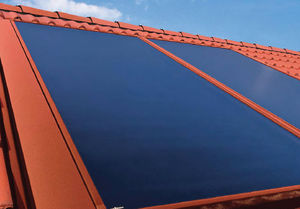

| The Vitosol 100 flat-plate collector impresses with its high efficiency and attractive price/performance ratio. This collector has been proven over many years, and has now been further improved; its low weight makes it even easier to install and high quality ensures permanent operational reliability, a long service life and high efficiency. |
|
High performance vacuum tube collector, which can be installed in almost any position. Individual pipes can be rotated for optimum alignment with the sun.
With a direct flow pattern, the Vitosol 200 is designed to be easily installed in virtually any position and the individual pipes can be rotated towards the sun. The pre-assembled modular design ensures easy handling with short installation times and the flexible double tube connection system enables easy hydraulic interconnection.
Thick borosilicate glass and a permanent vacuum sealed glass-metal joint safeguards long term operational reliability. The Sol-Totanium absorber coating ensures a high level of efficiency.
Three Vitosol 200 models offer absorber areas of 1m2, 2m2 or 3m2. They are all 2,028mm high, with widths of 741mm, 1,450mm and 2,159mm respectively. |
|
Length: 1776 mm
Width: 1751 mm
Thickness: 110 mm
Surface: 2.75 m ²
Weight: 55 kg
Guarantee: 10 years
|
|
Solar panels:
- Capture the originating energy of the solar radiation.
- Flat Solar Collectors.
- Existence in the market of Compact Systems (use single-family house and inferior quality).
- Location in shelters or roofings. |
|
BIASOL CF
The systems to forced circulation take advantage of the solar energy like carrier for the sanitary warm water production. I use of installed solar collectors on the roof who directly feed a coil kettle double, installabile anywhere inside of a room and through which come scaldata and accumulated the sanitary warm water, allows a remarkable energetic saving. In fact, thanks to the installation of these systems I use, it of the generator to gas takes part with only reduced frequency a lot when this system does not succeed to guarantee the requirements total of the user being implied therefore a remarkable saving in the fuel consumption. |
|
Planned with this in mind to supply a product, versatilità, yield, duration, reliability, cost of maintenance and facility of substitution several members are the points of force of Magic Sun.
Kit the Magic Sun comes supplied complete of every necessary element to its installation, the support structure sturdy and is studied for installations on slanted roofs and terraces.
The volume of the tank and the surface of the solar collectors are optimized in order to satisfy the requirements of the European medium family, also with modest values of insolation.
The several executed tests have demonstrated a cover of 85% of the annual sanitary warm water requirements. |
|
SENSOR with technologies CCS
The sensor consists of a collector on which comes to encase without sealing a series of tubes out of armor-plated glass.
Each tube with technology CCS is a sensor which functions on the most advanced principle of the heat exchanger:
CONDENSATION.
ADVANTAGES:
- reduction of surface of 25%,
- not of inertia,
- voluntary restraint of temperature, for one
perennial installation,
- maximum orientation full southern, the tube swivels
on its axis,
- little catch to the wind,
- guarantee of operation even in case
of accidental destruction of a tube,
- facility of installation,
- weak weight of each component,
- not of mechanical constraint on the tubes,
each condenser having a stainless flexible device.
|
|
| ... products without information |
| |
|
|
