The Guardian ClimaGuard range is the most advanced low emissivity coated glass of its type, almost invisible, the neutral colour coatings provide superior visual appearance combined with excellent thermal insulation. Guardian is at the cutting edge of coating technology, development and innovation, offering products manufactured to the most demanding specifications.
|
|
OKASOLAR Glazing with integral sun control Louvres
OKASOLAR insulating glass is a daylight system which contains an element made form specially developed, fixed reflector profiles in the inter- pane cavity. These elements can be used for various applications:
seasonal and daylight controlled sun protection
permanent sun protection
light control
passive solar elements
|
|
With our first-class methods we can bend glasses with the maximum size of 3.2 x 6 meters. However, the selection of products is slightly smaller.
The products available in large sizes
- Curved laminated safety glass
- Curved insulating glass
- Curved float
|
|
Low-emissivity ARIPLAK Low E is a high performance glass.
In the manufacturing process, one or more layers of metal and metallic oxide are deposited on one of the glass surfaces by a process of high vacuum cathodic pulverisation.
This treatment is carried out at a low temperature, not affecting the flatness of the glass.
|
|
|
|
|
|
ARIPLAK Solar Control Glass is produced by depositing one or more metallic layers onto the glass surface by means of high vacuum cathodic pulverisation.
This treatment is carried out at a low temperature, not affecting the flatness of the glass.
The sun has a surface temperature of 5,700 K. At this temperature it emits radiation whose peak can be found on a wavelength of 500 nanometres (central zone of visible radiation); this radiation is partially absorbed by the earth’s atmosphere.
The distribution of the remaining energy on the earth’s surface Ariplak Solar Control Glass allows greater control over light and energy transmission, and offers a wide range of aesthetic options.
In climate-controlled spaces, where air-conditioning is essential, it is advantageous to eliminate as much of the sun’s radiant energy as possible.
This multi-layered metallic coated glass provides the solution, along with subsequent energy savings.
When the coatings are combined with tinted glass, many different reflected hues can be created, making available a full range of colours and solar protection properties
|
|
Solar-control glazing with thermal insulation
The solar control function is achieved by applying a selective metal coating.
High light transmission, low solar heat throughput
Stopray solar-control glazing with thermal insulation is ideal for all climates: combines solar control in summer with thermal insulation in winter
Various colours, including an extraordinary neutral, low light-reflection range
Application: always in double glazed units. Monolithic glass available to processors
|
|
|
Modern glass architecture places the highest demands on the materials, in terms of aesthetics as well as technology. With ipasol, architects and planners can realize their buildings using forward-looking energetic concepts without having to abandon transparency and a captivating visual appearance.
|
|
CLEARSHADE™IGU SERIES
The Panelite ClearShade™ insulating glass unit was developed for exterior glazing applications using a tubular honeycomb core with patented polymer technology that offers superior shading performance. In addition to the benefits of visual privacy and a Visible Light Transmittance of up to 50%, the ClearShade™ IGU achieves a Solar Heat Gain Coefficient of 0.18 at midday, approximately 7 5% lower than that of other insulating glass units without the need for tinted, reflective or specialty glass. This dramatically reduces climate control requirements and results in significant energy savings over the life of the building.
The ClearShade™ IGU may be customized to meet a broad range of performance and aesthetic requirements.
|
|
|
|
|
|

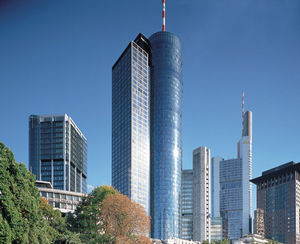

Facade systems
Creating open spaces. Realising creative concepts. Understanding architecture as an idea. This is the challenge we face.
For public and commercial buildings, as well as for industrial and administrative buildings. Whether classical mullion-transom façades, element façades, window façades, structural glazing or even three-dimensional objects, such as pyramids, polygons or cradle vaults.
With WICTEC façade systems, all conceivable variants are possible. Design diversity combined with technical variability are what we do best. Sight lines of 50 to 90 mm give rise to completely new creative freedoms. The possibilities for combining the different elements, as well as the compatibility of the systems, enable customised solutions.
However, there is more to façades than technical functionality and creativity; "intelligent façades" are becoming increasingly important. Energy savings, lower costs and greater quality of life are the keywords. Today, the focus is on the development of photovoltaic-, PSW- (passive solar wall) and DuoWall-façade systems. Here, too, WICONA offers a comprehensive range that is being extended and developed on an ongoing basis.
|
|
| ... products without information |
| |
... see all the products in the category
Glazing
|
|
|
|
|
As their name suggests, solar control glasses help control the amount of solar energy that enters a building.
Solar control glasses save money by reducing the amount of energy used by heating and air conditioning systems and boost comfort levels inside the building by controlling indoor temperatures and light levels.
Solar control performance, as expressed by the glass' solar factor, will vary according to:
the quantity of heat absorbed by the glass
and the quantity of reflected heat.
Product range:
coloured Planibel body-tinted glasses;
Stopsol and Sunergy pyrolitic hard-coated glasses;
Stopray vacuum coated glasses;
Artlite silkscreen-printed glasses.
Reflective solar-control glazing
Reflecting glasses offer privacy and visual comfort
Multiple combinations of solar control and light transmission levels
Hard-coated glass (metal oxide coatings applied using a pyrolitic process)
Stopsol reflective glazing offers architects limitless creativity: a single glass can be used for all applications
Application: single glass - double glazed units - laminated glass - toughened glass - enamelled glass
Benefits
Reflective glasses providing privacy and visual comfort
Multiple combinations of solar control and light-transmission levels and various colours
Stopsol reflective solar-control glazing offers architects limitless creativity: one range can be used for all applications
The lifespan of the coating is the same as that of float glass
|
|
|
|
