Fabral's Solar SSR system was designed with the highest quality, UL approved components. The flexibility and durability of these laminates make them ideal for metal roofs, where expansion, contraction and curving are considerations. Unlike polycrystalline photocells that are heavy and fragile, no roof penetrations and no additional structural support are required. And the panel/laminate bond that's created has been tested and proven to withstand wind of 160 mph.
When it comes to generating electricity, compared to any other technology, Fabral's Solar SSR laminates achieve higher relative efficiency under high temperatures and low light.
|
|
|
|
|
|
The island of the Meeting launched in 2008 the project GERRI which fits directly in the step of Grenelle of the Environment. In this favorable context, the Area Meeting undertook great work with the level of these buildings by integrating a photovoltaic component. The college Bel Air is an exemplary reference in this field. This project of 750 kWc is also the fruit of the partnership between Solar Energies and Apex BP Solar. After the development of many projects whose BEAUTIFUL college AIR, Apex LP Solar has in this end of the year with Solar Energies (Case of the deposits and Aérowatt participation) a new program concludes from solar power stations in overtaxation from roofings connected to the network from a capacity of 2,3 MWc under installation. This program 2008 door on the equipment of industrial, commercial and public buildings with the Meeting, in Guadeloupe and of the colleges in Guyana. The entire investment represents approximately 20 million euros. Taking into consideration already identified and made safe project, this partnership initiated in 2007 envisages the possibility of installing up to 10 MWc at the end of 2009.
Capacity: 746.78 kilowatts peak (kWc)
Entire surface of the installation: 6.200 m2
Producible: 1.040.000 kWh per annum
CO2 reduction: 780 tons per annum
Components of the system: Modules BP 3165 and BP 3170
Inverters Fronius IG 500 (6), IG 400 (8), IG 300 (5), IG 60 (19)
Interface roofing: Structure in overtaxation on metal roofing of type Alistral II
|
|
The ALYPLANO panels are metallic panels with insulation made of rigid polyurethane foam fit for the realisation of Roofs Coverings of industrial building.
The ALYPLANO panels present good performance of FIRE RESISTANCE.
The ALYPLANO panels are constituted of two trapezoidal or microgrooved metallic supports with interposed insulation of rigid polyurethane foamo.
METAL SUPPORT:
The REPI FIRE panels are made of two trapezoidal, microgrooved or flat metallic supports obtained by cold-process profiling the sheet coils.
The materials which are used are:
- Galvanized Steel
- Prepainted Galvanized Steel
- Natural Aluminium
- Prepainted Aluminium
|
|
|
QuikSnap is an advanced, high performance solar power system with integrated high efficiency solar modules. It's sleek and stylish, yet delivers unparalleled, built-in reliability - a beautiful way to protect the environment, save power costs, and add to the value of your home or business.
|
|
|
Construction system combining a standing seam roofing in VM ZINC PLUS with rigid mineral wool insulation laid on supporting structures in steel, wood or concrete
|
|
The Krystal polycristalline silicon glass modules, purpose designed and made in such dimensions to be fit in the flat part of the Riverclack sheets, offer a clean and linear architectural effect.
The Krystal solution is ideal in case of limited installation areas given the high efficiency of the modules.
With its reduced dimensions and its 115 kWp per module, it is possible in fact to offer an almost triple efficiency compared to the ELIOS DECK system in terms of kWp / covered area ratio.
The installation of Riverclack Krystal is easy and reliable: the system is based on aluminium profiles designed in order to house the PV panel and being able at the same to fit in the Riverclack profile width by a simple snap mechanism without through fixations.
|
|
BP Solar is a pioneer of photovoltaic technology. With more than 35 years of experiment in the manufacture of "wafers" (sections), solar cells and modules, we optimized the lifespan and the electric performances of our solar generators. Our very last generation of products Série T to 72 cells is the result of our expertise in the design, the quality control, the manufacture and of our concern of the least detail
BP 4180T
Solar cells: 72 single-crystal silicon cells series-connected
Front face: Glass ARC 3,2 mm high transmissibility
Encapsulation: EVA
Back face: White polyester
Tally: Anodic aluminum money
Diodes: IntregraBus technology with three diodes Schottky (a diode protecting 24 cells)
Limp of junction: Bituminous mix (IP67): certified to pass the test of inflammability of standard UL1703. Dimensions: 40 X 101 x13 (mm)
Cables of exit: Cable certified 4mm2 Pg 1167 - 2007 with locking
Connectors MC 4
Dimensions: 1587 ±2 mm X 790±2 mm X 50 mm
Weight: 15,4 kg
|
|
Apex BP Solar develops solar solutions to measure for the companies and the local government agencies which wish to optimize and exploit their space available in order to produce and sell photovoltaic solar energy. Apex BP Solar designed a complete range of photovoltaic technologies and in particular: Integralux.
Application and implementation
Integralux meets today the needs for protector of the bad weather and shade of all the types of projects of construction and restoration of buildings: logistic warehouses; industrial buildings; colleges, schools; shopping malls; carpark... Integralux is a product which makes it possible to optimize usable surfaces to produce clean energy and renewable combining performance and esthetism. A visible engagement for the investors on the environment and the protector of our planet. Several possible uses: ombrière, awning, shelter of carpark...
|
|
|
|
|
|
The module BP 3170N is a solar module of 170Wc resulting from the polycrystalline technology most advanced, using an anti-reflecting treatment as well for the cells as for the glazing, so that your installation generates more energy (more kWh by kWc). This module was soumi with the most rigorous tests to make sure of the reliability of these long-term performances, and obtained certifications corresponding to very last security standards (CEI 61730 and UL 1703). The three diodes "by-pass" inserted in our IntegraBus circuit inside the module provide a protector of the solar cells against effects of heating localized and ensure a reliability of the long-term module. All the weldings of connections between cells were carried out without lead, which makes of this module a respectful object of the environment.
Performance
Nominal nominal output 170W
Tolerance -3/+5%
Output modulates 13,5%
Nominal voltage 24V
Garantie* 90% power of guaranteed exit 12 years
80% power of guaranteed exit 25 years
Absence of defects, materials and labor, guarantee 5 years
|
|
|
|
|
|
The module BP 3160N is a solar module of 160Wc resulting from the polycrystalline technology most advanced, using an anti-reflecting treatment as well for the cells as for the glazing, so that your installation generates more energy (more kWh by kWc). This module was soumi with the most rigorous tests to make sure of the reliability of these long-term performances, and obtained certifications corresponding to very last security standards (CEI 61730 and UL 1703). The three diodes "by-pass" inserted in our IntegraBus circuit inside the module provide a protector of the solar cells against effects of heating localized and ensure a reliability of the long-term module. All the weldings of connections between cells were carried out without lead, which makes of this module a respectful object of the environment.
Nominal nominal output 160W
Tolerance -3/+5%
Output modulates 12,7%
Nominal voltage 24V
Garantie* 90% power of guaranteed exit 12 years
80% power of guaranteed exit 25 years
Absence of defects, materials and labor, guarantee 5 years
|
|
Integrafix-B meets today the needs for cover for the public buildings and industrialists with framework wood or metal (DTU 40.35). The installation of this product is fast and reliable, because it is carried out according to the methods of installation
traditional of the metal roofings. Integrafix-B is intended for all types of construction projects and restoration of buildings: logistic warehouses; industrial, agricultural buildings; colleges, schools; shopping malls... Integrafix-B is a product which makes it possible to optimize exploitable surfaces to produce clean energy and renewable while combining performance and esthetism. It is a strong and visible engagement for the investors for the environment and the protector of our planet.
|
|
|
|
|
|
Solar energy being renewable and nonpolluante, to install a photovoltaic system Integrafix-R on its roof, it is to choose a reliable solution and thus to become producer of a green electricity: an excellent manner of engaging for the environmental quality and of carrying out a very interesting financial benefit falling under the duration. The whole or the surplus of the production is sold to the supplier of electricity of the public network to a preferential rate, guaranteeing a good return on investment.
Application and implementation
The system was conceived especially to in full safety guarantee a fast installation and a maximum longevity. The use of materials and traditional techniques of placement of the building guarantee a perfect sealing of the system. The design allows a very good ventilation of modules statement and thus guarantees to the system an optimal performance and a production of maximum electricity. The Integrafix-R range is flexible in format "portrait" or "landscape". It makes it possible to answer your waitings whatever the size and the type of your roofing (roof tile or slate).
|
|
Kalzip AluPlusSolar
Kalzip AluPlusSolar solar panels are the first to enable truly roof-integrated renewable power generation using flexible photovoltaic (PV) laminates, while providing maximum freedom of creativity for challenging architecture.
A wide variety of designs can be accommodated, as the solar laminate is permanently attached to aluminium Kalzip standing seam sheets. This integrated system allows individually designed roof elements with straight, convex, or concave shapes.
Without the need for mounting frames, the solar cells are in-plane with the roof surface and convey a unique expressive character. The PV laminates can blend unobtrusively into the Kalzip roof profile or become a design feature.
|
|
Wherever you want - Off-grid solutions
If there is no stable and cost-efficient connection to the electricity grid, stand-alone photovoltaic systems are often the only viable alternative. That is why SCHOTT Solar offers several modules which cater especially to grid-independent electricity generation. These are the modules based on innovative ASI® thin film technology: ASI-F 2/12, ASI-F 5/12, ASI-F 10/12 and the ASI-F 32/12.Our 20-year performance guarantee is also valid for these modules. Whatever the future holds.
|
|
Sharp’s thin film product pairs amorphous silicon with a layer of microcrystalline silicon to achieve high stability and performance. Produced with less than one percent of the silicon used in crystalline solar cells, thin film products offer high performance with less semiconductor material. With a low temperature coefficient for output power, thin film generates greater energy than its crystalline silicon counterpart in geographic regions where temperatures are high. In warm climates, this translates into more kilowatthours per kilowatt. Certified to IEC 61646, these modules are not UL-listed and are exclusively for
behind-the-fence applications.
|
|
Lets the sunshine in - Architectural solutions

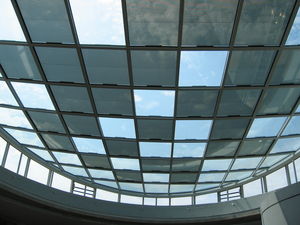

In addition to generating energy, ASI® Glass modules for architecturale solutions provide several functions for modern solar architecture. Both opaque laminates (ASI OPAK™) and semitransparent laminates or double-glazing (ASI THRU™) meet the requirements of the building industry and can therefore be used with several traditional metal structure systems. Successfully used for more than 15 years, a comprehensive product range is available today: from standard formats to specific superstructures. Whatever the future holds.
|
|
- High-power module (180W) using 126mm square mono-crystalline silicon solar cells with 13.8% module conversion efficiency
- Bypass diode minimizes the power drop caused by shade
- Sharp’s advanced surface texturing process increases light absorption and efficiency while providing a more subdued, “natural”look
- 25-year limited warranty on power output
|
|
|
Multi-purpose 175 watt module from the world’s trusted source for solar. Using breakthrough technology, made possible by nearly 50 years of proprietary research and development, Sharp’s NT-175U1 solar module incorporates an advanced surface texturing process to increase light absorption and improve efficiency. Common applications include commercial and residential grid-tied roof systems as well as ground mounted arrays. Designed to withstand rigorous operating conditions, this module offers high power output per square foot of solar array.
|
|
|
|
|
|
The Brandoni Solare module is laminated with glass, EVA and Backsheet. It contains: 60 Q-cells 3 bus bar 6" multicrystalline cells. The 4mm tempered solar glass in class V1, with semisand finiture gives to the module very high mechanical resistance (up to 5400 Pa) and great energetic performance. The Ribbon, Eva and Backsheet have been selected among the best producer available on the market in order to obtain optimal Technical-aesthetic characteristics. Each module is equipped with a Junction box IP67 with 3 Bypass diodes able to stop the reverse current and a couple of cable with Tyco connectors to make even easier the installation. The
anodize aluminium frame create a very solid structure, easy to fix on the anchor structure.
The quality of Brandoni solare Module is due to a very careful selection of the highest quality raw material; the whole process is
completely automatic and offers very high performance and guarantees a very long duration. In fact the module ensure a power
performance of more than 90% of nominal power for 10 years and of more than 80% of nominal power for 25 years.
|
|
Photovoltaic modules
The Photovoltaic modules Mitsubishi Electric are a strategic integration of the most recent innovations in the technology of the satellites space them, of the semiconductors and other key sectors. Rich of technological solutions to the vanguard, elegant in the design. The photovoltaic modules with exceptional characteristics of yield.
The result of beyond 25 years of experiences of Research & development and know-how, with all the technology of tip of a manufacturer leader of equipment electronic electrical workers and.
|
|
Photovoltaic modules
The Photovoltaic modules Mitsubishi Electric are a strategic integration of the most recent innovations in the technology of the satellites space them, of the semiconductors and other key sectors. Rich of technological solutions to the vanguard, elegant in the design. The photovoltaic modules with exceptional characteristics of yield.
The result of beyond 25 years of experiences of Research & development and know-how, with all the technology of tip of a manufacturer leader of equipment electronic electrical workers and.
|
|
Brilliant appearance - SCHOTT EFG™ 165
The new EFG™ solar power modules made by SCHOTT Solar provide many advantages in addition to high energy yields and high-end manufacturing standards. They stand out with their very good electrical long-term stability, high light spectrum responsiveness and therefore high energy efficiency. Their lightly structured and very even dark-blue appearance provides a highly refined look. Moreover, EFG™ technology is a patented process for highly economical and raw material-saving wafer production. SCHOTT EFG™ 165 is a combination of a sustainable manufacturing process, high-performance cells and 20 years of performance guarantee. Whatever the future holds.
|
|
Extremely well built - SCHOTT POLY™ 280
The SCHOTT POLY™ 280/290 is a polycrystalline double glass module, which is perfectly suited to meet the highest demands in terms of quality and aesthetics. Thanks to our high-standard production methods and the additional sheet of glass on the back side, it is extremely robust: tough climatic influences or aggressive air pollutants, like ammonia as present in the farming sector, have basically any effect on it. The back glass sheet and a transparent foil give the whole module a translucent, highly aesthetic appearance. In all ways a high-end module, which is designed to provide a long-term energy yield. Thereon, SCHOTT Solar gives a performance guarantee of 20 years. Whatever the future holds.
|
|
Our peak performer - SCHOTT POLY™ 225
SCHOTT POLY™ 225 excels with its outstanding high nominal output. Due to its 6-inch cells, the module's surface is used very efficiently. The narrow selection of the cell power output (carried out by power binning) enables a row circuit technique with low electrical losses. This makes SCHOTT POLY™ 225 very suitable both for individual application and for large installations. SCHOTT Solar provides a 20-year performance guarantee on it. Whatever the future holds.
|
|
Powerful modules for stand-alone systems and mains coupling
High-output modules from SCHOTT Solar are available from a power class of 50 to 300 Watt. Crystalline EFG and MAIN cells with a high-quality finish provide the highest energy yields. The modules have been judged many times as the winners in independent studies and tests. Each module type is designed for low-cost system integration, from the frame construction through to the junction box.
|
|
- High-power module (123W) using 155mm square poly-crystalline silicon solar cells with 12.39% module conversion efficiency
- Sharp’s advanced surface texturing process increases light absorption and efficiency while providing a more subdued,“natural” look
- 25-year limited warranty on power output
|
|
- High-power module (80W) using 125mm square poly-crystalline silicon solar cells with 12.40% module conversion efficiency
- Sharp’s advanced surface texturing process increases light absorption and efficiency while providing a more subdued,“natural” look
- 25-year limited warranty on power output
|
|
Residential 176 watt module from the world’s trusted source for solar .
This high-quality residential solar module is designed and engineered for use with the Sharp OnEnergy solar system. Sharp’s OnEnergy system replaces the bulky look of traditional solar roof mounts with a clean, elegant appearance that blends beautifully with rooflines. Using breakthrough technology, made possible by nearly 50 years of proprietary research and development, this module incorporates an advanced surface texturing process to increase light absorption and improve efficiency.
|
|
Multi-purpose 235 watt module from the world’s trusted source for solar.
Using breakthrough technology, made possible by nearly 50 years of proprietary research and development, Sharp’s NU-235F1 solar module incorporates an advanced surface texturing process to increase light absorption and improve efficiency. Common applications include commercial and residential grid-tied roof systems as well as ground mounted arrays. Designed to withstand rigorous operating conditions, this module offers high power output per square foot of solar array.
|
|
|
|
