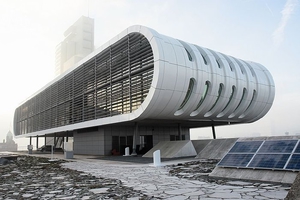

SIMPLE, BUT EFFECTIVE
In the summer direct sunlight falling on a vertical glass surface can generate a heat load of as much as 700 W/m2. An external solar shading system can deal with this problem.
Solar C is a relatively simple fixed brise soleil system. It is designed to be particularly effective at controlling solar heat gain while allowing a large proportion of diffused light through, thus also reducing glare. It is maintenance free and it exerts a minimal load on the building structure.
Solar C is pre-eminently suited for installation on the outside of buildings with a south-east to south-west orientation, above or in front of glazed surfaces. The C-shaped aluminium louvres - from which this product derives its name - are attached horizontally, vertically or at an angle.
Using a patented clip system the louvres can be adjusted in steps of 15°. This allows the system to be adjusted to meet the specifications of the project concerned.
'Colt solar shading systems: a synthesis of quality, functionality and design'
|
|
|
|
|
|
The Levolux Matrix System unites simplicity and efficiency to produce an effective external “Brise Soleil” Solar Shading System. The system can create both aesthetic and structural features. It enhances the external appearance of new and existing buildings, whilst controlling solar heat gain to create a comfortable internal environment.
Aesthetically pleasing – Matrix is manufactured from extruded aluminium components and can be anodised or polyester powder coated to compliment
the building and surroundings.
Virtually maintenance free – Stainless steel fastenings and fixings are used, producing a virtually maintenance free and corrosion-resistant system.
Reduces energy costs – The ability to control solar heat gain can reduce or even eliminate the need for air conditioning.
Comfortable environment – Matrix encourages natural ventilation and provides unobstructed outward vision.
Flexibility – Matrix can be fitted to existing or new buildings and allows special applications to be considered.
Accessibility – Using Matrix with a walk-on platform option gives easier access for maintenance and window cleaning.
Multi-purpose – Matrix may even be used for wall cladding, ventilation grilles, sight screening, pergolas, pedestrian ways, sun terraces etc.
For more information visit www.levolux.com.
|
|
|
Levolux 9000 Range of Aluminium Aerofoil Fins are non-retractable and can be installed to provide protection to vertical, horizontal or inclined glazing. They can be installed in a fixed position or can be adjustable manually, by motor with switch control, or with a fully automatic system, which can be integrated into the Building Management System.
|
|
THE LIGHTWEIGHT AMONG LOUVRE SYSTEMS
Colt Shadotex is a unique, alternative solar shading solution. Shadotex consists of a special fabric stretched between two sides of a louvre support frame. The fabric is manufactured with a weave to prevent solar glare and solar heat gain. The fabric can also create attractive diffused light and can allow a high degree of external vision.
Shadotex is given its strength by coating the fabric in a special resin which dries hard. This type of product is extremely lightweight which allows large spans to be constructed without the need for additional supporting framework.
Associated parts of the louvre system, such as the corners, are made of the same material, which gives a visually homogenous impression. This system offers building designers a unique solution to external solar shading systems.
'Colt solar shading technology - versatility par excellence'
|
|
|
|
|
|
Light and shadow
in its most beautiful form
The UNLAND®SUN-Plissés can be used for different window forms made to measure and decorative solutions will be offered, which will control the light and solar radiation and will shelter from the looks.
The UNLAND®SUN Plissé-Collection offer you a trendy selection of Plissé - fabrics and designs: transparent, lights fabrics will give your rooms a comfortable living atmosphere. Blackout fabrics will shelter from the looks. You’ll place varying accents with strong and different designs. Pearlescent painted fabrics granted a high solar radiation and they are resistant about alkaline detergents, insects’ dirtiness und condensed water. The UNLAND ®SUN CS-Plissé - fabrics perform the criteria of DIN 4102 (flame-retardant) und therefore brilliant adapted for using in the object projects.
UNLAND®SUN Plissés can be used on almost every window in different forms: I fit will be a dormer window, gable window, arched window, winter garden or exceptional windows. The control-options are multiplex in comfort and functionality. You have the choice between: control-bow, rod, cord lock or motorised. In this UNLAND ®SUN Plissé-collection you’ll find a variation of fabrics and designs from transparent up to black-out – with this you’ll have soft filtered light and textile atmosphere.
|
|
|
|
|
|
GLASS LOUVRES AS EYECATCHERS
The fact that it is a solid material that we can nevertheless look through makes glass an attractive material. Architects like to make buildings look transparent and open. Colt Shadoglass can provide this feature.
Colt Shadoglass is a fixed or controllable external glazed solar shading system that may be installed either vertically or horizontally in front of the façade. It is also suitable as a primary or secondary facade element for ventilation.
Shadoglass glass louvre shading systems are operated by linear actuators that have the capability to operate complete facades. The glass louvres are available in various colours, surface finishes and coatings to meet specific design requirements. Depending on the chosen type of glass, frit or film, light and radiation transmission can be accurately achieved for every specific application. Photovoltaic cells may be integrated into the glass louvres so as to obtain further energy benefits.
'Innovative Colt solar shading technology sets the standard'
|
|
Dynamic in their distinctive architectural aesthetics, Levolux glass fins provide an extremely efficient external solarshading system which offers all the advantages of a conventional brise-soleil in controlling solar heat gain and glare while allowing the occupants of the building a greater view to the outside.
A huge level of design flexibility is possible and co-ordination with the building%u2019s external façade may be achieved through the use of glass which can be coloured, silk screened, etched or has other surface finishes or coatings tailored to specific design requirements.
Glass fins are ideally suited to the modern low energy building and can be installed in vertical, horizontal or angled situations and may be either fixed or adjustable to allow precise control of the building%u2019s internal environment.
|
|
The optical impression changes due to the interplay between opaque reflection elements and transparency, between light and shade. The flexibility of the woven structure enables the forms to be varied in a creative way. Hardly any other material can be tensioned over large dimensions without any visible seams. The robust durability of stainless steel is in line with the intelligent facility management.
Sun shadding elements installed 90 deg. to the facade
|
|
The optical impression changes due to the interplay between opaque reflection elements and transparency, between light and shade. The flexibility of the woven structure enables the forms to be varied in a creative way. Hardly any other material can be tensioned over large dimensions without any visible seams. The robust durability of stainless steel is in line with the intelligent facility management.
Sun screen façade for the M-Preis Supermarket in Wattens (A)
|
|
|
|
|
|
LIGHT AND SHADE IN PERFECT HARMONY
Colt Solarfin is a fixed or controllable external solar shading system that may be installed either vertically or horizontally in front of the façade. A Solarfin shading system can reduce solar heat gain, lower air conditioning running costs, and lessen glare whilst maximising the use of natural daylight.
Solarfin solar shading systems consist of extruded elliptical fins within a supporting framework, which also has control mechanisms when it is movable.
Controllable solar shading systems can better optimise the flows of heat and light energy than fixed solar shading systems. Since the louvres are designed to follow the path of the sun, daylight levels may be optimised whilst radiation levels reduced to a minimum. The likelihood of overshading or undershading that frequently occurs with fixed solar shading is reduced, since the louvres are always set to optimum shading angle.

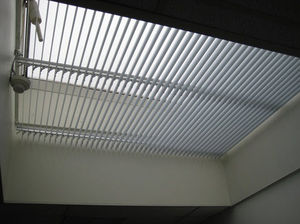

On dull days, light sensors operate to fully open the fins to allow the occupants full vision to the outside at all times. Controllable solar shading is also effective when fitted to glazed rooflights.
An additional benefit is that when closed, Solarfin can provide additional security and can help reduce winter heat loss.
There are many different louvre types available in various colour combinations.
'Colt solar shading systems: the sky's the limit'
|
|
PV SYSTEMS FOR GREATER SUSTAINABILITY
Architects are increasingly aware of the opportunities offered by the use of building-integrated photovoltaics (BIPV).
Colt Shadovoltaic is a fixed or controllable external glazed solar shading system that may be installed either vertically or horizontally in front of the façade. Photovoltaic cells are integrated into the glass so as to generate electricity and also to provide shading.
As with Shadoglass, Shadovoltaic shading systems are operated by linear actuators that have the capability to operate complete facades. There are many options of solar cell, from semi-transparent or fully transparent modules through to completely transparent solar cells, depending on design requirements. This and the chosen type of glass, frit or film determines the light and radiation transmission as well as the amount of power generated.
|
|
DESCRIPTION
Among the building covering solutions available, the Atena Sunscreen staves are especially suited where local screening of direct light is required. Different effects can be obtained as desired, depending on the inclination of the crosspiece used.
TECHNICAL SPECIFICATIONS
External covering with ATENA SUNSCREEN type staves, obtained form profiling of aluminium strips pre-painted on one or both sides, thickness 6/10. Inclination of the staves at45°, 30° or 20° is provided by the various selection of support crosspiece realised by profiling of special aluminium alloy strips with a thickness of 10/10, painted white on both sides.
|
|
Weight: appr. 6,0 kg/m² (1,23 lbs/sqft)
Open area: appr. 51%
Main applications: Facade, Ceiling, Space
the flat surface on one side of the EGLA-TWIN creates a reflection across the full plane
In the direction of the thinner twin wires the mesh is relatively flexible and can be easily adjusted to certain radii
|
|
|
|
|
|
The Luxalon® 70S and 132S Sun Louvre system consist of sturdy Z-shaped panels. The panels are used to achieve a crisp Sun Louvre or façade and result in an aesthetically pleasing overall appearance.
• Roll formed aluminium panels of 70 or 132 mm wide
• Coil coated with UV and scratch resistant Luxacote® coating available in 14 standard
colours. Other colours on request.
• Stylish carrier rails with sliding brackets allow a variable module by which openness
and shading angle can be selected
• 70S and 132S panels can be combined on one support rail
• The Luxalon 70S and 132S system can be installed in three ways:
- Projected horizontally at the top of the glazed area or roof edge
- Positioned vertically
- Combination of horizontal and vertical
- Corner solutions available

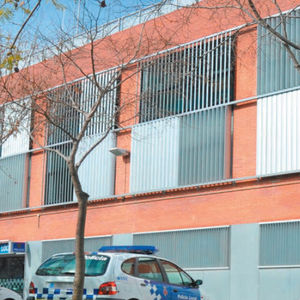

• The vertical Luxalon® 70S and 132S sun louvres combine multiple
functions in a single product:
- The Z-shaped panels have been specially developed as a Sun Louvre
system for façades exposed to low sun angles
- It can also be used as ventilated façade system. Covering for example
installations on rooftops or staircases
|
|
HunterDouglas® Aerofoils are standard available in 6 different sizes and in an adjustable or fixed configuration. The specific fin design allows for larger spans and there is a choice of support structures.
FIXED FIN ANGLE
• The fixed fin support structure has been designed to accommodate any
angle between 0° and 180° with increments of 5 degrees. The fin angle
can be set during installation.
• Fixed fin V-bracket, available in 0, 30 and 45 degree for the 200 - 300AF.
• Fixed fin Cup-bracket, available in 0, 30 and 45 degree for the 350 -
450AF.
The adjustable Aerofoil system gives the user the option of setting the fins at any possible angle from 0 to a maximum of 120 degree at any time. With this motorised system, maximum convenience can be obtained with the optional intelligent control system, which automatically regulates the fins according to the sun path. The high quality materials guarantee this system to operate with a minimum of maintenance.
|
|
Description:
Architectural meshes characterized by a round s
wire with looped edges. Applications:
Wall covering, ceiling panels, facade covering,
railings Material:
Stainless steel Dimensions:
-» 3 mm; $ 15 mm; 0 1,2/2 mm Weight:
11.5 kg Finish:
Matt Width:
Maximum width: 4000 mm Open area:
48% On request:
Other materials: bronze, copper, silver, gold
Other dimension
Welded edges
Flat spiral wire
Other finish: glossy
|
|
The new Universal Curtain Walling bracket offers:
- Easy offsite installation,
- Significant reductions in cold bridging
- Effective Sound Isolation
- Zero Interstitial Condensation risk
A hugely significant development in Solar Shading support systems.
Due to the demands of L2 and the need to reduce the amount of energy that can be absorbed
through the building%u2019s envelope, Levolux has designed, developed, and tested their New Universal Curtain Walling Bracket to help cope with the demands of new building codes and regulations together with the introduction of short nose curtain wall systems.
|
|

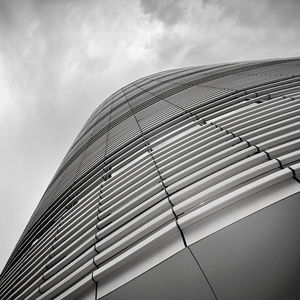

The Levolux Infiniti Fin System is a new external aluminium solar shading system which has been designed to reduce solar heat gain and provide an impressive aesthetic of continuous blades for new and existing buildings.
With its unique, patented design, featuring a 2-part Fin and integral stainless steel locking plate, the Infiniti Fin system is flexible enough to compliment any scheme.
|
|
STOCKAL® is the Novelis brand name for its aluminium sheet pre-painted with polyester based liquid paints. STOCKAL® is eminently suitable for use in the building industry, especially for façade cladding and window flashings. The wide range of colours and the extraordinary workability of the aluminium substrate make STOCKAL® the most versatile material produced by Novelis.
STOCKAL® is characterised by an extraordinary degree of workability. Thanks to its chemical and mechanical characteristics, due to the combination of an EN AW 5010 alloy and polyester based liquid paints, STOCKAL® can be easily worked using the main mechanical working processes: bending, drilling, milling and cutting; these are only part of the standard working processes for STOCKAL®. The use of a special protective liquid coating on the reverse side also makes STOCKAL® suitable for gluing and bonding.
|
|
The unique Levolux Walk-on Brise Soleil provides all the advantages of efficient sunscreening coupled with easy access.
The system can be used on both new and existing buildings. The system comprises a series of %u201CT%u201D tread elements that are spaced to provide shading and also to create a platform.
As a result the Walk-on Brise Soleil prevents the sun%u2019s rays from entering a building while also providing easy access for maintenance and window cleaning.
The virtually maintenance free system is manufactured from light extruded aluminium components and can be supplied mill finished, anodised or polyester powder coated.
The system can be cantilevered from the face of the building or supported on structures by others.
The system can be used on both new build, refurbishment projects or added to existing structures.
|
|
|

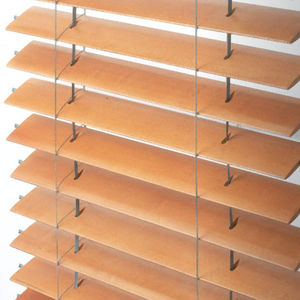

The Levolux Timber Fin Solar Shading system provides a green, natural and attractive method for solar shading. As an alternative to aluminium, Timber Fins offer the advantages and efficiencies of a conventional solar shading system, while dramatically enhancing the building's outer envelope.
|
|
Type : HT.01C
Effect : Plain
Material : Stainless steel Aisi 304 L
Open Area : ~ 36.5 %
Weight : ~ 4.45 Kg/m²
Maximum width : ~ 3250 mm
Application : Ceilings, facades, sun screen, floor carpet, room wall cladding and dividers, product design…
|
|
TOLPHONE: The wall of silence.
Modular range TOLPHONE® of boxes consists of one or two perforated metal faces containing a surfaced phonic absorbent and a possible plenum.
|
|
|
The range of ribbed panels OUTREMER® respects the spirit of your project by offering to you a total freedom of imagination thanks to original esthetic choices: Horizontal or vertical veins, aspect in hollow or relief, choice of the profiles of vein, materials and color with your measurements starting from galvanized steel, prelacquered steel, stainless steel or aluminum. Certain models propose even perforations or shutters between veins.
|
|
Colt Shadometal consists of either curved or straight fabricated metal louvres. If they are perforated, the amount of light and energy transmission can be accurately controlled.
ROBUST AND CORROSION RESISTANT
Colt Shadometal fixed or controllable louvres are available either in polyester powder coated aluminium (to a RAL colour) or in corrosion-resistant stainless steel.
Shadometal louvres can control light entry, provide ventilation whilst maintaining rain defence, to provide screening, or a combination of these. Louvres can also be provided simply for aesthetic impact.
'Ingenious facade design using metal louvres'
|
|

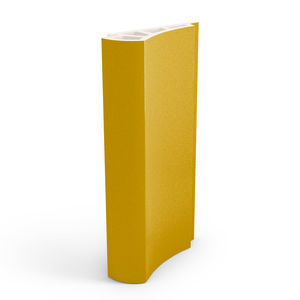

Shamal® is the very latest sunscreen innovation from Terreal. Winner of the Design Trophy at the Batimat2003 fair, the Shamal® system combines good looks (with its aerodynamic ovoid shape) and technical performance (assessed by CSTB). By the shape of the product and the tilt of the system, the Shamal® provides real protection from the sun with improves thermal insulation of buildings. This product is available in 2 widths: 14 and 20 cm.
The Shamal® conforms to standards NF P 13.304 and EN ISO 539.2 Method C and is offered with its own anti-corrosion fixing system.
|
|
Aulan®. Harmatlart® and Zonda® make up the Terreal range of small terracotta sunscreens with 3 widely differing formats:

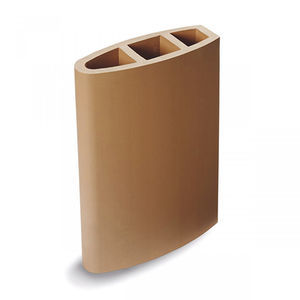

Autan® is square in section, Harmattan® is ovoid and Zonda1® is rectangular (like the shape of a firebrick). These 3 products are used in new building or renovation.
The physical and chemical characteristics are in conformity with standards NF P 13.304 and EN ISO 539.2 Method C: dimensions, appearance, frost, efflorescence.
|
|

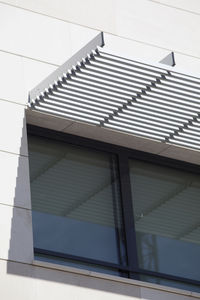

Brise Soleil horizontal with 80 mm C-blade.
The BS-system is a external solar shading, cladding or visual barrier with blades that are fixed to the rails. The unique design of the sliding brackets allow for several shading angles.
Technical details
- Aluminium blade profiles are clipped into aluminium blade support clips.
- Adjustable shading angle.
- Blade height: 80mm.
- Availible with different rails.
Finishing
Natural anodised: 15 to 22 micron.
Other shades possible.
Powder coated in any RAL finish: 60 – 80 micron.
Manufacture
- Ready made or bar length
- Different types of rails and wall brackets
|
|
Brise Soleil horizontal with 95 mm Z-blade.
The BS-system is an external solar shading system with blades in fixed positions.
The unique design of the sliding brackets allow for several shading angles.
Technical details
- Aluminium blade profiles are clipped into aluminium blade support clips.
- Different blade angles possible.
- Blade height: 110mm.
- Fascia Profile.
Finishing
Natural anodised: 15 to 22 micron.
Other shades possible.
Powder coated in any RAL finish: 60 – 80 micron.
Manufacture
- Ready made or bar length
- Different types of rails and wall brackets
|
|
Brise Soleil horizontal with 100 mm C-blade.
The BS-system is an external solar shading system with blades in fixed positions.
The unique design of the sliding brackets allow for several shading angles.
Technical details
- Aluminium blade profiles are clipped into aluminium blade support clips.
- Different blade angles possible.
- Blade height: 100mm.
- Availible with different rafters.
- Fascia profile.
Finishing
Natural anodised: 15 to 22 micron.
Other shades possible.
Powder coated in any RAL finish: 60 – 80 micron.
Manufacture
- Ready made or bar length
- Different types of rails and wall brackets
|
|
|
|
