The PET rigid stem light was developed for the B15d lamp and the special reflector lamps. Clean and simple design. The lamp is secured against unintentional disconnection.
Same design as PET however the stem length is only 50mm/2”
When using plug-in lights of a length of less than 100mm/4” in combination with surface-mount transformers please use reflector lamps with an aluminum coating. The heat from these lamps is directed forward, away from the fitting.
|
|
The OPTIMAL rigid stem light puts into practice the concept of charge of elements. All OPTIMAL metal reflectors can be used. The head has a adjustability of 160º. For use with bi-pin lamps.
|
|
|
A light series developed for professional use. Timeless design with many possibilities: colored lenses, UV filters, louvers etc. Sophisticated metal housing. For use with alutec MR16 lamps (no cool beam).
|
|
|
Range of accent and projection lighting for ceiling/wall, recessed or mounted three circuit tracks. Die-cast aluminium body, extruded and die-cast aluminium or plastic material gearbox. 330° rotation on the vertical axis and 135° on the horizontal plane, as indicated on the fixture. Mechanical click-in front ring to ease periodic servicing. Choice of coloured dichroic filters to create scenographic lighting effects. Large variety of lamp options: for low voltage, mains voltage and discharge. For luminous sources without reflector there is the possibility to have a BUD version with Tre Ci Luce reflectors, with three emissions: 7°, 30° and 70°.
|
|
The Avant lights is characterised by the most comprehensive Lamp range of lamp varieties, sizes, finishes and technical accessories. Minimalist, with stylised proportions it fits perfectly into any architectural atmosphere. There are four very different sizes of models, with two possible finishes, two-tone light/dark grey or matt white. All of these models are available with halogen, metal halide and LED lamps.
This range of lights can be used in places such as shops, museums and galleries since it has technical accessories like refractors, anti-glare grills and colour filters that enable high technical performance levels.
|
|
Delicate and small built-in and surface-mounted spots with great lighting power, designed for the OSRAM MiniStar reflector lamp with bi-pin socket or alternatively fitted with a latest generation 1W power LED.
All metal parts are turned and milled of solid brass or aluminium, and are available in two finishes: satin-nickel or glossy nickel. In the surface-mounted models, the transformer or the LED driver is built into the base. The joints can be swivelled and rotated.
|
|
Bella - Indoor projectors
The line of indoor projectors called Bella is characterized by the wide variety of luminous sources and the linear, discreet design. They can be installed on a track or directly on the ceiling or on the wall. They are made of die-cast aluminium and thermoplastic material. Available in three dimensions with different kinds of luminous sources of various powers.
Bella's line finds its ideal location in shops, as it enhances the products displayed; it can also have different applications: shopping centres, department stores, show-rooms, shops and expositive areas.
|
|

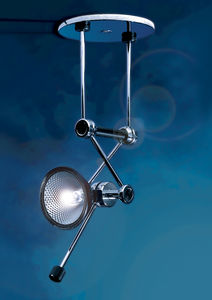

Ray design Afra e Tobia Scarpa
Ray, specifically designed to correctly illuminate works of art. The lighting project for the exhibition of the Carlo Crivelli poliptych at the Academia Galleries of Venice was the “field test” in wich Ray proved to be particularly suitable thanks to its essential and non invasive design. Ray is available with one to eight lights in the wall, ceiling, pendant, track and floor versions, and it can also be applied in commercial and office spaces, in operative or executive rooms and to highlight architecture.
Technical characteristics
- An extrude aluminium electrified bar wich is ancore to an adjustable glass plate by means of two coaxial joints. The plate can house between one and four swinging and rotating lights
- Precision training and adjustment with respect to the surface. Protection glass and tinted filters available
- Wide light beam training adjustment flexibility, even independently: 360° vertically, 45° of the glass plate with respect to the base
|
|
|
PROJECTEUR COVE: projectors for HIT-CE lamps. Mounting of joint in upper position for indirect lighting. Mounting of joint in frontal position for direct lighting. 359° horizontal rotation, +/- 90° vertical inclination.
|
|
|
FIAMMA: projectors for halogen, dichroic and discharge lamps. Precision and adjustability. Possibility of 355° horizontal rotation and 90° vertical rotation, thanks the aiming self-locking system. Professional optics subjected to pure aluminium reflective treatment provide clean and precise beams. Efficiency. The electrical component are separate from the optic unit to optimize heat dispersion, ensuring the lamps maintaining a constant operating temperature. The bayonet system on the whole Fiamma range makes it extremely easy to install and replace lamps, without the need for tools. The possibility of inserting chromatic, UV and corrective filters on the front, or universal chromatic and refractive filters for QR-LP 111 directly on the lamp, offer maximum freedom of expression and design.
|
|
|
Luminy 1 and 2 - Small outdoor accentuation LED Proyectors - 1W or 3W, all LED colours available, great choice of collimators for various light beams opening, easy to install. IP68 for underwater applications
|
|
ArcTone –
choose your own style ArcTone is a range of projectors that create powerful lighting accents – ideal for retail applications such as fashion stores. They have a refined, compact form with curved edges. The combination of black and white, grey or other finishings like chrome, makes the fixture look even smaller and offers maximum variety in fixture appearance.
Thanks to ArcTone’s ‘mix & match’ feature (you can combine the various options, e.g. finishings, colors, lamp types, optics and accessories), the projectors can be customized to the specific application. ...
|
|
UnicOne Pendant Compact –
design, configure and go UnicOne Pendant Compact is a decorative suspended luminaire designed for use in reception halls, lobbies, supermarkets and other high-ceiling interiors.
The UnicOne Pendant Compact can be delivered with a visually calm aluminum cone or a decorative facetted cone of high-quality plastic. All Compact versions offer high levels of lighting based on the latest MASTER lamp technologies.
The UnicOne Pendant range also includes Micro and Micro Twin versions.
|
|
Spot LED - small delight
Featuring an innovative light emitting diode, the Spot LED is a real revolution in accent lighting. With an adjustable projector head of only Ø 31mm, this is an incredibly small luminaire.
It incorporates the LUXEON® K2 high power LED, which delivers more light than ever before and has no UV/IR radiation. Spot LED is available as a complete range - surface mounted, recessed, track mounted and wall mounted.
|
|
|
|
|
|
LED Power-Spot (Single)
10148 ENGLISH 02081.0 kn/mww Printed in Germany
For over four decades, SCHOTT has been developing fiber optic products that
provide interior designers, lighting designers and architects with a broad
range of design options, thus enhancing flexibility for the implementation of
innovative design concepts. To provide latest generation technologies,
SCHOTT also specializes in LED solutions for high end product illumination.
Product Information
The single LED power spot is mounted on a bar.
Different lenses allow for a 15° or 45° beam angle that creates a diffuse or
spotlight effect. The power spot swivels approximately 350 ° and tilts 180 °
and can be connected conventionally or by using SCHOTT "PowerKontakt"
technology.
Advantages
This up to 3 watt strong LED lighting system offers the following advantages:
Approximately 5600 K white light (daylight)
Virtually constant color temperature when the light is dimmed
Long service life (approximately 50,000 hours)
Energy efficient
Dimmable
Adjustable
Excellent temperature management
Applications
Specialized lighting for display cases
Materials
Aluminium
LED
Specifications
Dimensions: Ø25 mm, height: 50 mm
Max. luminous flux: 40 lm
Color temperature: 5600 K
Connection: "Power Kontakt"
Ambient temperature: + 5 °C up to + 40 °C
|
|
|
|
|
|
LL LED POINT is a LED based accent luminaire. The stylish design housing is similar to standard MR16 fixture. The luminaire contains high-power OneChip RGB LEDs with accurate and uniform light distribution. LL LED POINT provides dynamic colour changes of full colour spectrum with continuously variable intensity.
Main applications:
- bars, restaurants, clubs, hotels, stages
- retail environment
- museums, art galleries
Technical Details
--------------------------------------------------------------------------------
Lamp
1xRGB Z-Power P5 3x1W LED
(Red, Green and Blue)
Lifetime
Long lifetime 50 000 hrs
Optic
35mm standard 25°, optional 10°, 40° - on request
Input
3 channels 24V dimming
Connection
24V DC 1,5m cable with XLR 6PIN
Net weight
0,25 kg
Dimensions (LxHxÖ)
Max. 115mm x max 75mm x 52mm without bracket
Protection rating
IP65
Ambient temperature (Ta)
Maximum 40 °C
Cooling
Conventional
Material and finish
Housing: powder-painted anodized aluminium RAL9006
(other colour on request)
Cover: clear or frosted PMMA
Installation
Any position for ceiling, wall and surface-mounting
|
|
|
DAISY-IN is an adjustable recessed unit for installation in low false ceilings or display shelves. The high efficiency and high brightness Light Emitting Diodes utilized offer silent operation, durability and low power consumption. The 3-piece light source used produces, via RGB electronic mixing, an endless palette of attractive pastel or deep colours, which can crossfade slowly or be selected and changed individually. External control is available via DMX512 signal. Various models are available with a choice of assorted beam angle options.
|
|
|
|
|
|
|
The new Graph-i-Spot by GRIVEN is about to set a new standard among its LED colour changer series. A super compact single 3W full-colour LED unit that looks like a cut stone and shines like a diamond, Graph-i-Spot is a fully weatherised IP65 powerful fixture. A new solid state solution that can be easily assembled with other units of its kind in any shape to build a virtual LED screen on almost all surfaces. Graph-i-Spot can easily blend in any sort of indoor or outdoor environment and can be easily integrated with the existing architecture while shaping a brand new outstanding ambience. Graph-i-Spot can accept any graphic, video or still image coming from a DVI media server or DMX 512 signal and the configuration system can then store and trigger the show to a striking visual effect. Professional lighting designers worldwide are clearly going to identify Graph-i-Spot as the new artistic medium for their eyecatching display where light, colour and image converge to create the extraordinary. Graph-i-Spot is available as a 12° powerful and ultra luminous spot or with a dome shaped 120° opaline diffuser for an even better peripheral visibility.
|
|
|
|
|
|
|
Presenting a totally brand new look within the GRIVEN mini colour changing range, MICRO-CLIP is an ultra compact spotlight fixture that houses three high efficiency full colour 3W LEDs. With its IP65 weather protection, MICRO-CLIP is clearly adaptable to a wide range of indoor and outdoor environments. Providing a vibrant and brilliant colour palette from a particularly thin and stylish bodywork, MICRO-CLIP features a straightforward operational efficiency where stand-alone colour sequences are available for spectacular synchronized effects and digital remote control via DMX 512 signal is a standard attribute. The environmental impact of this fitting is really small with no ultraviolet radiation and infrared emanation, an exceptionally low power consumption and a drastically reduced maintenance requirement. Wall-washing, spot lighting, interior and exterior decoration are part of a vast choice of applications assortment enhanced by multiple beam angles options and full orientation pan and tilt mounting position.
|
|
|
Traxon's Spot XB, designed to fit into standard MR 16 housings, offers a prime alternative for conventional down-lighting applications. The Spot XB is a high-power LED fixture fitted with Luxeon® K2 LEDs. The Spot XB is made of an extruded aluminum profile with natural anodized coating, which acts as an efficient heat sink. A selection of optics enables the Spot XB to be used in various accent, niche, spot or focused wall washing applications. The Spot XB is controlled by an easy to use Plug ‘n’ Play LED Engine XB or LED Engine XB Mini. For optimal customization, the LEDs can be connected in any desired combination: RGB, monochrome or any other specified LED combination.
|
|
|
The clean styling and the precision die cast quality of the Elito 053 subtly integrate the discreetly vented lamp housing, wishbone pivot and ceiling/track mounts. The Elito 053 features a low profile gear housing which can be surface or track mounted and encloses the quality electronics required for the LVH and MHB light sources. Slim vent details and inbuilt heat sinking ensure the reliability and performance of the luminaire is not compromised. The Elito 053 is eminently suited to Retail and Accent lighting environments.
|
|
|
Surface Low Voltage Halogen spot. The Conic combines die cast aluminium and vibrant blue glass. Supplied with or without a pre-wired branded electronic transformer featuring short, thermal and overload protection.
|
|
The DIVE projector is a high quality LED colour changer, specifically
designed for underwater applications. DIVE’s RGB colour mixing
system, using high brightness and efficiency LEDs, is shared
with the other LED fixtures of the range and DIVE has the same
innumerable benefits and control options. DIVE, featuring an IP68
(Full Dry) weather protection rating, is the appropriate choice for
various lighting submerged installations, thanks to its capability
to allow total protection against water. A stock mounting bracket
allows surface mounting. Various models are available with different
beam angle options.
|
|
DAU SPOT 6028
Wall mounted lamp with injected aluminium baseboard and extruded aluminium body. Polymer injected base for mounting. Uses GU10 bulb holder for 75 W bulbs. Light beam can be adjusted in two directions: 300° rotation from base axis and 90° tilting of head. Made in brushed satin aluminium. This lamp is part of an extensive range, which includes ceiling lamps, track lights, table lamps and floor lamps.
|
|
TUB 6123
Recess mounted ceiling lamp. Injected aluminium base for mounting, finished in bright chrome. U-shaped injected aluminium support, finished in bright chrome, with transparent glass tube containing main body of lamp (uses GY6.35 bulb holder for 50 W low voltage bulbs). Light beam may be swivelled 300° on base axis and 120° at the head, giving great flexibility for lighting any point round the lamp. A track-mounted version is also available, and a surface mounted version with one or two lights.
|
|
available in many references(single, double, triple, quadra, etc.) of QR111 light source
standard colour: grey
more info: www.orbitbelgium.com
|
|
Available in many different lamp combinations (single, double, triple, quadra versions): QR111, PAR30, CDM-T, SDW-TG, TC-TEL 32-42W, CDM-R, MR16
Coulours: white, black or grey
|
|
Available with:
1 x CDM-TC / HCI-TC
or
1 x CDM-R111
or
1 x QR111
Colours: aluminium
more info: www.orbitbelgium.com
|
|
Hi-power LED Spotlight for Jewelry and Showcase
It creates spectacular visual, boost the beauty and color for jewelry pieces and luxury commodities with maximum glitter.
Model no: AL-SPOT-LED-1GS
Dimensions: Ö17 x H.260 mm
Cut out: Ö28mm
Light source: 1W hi-power LED
Current: 350mA
Color temp: 3000K, 4000K, 6300K
Casing: Alumimun
|
|
Available with:
2 x QR111 100W
Colour: aluminium
Different combinations possible on the Easy Rider bar (2/3/4/6 low voltage spots)
more info: www.orbitbelgium.com
|
|
|
|
