Kalzip liner roof system
Kalzip liner roof systems are predominantly used for new build construction, although they can also be used for refurbishment when required.
The Kalzip liner roof system is ideal where speed of installation on a project is of utmost importance. A non-fragile walkable Kalzip liner sheet can be quickly installed to provide weather cover to allow other trades to work below. The remainder of the roofing components can then be installed without affecting the critical path of the construction programme.
The Kalzip liner roof system has the outer Kalzip standing seam roof sheet and the internal Kalzip liner trapezoidal profiled liner sheet laid in the same direction across roof purlins acting as the primary support.
The Kalzip standing seam roof sheets are supported directly off the roof purlins via the support clips/halters (aluminium clips or E clips) so therefore act independently of the Kalzip liner sheet. When lightweight quilt type insulation is used, the external loads (wind suction, snow, access etc.) are transferred direct to the support purlins and not the liner sheet.
The profile and thickness of the Kalzip standing seam roof sheet will be determined by the external loads and the purlin centres whilst the liner sheet will be determined by its dimensional compatibility with the roof sheet and the internal wind pressure, purlin centres, dead weight of the construction components, its walkability requirement and its non-fragility rating.
|
|
|
|
|
|
Kalzip structural deck roof system
The Kalzip structural deck roof system provides an economical solution for long span installations and eliminates the need for purlins. For enhanced acoustic absorption, decking sheets can be perforated and can support mass, such as increased insulation or board, which may be introduced for more rigorous acoustic specifications.
Where structural decking is installed there is a reduced requirement for secondary steelwork. The Kalzip structural decking sheet is generally laid transverse to the direction of the Kalzip standing seam roof sheet and spans between the main steel rafters. Typical rafter centres would be approximately 3 to 8 metres.
The Kalzip clips are installed in a diagonal layout so that all external roof loads can be evenly distributed to the structural decking sheet. The frequency of clips may be increased at theperimeter of the building where higher wind loads occur.
The gauge and profile of the Kalzip structural decking sheet is therefore determined by the rafter centres, all external roof loads, internal wind loads, service loads (e.g. lighting) and the dead weight of the construction components.
|
|
Original Grandrib 3® and Grandrib 3® PLUS profiles, with their clean traditional lines, are manufactured from only the best prime quality structural steel available—no seconds ever! Our drive to be the best means that we start with the finest materials and finish it with a premium coating system—Enduracote™ 2000.
Whether your application is new or old, commercial, agricultural or residential, Fabral's panels and paint systems are designed to exceed your requirements and expectations. Make Grandrib 3® or Grandrib 3® PLUS panels your choice for all your metal panel building needs.
|
|
Whether it's roofing or siding, no one does it better than Fabral and no one panel fits more applications than Fabral's MP-Panel.
Its tough steel construction and galvanized protective coating make it an economical yet durable solution for most any application. MP-Panel's pleasing vertical lines and thirteen popular colors are perfect for residential, industrial and commercial structures.
|
|
Tite-Loc Plus Panels combine structural panel performance with architectural panel aesthetics. Tite-Loc Plus Panels are corrective leveled to provide superior panel flatness. A factory-applied sealant bead is applied for additional weather resistance. Maximum panel length is 64 feet and minimum panel length is 4 feet.
Tite-Loc Plus Panels feature a 2” leg height that requires mechanical field seaming to 180 degrees after installation. Panels have a concealed-fastener floating clip system designed to allow for thermal expansion/contraction. For further details, please contact PAC.
|
|
|
The roof tile Gerald HERITAGE profits of more than 50ans of research and development of the metal roof tile. The Heritage is formed in a steel panel which reproduces seven horizontal roof tiles. Each panel is profiled to form a covering and an extremely resistant locking, in a traditional and pleasant esthetics
|
|
|
panel sandwich insulation for shelter formed by two paramento metallic with soul injection foam insulation of poliisocianurato PIR
|
|
|
Ziplok can be curved in a variety of ways in order to suit the required application. Profiles can be concave or convex curved. They will self curve to a large radius, otherwise they can be mechanically smooth curved down to 5 metre radius convex curves, or 11 metre radius concave curves. If required profiles can be crimp curved down to 750mm radius. For economical curves, design above 45 metre convex radius.
|
|
COLORBOND® steel for Rainwater Products
Gutter and downpipe systems made from ZINCALUME® steel or COLORBOND® steel are available in a range of profiles to suit any home design or for rainwater collection and distribution in a variety of building applications.
They offer excellent corrosion resistance with a durable and low maintenance paint finish.
Backed by a BlueScope Steel warranty
Available in a range of stylish colours
Cost competitive and fast to install
Oven-baked, finish will resist peeling flaking - the result being reduced maintenance
The protective alloy coating of ZINCALUME® steel provides a life expectancy more than double that of ordinary galvanised steel providing value for money rainwater goods
|
|
Panel of Bora cover
Cover of roofing for the restoration and the new buildings, out of steel. Light modular elements, simple Assembly, Insulation, Gamme supplements accessories.
The Bora panel is a technical product combining the functions of cover, bearing structure, insulation and ceiling. It is composed outside an enamelled profile, of a polyurethane foam heart and of an interior steel facing enamelled slightly ribbed. Technical Assitance, standard lengths in stock in the trader, complete range of accessories of installation: Armat puts the solution Bora system at the range of the house building entreprise.
|
|

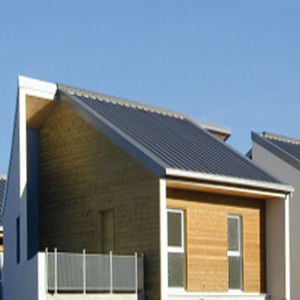

Profile of cover Mauka Line
Esthetic profile for the residential one (for the restoration and the nine). Choice of colors, invisible Fixings, Poses simple and fast, Grande longevity.
The profile of cover Mauka Line, renews the esthetics of the covers steel in the residential construction industry. It is integrated easily into architectural projects of new housings, as well as of restoration. The principle of innovating assembly, hidden fixings, allows an implementation facilitated for an at the same time economic and esthetic roofing.
|
|
Profile of cover Mauka Vendôme
Cover of roofing for the restoration and the new buildings, out of steel. Residential esthetics with round waves, Colors especially developed for the residential one, Poses fast
Inspired by the esthetics of the traditional metal roofings, Mauka Vendôme aspires to renew the esthetics of the cover steel in the residential one. It takes again a round wave strong height with an easy step of 50 cm to calepiner. The implementation is connected with that of the vat traditional steel and offers all its advantages: speed of installation, lightness, range and economy. Seven exclusive colors and a range of discrete accessories develop its authenticity and make it possible your imagination to integrate it in the history of our landscapes.
|
|
|
|
|
|
Cover of roofing for the restoration and the new buildings, out of steel. Light modular elements, simple Assembly, Gamme supplements accessories.
>Leger: Easy to handle. Adapted to the light frames. Restoration of roofing with fragile frames. Restoration of the roofings shingle. Great ranges: Thanks to its strong nervuration and its thickness of steel, Mauka makes it possible to space the breakdowns. Restoration of the roofings asbestos cement.
>Great ranges: Thanks to its strong nervuration and its thickness of steel, Mauka makes it possible to space the breakdowns. Restoration of the roofings asbestos cement.
>Weak slope: Technical standards and recommendations into force define the slopes minimum between 5 and 15% according to the environment and fix the conditions of implementation. Also for extensions of the apartment buildings.
>Esthetics: Several colors available. Restoration of the additional buildings of the dwelling. Weak slope: Technical standards and recommendations into force define the slopes minimum between 5 and 15% according to the environment and fix the conditions of implementation. Also for extensions of the apartment buildings.
>Pose fast: Several m2 posed at the same time. Can be curved
>Regulator of condensation in Economic option in complete cost posed: Speed of installation. Lightening of the structure.
>Guarantee 10 years: Steel of ArcelorMittal origin.
|
|
Profile of Mauka cover More
Cover of steel roofing for the restoration and the new buildings, with system of drainage of condensates. Light ultra modular elements, simple Assembly, System of drainage fixed in sousface.
Mauka Plus is a steel container whose under-face is covered with a specific not woven textile fiber. This one absorbs the condensates which are evacuated by drainage towards outside. A note of installation which it is advisable to respect scrupulously is available on request. Technical assistance, complete range of accessories of installation, standard products in stocks in the trader... Armat puts all works about it to make available to the artisanal company from the building from the complete systems of cover steel.
|
|
|

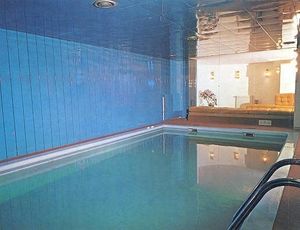

HAIRAQUATIC system for very-high-humidity systems such as swimming pools.
|
|
|
This system has high sound attenuation performances, which is the reason why it is frequently used for conference rooms. Its underside is flat and perforated with secret fix insulation thus affording a carefully thought out inside finish. This system entirely meets the requirements of the 2005 Thermal Regulations.
|
|
|
For buildings needing interior lighting, we also offer compatible translucent panels or skylight bases
|
|
|
For buildings needing interior lighting, we also offer compatible translucent panels or skylight bases.
|
|
|
A wide choice of coatings and finishes is available and the profiles can be combined with other system components to meet budgetary, aesthetic and performance requirements. Systems incorporating structural decks and trays as the internal liner are also available to minimise the requirement for purlins and to offer acoustic solutions.
|
|
|
A wide choice of coatings and finishes is available and the profiles can be combined with other system components to meet budgetary, aesthetic and performance requirements. Systems incorporating structural decks and trays as the internal liner are also available to minimise the requirement for purlins and to offer acoustic solutions.
|
|
A pre-painted steel product is generally composed of three elements: a base layer of steel with a zinc-based coating, a layer of primer and a surface layer of paint called the finish.
The choice of support directly affects the installation of pre-painted steel products and their resistance to corrosion. If the product requires high corrosion resistance, it is best to use a thick zinc layer. Nevertheless, if the part is to be used in works subject to severe deformations, a thinner zinc coating is recommended as it is more flexible and resistant to cracking.
|
|
|
Metl-Span III CFR Roof panel is an insulated metal standing seam roof panel and is the newest innovation in all-in-one composite roof panel design, combining durable interior and exterior faces with Metl-Span's unmatched Blister-Free polyurethane core. The CFR insulated metal standing seam roof panel is a truly unique answer to many deficiencies common with more traditional roofing materials of the past.
|
|
The PBR panel can be used for roof or wall applications. Minimum slope is 1/2:12.
Product Features:
- Coverage Width – 36”
- Minimum Slope – ½:12
- Panel Attachment – Exposed Fastening System
- Panel Substrate – Galvalume®
- Gauge – Standard: 26 Optional: 29, 24 and 22
- Finishes – Standard: Smooth Optional: Embossed
- Coatings – Galvalume Plus®, Signature® 200, Signature® 300
|
|
Stormproof® is a roof and wall panel ideal for use for residential, light commercial, farm and ranch buildings, canopies and storage buildings.
Product Features:
- Coverage Width – 36”
- Minimum Slope – 3:12
- Panel Attachment – Exposed Fastening System
- Panel Substrate – Galvalume®
- Gauge – Standard: 29 Optional: 26
- Finishes – Standard: Striated Optional: Striated minor ribs
- Coatings – Galvalume Plus®, Signature® 200
|
|
5V-Crimp roof panel system offers an ideal old-time residential appearance. These water shedding panels require a minimum slope of 3:12.
Product Features:
- Coverage Width – 24”
- Minimum Slope – 3:12
- Panel Attachment – Exposed Fastening System
- Panel Substrate – Galvalume® Plus or Galvanized
- Gauge – Standard: 29 Optional: 26
- Finishes – Standard: Smooth
- Coatings – Galvalume Plus®, Signature® 200
|
|
Out of synthetic rubber, the sealing of the roofings residential, additional, terraces, verandas and garages ensure, in restoration as into nine.
Characteristics:
Neutral for the environment
Excellent resistance to the severe climates
Very good behavior in time
No hot welding
|
|
Rigidal's range of Creative Profiles has been created in order to allow the designer total freedom of expression. Whether they are sinusoidal, trapezoidal, zig-zag, or combinations of all three, the Creative Profiles can also be perforated and embossed in an endless variety of patterns.
Manufactured in custom shapes, sizes and colours they bring a new dimension to creative floor, wall and ceiling design, as well as colums or canopies - indeed anywhere that can benefit from a fresh approach to the design of metal cladding. The only limit is the imagination of the designer.
|
|
The PBC panel can be used for roof or wall applications. Minimum roof slope is 3:12.
Product Features:
- Coverage Width – 32”
- Panel Attachment – Exposed Fastening System
- Panel Substrate – Galvalume®
- Gauge – Standard: 26 Optional: 29, 24 and 22
- Finishes – Standard: Smooth Optional: Embossed
- Coatings – Galvalume Plus®, Signature® 200, Signature® 300
|
|
LYSAGHT CUSTOM ORB® is the famous BlueScope Lysaght Australian corrugated profile, equally at home with traditional and contemporary design. It is long, wide, strong, lightweight and economical. It can be aligned quickly and easily. Add up these features and you have a steel roof or wall cladding that simply offers outstanding value.
- Can be used for both roofing and walling applications
- Available in standard COLORBOND® steel and COLORBOND® Metallic steel colours and ZINCALUME® steel (for extreme conditions COLORBOND® Ultra steel may be made available)
- Roof sheet lengths of up to 24m can be used before an expansion joint is required
|
|
|
|
