Tilt-and-turn window :

24 products

16 products in		Casement windows
11 products in		Aluminium joinery
6 products in		PVC joinery
6 products in		Wood joinery
4 products in		French windows

+ Other...

Tilt and turn window

| |

16 products in

Casement windows

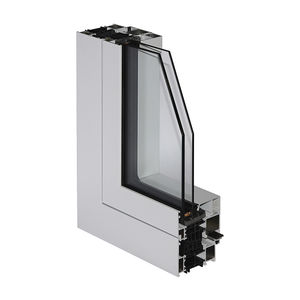

Aluminium tilt-and-turn window Reynaers
CS 77

CS 77 is a thermally improved three-chamber system for windows and doors that boasts the optimum combination of safety and comfort. Fibreglass reinforced polyamide strips with ribs and/or hollow chambers guarantee high thermal insulation levels.
The system is available in a variety of aesthetic shapes to match the current architectural trends whilst offering all types of both inward and outward opening windows and doors. A double butt strip
between the frame and vent and a lowered drainage ensure superior wind and water tightness. Different inner and outer colours are possible.

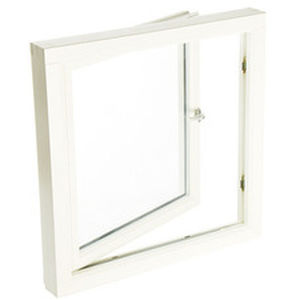

Wooden tilt-and-turn window MARVIN

Overview
-The Tilt Turn window is a dual-functioning window: swing it in like a door
or tilt the top of the sash into your room for ventilation.
-One handle controls both operations.
-A great window for emergency exit access and easy cleaning.
-Four variations offer lots of design possibilities.
-The tilt-in Hopper is the perfect companion to the Tilt-Turn, offering
additional air and light.

Standard Features
-Clear, one-lite insulating glass
-Bronze handle
-2 13/32" (61 mm) jambs
-Bare wood interior
-Screen
-Vinyl Drip Cap and nailing fin (clad units)

Aluminium tilt-and-turn window EFCO

Series 1325 retains an AAMA Architectural Grade rating to meet the most demanding specifications. This dual action window is designed to meet the needs of applications requiring ventilation, easy cleaning and high performance. The 1325 window system is an attractive product for a wide range of applications. A thermal barrier in the frame improves thermal performance, enhancing energy saving potential. The clean lines of the window and hardware give it European styling that will complement most architectural designs.

PVC tilt-and-turn window Rehau
PLATINIUM DESIGN

The windows mark the frontages of their prints and contribute to accentuate the seal and the beauty of it. We offer with range REHAU Platinium-Design a modern esthetic solution to the soft and round forms, in phase with waitings of the consumers. The range is declined in a broad pallet of decorations and colors which can be personalized by using the common platform of the systems of French and European windows REHAU.

PVC tilt-and-turn window Internorm
DIMENSION 4

The uPVC/aluminium window DIMENSION 4 has four-fold protection : The special composite construction means that sun and privacy protection can be built-in between the panes.This also means that this remarkable window has sound-proofing properties of 44dB and thanks to the excellent heat insulation, the heat consumption is reduced to a sensational Uw = 0.89 W/m²K.

The innovative Fix-O-Round Technology which ensures perfect all-round fixing of the window pane, improved security, fully-concealed fittings and much more all make this a truly remarkable window.

PVC tilt-and-turn window Internorm
THERMO 3

UPVC/aluminium windows in innovative designs with modern glass appearance, superior thermal insulation due to highly insulating thermal foam and triple insulating glass as standard. In the standard configuration THERMO 3 already complies with passive house standards with Uw = 0.75 W/m²K and with corresponding glazing it achieves sensational thermal insulating values up to Uw = 0.72 W/m²K and soundproofing up to 46 dB. In the version certified by the Passive House Institute in Darmstadt this window is additionally equipped with highly insulating thermal foam and thermally separated structural support.
THERMO 3 is only available with an aluminium shell on the outside and may be designed in many different colours. Additionally this window may be combined with sun, privacy and insect protection.

PVC tilt-and-turn window Internorm
PASSION VETRO-DESIGN

NEW - The UPVC/Aluminium window in straight lined, edged frame design with modern glass appearance, superior thermal insulation achieved through highly insulating
thermal foam and standard triple glazing. With the right glazing the PASSION Vetro design can achieve the amazing thermal insulation value Uw up to 0.82 W/m²K and sound insulation up to 43 dB.

The PASSION Vetro design is exclusively available with an aluminium cladding on the outside and may be manufactured in many different colours. Additionally this window may be combined with sun, privacy and insect protection.

PVC tilt-and-turn window Internorm
PASSION

The new UPVC window from Internorm is a milestone in design and technology. A unique, up-to-date design, outstanding heat insulation of up to Uw=0,80W/m²K, a patented glazing system for excellent stability and functionality, increased security, comfort and more, let you enjoy the new dimension to your life!
This UPVC window is available in the Classic design in neutral white on the interior and exterior. You can also choose from a Decor, wood grained appearance on the interior and the Exclusive style available in all colors on the exterior.
Customized designs are also available. Sun and insect protection systems, which coordinate perfectly with di[me]nsion or which are partially integrated, are also available. di[me]nsion is perfectly combineable with all design variations of the ed[it]ion wood/aluminum window system.

PVC tilt-and-turn window Internorm
DIMENSION+

Give your life a beautiful new dimension!

DIMENSION+ is the innovative uPVC window par excellence - NEW, now with triple glazing in series (Austria) for maximum heat-insulation. Prepare to be tempted by its unique design, sensational heat insulation properties ( up to Uw = 0,86 W/m²K, sound insulation of up to 46 dB, Fix-O-Round Technology for perfect all-round adhesion of glazed areas, fully protected fittings and much more.
DIMENSION+ is available in all three designs and can be finished in several colours. In addition, this window can be combined with sunscreening, insect-proofing and visibility protection. As the associated version, DIMENSION4, it is also available with integral sunscreening between the panes. Internorm can supply matching balcony and patio doors in the same impressive quality.

Wood-aluminium tilt-and-turn window Internorm
VARION

VARION combines contemporary design of sophisticated glass architecture with high energy efficiency through triple glazing and highly insulating thermal foam. Therefore it combines climate protection with living comfort.

All VARION models are equipped with triple glazing ensuring high thermal insulation values up to Uw = 0.74 W/m²K and soundproofing up to 43 dB. They may be designed in many different colours, in combination with sun, privacy or insect protection, and is also available as a compound window VARION 4 with integrated sun protection between the panes.

Wood-aluminium tilt-and-turn window Internorm
VARION 4

Wood/aluminium composite window VARION 4 featuring a frameless glossy-glass-look wing and four-fold protection: next to increased heat and sound insulation, the special composite construction offers sun and privacy protection, integrated and consequently protected between the panes. VARION 4 features frameless glass optics by allowing the window to be fitted with the frame "disappearing" in the masonry.

Enjoy glass architecture in perfected design coupled with maximum comfort: the homely effect of wood inside, strom-proof aluminium outside and high-insulation thermal foam in between, featuring sensational insulation values: heat insulation up to Uw = 0,63 W/m²K, sound insulation to a standard of 44 dB.

Wooden tilt-and-turn window Benito Sistemas
Ebana Elite

Designed for very demanding singular projects and rural projects of
one-family traditional housing, where priority is given to the choice of the
quality of the material and its services of safety, insulation and decoration
along the lines of the current trends.

Coefficient of Thermal Transmission: Or (W/m2. K) = 1,7
Results reached in laboratory accredited by ENAC:
Air Permeability (Permeability to the Air): Class 4 (Max)
Watertight to the Water: E 900 (Exceptional)
Wind-Resistant: C5 (Max)
Soundproofing: 40dB
*Test realized in window of two leaves
Section of Carpentry: 68-105-120 and 140 mm (s/p) || 105-120 and 140 mm
(c/p)
Secret Bi-component Profile in support with break of thermal bridge that increases
the chamber of drain.
Section of Leaf : 68x78mm
Glazing: 26 and 32 mm, raising to the maximum the levels of thermal insulation and
soundproofing.
Axle Channel Iron-work: 13 mm. Offering major safety anti-plaque.
TWO joints of Rubber (EPDM) Perimetre shape in leaf plus gacket/joint support
Three Types of Interior Moulding: Classic, soft and rustic.
False “Goterón” big leak in Leaf: It improves the aesthetics of the window, at the
same time that it makes it more watertight.
Inverter: It provides symmetry in the leaves, both from the interior and from the
exterior.
Overlap Interior Jonquil: It offers a better aesthetics.
Exterior Silicone: Atmospheric Agents-Resistant.
Optional Secret Ironwork: It improves the aesthetics of the window concealing the
hinges.
Optional Security WK2: It includes iron-works in steel that increase the safety

Wooden tilt-and-turn window Benito Sistemas
Ebania Básica

Thought for the urban projects of the most traditional building, where priority is given to the functionality of the product, without renouncing the high laboratory results.

Coefficient of Thermal Transmission: U (W/m2. K) = 1,8
Results reached in laboratory accredited by ENAC:
Air Permeability (Permeability to the Air): Class 4 (Max)
Watertight: E 900 (Excepcional)
Wind-Resistant: C5 (Max)
Soundproofing: 36dB
*Test realized in window of two leaves with ledge.
Section of Carpentry: 62-105-120 and 140 mm (s/p) || 105-120 and 140 mm
(c/p)
Section of Leaf: 58x71mm
Glazing: 22 and 26 mm, that allows to raise to the maximum the levels of thermal
insulation and soundproofing. Free of jonquils.
Axle Channel Iron-work: 9 mm.
One joint of Rubber (EPDM) Perimetrical in leaf plus gacket/joint support
Three Types of Interior Moulding: Classic, soft and rustic.
Exterior Silicone: Atmospheric Agents-Resistant.
Optional Secret Iron-Work: It improves the aesthetics of the window (It eliminates
at sight the presence of the hinges).
Optional Security WK2: It includes iron-works in steel that increase the safety.

Wood-aluminium tilt-and-turn window BUONANNO
RUBINO

A rounded, light shape makes this product an economical but good quality choice. It's ideal for those who prefer unusual exteriors. Optimum quality/price ratio. Open joint aluminium/wood system with internal overlap and coplanar exterior. The wooden parts are anchored from the aluminium external profiles by means of fixing blocks (Double Block) and with Epdm-Dutral seals inserted between closely positioned parts to prevent the two different materials from touching each other.

... products without information

Aluminium tilt-and-turn window SAVIO

Aluminium tilt-and-turn window INSTALLUX
ESPACE 50

... see all the products in the category

Casement windows

11 products in

Aluminium joinery

Aluminium tilt-and-turn window Reynaers
CS 77

Aluminium tilt-and-turn window EFCO

Wood-aluminium tilt-and-turn window Internorm
VARION

Wood-aluminium tilt-and-turn window Internorm
VARION 4

Wood-aluminium tilt-and-turn window BUONANNO
RUBINO

Aluminium tilt-and-turn french window sapa building system
CONFORT 50

French windows with the Frenchwoman with casements, swinging. Composed of profiled out of aluminum enamelled three rooms with rupture of thermal bridge. 55 mm thickness door frame and opening of 65 mm with invisible drainage. Proposed with 22 mm height panels to right angle (Classic), round (Futuro) or decorative (Rustic). Central joint in Epdm or TPE. Filling by panel or double glazing up to 45 mm thickness.

Wood-aluminium tilt-and-turn french window Benito Sistemas
Blinder Xana

Being XANA our ecological window, it is made of wood with FSC stamp of controlled felling.

Coefficient of Thermal Transmission: U (W/m2. K) = 2,0
Results reached in laboratory accredited by ENAC:
Air Permeability: Clase 4 (Max)
Watertight: E 1050 (Excepcional)
Wind-Resistant: C5 (Max) Aislamiento
Soundproofing: 35dB
*Test realized in window of two leaves with ledge.
Section of Carpentry: 60 mm (s/p) || 100-120-140 and 150 mm (c/p)
Section of Leaf: 62,5x68mm. Glazing: 22 mm (bajo emisivo).
Axle Channel Iron-work: 9 mm.
A perimetrical continuous gasket in Frame: Excellent Watertight.
Monoblock PVC: It provides good watertight and makes easier the assembly
of work.
Seguridad WK2: It includes iron-works in steel and down Lever in passive leaf
that increase the safety.
Laminated Certified wood

Wood-aluminium tilt-and-turn french window Benito Sistemas
Blinder Urbana

Indicated for urban projects of both building and restoration, where priority is given to the solution of easy placement in work. The version R or C define the profile of straight or curved aluminium.

Coefficient of Thermal Transmission: U (W/m2. K) = 2,0
Results reached in laboratory by accredited ENAC:
Air Permeability: Class 4 (Max)
Watertight: E 1050 (Exceptional)
Wind-Resistant: C5 (Max)
Soundproofing: 35dB
*Test realized in window of two leaves with ledge.
Section of Carpentry: 60 mm (s/p) || 100-120-140 and 150 mm (c/p)
Section of Leaf: 62,5x68mm. Glazing: 22 mm.
Axle Channel Iron-work: 9 mm.
A perimetrical continuous gasket in Frame: Excellent Watertight.
Monoblock PVC: It provides good watertight and makes easier the assembly
of work.
Optional Secret Iron-Work: It improves the aesthetics of the window.
Optional Security WK2: It includes iron-works in steel that increase the safety.

Wood-aluminium tilt-and-turn french window Benito Sistemas
Blinder Premier

This new system, of high safety provisions and maximum insulation, is the
high range of the mixed systems.

Coefficient of Thermal Transmission: U (W/m2. K) = 1,9
Results reached in laboratory accredited by ENAC:
Air Permeability: Class 4 (Max)
Watertight: E 1500 (Exceptional)
Wind-Resistant: C5 (Max)
Soundproofing: 39 dB
*Test realized in window of two leaves with ledge.
Section of Carpentry: : 67 mm (s/p) || 107-127 147 and 157 mm (c/p)
Section of Leaf: 69x80mm. Glazing: 30 mm.
Axle Channel Iron-work: 113 mm. Offering major safety anti-plaque.
A perimetrical continuous gasket in Frame + A perimetrical continuous
gasket in Leaf: Excellent Watertight.
Inverter: It provides symmetry in the leaves, both from the interior and from the
exterior.
Monoblock PVC: It provides good watertight and makes easier the assembly
of work.
Optional Secret Iron-Work: It improves the aesthetics of the window.
Optional Security WK2: It includes iron-works in steel that they increase the
safety.

... products without information

Aluminium tilt-and-turn window SAVIO

Aluminium tilt-and-turn window INSTALLUX
ESPACE 50

... see all the products in the category

Aluminium joinery

see the results for the following category : PVC joinery

		- Other...
4 products in		Hardware for doors and windows
